◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#71079) — 415 parça

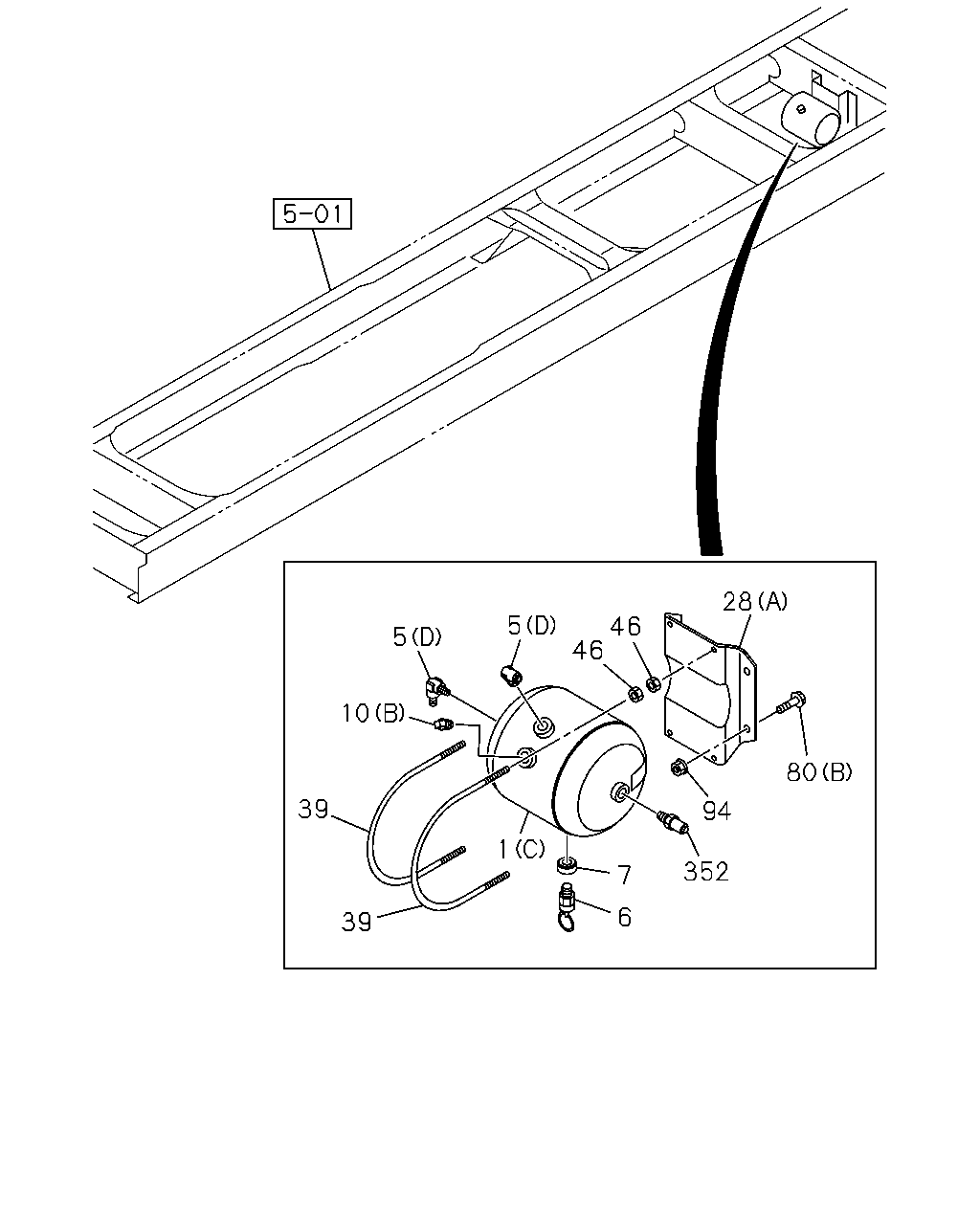

çizim 115410
28 80 94 352 7 6 46 46 5 5 10 39 39 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(D) 		8-98166-972-0 01 1 1307- ● ●
1 TANK ASM; AIR
(B) 		1-48330-598-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(E) 		1-48370-954-0 01 1 1307- ● ●
1 TANK ASM; AIR
(A) 		1-48370-541-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(F) 		8-97622-812-0 01 1 1307- ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(G) 		8-97623-480-0 01 1 1307- ● ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(E) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1307- ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1307- ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 04 1 1011-1306 ● ●
5 UNION; AIR TANK
(F) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
5 UNION; AIR TANK
(B) 		8-98111-509-0 02 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1011- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1011- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1011-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1307- ● ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(E) 		8-98244-607-0 01 1 1307- ●
28 BRACKET; AIR TANK
(C) 		8-98237-322-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(F) 		8-98238-311-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(D) 		8-98237-624-0 01 1 1307- ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(G) 		1-53318-338-6 01 1 1307- ● ●
28 BRACKET; AIR TANK
(A) 		8-98100-165-3 01 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(H) 		1-47478-941-0 01 1 1307- ● ●
39 U-BOLT; AIR TANK
L=210 		1-48317-458-1 02 1 1011-1306 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1011-1306 ● ●
80 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 20 1 1307- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 1011-1306 ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ● ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 1011-1306 ● ●
80 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1011-1306 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 16 1 1307- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 1011-1306 ● ●
352 CONNECTOR; STRAIGHT 1-09650-283-1 01 1 1011-1306 ● ●

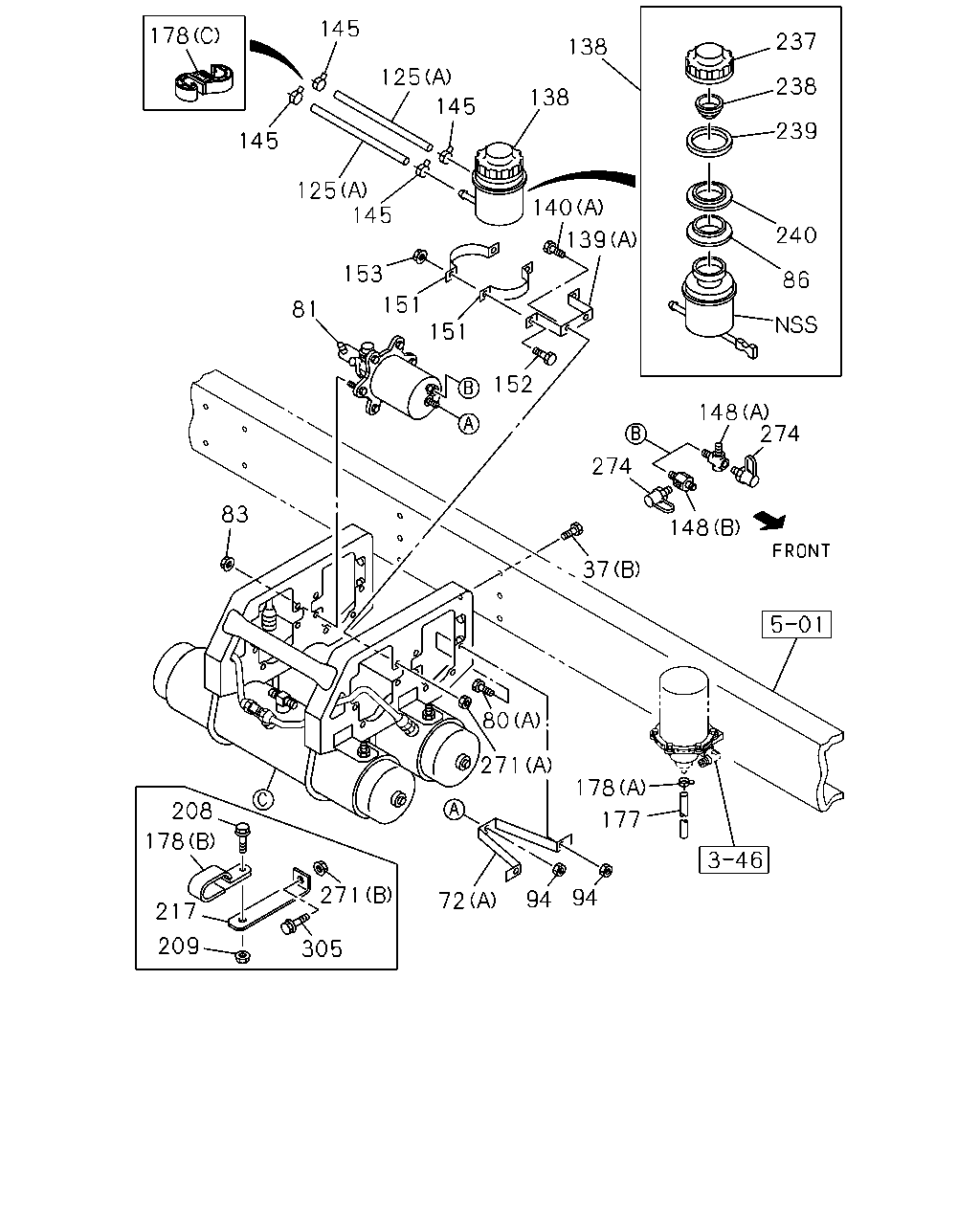

çizim 189253
145 145 125 138 138 145 125 178 145 153 151 151 81 152 140 237 139 238 239 240 86 148 274 148 274 37 80 83 208 178 217 209 271 305 72 94 94 177 178 271
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1307- ● ●
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1011- ● ●
72 BRACKET; AIR MASTER
(B) 		8-98230-373-0 01 1 1307- ● ●
72 BRACKET; AIR MASTER
(C) 		8-98230-374-0 02 1 1307- ● ●
72 BRACKET; AIR MASTER
(D) 		8-98230-375-0 01 1 1307- ● ●
72 BRACKET; AIR MASTER
(E) 		8-98244-177-0 02 1 1307- ● ●
72 BRACKET; AIR MASTER
(A) 		8-98120-254-0 02 1 1011-1306 ● ●
72 BRACKET; AIR MASTER
(F) 		8-98230-371-0 02 1 1307- ● ●
80 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 20 1 1307- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 1011-1306 ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ● ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 1011-1306 ● ●
80 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-665-1 02 1 1011-1306 ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 04 1 1307- ● ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 08 1 1011-1306 ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 16 1 1307- ● ●
86 SEAL; DUST 1-47529-019-0 01 1 1011- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1011-1306 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 16 1 1307- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 1011-1306 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(C) 		8-98229-722-0 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(D) 		8-98229-723-1 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98241-391-0 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 1011-1306 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(F) 		8-98229-725-1 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98098-558-0 01 1 1011-1306 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(E) 		8-98244-384-0 01 1 1307- ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1011- ● ●
139 BRACKET; OIL TANK
(A) 		1-47537-081-2 01 1 1011-1306 ● ●
139 BRACKET; OIL TANK
(B) 		8-97622-132-0 01 1 1307- ● ●
140 BOLT; OIL TANK TO BRKT
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1011-1306 ● ●
140 BOLT; OIL TANK TO BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1011-1306 ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 12 1 1307- ● ●
148 CONNECTOR; AIR MASTER
(A) DIN1/8 & M16X2 3WAY 		1-09656-462-1 01 1 1011-1306 ● ●
148 CONNECTOR; AIR MASTER
(B) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1011-1306 ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1011-1306 ● ●
151 BAND; OIL TANK,AIR MASTER 8-97620-570-0 02 1 1307- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 1011- ● ●
178 CLIP; HOSE
(C) ID=12 & 12 		1-09709-280-1 01 1 1011-1306 ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 1011- ● ●
178 CLIP; HOSE
(B) 		9-09917-171-0 01 1 1011-1306 ● ●
208 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
217 BRACKET; RUBBER HOSE
L=112 		1-47475-694-1 01 1 1011-1306 ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1011- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1011- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 1011- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1011- ● ●
271 NUT; BRKT,HOSE
(B) M8 FLANGE 		0-91180-108-0 01 1 1011-1306 ● ●
271 NUT; BRKT,HOSE
(A) M10 FLANGE 		0-91180-210-0 02 1 1011-1306 ● ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1011-1306 ● ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 04 1 1307- ● ●
305 BOLT; BRKT,HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1306 ● ●

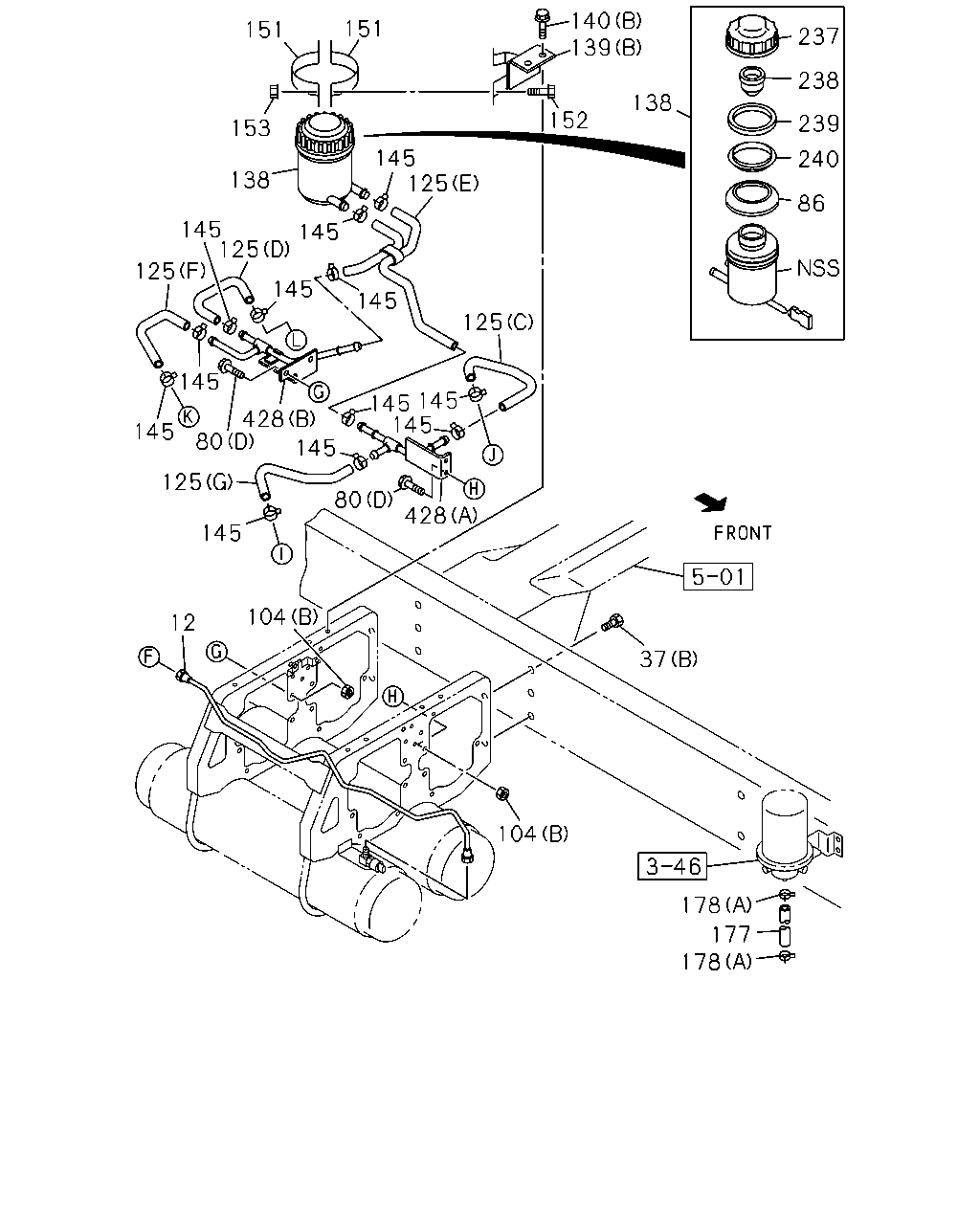

çizim 189258
151 151 153 138 145 125 125 145 145 125 145 125 145 145 145 428 80 145 428 145 145 125 145 80 104 152 12 140 139 138 237 238 239 240 86 37 104 178 177 145 178
BalonParca AdiParca NoAdetTipApplied Date A B
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
L=1097 SERVICED BY L=1100 		1-49115-486-0 01 1 1307- ●
12 PIPE ASM; AIR,AIR TANK TO AIR TANK
L=1133 SERVICED BY L=1200 		1-49115-487-0 01 1 1307- ●
37 BOLT; AIR TANK
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1307- ● ●
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1011- ● ●
80 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 20 1 1307- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 1011-1306 ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ● ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 1011-1306 ● ●
80 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
86 SEAL; DUST 1-47529-019-0 01 1 1011- ● ●
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1307- ● ●
104 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(C) 		8-98229-722-0 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(D) 		8-98229-723-1 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98241-391-0 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 1011-1306 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(F) 		8-98229-725-1 01 1 1307- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98098-558-0 01 1 1011-1306 ● ●
125 HOSE; OIL TANK TO AIR MASTER
(E) 		8-98244-384-0 01 1 1307- ● ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1011- ● ●
139 BRACKET; OIL TANK
(A) 		1-47537-081-2 01 1 1011-1306 ● ●
139 BRACKET; OIL TANK
(B) 		8-97622-132-0 01 1 1307- ● ●
140 BOLT; OIL TANK TO BRKT
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1011-1306 ● ●
140 BOLT; OIL TANK TO BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1011-1306 ● ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 12 1 1307- ● ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1011-1306 ● ●
151 BAND; OIL TANK,AIR MASTER 8-97620-570-0 02 1 1307- ● ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 1011- ● ●
178 CLIP; HOSE
(C) ID=12 & 12 		1-09709-280-1 01 1 1011-1306 ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 1011- ● ●
178 CLIP; HOSE
(B) 		9-09917-171-0 01 1 1011-1306 ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 1011- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 1011- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 1011- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 1011- ● ●
428 PIPE; OIL TANK TO AIR MASTER
(A) 		8-98244-368-0 01 1 1307- ● ●
428 PIPE; OIL TANK TO AIR MASTER
(B) 		8-98244-369-0 01 1 1307- ● ●

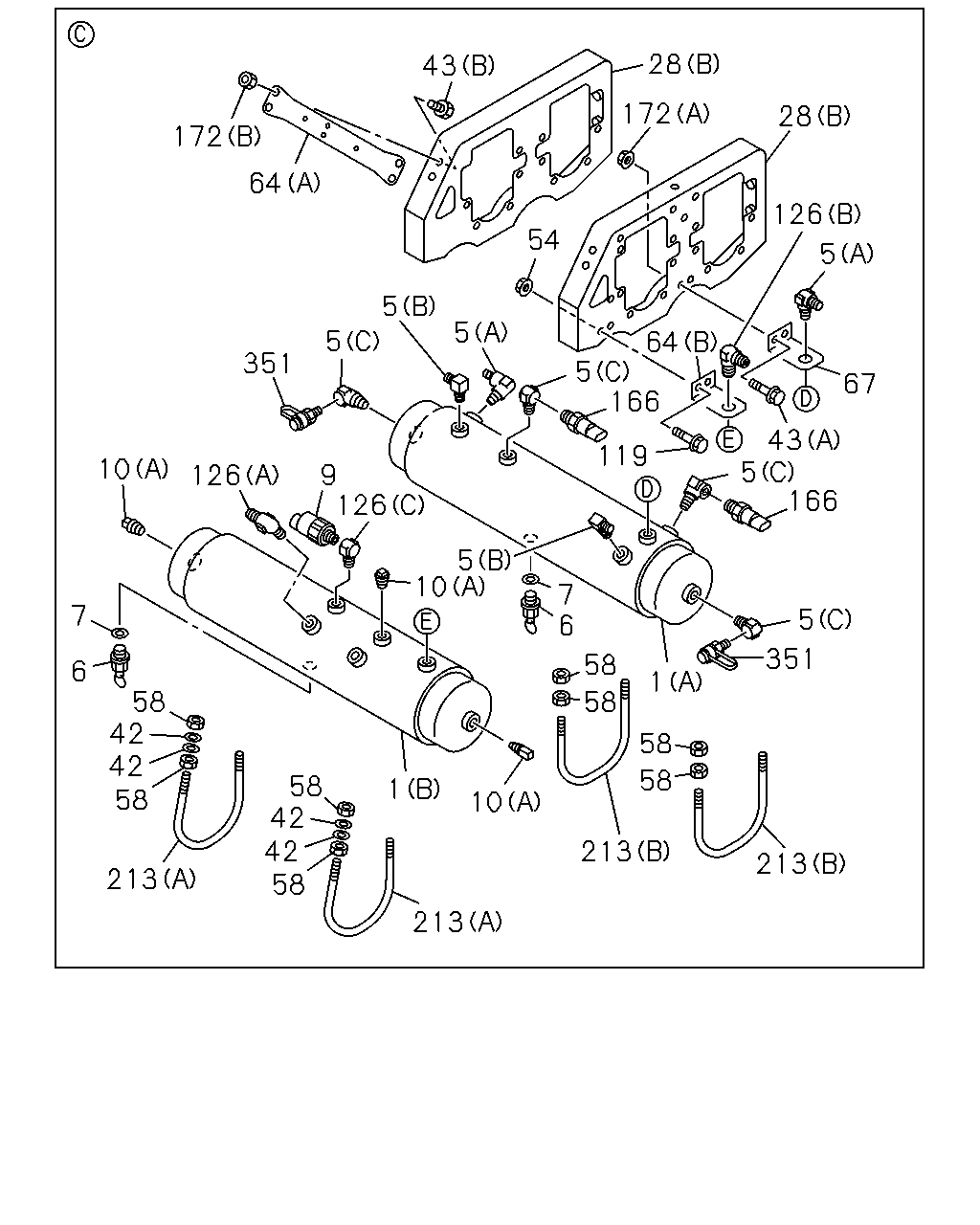

çizim 189260
213 213 58 10 1 58 58 58 213 1 58 42 42 58 213 58 58 42 351 166 5 5 43 119 166 64 5 5 5 7 6 10 126 351 5 64 172 43 54 172 28 28 126 67 5 126 10 7 5 42 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(D) 		8-98166-972-0 01 1 1307- ● ●
1 TANK ASM; AIR
(B) 		1-48330-598-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(E) 		1-48370-954-0 01 1 1307- ● ●
1 TANK ASM; AIR
(A) 		1-48370-541-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(F) 		8-97622-812-0 01 1 1307- ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(G) 		8-97623-480-0 01 1 1307- ● ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(E) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1307- ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1307- ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 04 1 1011-1306 ● ●
5 UNION; AIR TANK
(F) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
5 UNION; AIR TANK
(B) 		8-98111-509-0 02 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1011- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1011- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1011-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1307- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 01 1 1011-1306 ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 02 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1307- ● ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(E) 		8-98244-607-0 01 1 1307- ●
28 BRACKET; AIR TANK
(C) 		8-98237-322-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(F) 		8-98238-311-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(D) 		8-98237-624-0 01 1 1307- ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(G) 		1-53318-338-6 01 1 1307- ● ●
28 BRACKET; AIR TANK
(A) 		8-98100-165-3 01 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(H) 		1-47478-941-0 01 1 1307- ● ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 1011- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1011- ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 08 1 1307- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 1011- ● ●
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 1011- ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-94301-490-0 01 1 1011-1306 ● ●
64 STAY; AIR TANK,MAIN
(C) 		1-48317-349-0 01 1 1307- ● ●
67 STAY; SUB TANK 8-97614-753-0 01 1 1011-1306 ● ●
67 STAY; SUB TANK 8-98230-370-0 01 1 1307- ● ●
119 BOLT; STAY
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
126 CONNECTOR; ELBOW
(E) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 04 1 1307- ● ●
126 CONNECTOR; ELBOW
(G) 		1-09656-736-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(J) M16X2 & R3/8 & RC1/4 4WAY ELBOW 		8-98061-136-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1307- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1011- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 02 1 1011-1306 ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 1307- ● ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 1011- ● ●
213 BOLT; U AIR TANK
(C) L=210 		1-48317-458-1 02 1 1307- ● ●
213 BOLT; U AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 1011- ● ●
213 BOLT; U AIR TANK
(B) L=195 		1-48317-367-2 02 1 1011- ● ●
351 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1011-1306 ● ●

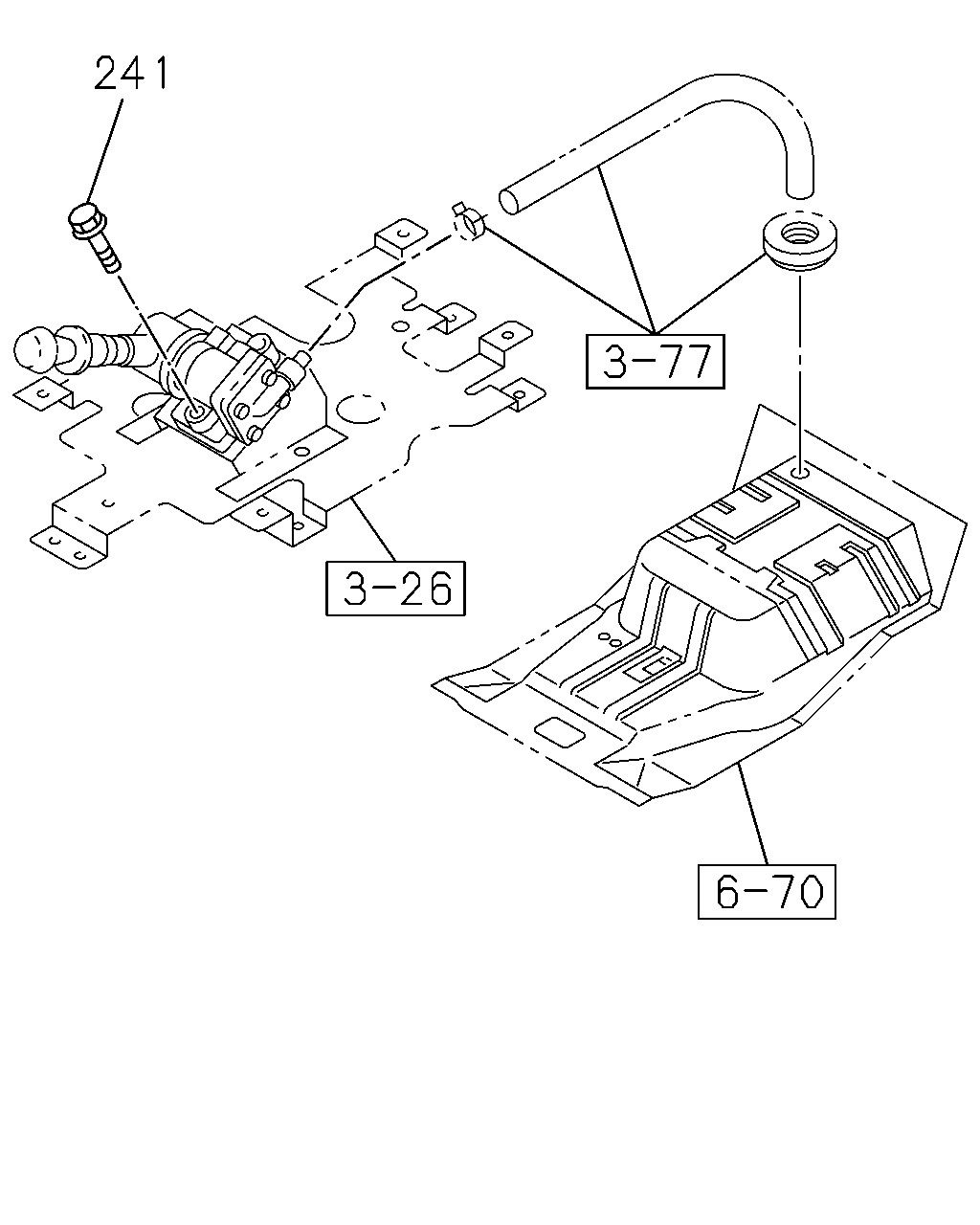

çizim 363223
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1011- ● ●

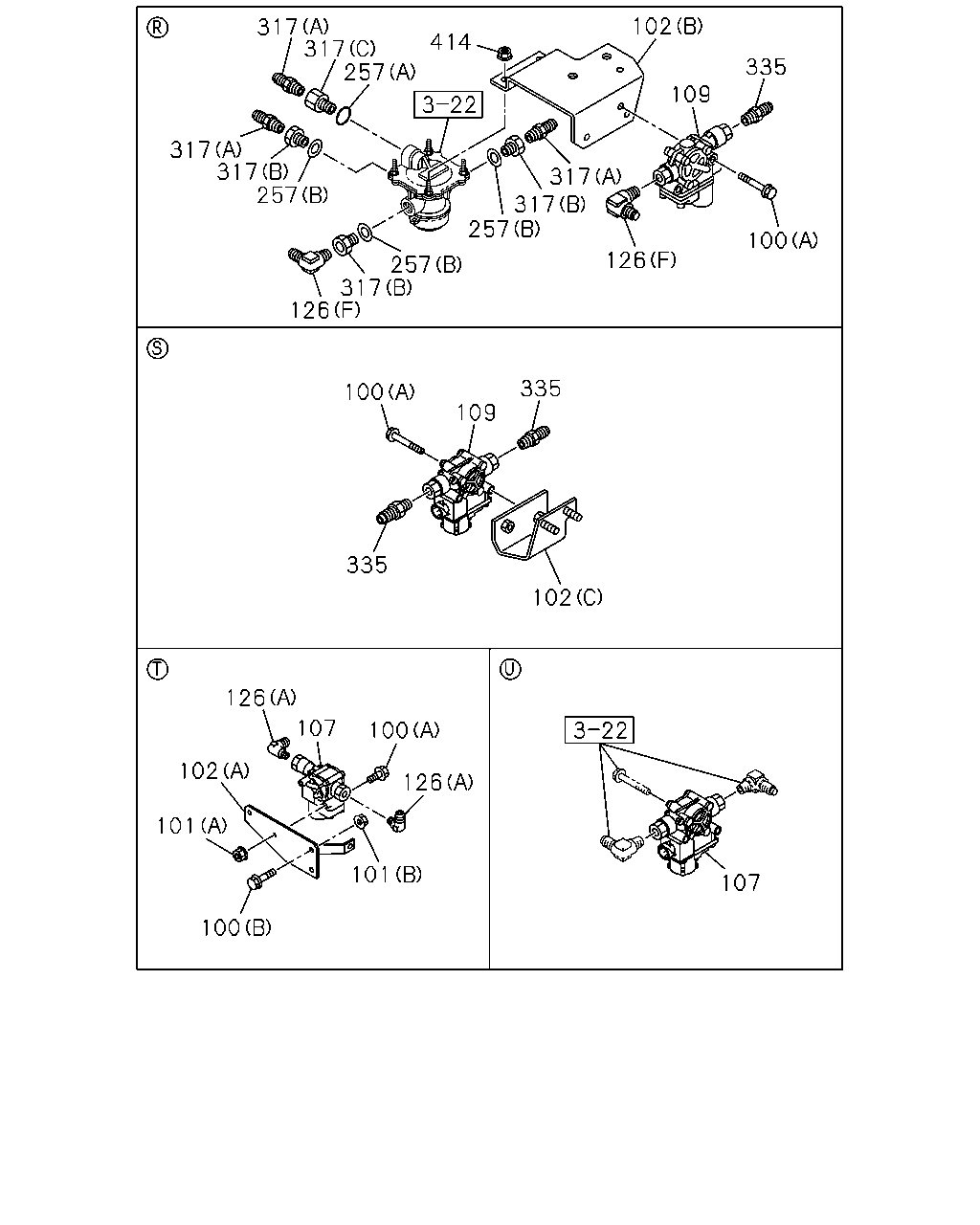

çizim 364026
317 414 317 317 257 257 317 126 257 257 317 317 109 102 335 100 126 317 100 109 335 102 335 126 100 107 102 101 126 101 100 107
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 06 1 1307- ● ●
100 BOLT; MODULATOR
(B) M10X25 FLANGE 		0-28651-025-0 05 1 1307- ● ●
101 NUT; MODULATOR
(A) M8 FLANGE 		0-91180-108-0 04 1 1307- ● ●
101 NUT; MODULATOR
(B) M10 FLANGE 		0-91180-210-0 03 1 1307- ● ●
102 BRACKET; MODULATOR
(A) 		8-97623-022-1 01 1 1307- ● ●
102 BRACKET; MODULATOR
(B) 		8-98237-174-0 01 1 1307- ● ●
102 BRACKET; MODULATOR
(C) 		8-98237-212-0 01 1 1307- ● ●
107 MODULATOR; RR 8-98215-453-0 02 1 1307- ● ●
109 MODULATOR; FRT 8-98244-861-0 02 1 1307- ● ●
126 CONNECTOR; ELBOW
(E) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 04 1 1307- ● ●
126 CONNECTOR; ELBOW
(G) 		1-09656-736-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(J) M16X2 & R3/8 & RC1/4 4WAY ELBOW 		8-98061-136-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1307- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1011- ● ●
257 GASKET; PLUG
(A) ID=16.2 OD=24 		9-09571-416-0 01 1 1307- ● ●
257 GASKET; PLUG
(B) ID=22.5 		9-09571-422-0 03 1 1307- ● ●
317 CONNECTOR; MODULATOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1307- ● ●
317 CONNECTOR; MODULATOR
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1307- ● ●
317 CONNECTOR; MODULATOR
(C) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1307- ● ●
335 CONNECTOR; MODULATOR
M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1307- ● ●
414 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●

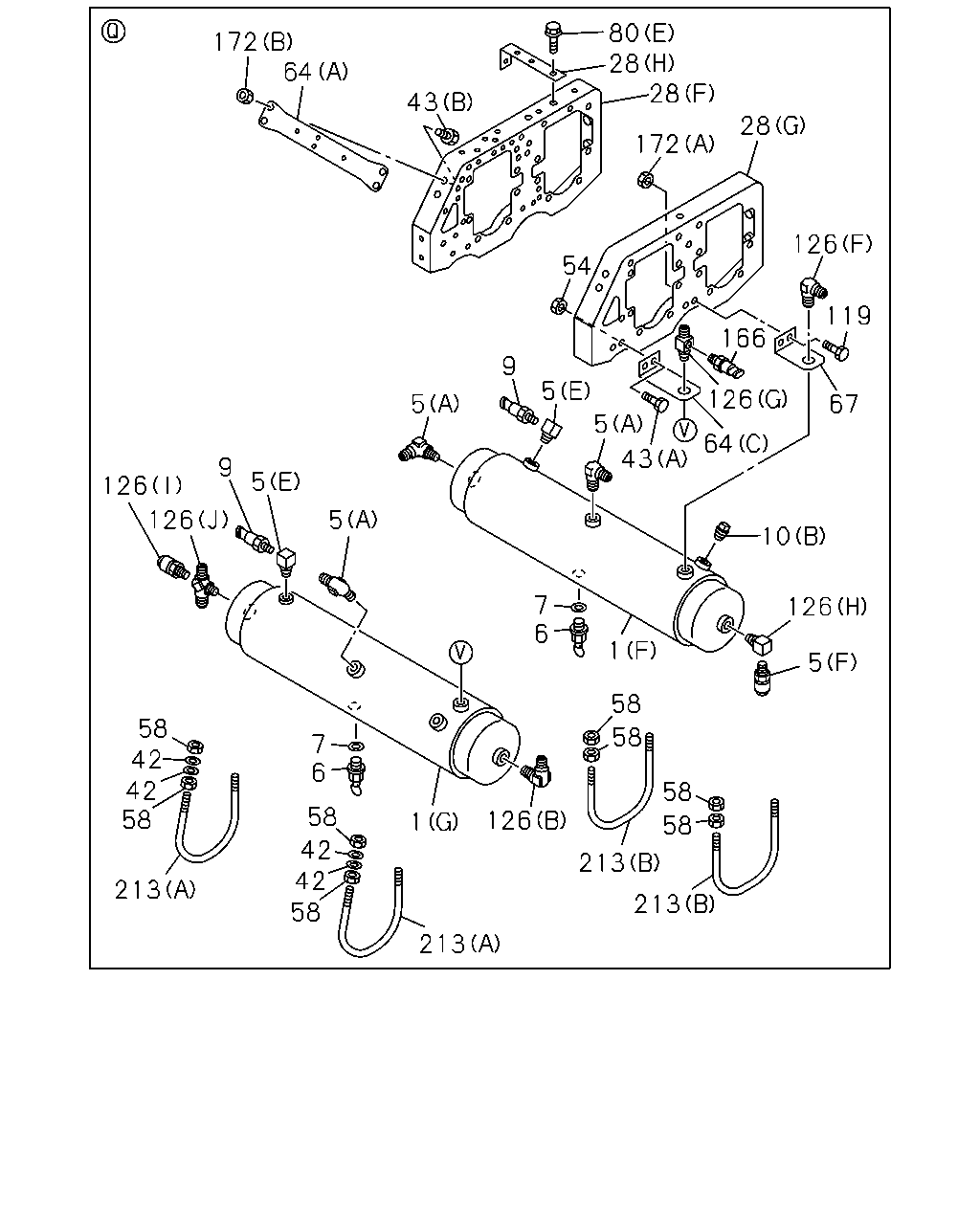

çizim 365675
172 80 28 126 172 28 119 166 67 126 5 43 64 5 10 126 5 7 6 1 5 9 54 58 58 58 58 213 213 126 213 1 58 58 42 42 6 58 42 42 58 7 126 126 9 5 5 64 43 28 213
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(D) 		8-98166-972-0 01 1 1307- ● ●
1 TANK ASM; AIR
(B) 		1-48330-598-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(E) 		1-48370-954-0 01 1 1307- ● ●
1 TANK ASM; AIR
(A) 		1-48370-541-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(F) 		8-97622-812-0 01 1 1307- ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(G) 		8-97623-480-0 01 1 1307- ● ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(E) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1307- ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1307- ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 04 1 1011-1306 ● ●
5 UNION; AIR TANK
(F) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
5 UNION; AIR TANK
(B) 		8-98111-509-0 02 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1011- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1011- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1011-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1307- ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 01 1 1011-1306 ● ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 02 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1307- ● ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(E) 		8-98244-607-0 01 1 1307- ●
28 BRACKET; AIR TANK
(C) 		8-98237-322-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(F) 		8-98238-311-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(D) 		8-98237-624-0 01 1 1307- ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(G) 		1-53318-338-6 01 1 1307- ● ●
28 BRACKET; AIR TANK
(A) 		8-98100-165-3 01 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(H) 		1-47478-941-0 01 1 1307- ● ●
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 1011- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1011- ● ●
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 08 1 1307- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 1011- ● ●
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 1011- ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-94301-490-0 01 1 1011-1306 ● ●
64 STAY; AIR TANK,MAIN
(C) 		1-48317-349-0 01 1 1307- ● ●
67 STAY; SUB TANK 8-97614-753-0 01 1 1011-1306 ● ●
67 STAY; SUB TANK 8-98230-370-0 01 1 1307- ● ●
80 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 20 1 1307- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 1011-1306 ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ● ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 1011-1306 ● ●
80 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
119 BOLT; STAY
M8X20 FLANGE 		0-28650-820-0 02 1 1011- ● ●
126 CONNECTOR; ELBOW
(E) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 04 1 1307- ● ●
126 CONNECTOR; ELBOW
(G) 		1-09656-736-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(J) M16X2 & R3/8 & RC1/4 4WAY ELBOW 		8-98061-136-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1307- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1011- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 02 1 1011-1306 ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 1307- ● ●
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 1011- ● ●
213 BOLT; U AIR TANK
(C) L=210 		1-48317-458-1 02 1 1307- ● ●
213 BOLT; U AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 1011- ● ●
213 BOLT; U AIR TANK
(B) L=195 		1-48317-367-2 02 1 1011- ● ●

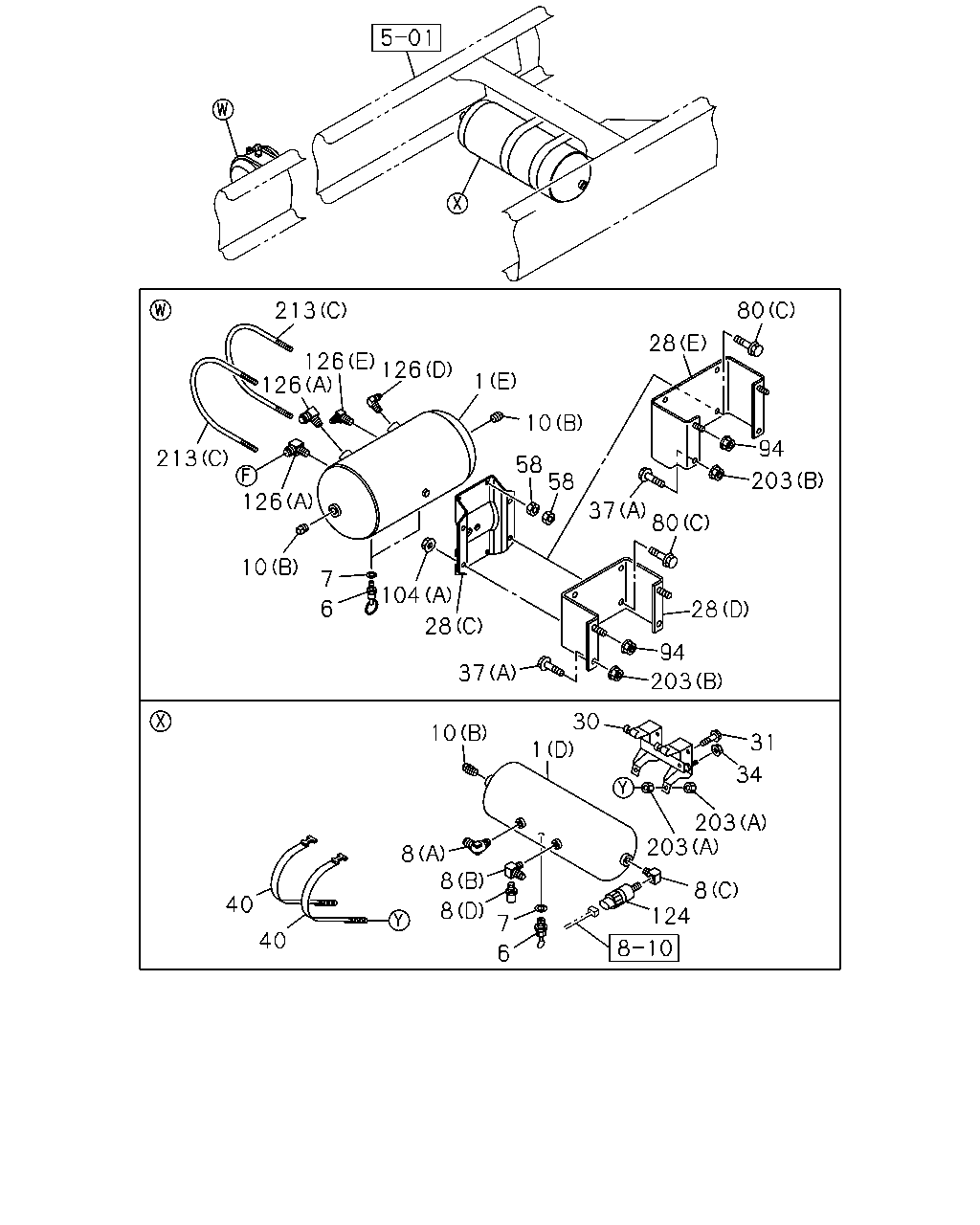

çizim 365824
213 126 126 126 10 58 213 58 1 126 10 5 6 104 28 37 203 28 94 37 80 94 28 80 203 30 10 1 31 34 203 203 8 8 8 8 7 6 124 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(D) 		8-98166-972-0 01 1 1307- ● ●
1 TANK ASM; AIR
(B) 		1-48330-598-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(E) 		1-48370-954-0 01 1 1307- ● ●
1 TANK ASM; AIR
(A) 		1-48370-541-0 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(F) 		8-97622-812-0 01 1 1307- ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 1011-1306 ● ●
1 TANK ASM; AIR
(G) 		8-97623-480-0 01 1 1307- ● ●
5 UNION; AIR TANK
(D) M12 & PT3/8 ELBOW 		1-09650-436-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(E) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 1307- ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1011-1306 ● ●
5 UNION; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 03 1 1307- ● ●
5 UNION; AIR TANK
(C) PT1/4 2WAY 		1-09660-693-0 04 1 1011-1306 ● ●
5 UNION; AIR TANK
(F) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
5 UNION; AIR TANK
(B) 		8-98111-509-0 02 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1307- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1011- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1011-1306 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1307- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1011- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1011-1306 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1307- ● ●
8 CONNECTOR; AIR TANK
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307- ● ●
8 CONNECTOR; AIR TANK
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1307- ● ●
8 CONNECTOR; AIR TANK
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307- ● ●
8 CONNECTOR; AIR TANK
(D) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1307- ● ●
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 03 1 1011-1306 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(E) 		8-98244-607-0 01 1 1307- ●
28 BRACKET; AIR TANK
(C) 		8-98237-322-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(F) 		8-98238-311-0 01 1 1307- ● ●
28 BRACKET; AIR TANK
(D) 		8-98237-624-0 01 1 1307- ●
28 BRACKET; AIR TANK
(B) 		1-53318-338-6 02 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(G) 		1-53318-338-6 01 1 1307- ● ●
28 BRACKET; AIR TANK
(A) 		8-98100-165-3 01 1 1011-1306 ● ●
28 BRACKET; AIR TANK
(H) 		1-47478-941-0 01 1 1307- ● ●
30 BRACKET; AIR TANK,SUB 1-48317-897-1 01 1 1307- ● ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 1307- ● ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
37 BOLT; AIR TANK
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1307- ● ●
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1011- ● ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 1307- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 08 1 1307- ● ●
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 1011- ● ●
80 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 20 1 1307- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 1011-1306 ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ● ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 1011-1306 ● ●
80 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1011-1306 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 16 1 1307- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 1011-1306 ● ●
104 NUT; BRKT
(A) M10 		0-91110-510-0 04 1 1307- ● ●
104 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 04 1 1307- ● ●
124 SWITCH; AIR PRESSURE 8-97615-622-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(E) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(F) M16 & PT3/8 ELBOW 		1-09650-438-0 04 1 1307- ● ●
126 CONNECTOR; ELBOW
(G) 		1-09656-736-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(H) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(I) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(J) M16X2 & R3/8 & RC1/4 4WAY ELBOW 		8-98061-136-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 1307- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1011-1306 ● ●
126 CONNECTOR; ELBOW
(D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1307- ● ●
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1011- ● ●
203 NUT
(A) M8 		0-91110-508-0 04 1 1307- ● ●
203 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
213 BOLT; U AIR TANK
(C) L=210 		1-48317-458-1 02 1 1307- ● ●
213 BOLT; U AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 1011- ● ●
213 BOLT; U AIR TANK
(B) L=195 		1-48317-367-2 02 1 1011- ● ●

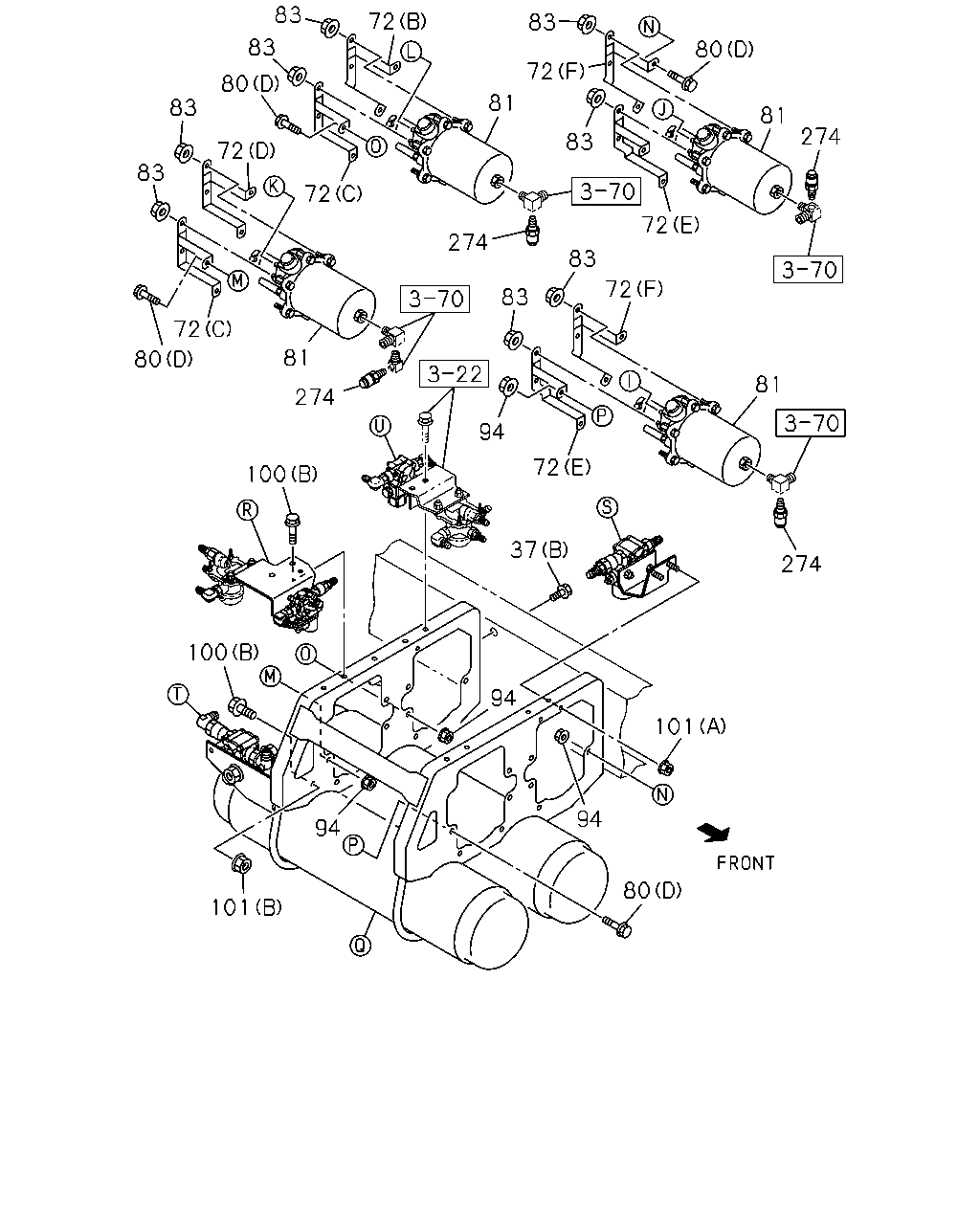

çizim 365829
83 83 80 83 83 72 72 72 80 81 274 83 72 83 80 81 72 83 83 72 81 81 274 37 72 94 100 100 274 80 101 94 101 94 72 94 274
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1307- ● ●
37 BOLT; AIR TANK
(B) M12X40 FLANGE 		0-28651-240-0 06 1 1011- ● ●
72 BRACKET; AIR MASTER
(B) 		8-98230-373-0 01 1 1307- ● ●
72 BRACKET; AIR MASTER
(C) 		8-98230-374-0 02 1 1307- ● ●
72 BRACKET; AIR MASTER
(D) 		8-98230-375-0 01 1 1307- ● ●
72 BRACKET; AIR MASTER
(E) 		8-98244-177-0 02 1 1307- ● ●
72 BRACKET; AIR MASTER
(A) 		8-98120-254-0 02 1 1011-1306 ● ●
72 BRACKET; AIR MASTER
(F) 		8-98230-371-0 02 1 1307- ● ●
80 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 20 1 1307- ● ●
80 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 1011-1306 ● ●
80 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 04 1 1307- ● ●
80 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 03 1 1011-1306 ● ●
80 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-665-1 02 1 1011-1306 ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 04 1 1307- ● ●
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 08 1 1011-1306 ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 16 1 1307- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 1011-1306 ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 16 1 1307- ● ●
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 1011-1306 ● ●
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 06 1 1307- ● ●
100 BOLT; MODULATOR
(B) M10X25 FLANGE 		0-28651-025-0 05 1 1307- ● ●
101 NUT; MODULATOR
(A) M8 FLANGE 		0-91180-108-0 04 1 1307- ● ●
101 NUT; MODULATOR
(B) M10 FLANGE 		0-91180-210-0 03 1 1307- ● ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1011-1306 ● ●
274 CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 04 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
