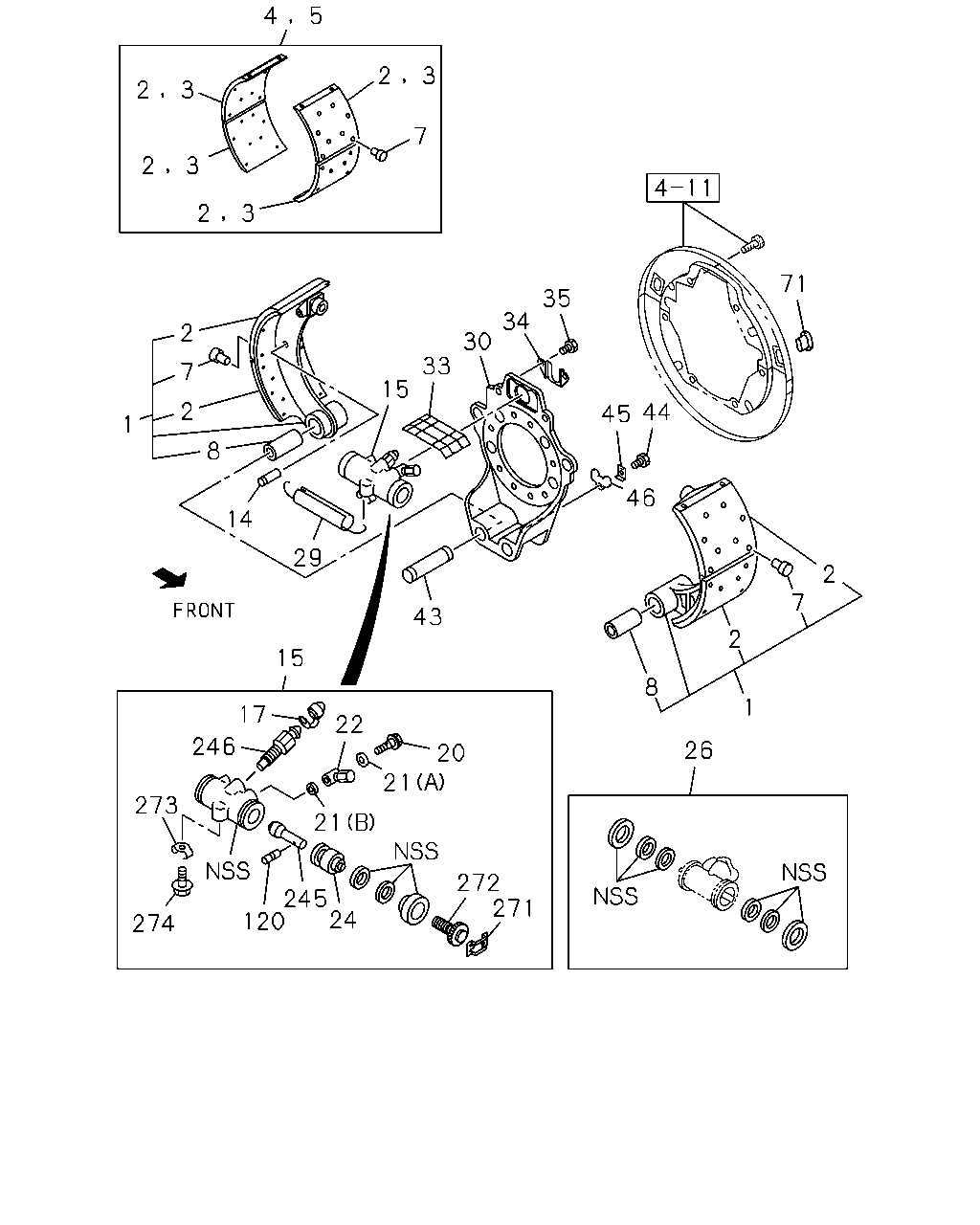

3-01 — FRONT WHEEL BRAKE
(#71074) — 37 parça
Tümü
A - FGS5MS
B - FGS5WS
4
5
3
2
7
2
2
2
3
3
3
71
2
7
2
1
8
26
272
46
44
45
35
34
30
33
15
2
2
1
7
8
14
15
29
43
20
271
21
22
21
24
245
120
274
273
17
246
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,FRT
LEADING
1-47170-518-0
02
1
1011-
●
●
1
SHOE; BRK,FRT
TRAILING
1-47170-519-0
02
1
1011-
●
●
2
LINING; FRT BRK SHOE,STANDARD
1-47126-818-0
08
1
1011-
●
●
3
LINING; FRT BRK SHOE,OVER SIZE
1-47126-819-0
08
1
1011-
●
●
4
LINING SET; FRT BRK,STANDARD
1-88311-402-0
02
1
1011-
●
●
5
LINING SET; FRT BRK,OVER SIZE
1-88311-403-0
02
1
1011-
●
●
7
RIVET; LINING,FRT BRK
L=18.5
1-09732-034-0
80
1
1011-
●
●
8
BUSHING; BRK SHOE
1-47112-011-0
04
1
1011-
●
●
14
PIN; SHOE RETURN SPR
1-47119-134-0
04
1
1011-
●
●
15
CYLINDER; WHEEL,FRT BRK
1-47601-092-1
01
1
1011-
●
●
15
CYLINDER; WHEEL,FRT BRK
1-47601-093-1
01
1
1011-
●
●
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12
1-47619-011-0
02
1
1011-
●
●
20
BOLT; JOINT
M12X40.5 EYE BOLT
1-47634-006-0
02
1
1011-
●
●
21
GASKET; UNION BOLT
(A) ID=15.2
1-09630-019-0
02
1
1011-
●
●
21
GASKET; UNION BOLT
(B) ID=12.2
1-09630-020-0
02
1
1011-
●
●
22
JOINT; PIPE
1-47631-057-1
02
1
1011-
●
●
24
PISTON; FRT WHEEL CYL
1-47624-369-0
04
1
1011-
●
●
26
CUP SET; FRT WHEEL CYL
1-87830-930-0
02
1
1011-
●
●
29
SPRING; RETURN,FRT BRK SHOE
1-09583-362-0
04
1
1011-
●
●
30
BRACKET; ANCHOR,FRT
1-47137-570-0
01
1
1307-
●
●
30
BRACKET; ANCHOR,FRT
1-47137-513-0
02
1
1011-1306
●
●
30
BRACKET; ANCHOR,FRT
1-47137-569-0
01
1
1307-
●
●
33
COVER; WHEEL CYL
1-47159-197-0
02
1
1011-
●
●
34
PLATE; DIRECTION,FRT
1-47159-094-0
02
1
1011-
●
●
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50551-235-0
04
1
1011-
●
●
43
PIN; ANCHOR
L=106.5
1-47131-038-0
04
1
1011-
●
●
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
1011-
●
●
45
WASHER; LK
1-47133-011-0
02
1
1011-
●
●
46
PLATE; LOCK
1-47133-005-0
02
1
1011-
●
●
71
GROMMET; CHECK HOLE
1-09333-151-0
04
1
1011-
●
●
120
SPRING; LK,ADJ,FRT WHEEL CYL
1-09580-544-0
04
1
1011-
●
●
245
SHAFT; ADJ
1-47623-027-1
04
1
1011-
●
●
246
BLEEDER
1-47615-002-0
02
1
1011-
●
●
271
CLIP; ADJ
1-47621-016-0
04
1
1011-
●
●
272
ADJUSTER; MANUAL
1-47621-015-0
04
1
1011-
●
●
273
HANGER
1-47619-145-0
02
1
1011-
●
●
274
BOLT; HANGER
M8X16 W/LK WASHER
0-50540-816-0
02
1
1011-
●
●
