Isuzu WW
▶
TRUCKS
▶
FTS
▶
11307 - FTS AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#71073) — 14 parça
Tümü
A - FGS5MS
B - FGS5WS
◀
[285A] A/T (12 parça)
[285A] M/T (2 parça)
▶
298
173
172
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

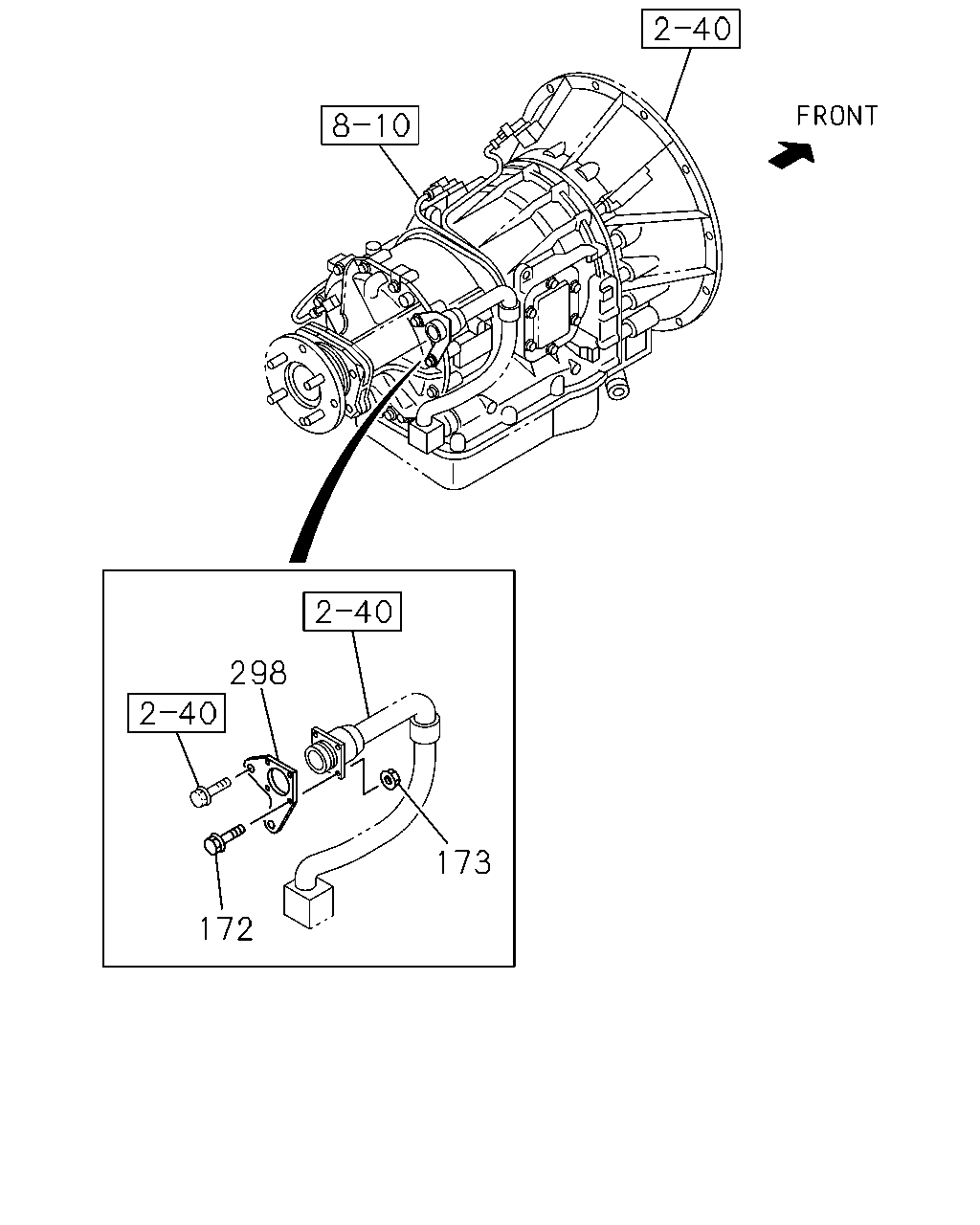

172
BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M4X16
9-03494-416-0
04
1
1204-1306
●
●
172
BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M4X16
9-03494-416-0
04
1
1307-1501
●
●
172
BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M4X16
9-03494-416-0
04
1
1502-1503
●
●
172
BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M4X16
9-03494-416-0
04
1
1504-
●
●
173
NUT; BRKT
LCT2000 A/T ALLISON(Y4F) M4 FLANGE
8-97368-853-0
04
1
1204-1306
●
●
173
NUT; BRKT
LCT2500 A/T ALLISON(Y5W) M4 FLANGE
8-97368-853-0
04
1
1307-1501
●
●
173
NUT; BRKT
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M4 FLANGE
8-97368-853-0
04
1
1502-1503
●
●
173
NUT; BRKT
LCT2500 A/T ALLISON(Y5W) M4 FLANGE
8-97368-853-0
04
1
1504-
●
●
298
BRACKET; HARNESS
LCT2000 A/T ALLISON(Y4F)
8-98081-822-0
01
1
1204-1306
●
●
298
BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W)
8-98081-822-0
01
1
1307-1501
●
●
298
BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>
8-98081-822-0
01
1
1502-1503
●
●
298
BRACKET; HARNESS
LCT2500 A/T ALLISON(Y5W)
8-98081-822-0
01
1
1504-
●
●
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

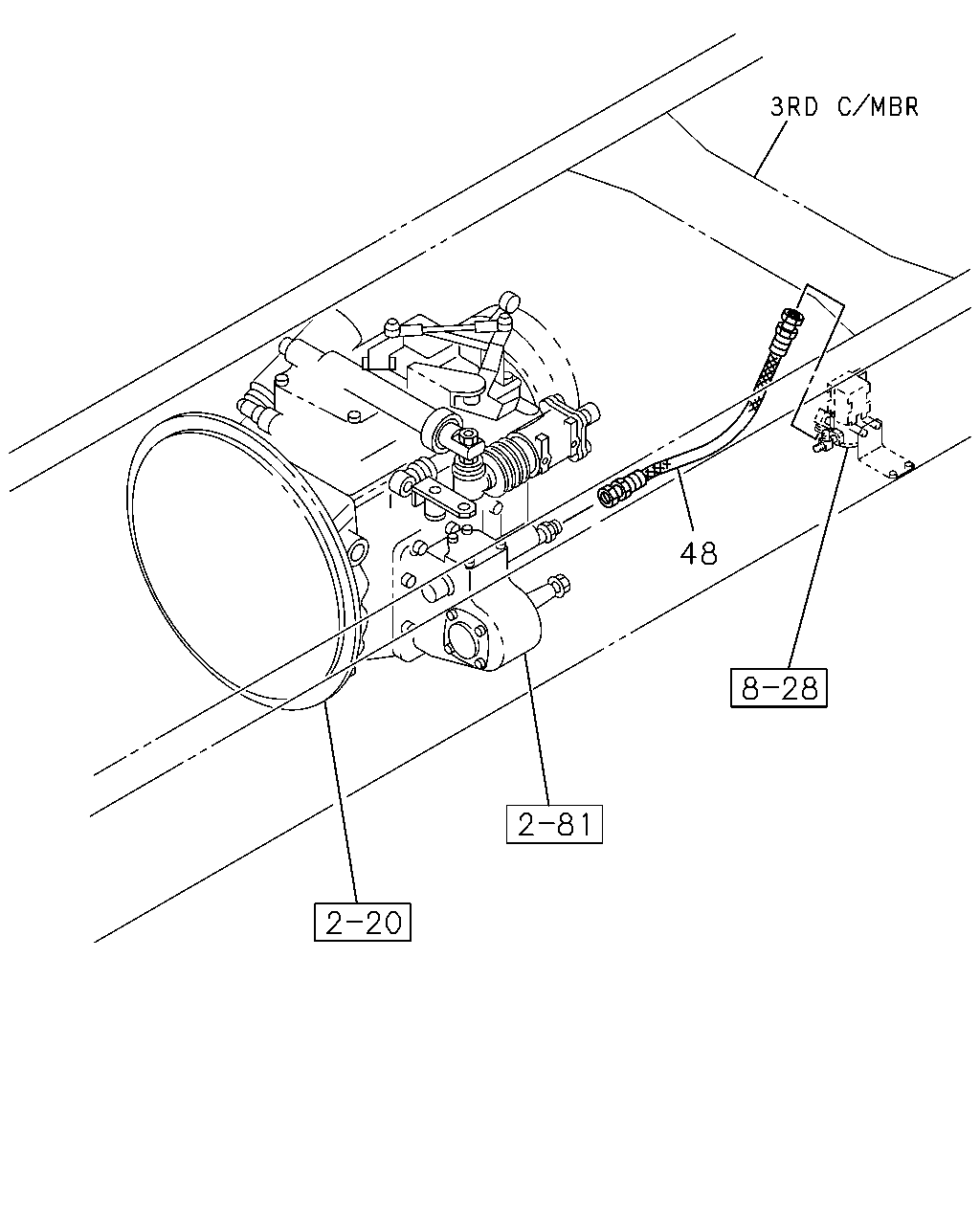

48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=220
1-09363-645-0
01
1
1011-1306
●
●
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=220
1-09363-645-0
01
1
1307-
●
●
