◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-75 - TRANSFER CONTROL ▶

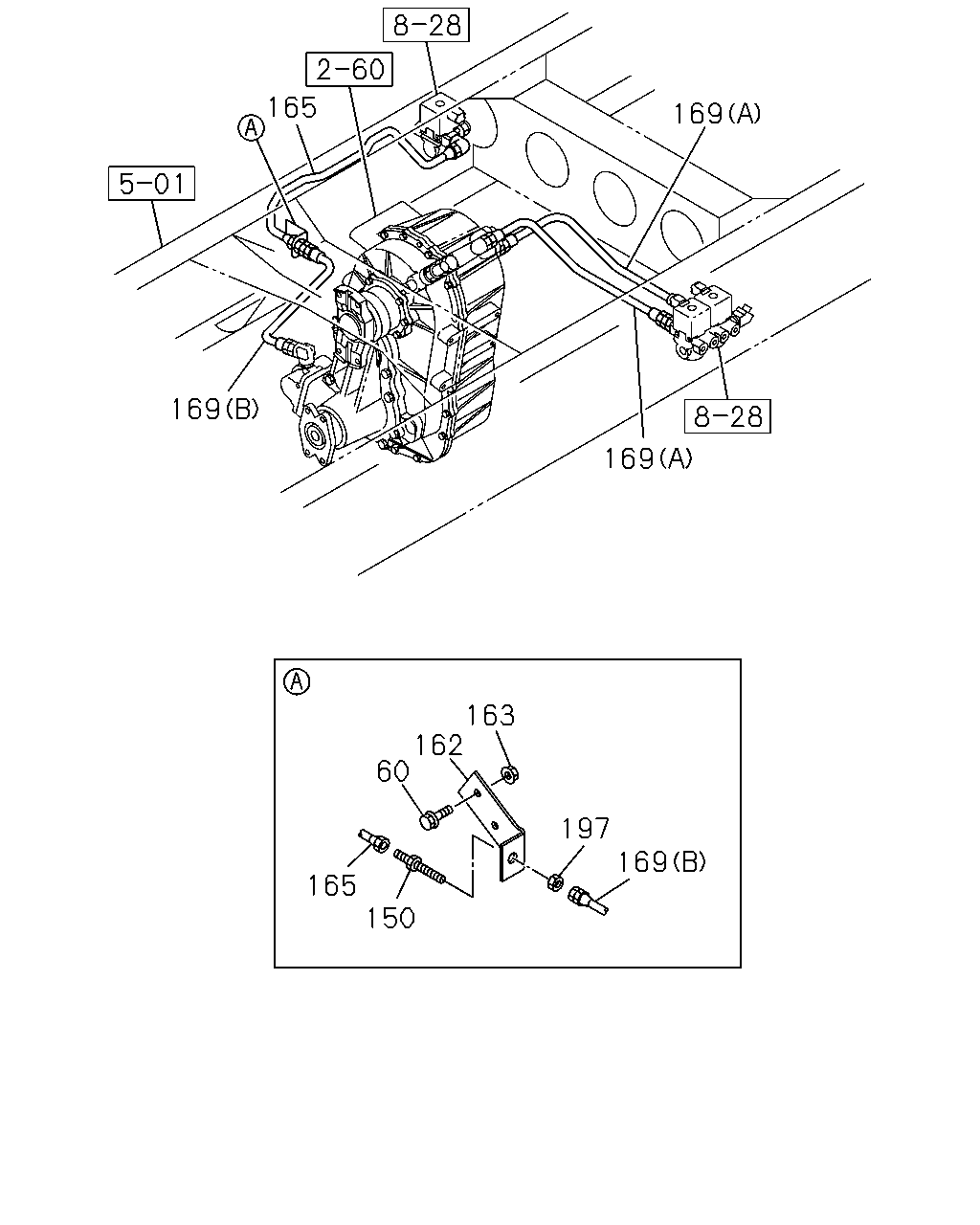

2-75 — TRANSFER CONTROL (#71071) — 16 parça
çizim 114487
165 169 169 169 163 162 60 165 150 197 169
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1011- ● ●
150 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 1011-1306 ● ●
150 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1307- ● ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98115-642-0 01 1 1011-1306 ● ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98244-140-0 01 1 1307- ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=773 SERVICED BY L=800 		1-47428-812-0 01 1 1307-1408 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=831 SERVICED BY L=900 		1-47428-813-0 01 1 1409- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=801 SERVICED BY L=900 		1-47428-813-0 01 1 1011-1306 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
SERVICED BY L=800 		1-47428-812-0 01 1 1307- ●
169 HOSE; FLEX,TRANSFER CONT
A/T<X9D> (B) L=320 		1-09363-625-0 01 1 1405- ● ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=420 		1-09363-615-0 02 1 1011- ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=340 		1-09363-617-0 01 1 1011-1306 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=280 		1-09363-672-0 01 1 1307-1404 ● ●
169 HOSE; FLEX,TRANSFER CONT
MANUAL TRANSMISSION<X9C> (B) L=280 		1-09363-672-0 01 1 1405- ● ●
197 NUT; UNION
M12 		9-09840-280-0 01 1 1011- ● ●
