2-66 — MANUAL TRANSFER GEAR; OUTPUT (#71070) — 49 parça

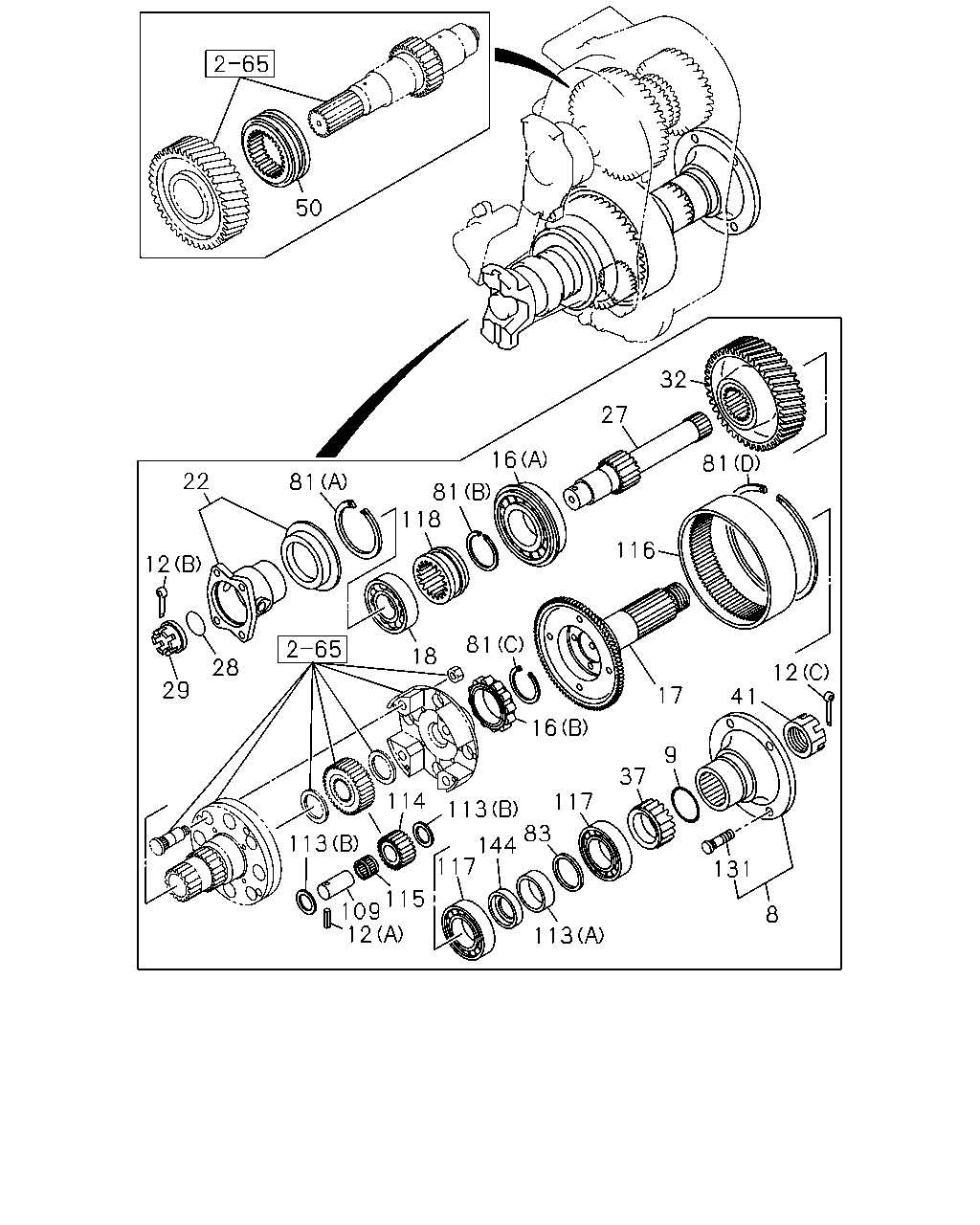

çizim 189262
50 32 27 16 81 118 81 22 12 29 28 18 81 116 81 12 41 17 16 113 114 113 109 115 117 12 144 83 117 37 9 131 8 113
BalonParca AdiParca NoAdetTipApplied Date A B
8 FLANGE; OUTPUT 1-37243-306-0 01 1 1011- ● ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-385-0 01 1 1011- ● ●
12 PIN
(A) L=25 OD=5 		8-94135-771-0 04 1 1011- ● ●
12 PIN
(B) 		9-08116-050-0 01 1 1011- ● ●
12 PIN
(C) 		9-08116-060-0 01 1 1011- ● ●
16 BEARING; OUTPUT GEAR
(A) NTN 		1-09810-164-0 01 1 1011- ● ●
16 BEARING; OUTPUT GEAR
(A) NSK 		1-09810-185-0 01 1 1011- ● ●
16 BEARING; OUTPUT GEAR
(B) NTN 		1-09810-200-0 01 1 1011- ● ●
16 BEARING; OUTPUT GEAR
(B) JTEKT 		1-09810-226-0 01 1 1011- ● ●
17 SHAFT; OUTPUT 1-36351-044-0 01 1 1011- ● ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		1-09800-249-0 01 1 1011- ● ●
18 BEARING; BALL,OUTPUT,FRT
NTN 		1-09800-250-0 01 1 1011- ● ●
22 FLANGE; OUTPUT,FRT 8-98096-538-0 01 1 1011- ● ●
27 GEAR; OUTPUT,FRT 1-36311-022-0 01 1 1011- ● ●
28 GASKET; SHAFT
ALSO INCLUDED IN REPAIR KIT(T/F). ID=42 		9-09921-116-0 01 1 1011- ● ●
29 NUT; FLANGE 1-09440-017-0 01 1 1011- ● ●
32 GEAR; OUTPUT,TRANSFER
Z=41 		1-36371-011-0 01 1 1011- ● ●
37 GEAR; DRIVE,SPD,TRANSFER
Z=18 		1-33371-052-0 01 1 1011- ● ●
41 NUT; FLANGE LK,OUTPUT 1-09440-090-0 01 1 1011- ● ●
50 SLEEVE; HIGH & LOW,TRANSFER
Z=28 		1-36262-010-1 01 1 1011- ● ●
81 RING; SNAP
(A) 		1-09587-023-0 01 1 1011- ● ●
81 RING; SNAP
(B) ID=66 T=2.53 WHITE 		1-09588-131-0 AR 1 1011- ● ●
81 RING; SNAP
(B) ID=66 T=2.56 YELLOW 		1-09588-132-0 AR 1 1011- ● ●
81 RING; SNAP
(B) ID=66 T=2.60 BLUE 		1-09588-133-0 AR 1 1011- ● ●
81 RING; SNAP
(B) ID=66 T=2.64 GREEN 		1-09588-134-0 AR 1 1011- ● ●
81 RING; SNAP
(C) ID=60.8 		9-09180-065-0 01 1 1011- ● ●
81 RING; SNAP
(D) 		9-09950-200-0 01 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.25 		1-33235-086-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.30 		1-33235-087-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.40 		1-33235-088-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.50 		1-33235-089-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.55 		1-33235-090-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.60 		1-33235-091-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.65 		1-33235-092-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.70 		1-33235-093-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=3.90 		1-33235-094-0 AR 1 1011- ● ●
83 SHIM; OUTPUT SHAFT
T=4.00 		1-33235-097-0 AR 1 1011- ● ●
109 SHAFT; PLANETARY 1-36383-003-0 04 1 1011- ● ●
113 PIECE; DISTANCE
(A) 		1-36355-065-0 01 1 1011- ● ●
113 PIECE; DISTANCE
(B) 		1-36389-002-0 08 1 1011- ● ●
114 GEAR; PLANETARY
Z=23 		1-36381-001-0 04 1 1011- ● ●
115 BEARING; NEEDLE
NTN 		1-09811-364-0 04 1 1011- ● ●
115 BEARING; NEEDLE
NSK 		1-09811-369-0 04 1 1011- ● ●
116 GEAR; RING
Z=84 		1-36381-004-0 01 1 1011- ● ●
117 BEARING; TAPER
NSK 		1-09812-199-0 02 1 1011- ● ●
117 BEARING; TAPER
NTN 		1-09812-200-0 02 1 1011- ● ●
118 SLEEVE; DIFF LOCK
Z=18 		1-36262-023-0 01 1 1011- ● ●
131 BOLT; FLANGE
M16X51 W/MARK 		1-46219-086-0 04 1 1011- ● ●
144 CATCHER; OIL 1-36359-035-0 01 1 1011- ● ●
