3-70 — BRAKE PIPING; AIR,AIR MASTER (#7107) — 311 parça

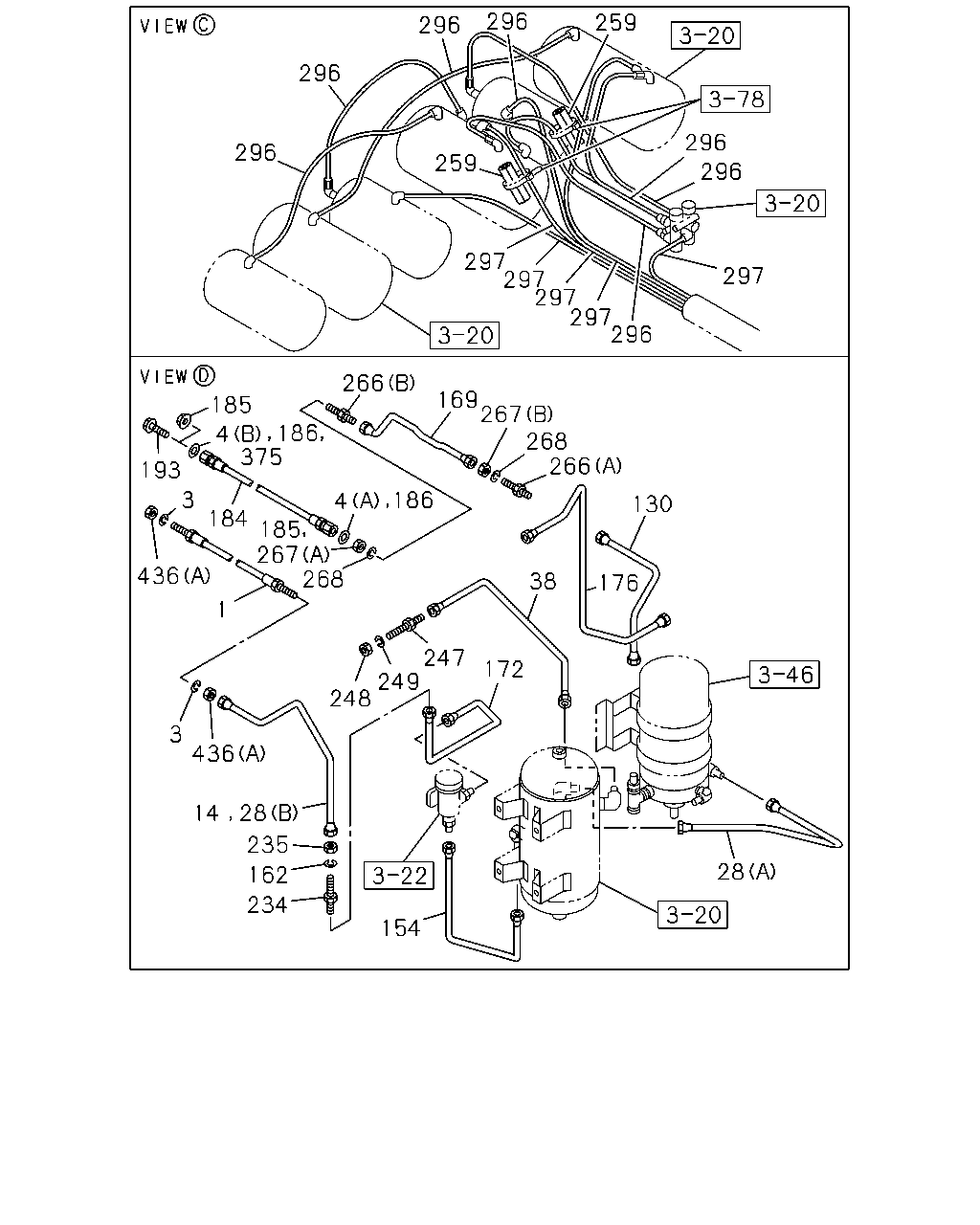

çizim 6579
296 259 296 296 296 296 259 296 297 297 297 297 296 297 266 169 267 268 266 185 4 186 375 193 3 186 4 130 184 185 267 268 436 38 176 1 247 249 248 172 3 436 235 28 162 234 154 14 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
EURO3 SPECIFICATION(NJX) L=430 		1-09363-559-0 01 1 0107-0210 ●
1 HOSE; FLEX,AIR TANK
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) L=430 		1-09363-559-0 01 1 0211- ●
1 HOSE; FLEX,AIR TANK
6SD1 TC-S(83L) L=430 		1-09363-559-0 01 1 0211- ●
1 HOSE; FLEX,AIR TANK 1-09363-863-0 01 1 0012-0106 ● ●
1 HOSE; FLEX,AIR TANK
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) 		1-09363-863-0 01 1 0107- ● ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L) L=430 		0-07816-430-1 01 1 0204-0605 ●
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L) L=430 		0-57816-430-1 01 1 0606- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
EURO3 SPECIFICATION(NJX) ID=22.5 		9-09150-522-0 01 1 0107-0203 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) ID=22.5 		9-09150-522-0 02 1 0204-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) ID=22.5 		0-91510-522-0 02 1 0604-0903 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) ID=22.5 		0-91510-622-0 02 1 0904- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 02 1 0012-0106 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) ID=22.5 		9-09150-522-0 02 1 0107-0203 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
EURO3 SPECIFICATION(NJX) ID=22.5 		9-09150-522-0 01 1 0204-0210 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6WA1 TC-C(55L) ID=22.5 		9-09150-522-0 01 1 0204-0210 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ID=22.5 		9-09150-522-0 01 1 0211-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC-S(83L) ID=22.5 		9-09150-522-0 01 1 0211-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6WA1 TC-C(55L) ID=22.5 		9-09150-522-0 01 1 0211-0603 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ID=22.5 		0-91510-522-0 01 1 0604-0903 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC-S(83L) ID=22.5 		0-91510-522-0 01 1 0604-0903 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6WA1 TC-C(55L) ID=22.5 		0-91510-522-0 01 1 0604-0903 ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ID=22.5 		0-91510-622-0 01 1 0904- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC-S(83L) ID=22.5 		0-91510-622-0 01 1 0904- ●
3 WASHER; LK,FLEX HOSE,AIR TANK
6WA1 TC-C(55L) ID=22.5 		0-91510-622-0 01 1 0904- ●
4 GASKET; FLEX HOSE
(A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0012-0106 ● ●
4 GASKET; FLEX HOSE
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0107- ● ●
4 GASKET; FLEX HOSE
(B) ID=11 OD=18 		9-09572-510-0 01 1 0012-0106 ● ●
4 GASKET; FLEX HOSE
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (B) ID=11 OD=18 		9-09572-510-0 01 1 0107- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49122-718-0 01 1 0012-0203 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TC(32L) EXC. AIR DRYER<PS7> 		1-49122-718-0 01 1 0204- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> 		1-49122-720-0 01 1 0204- ●
28 PIPE; AIR,AIR DRYER
(A) 		1-49122-301-0 01 1 0012- ●
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> (A) 		1-49122-301-0 01 1 0012- ●
28 PIPE; AIR,AIR DRYER
(B) 		1-49122-567-0 01 1 0012-0203 ●
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> (B) 		1-49122-567-0 01 1 0012-0203 ●
28 PIPE; AIR,AIR DRYER
(B) 		1-49122-567-0 01 1 0204- ●
28 PIPE; AIR,AIR DRYER
6SD1 TC(32L) AIR DRYER<PS7> (B) 		1-49122-567-0 01 1 0204- ●
28 PIPE; AIR,AIR DRYER
6WA1 TC-C(55L) AIR DRYER<PS7> (B) L=775 		1-49165-842-0 01 1 0204- ●
38 PIPE; AIR,MAIN TANK TO UNION 1-49122-302-0 01 1 0012- ● ●
130 PIPE; AIR,UNION TO UNION 1-49122-582-0 01 1 0012- ●
130 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> 		1-49122-582-0 01 1 0012- ●
130 PIPE; AIR,UNION TO UNION
EXC. AIR DRYER<PS7> 		1-49122-719-0 01 1 0012- ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-297-0 01 1 0012- ● ●
162 WASHER; LK,NIPPLE
ID=12.2 		9-09150-512-0 01 1 0012-0603 ● ●
162 WASHER; LK,NIPPLE
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
6WA1 TC-C(55L) 		1-49122-585-0 01 1 0204- ●
172 PIPE; AIR,GOV TO UNION 1-49121-796-0 01 1 0012- ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-298-0 01 1 0012- ●
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49122-298-0 01 1 0012- ●
184 HOSE; FLEX,AIR GOV
EURO3 SPECIFICATION(NJX) L=390 		1-09363-629-0 01 1 0107-0210 ●
184 HOSE; FLEX,AIR GOV
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) L=390 		1-09363-629-0 01 1 0211- ●
184 HOSE; FLEX,AIR GOV
6SD1 TC-S(83L) L=390 		1-09363-629-0 01 1 0211- ●
184 HOSE; FLEX,AIR GOV
L=730 		0-07532-730-1 01 1 0012-0106 ● ●
184 HOSE; FLEX,AIR GOV
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) L=730 		0-07532-730-1 01 1 0107-0605 ● ●
184 HOSE; FLEX,AIR GOV
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) L=730 		0-57532-730-1 01 1 0606- ● ●
184 HOSE; FLEX,AIR GOV
6WA1 TC-C(55L) L=300 		1-09363-608-0 01 1 0204- ●
185 NUT; FLEX HOSE,AIR GOV
EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 02 1 0107-0210 ●
185 NUT; FLEX HOSE,AIR GOV
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 02 1 0211- ●
185 NUT; FLEX HOSE,AIR GOV
6SD1 TC-S(83L) M12 		9-09840-280-0 02 1 0211- ●
185 NUT; FLEX HOSE,AIR GOV
6WA1 TC-C(55L) M12 		9-09840-280-0 01 1 0204- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 02 1 0107-0210 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 02 1 0211-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TC-S(83L) ID=12.2 		9-09150-512-0 02 1 0211-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) ID=12.2 		0-91510-512-0 02 1 0604- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6SD1 TC-S(83L) ID=12.2 		0-91510-512-0 02 1 0604- ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6WA1 TC-C(55L) ID=12.2 		9-09150-512-0 01 1 0204-0603 ●
186 WASHER; LK,FLEX HOSE,AIR GOV
6WA1 TC-C(55L) ID=12.2 		0-91510-512-0 01 1 0604- ●
193 BOLT; EYE,FLEX HOSE,GOV LINE
M14X27 FLANGE 		1-09675-086-0 01 1 0012-0106 ● ●
193 BOLT; EYE,FLEX HOSE,GOV LINE
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M14X27 FLANGE 		1-09675-086-0 01 1 0107- ● ●
234 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 0012-0607 ●
234 UNION; AIR PIPE
AIR DRYER<PS7> M12 3WAY 		9-09228-906-1 01 1 0012-0607 ●
234 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0608- ●
234 UNION; AIR PIPE
AIR DRYER<PS7> M12 3WAY 		0-92138-906-0 01 1 0608- ●
234 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M12 L=66.5 		9-09223-306-1 01 1 0012-0607 ●
234 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M12 L=66.5 		0-92113-306-0 01 1 0608- ●
235 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0012- ● ●
247 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 0012-0607 ● ●
247 UNION; AIR PIPE
M22 		0-92135-215-0 01 1 0608- ● ●
248 NUT; PIPE UNION
M22 		9-09111-422-0 01 1 0012-0512 ● ●
248 NUT; PIPE UNION
M22 		0-91111-522-0 01 1 0601- ● ●
249 WASHER; LK,PIPE UNION
ID=22.5 		9-09150-522-0 01 1 0012-0603 ● ●
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-522-0 01 1 0604-0903 ● ●
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-622-0 01 1 0904- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> ID=23 OD=27 L=40 		1-09337-015-0 01 1 0810-0812 ●
259 SLEEVE; RUBBER,NYLON TUBE
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0901- ●
259 SLEEVE; RUBBER,NYLON TUBE
EXC. EURO3 SPECIFICATION(NJX) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0107-0203 ●
259 SLEEVE; RUBBER,NYLON TUBE
EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> ID=29 OD=39 L=40 		1-09337-013-0 01 1 0107-0203 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0107-0203 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0204- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0012-0106 ● ●
259 SLEEVE; RUBBER,NYLON TUBE
ANTI SKID BRK SYSTEM<SFL> ID=29 OD=39 L=40 		1-09337-013-0 01 1 0012-0106 ●
259 SLEEVE; RUBBER,NYLON TUBE
EURO3 SPECIFICATION(NJX) ANTI SKID BRK SYSTEM<SFL> ID=29 OD=39 L=40 		1-09337-013-0 02 1 0107- ●
266 UNION; AIR PIPE
(A) 		1-09654-185-1 01 1 0012-0106 ● ●
266 UNION; AIR PIPE
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) 		1-09654-185-1 01 1 0107- ● ●
266 UNION; AIR PIPE
6WA1 TC-C(55L) (A) M12 2WAY 		1-09654-234-2 01 1 0204- ●
266 UNION; AIR PIPE
6WA1 TC-C(55L) (B) M12 L=56.5 		9-09223-106-1 01 1 0204-0607 ●
266 UNION; AIR PIPE
6WA1 TC-C(55L) (B) M12 L=56.5 		0-92113-106-0 01 1 0608- ●
267 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0012-0106 ● ●
267 NUT; UNION
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) M12 		9-09840-280-0 01 1 0107-0203 ● ●
267 NUT; UNION
EXC. EURO3 SPECIFICATION(NJX) (A) M12 		9-09840-280-0 01 1 0204- ●
267 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0204- ●
267 NUT; UNION
6WA1 TC-C(55L) (B) M12 		9-99111-412-0 01 1 0204-0512 ●
267 NUT; UNION
6WA1 TC-C(55L) (B) M12 		0-91111-512-0 01 1 0601- ●
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0012-0106 ● ●
268 WASHER; LK,UNION
EXC. EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 01 1 0107-0203 ●
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0107-0203 ●
268 WASHER; LK,UNION
EXC. EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 01 1 0204-0603 ● ●
268 WASHER; LK,UNION
6WA1 TC-C(55L) ID=12.2 		9-09150-512-0 01 1 0204-0603 ●
268 WASHER; LK,UNION
EXC. EURO3 SPECIFICATION(NJX) ID=12.2 		0-91510-512-0 01 1 0604- ● ●
268 WASHER; LK,UNION
6WA1 TC-C(55L) ID=12.2 		0-91510-512-0 01 1 0604- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0907- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0907- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0012- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0012- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
375 GASKET
6WA1 TC-C(55L) ID=11 OD=18 		9-09572-510-0 01 1 0204- ●
436 NUT; CLIP
EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 01 1 0107-0203 ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 02 1 0204-0512 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) M22 		0-91111-522-0 02 1 0601- ● ●
436 NUT; CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0012-0106 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (B) M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
(A) M22 		9-09111-422-0 02 1 0012-0106 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 02 1 0107-0203 ● ●
436 NUT; CLIP
EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 01 1 0204-0210 ●
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		9-09111-422-0 01 1 0204-0210 ●
436 NUT; CLIP
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 01 1 0211-0512 ●
436 NUT; CLIP
6SD1 TC-S(83L) (A) M22 		9-09111-422-0 01 1 0211-0512 ●
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		9-09111-422-0 01 1 0211-0512 ●
436 NUT; CLIP
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) M22 		0-91111-522-0 01 1 0601- ●
436 NUT; CLIP
6SD1 TC-S(83L) (A) M22 		0-91111-522-0 01 1 0601- ●
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		0-91111-522-0 01 1 0601- ●

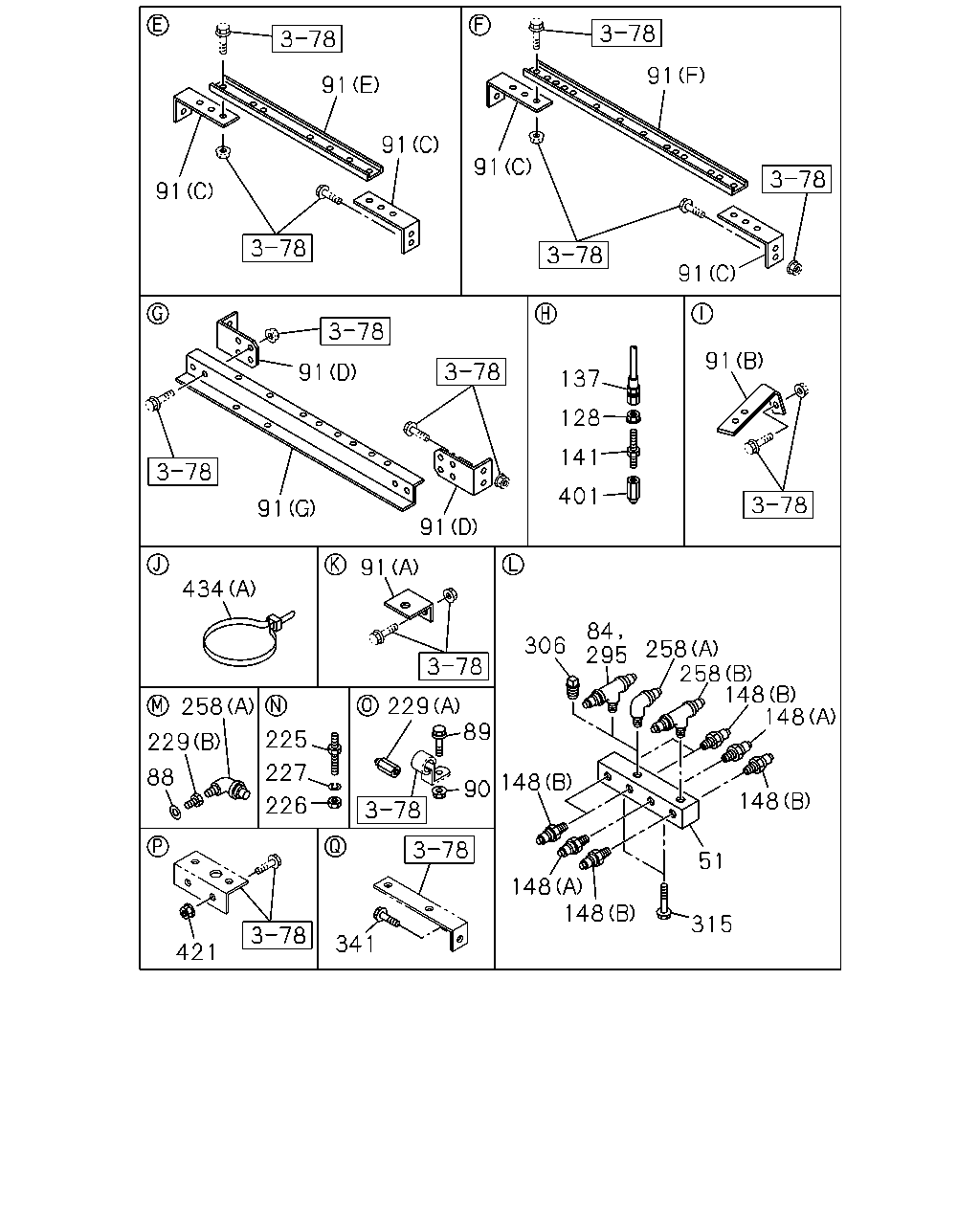

çizim 7152
91 91 91 91 91 91 91 91 137 128 141 401 91 91 91 434 84 295 306 258 258 148 148 229 258 89 225 229 227 88 148 90 148 226 51 148 148 315 341 421
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION 1-09661-346-0 01 1 0012-0203 ● ●
51 UNION
EXC. EURO3 SPECIFICATION(NJX) 		1-09661-346-0 01 1 0204- ●
51 UNION 1-09661-346-0 01 1 0204- ●
84 UNION; NYLON TUBE
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> 		1-09660-788-0 01 1 0012-0306 ● ●
84 UNION; NYLON TUBE
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT<A56> 		1-09661-133-0 01 1 0307- ● ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0012-0203 ● ●
88 GASKET; NYLON TUBE
ISUZU M/T<X9A> ID=14.2 OD=23.0 		9-09572-014-0 01 1 0204- ● ●
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0012-0512 ● ●
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0012-0602 ● ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
91 BRACKET; TUBE CLIP
(E) L=486 7-HOLE MARK 911 		1-47478-911-0 02 1 0012-0303 ●
91 BRACKET; TUBE CLIP
(E) L=486 7-HOLE MARK 558 		1-47479-558-0 02 1 0304- ●
91 BRACKET; TUBE CLIP
(A) 		1-47478-422-0 03 1 0012- ● ●
91 BRACKET; TUBE CLIP
(B) 		1-47478-900-0 01 1 0012- ● ●
91 BRACKET; TUBE CLIP
(C) 		1-47478-903-0 08 1 0012- ● ●
91 BRACKET; TUBE CLIP
(D) 		1-47478-910-0 04 1 0012- ● ●
91 BRACKET; TUBE CLIP
(F) 		1-47478-913-0 02 1 0012- ● ●
91 BRACKET; TUBE CLIP
(F) 		1-47478-913-0 02 1 0012- ●
91 BRACKET; TUBE CLIP
(G) 		1-47478-914-1 02 1 0012- ● ●
128 NUT; PIPE UNION
M10 FLANGE 		0-91150-210-0 02 1 0012-0602 ● ●
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 02 1 0012-0605 ● ●
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0606- ● ●
141 UNION; FLEX HOSE 1-09650-270-1 02 1 0012- ● ●
148 CONNECTOR; UNION
(A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 02 1 0012-0203 ●
148 CONNECTOR; UNION
EURO3 SPECIFICATION(NJX) (A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 02 1 0204-0306 ●
148 CONNECTOR; UNION
EURO3 SPECIFICATION(NJX) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 0307- ●
148 CONNECTOR; UNION
(B) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 06 1 0012-0203 ● ●
148 CONNECTOR; UNION
EXC. EURO3 SPECIFICATION(NJX) (B) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 06 1 0204-0306 ●
148 CONNECTOR; UNION
(B) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 06 1 0204-0306 ●
148 CONNECTOR; UNION
EXC. EURO3 SPECIFICATION(NJX) (B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 06 1 0307- ●
148 CONNECTOR; UNION
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 06 1 0307- ●
225 UNION; AIR PIPE 1-09654-185-1 01 1 0012-0106 ● ●
225 UNION; AIR PIPE
EXC. EURO3 SPECIFICATION(NJX) 		1-09654-185-1 01 1 0107-0203 ●
225 UNION; AIR PIPE 1-09654-185-1 01 1 0107-0203 ●
225 UNION; AIR PIPE
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-09654-185-1 01 1 0204- ● ●
225 UNION; AIR PIPE
6WA1 TC-C(55L) M12 L=66.5 		9-09223-306-1 01 1 0204-0607 ●
225 UNION; AIR PIPE
6WA1 TC-C(55L) M12 L=66.5 		0-92113-306-0 01 1 0608- ●
226 NUT; UNION
M12 		9-09840-280-0 01 1 0012-0106 ● ●
226 NUT; UNION
EXC. EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 01 1 0107-0203 ●
226 NUT; UNION
M12 		9-09840-280-0 01 1 0107-0203 ●
226 NUT; UNION
ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) M12 		9-09840-280-0 01 1 0204- ● ●
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0012-0106 ● ●
227 WASHER; LK,UNION
EXC. EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 01 1 0107-0203 ●
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0107-0203 ●
227 WASHER; LK,UNION
ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) ID=12.2 		9-09150-512-0 01 1 0204-0603 ● ●
227 WASHER; LK,UNION
ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) ID=12.2 		0-91510-512-0 01 1 0604- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0012- ● ●
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0012-0203 ● ●
229 ADAPTER; NYLON TUBE
ISUZU M/T<X9A> (B) M14 & PT1/4 		9-48319-149-0 01 1 0204-0206 ● ●
229 ADAPTER; NYLON TUBE
ISUZU M/T<X9A> (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0207- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0012-0203 ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0012-0203 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0012-0203 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0012- ● ●
295 CONNECTOR; NYLON TUBE 1-09660-771-1 01 1 0012-0306 ● ●
295 CONNECTOR; NYLON TUBE 1-09661-128-0 01 1 0307- ● ●
306 PLUG; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR HORN(WB8) PT1/4 		9-99204-513-0 01 1 0012- ● ●
315 BOLT; CONNECTOR
M8X12 FLANGE 		0-28080-812-0 03 1 0012-0512 ● ●
315 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 03 1 0601- ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0012-0512 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601- ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0012-0512 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0012- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
421 NUT; BRKT
6WA1 TC-C(55L) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
421 NUT; BRKT
6WA1 TC-C(55L) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
434 CLIP
(B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0012-0106 ● ●
434 CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0107- ● ●
434 CLIP
AIR HORN(WB8) (A) L=250 		1-09707-126-0 04 1 0012- ● ●

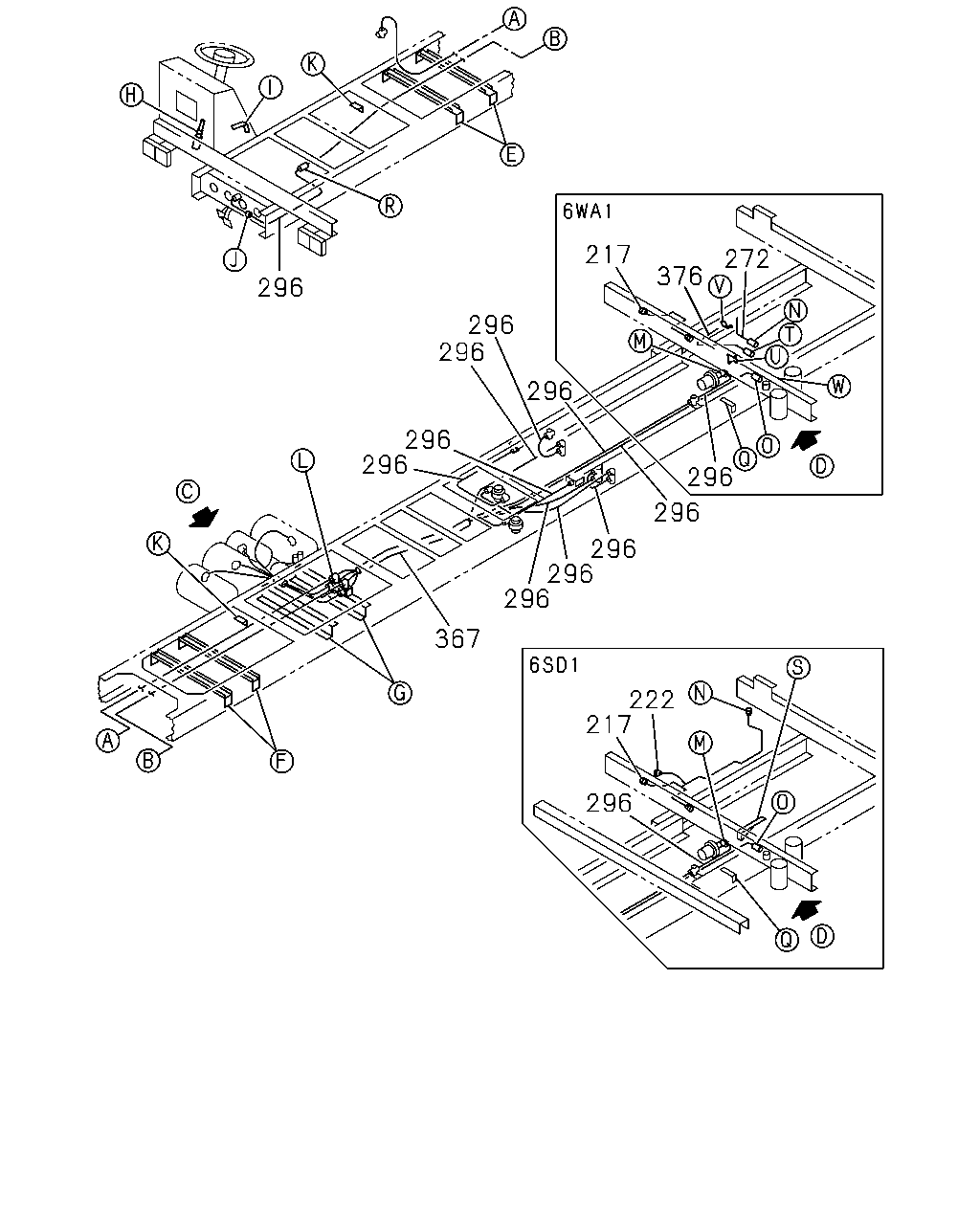

çizim 43225
272 217 376 296 296 296 296 296 296 296 296 296 296 296 367 222 217 296
BalonParca AdiParca NoAdetTipApplied Date A B
217 PIPE; VAC,UNION TO MAG VLV
EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> 		1-49122-966-0 01 1 0107-0210 ●
217 PIPE; VAC,UNION TO MAG VLV
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> 		1-49122-966-0 01 1 0211- ●
217 PIPE; VAC,UNION TO MAG VLV
6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> 		1-49122-966-0 01 1 0211- ●
217 PIPE; VAC,UNION TO MAG VLV
EURO3 SPECIFICATION(NJX) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-49122-967-0 01 1 0107-0210 ●
217 PIPE; VAC,UNION TO MAG VLV
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-49122-967-0 01 1 0211- ●
217 PIPE; VAC,UNION TO MAG VLV
6SD1 TC-S(83L) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-49122-967-0 01 1 0211- ●
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM RETARDER<RE2> 		1-49122-595-0 01 1 0012-0106 ● ●
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) 		1-49122-595-0 01 1 0107-0203 ●
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM RETARDER<RE2> 		1-49122-595-0 01 1 0107-0203 ●
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-49122-595-0 01 1 0204- ● ●
217 PIPE; VAC,UNION TO MAG VLV
6WA1 TC-C(55L) EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> 		1-49122-595-0 01 1 0204- ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-49122-748-0 01 1 0012-0106 ● ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> 		1-49122-748-0 01 1 0107-0203 ●
217 PIPE; VAC,UNION TO MAG VLV
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-49122-748-0 01 1 0107-0203 ●
217 PIPE; VAC,UNION TO MAG VLV
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> 		1-49122-748-0 01 1 0204- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-49122-596-0 01 1 0012-0106 ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
EXC. EURO3 SPECIFICATION(NJX) 		1-49122-596-0 01 1 0107-0203 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-49122-596-0 01 1 0107-0203 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-49122-596-0 01 1 0204- ● ●
272 PIPE; AIR,MAG VLV TO UNION
6WA1 TC-C(55L) 		1-49122-307-0 01 1 0204- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0012- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0907- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0907- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0012- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0012- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0012- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0209- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0907- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0907- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0907- ● ●
376 PIPE; AIR,FLEX HOSE
6WA1 TC-C(55L) 		1-49122-303-1 01 1 0204- ●
çizim 44314
435 444 434 80 258 436 189 11 12 72 179 180 23 24 421 304
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
6WA1 TC-C(55L) 		1-09654-203-1 01 1 0204- ●
12 NUT; UNION
6WA1 TC-C(55L) M14 		9-99111-414-0 01 1 0204-0512 ●
12 NUT; UNION
6WA1 TC-C(55L) M14 		0-91111-514-0 01 1 0601- ●
23 BOLT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0204-0512 ●
23 BOLT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
24 NUT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0204-0602 ●
24 NUT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
72 UNION; AIR PIPE
6WA1 TC-C(55L) 		1-09654-097-1 01 1 0204- ●
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0012- ● ●
179 NUT; UNION
6WA1 TC-C(55L) M22 		9-09111-422-0 01 1 0204-0512 ●
179 NUT; UNION
6WA1 TC-C(55L) M22 		0-91111-522-0 01 1 0601- ●
180 WASHER; LK,UNION
6WA1 TC-C(55L) ID=22.5 		9-09150-522-0 01 1 0204-0603 ●
180 WASHER; LK,UNION
6WA1 TC-C(55L) ID=22.5 		0-91510-522-0 01 1 0604-0903 ●
180 WASHER; LK,UNION
6WA1 TC-C(55L) ID=22.5 		0-91510-622-0 01 1 0904- ●
189 BRACKET; FLEX HOSE
6WA1 TC-C(55L) 		1-47478-731-2 01 1 0204- ●
258 CONNECTOR; NYLON TUBE
(B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0012-0203 ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 0204-0306 ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (B) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0307- ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0012-0203 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0012-0203 ● ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ● ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0204-0306 ●
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ● ●
258 CONNECTOR; NYLON TUBE
EURO3 SPECIFICATION(NJX) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307- ●
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0012- ● ●
304 BRACKET; UNION
6WA1 TC-C(55L) 		1-47478-536-1 01 1 0204- ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0012-0602 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
421 NUT; BRKT
6WA1 TC-C(55L) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
421 NUT; BRKT
6WA1 TC-C(55L) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
434 CLIP
(B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0012-0106 ● ●
434 CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0107- ● ●
434 CLIP
AIR HORN(WB8) (A) L=250 		1-09707-126-0 04 1 0012- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0012-0106 ● ●
435 BOLT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ● ●
435 BOLT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
436 NUT; CLIP
EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 01 1 0107-0203 ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 02 1 0204-0512 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) M22 		0-91111-522-0 02 1 0601- ● ●
436 NUT; CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0012-0106 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (B) M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
436 NUT; CLIP
(A) M22 		9-09111-422-0 02 1 0012-0106 ● ●
436 NUT; CLIP
6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 02 1 0107-0203 ● ●
436 NUT; CLIP
EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 01 1 0204-0210 ●
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		9-09111-422-0 01 1 0204-0210 ●
436 NUT; CLIP
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) M22 		9-09111-422-0 01 1 0211-0512 ●
436 NUT; CLIP
6SD1 TC-S(83L) (A) M22 		9-09111-422-0 01 1 0211-0512 ●
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		9-09111-422-0 01 1 0211-0512 ●
436 NUT; CLIP
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) M22 		0-91111-522-0 01 1 0601- ●
436 NUT; CLIP
6SD1 TC-S(83L) (A) M22 		0-91111-522-0 01 1 0601- ●
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		0-91111-522-0 01 1 0601- ●
444 BOLT; UNION
AIR HORN(WB8) M8X12 FLANGE 		0-28080-812-0 01 1 0012-0512 ● ●
444 BOLT; UNION
AIR HORN(WB8) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
