2-61 — TRANSFER CASE AND GEAR SHIFTER (#71068) — 74 parça

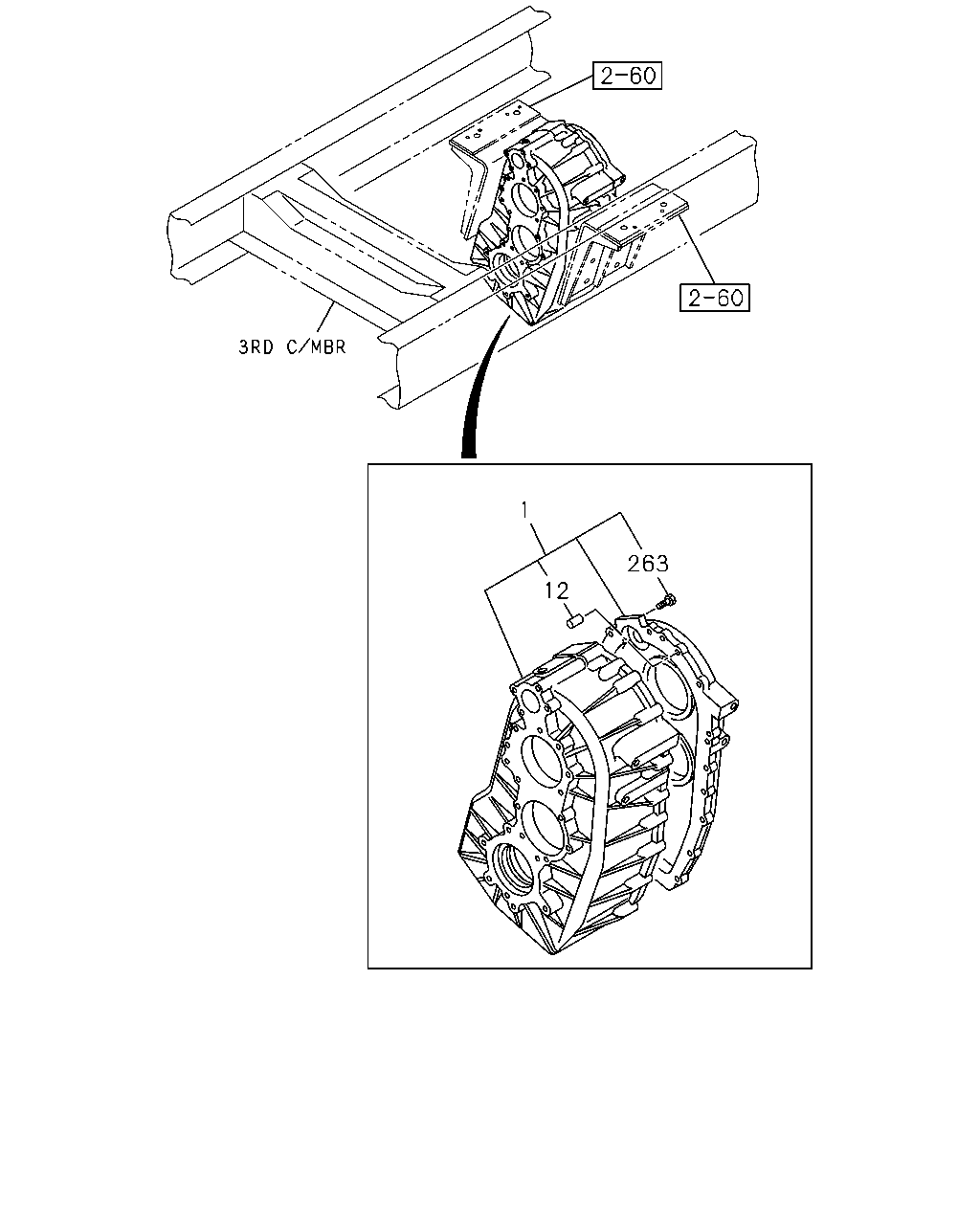

çizim 114439
1 12 263
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 1-36111-081-0 01 1 1011- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
OD=12 L=20 		9-08161-220-0 02 1 1011- ● ●
263 BOLT; TRANSFER CASE
M10X30 FLANGE 		0-28151-030-0 21 1 1011- ● ●

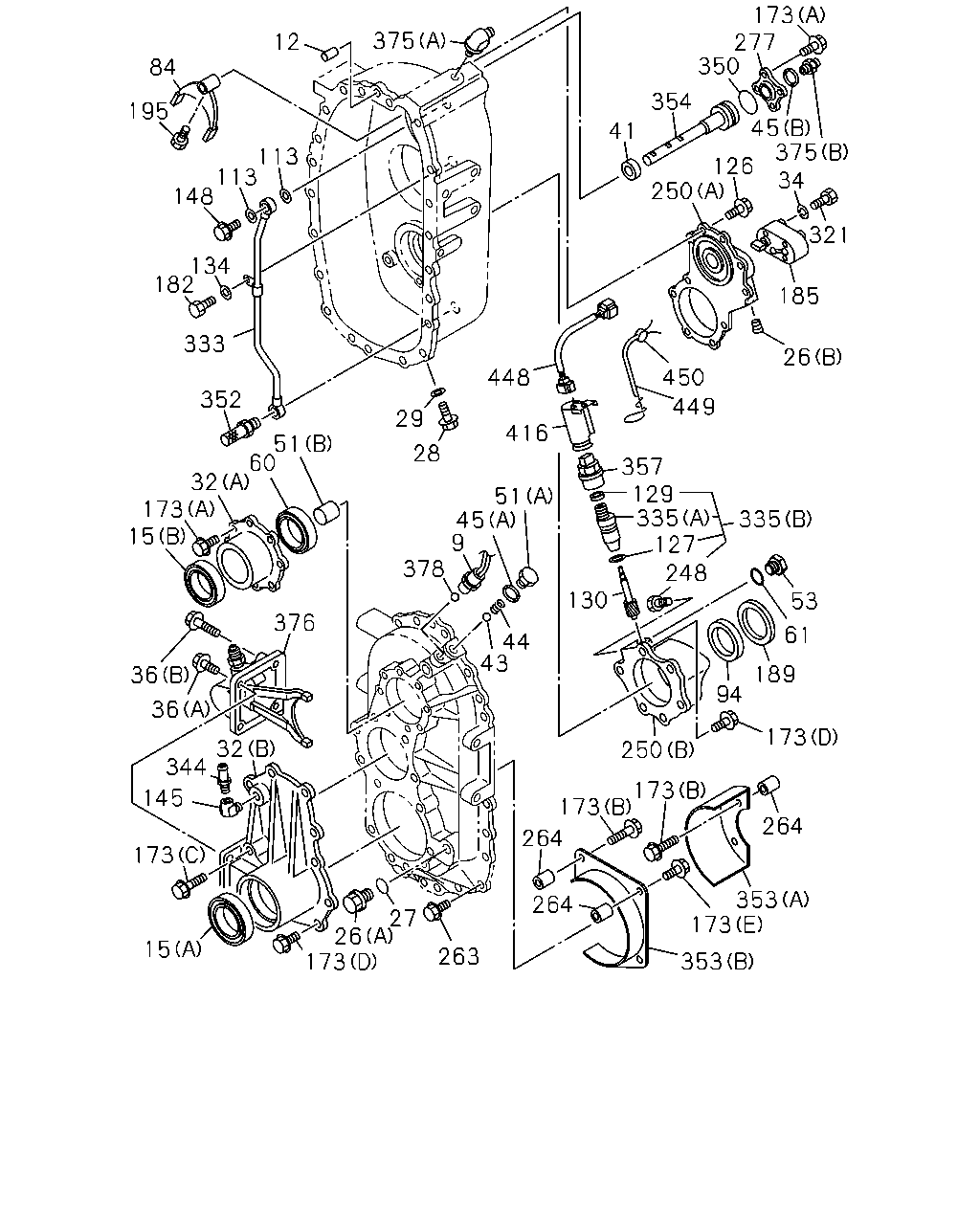

çizim 189254
375 12 84 195 113 113 148 134 182 333 352 51 60 32 173 15 376 36 36 32 344 145 173 15 173 26 263 27 43 44 378 9 45 51 416 448 28 29 41 354 350 277 173 45 375 34 126 250 321 185 26 450 449 357 129 335 335 127 248 53 61 189 94 130 250 173 264 353 173 353 264 264 173 173
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER 1-82340-534-0 01 1 1011- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
OD=12 L=20 		9-08161-220-0 02 1 1011- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-09625-549-0 01 1 1011- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (B) 		1-09625-552-0 01 1 1011- ● ●
26 PLUG; FILLER,TRANSFER CASE
(A) M24X17 FLANGE 		1-09604-023-0 01 1 1011- ● ●
26 PLUG; FILLER,TRANSFER CASE
(B) PT1/8 		1-09605-050-0 02 1 1011- ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1011- ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1011- ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1011- ● ●
32 COVER; TRANSFER CASE,FRT
(A) 		1-36121-029-0 01 1 1011- ● ●
32 COVER; TRANSFER CASE,FRT
(B) 		1-36121-030-0 01 1 1011- ● ●
34 WASHER; LK,COVER
ID=8.2 		0-91510-508-0 04 1 1011- ● ●
36 BOLT; SHIFT UNIT
(A) M10X25 FLANGE 		0-28151-025-0 03 1 1011- ● ●
36 BOLT; SHIFT UNIT
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1011- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-650-0 01 1 1011- ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1011- ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 1011- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). (B) 		1-09623-689-0 01 1 1011- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). (A) ID=20.5 OD=28.0 		9-09571-420-0 01 1 1011- ● ●
51 PLUG; SHIFT ROD
(A) 		9-09862-175-0 01 1 1011- ● ●
51 PLUG; SHIFT ROD
(B) OD=24 L=31 		9-33545-011-1 01 1 1011- ● ●
53 PLUG; COVER
M16X12 		1-09604-009-0 01 1 1011- ● ●
60 SEAL; OIL,FRT COVER,UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-548-0 01 1 1011- ● ●
61 GASKET; COVER
ID=16.2 OD=24 		9-09571-416-0 01 1 1011- ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-011-2 01 1 1011- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-553-0 01 1 1011- ● ●
113 GASKET; OIL,TRANSFER
ID=12.2 		1-09630-084-0 02 1 1011-1312 ● ●
113 GASKET; OIL,TRANSFER
ID=12.2 		8-98251-344-0 02 1 1401- ● ●
126 BOLT; RR COVER
M8X25 FLANGE 		0-28050-825-0 12 1 1011- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-246-0 01 1 1011- ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1011- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=15 		1-33372-147-4 01 1 1011- ● ●
134 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 01 1 1011- ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
PT1/4 2WAY 		1-09660-693-0 01 1 1011- ● ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 1011- ● ●
173 BOLT; COVER
(A) M8X25 FLANGE 		0-28050-825-0 12 1 1011- ● ●
173 BOLT; COVER
(B) M10X45 FLANGE 		0-28151-045-0 03 1 1011- ● ●
173 BOLT; COVER
(C) M12X100 FLANGE 		0-28151-200-0 02 1 1011- ● ●
173 BOLT; COVER
(D) M12X30 FLANGE 		0-28151-230-0 15 1 1011- ● ●
173 BOLT; COVER
(E) M10X20 W/LK WASHER 		0-50551-020-0 02 1 1011- ● ●
182 BOLT; OIL PIPE,TRANSFER
M10X20 W/LK WASHER 		0-50551-020-0 01 1 1011- ● ●
185 PUMP ASM; OIL,TRANSFER 1-34150-071-1 01 1 1011- ● ●
189 COVER; DUST,OIL SEAL 1-33139-011-1 01 1 1011- ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 01 1 1011- ● ●
248 BOLT
M6X12.5 FLANGE 		8-98014-141-0 01 1 1011- ● ●
250 COVER; OIL PUMP,TRANSFER
(A) 		1-36121-028-0 01 1 1011- ● ●
250 COVER; OIL PUMP,TRANSFER
(B) 		1-36121-031-0 01 1 1011- ● ●
263 BOLT; TRANSFER CASE
M10X30 FLANGE 		0-28151-030-0 21 1 1011- ● ●
264 SPACER
L=28 		8-97108-653-0 03 1 1011- ● ●
277 COVER; SHIFT ROD,TRANSFER 1-36135-006-0 01 1 1011- ● ●
321 BOLT; PUMP HSG
M8X50 		0-10855-850-0 04 1 1011- ● ●
333 PIPE; OIL,TRANSFER 1-36161-029-0 01 1 1011- ● ●
335 BUSHING
(A) 		1-33373-074-0 01 1 1011- ● ●
335 BUSHING
(B) 		1-33373-076-0 01 1 1011- ● ●
344 CONNECTOR
L=45 		8-94338-874-0 01 1 1011- ● ●
350 RING; SNAP,RING GEAR 1-09623-688-0 01 1 1011- ● ●
352 FILTER; OIL 1-36289-001-0 01 1 1011- ● ●
353 BAFFLE
(A) 		1-36379-007-0 01 1 1011- ● ●
353 BAFFLE
(B) 		1-36379-008-0 01 1 1011- ● ●
354 ROD; AIR SHIFTER 1-36564-037-0 01 1 1011- ● ●
357 SENSOR; SPEED
25 PULSE 		1-80240-029-0 01 1 1011-1301 ● ●
357 SENSOR; SPEED
25 PULSE 		8-98234-167-0 01 1 1302- ● ●
375 NIPPLE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1011- ● ●
375 NIPPLE
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011- ● ●
376 SHIFT UNIT; DIFF LOCK 1-48260-083-0 01 1 1011-1306 ● ●
376 SHIFT UNIT; DIFF LOCK 1-48260-104-0 01 1 1307- ● ●
378 BALL; CONT SWITCH 9-00097-013-0 01 1 1011- ● ●
416 PROTECTOR; SENSOR 8-98119-901-0 01 1 1011- ● ●
448 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 1011- ● ●
449 WIRE; LEAD SEAL 1-80249-010-0 01 1 1011- ● ●
450 SEAL; REED 1-15739-008-0 01 1 1011- ● ●
