◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#71067) — 38 parça

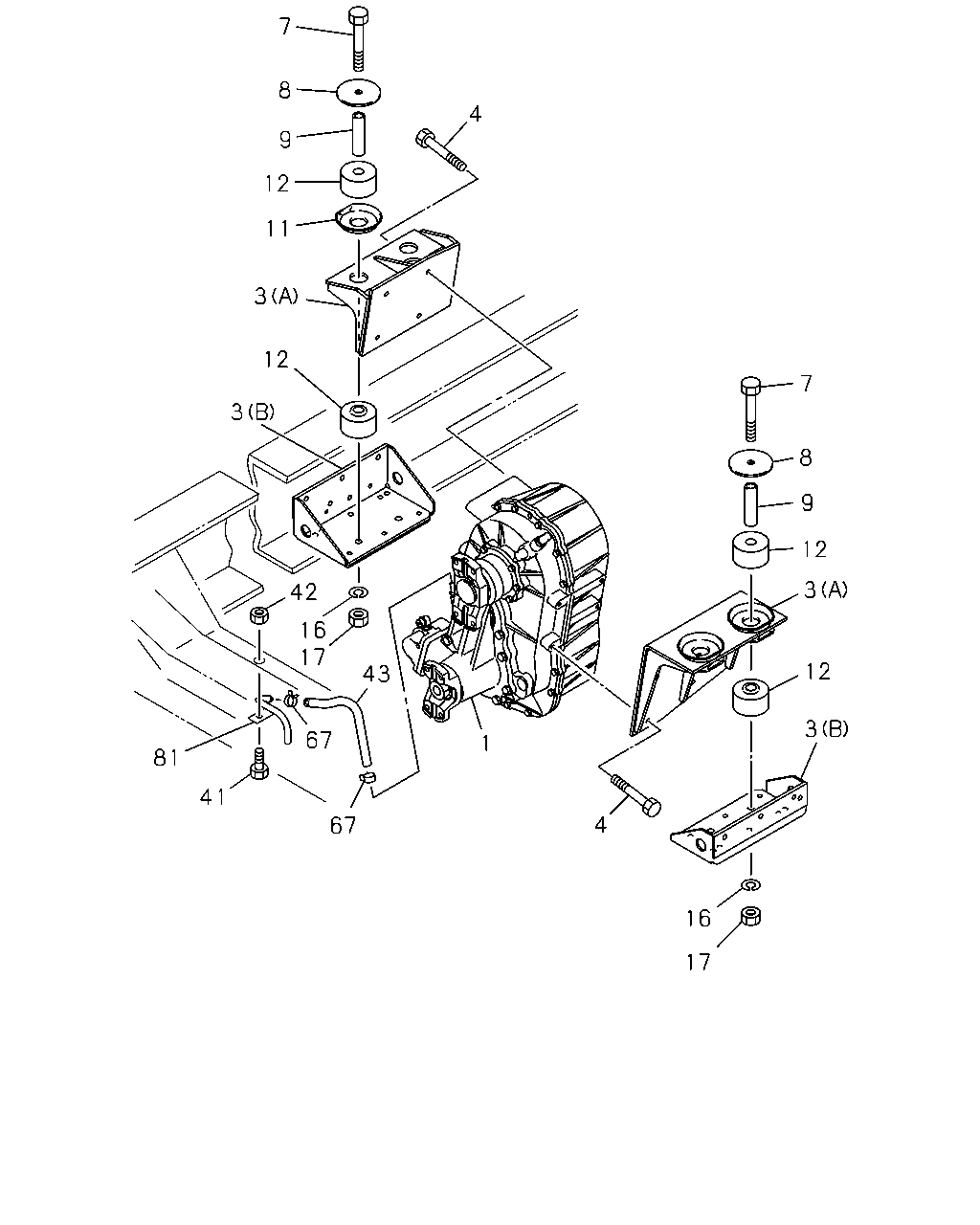

çizim 114268
81 41 67 67 17 16 42 3 12 3 11 12 9 8 7 4 7 8 9 12 3 12 3 16 17 4 1 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSFER ASM 1-36000-729-0 01 1 1011-1306 ● ●
1 TRANSFER ASM 1-36000-762-0 01 1 1307- ● ●
3 BRACKET; TRANSFER
LCT2000 A/T ALLISON(Y4F) (B) 		8-97642-314-0 01 1 1204-1306 ●
3 BRACKET; TRANSFER
LCT2500 A/T ALLISON(Y5W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97642-314-0 01 1 1307- ●
3 BRACKET; TRANSFER
LCT2000 A/T ALLISON(Y4F) (B) 		8-97642-316-0 01 1 1204-1306 ● ●
3 BRACKET; TRANSFER
LCT2500 A/T ALLISON(Y5W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97642-316-0 01 1 1307- ● ●
3 BRACKET; TRANSFER
LCT2000 A/T ALLISON(Y4F) (A) 		8-98094-081-1 01 1 1204-1306 ● ●
3 BRACKET; TRANSFER
LCT2500 A/T ALLISON(Y5W) (A) 		8-98094-081-1 01 1 1307- ● ●
3 BRACKET; TRANSFER
LCT2000 A/T ALLISON(Y4F) (A) 		8-98164-977-0 01 1 1204-1306 ● ●
3 BRACKET; TRANSFER
LCT2500 A/T ALLISON(Y5W) (A) 		8-98164-977-0 01 1 1307- ● ●
3 BRACKET; TRANSFER
LCT2000 A/T ALLISON(Y4F) (B) 		8-97642-315-0 01 1 1204-1306 ●
3 BRACKET; TRANSFER
LCT2500 A/T ALLISON(Y5W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97642-315-0 01 1 1307- ●
3 BRACKET; TRANSFER
MZW6P M/T(RSZ) (B) 		8-97615-988-3 01 1 1011- ●
3 BRACKET; TRANSFER
MZW6P M/T(RSZ) (B) 		8-97628-322-0 01 1 1011-1306 ● ●
3 BRACKET; TRANSFER
(B) 		8-97628-322-0 01 1 1307- ● ●
3 BRACKET; TRANSFER
(A) 		8-98013-515-0 01 1 1011-1203 ● ●
3 BRACKET; TRANSFER
MZW6P M/T(RSZ) (A) 		8-98013-515-0 01 1 1204- ● ●
3 BRACKET; TRANSFER
(A) 		8-98013-516-0 01 1 1011-1203 ● ●
3 BRACKET; TRANSFER
MZW6P M/T(RSZ) (A) 		8-98013-516-0 01 1 1204- ● ●
3 BRACKET; TRANSFER
MZW6P M/T(RSZ) (B) 		8-97628-278-0 01 1 1011- ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 1011- ● ●
7 BOLT; CUSHION RUBBER 1-09000-239-1 04 1 1011- ● ●
8 PLATE; CUSHION RUBBER 1-09503-134-0 04 1 1011- ● ●
9 PIECE; DIST,CUSHION RUBBER 1-36181-002-0 04 1 1011- ● ●
11 SEAT; CUSHION RUBBER 1-36189-070-0 02 1 1011- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-040-1 08 1 1011- ● ●
16 WASHER; LK,CUSHION RUBBER
ID=16.2 		0-91510-616-0 04 1 1011- ● ●
17 NUT; CUSHION RUBBER
M16 		0-91110-516-0 04 1 1011- ● ●
41 BOLT; BRKT,BREATHER
M8X25 FLANGE 		0-28650-825-0 01 1 1011- ● ●
42 NUT; BRKT,BREATHER
M8 FLANGE 		0-91180-108-0 02 1 1011- ● ●
43 HOSE; RUBBER,BREATHER
LCT2000 A/T ALLISON(Y4F) L=325 SERVICED BY L=1800 		1-09360-320-0 01 1 1205-1306 ● ●
43 HOSE; RUBBER,BREATHER
LCT2500 A/T ALLISON(Y5W) L=325 SERVICED BY L=1800 		1-09360-320-0 01 1 1307- ● ●
43 HOSE; RUBBER,BREATHER
L=310 SERVICED BY L=1800 		1-09360-320-0 01 1 1011-1306 ● ●
43 HOSE; RUBBER,BREATHER
MZW6P M/T(RSZ) L=310 SERVICED BY L=1800 		1-09360-320-0 01 1 1307- ● ●
67 CLIP; BAND
ID=14 		1-09704-102-0 02 1 1011- ● ●
81 PIPE; BREATHER 1-49115-033-0 01 1 1011- ● ●

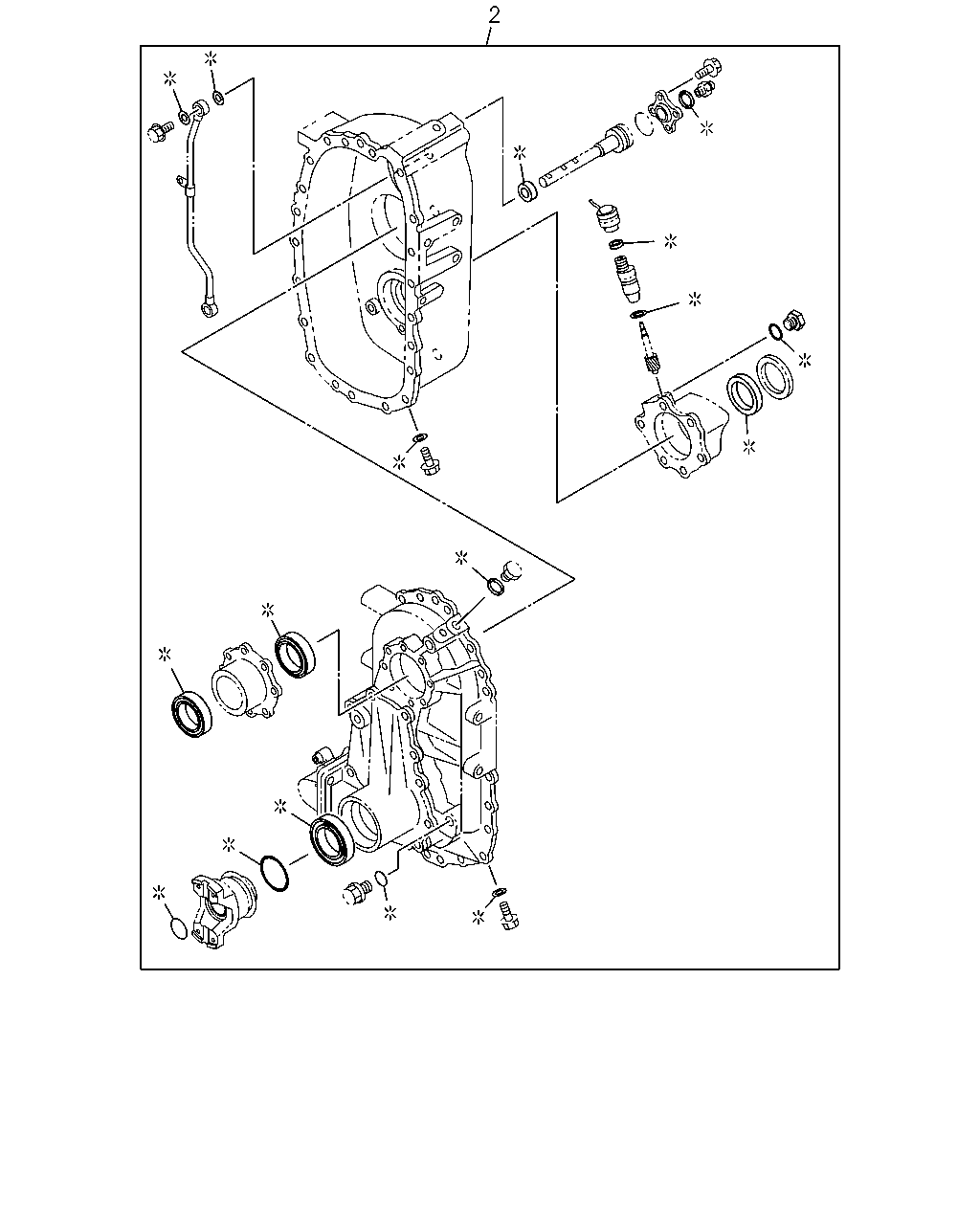

çizim 189248
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-339-0 01 1 1011-1312 ● ●
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-462-0 01 1 1401- ● ●
