◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56B - AUTO TRANS CONTROL LINK ▶
2-56B — AUTO TRANS CONTROL LINK (#71066) — 26 parça

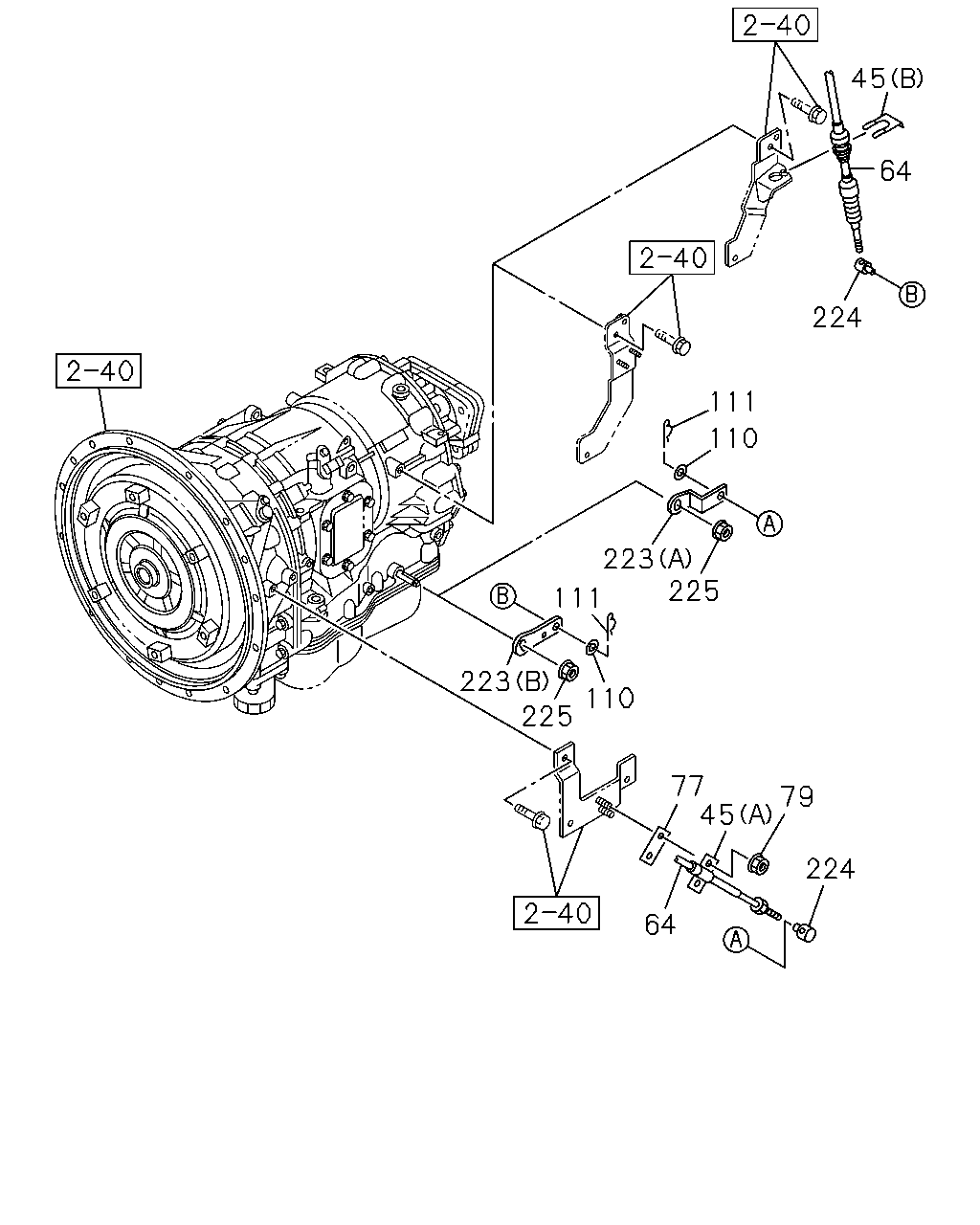

çizim 189343
64 77 45 79 224 225 223 110 111 223 225 110 111 224 64 45
BalonParca AdiParca NoAdetTipApplied Date A B
45 CLIP; CONT CABLE
(A) 		1-09709-308-0 01 1 1204-1306 ●
45 CLIP; CONT CABLE
(A) 		1-09709-308-0 01 1 1307-1402 ●
45 CLIP; CONT CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1403- ●
45 CLIP; CONT CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1403- ●
64 CABLE; A/T CONT 8-98206-766-1 01 1 1204-1306 ●
64 CABLE; A/T CONT 8-98249-175-1 01 1 1307-1402 ●
64 CABLE; A/T CONT 8-98254-588-1 01 1 1403- ●
77 SHIM; A/T CONT CABLE 1-34659-018-0 01 1 1204-1306 ●
77 SHIM; A/T CONT CABLE 1-34659-018-0 01 1 1307-1402 ●
79 NUT; CONT CABLE 1-09400-158-0 02 1 1204-1306 ●
79 NUT; CONT CABLE 1-09400-158-0 02 1 1307-1402 ●
110 WASHER; PL,CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 1204- ●
111 PIN; SNAP,CONT CABLE
L=27.7 		1-09747-005-0 01 1 1204- ●
223 LEVER; SELECT
(A) 		8-98206-594-0 01 1 1204-1306 ●
223 LEVER; SELECT
(A) 		8-98206-594-0 01 1 1307-1308 ●
223 LEVER; SELECT
(B) 		8-98225-663-1 01 1 1309-1501 ●
223 LEVER; SELECT
EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98225-663-1 01 1 1502-1503 ●
223 LEVER; SELECT
(B) 		8-98225-663-1 01 1 1504- ●
224 PIVOT; A/T CONT 1-34659-019-0 01 1 1204-1306 ●
224 PIVOT; A/T CONT 1-34659-019-0 01 1 1307-1402 ●
224 PIVOT; A/T CONT 1-34659-019-0 01 1 1403- ●
224 PIVOT; A/T CONT 1-34659-019-0 01 1 1403- ●
225 NUT; SELECT LEVER 1-09464-034-0 01 1 1204-1306 ●
225 NUT; SELECT LEVER 1-09464-034-0 01 1 1307-1501 ●
225 NUT; SELECT LEVER
EXC. VIN MODEL YEAR 2015<VZF> 		1-09464-034-0 01 1 1502-1503 ●
225 NUT; SELECT LEVER 1-09464-034-0 01 1 1504- ●
