◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55B - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55B — AUTO TRANS SHIFT CONTROL LEVER (#71065) — 70 parça

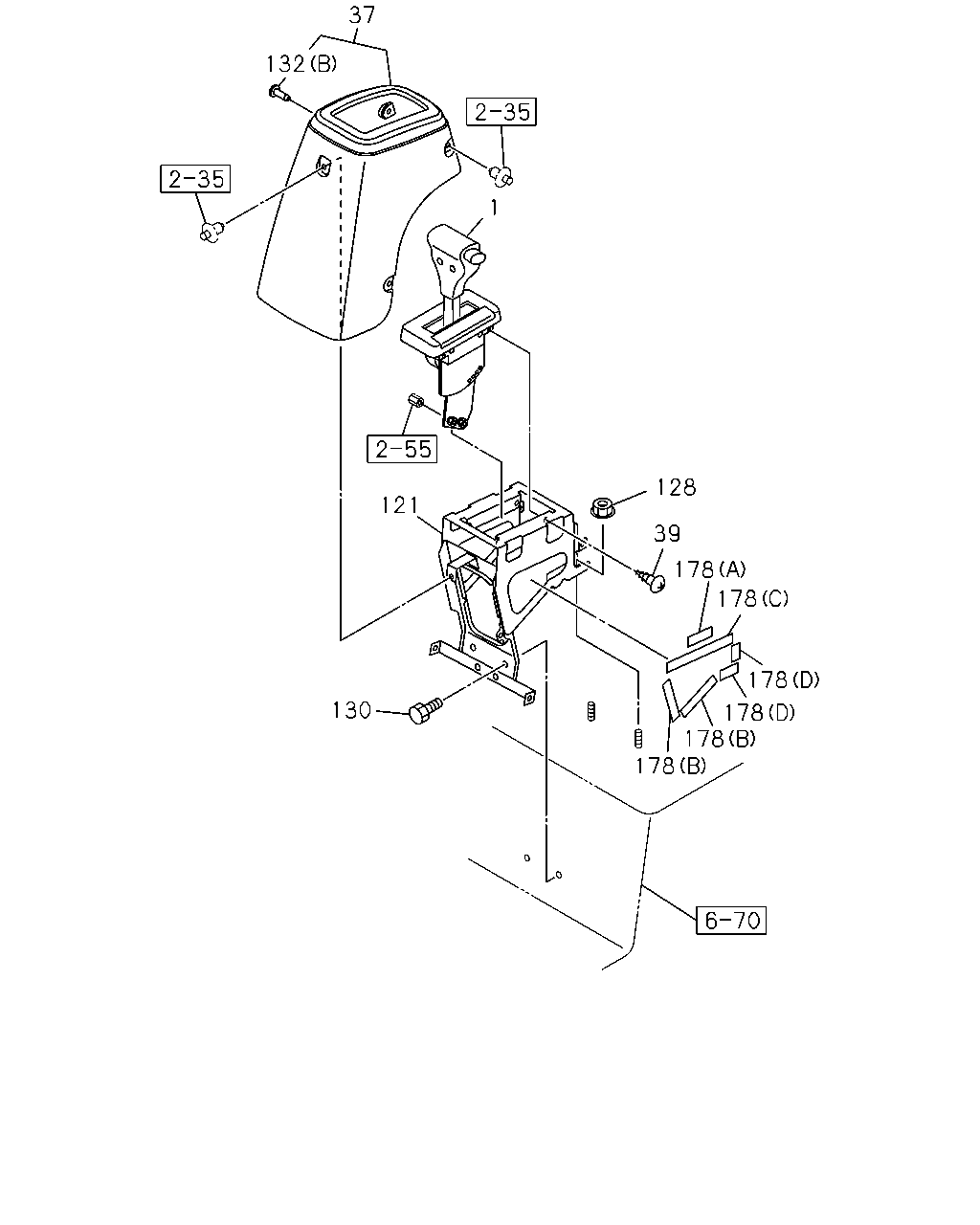

çizim 114359
128 39 178 178 178 178 178 178 121 37 132 130 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T 8-98017-517-1 01 1 1204-1306 ●
1 LEVER; SHIFT,A/T 8-98017-517-1 01 1 1307- ●
37 STAND; A/T CONT LEVER
GRAY 		8-97411-894-2 01 1 1204-1306 ●
37 STAND; A/T CONT LEVER
GRAY 		8-97411-894-2 01 1 1307- ●
39 SCREW; SHIFT LEVER
M6X13 		1-09981-540-0 04 1 1204-1306 ●
39 SCREW; SHIFT LEVER
M6X13 		1-09981-540-0 04 1 1307- ●
121 BRACKET 8-98092-343-0 01 1 1204-1306 ●
121 BRACKET 8-98092-343-0 01 1 1307- ●
128 NUT; BRKT
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1204-1306 ●
128 NUT; BRKT
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1307- ●
130 BOLT; BRKT
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1204-1306 ●
130 BOLT; BRKT
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1307- ●
132 CLIP; COVER
(A) 		1-34619-057-0 04 1 1204-1306 ●
132 CLIP; COVER
(A) 		1-34619-057-0 04 1 1307- ●
132 CLIP; COVER
(B) GRAY 		8-97405-308-0 06 1 1204-1306 ●
132 CLIP; COVER
(B) GRAY 		8-97405-308-0 06 1 1307- ●
178 SHEET; SHIFT LEVER
(D) 		8-98106-251-0 04 1 1204-1306 ●
178 SHEET; SHIFT LEVER
(D) 		8-98106-251-0 04 1 1307- ●
178 SHEET; SHIFT LEVER
(A) 		8-98106-252-0 02 1 1204-1306 ●
178 SHEET; SHIFT LEVER
(A) 		8-98106-252-0 02 1 1307- ●
178 SHEET; SHIFT LEVER
(B) 		8-98106-253-0 04 1 1204-1306 ●
178 SHEET; SHIFT LEVER
(B) 		8-98106-253-0 04 1 1307- ●
178 SHEET; SHIFT LEVER
(C) 		8-98106-254-0 02 1 1204-1306 ●
178 SHEET; SHIFT LEVER
(C) 		8-98106-254-0 02 1 1307- ●

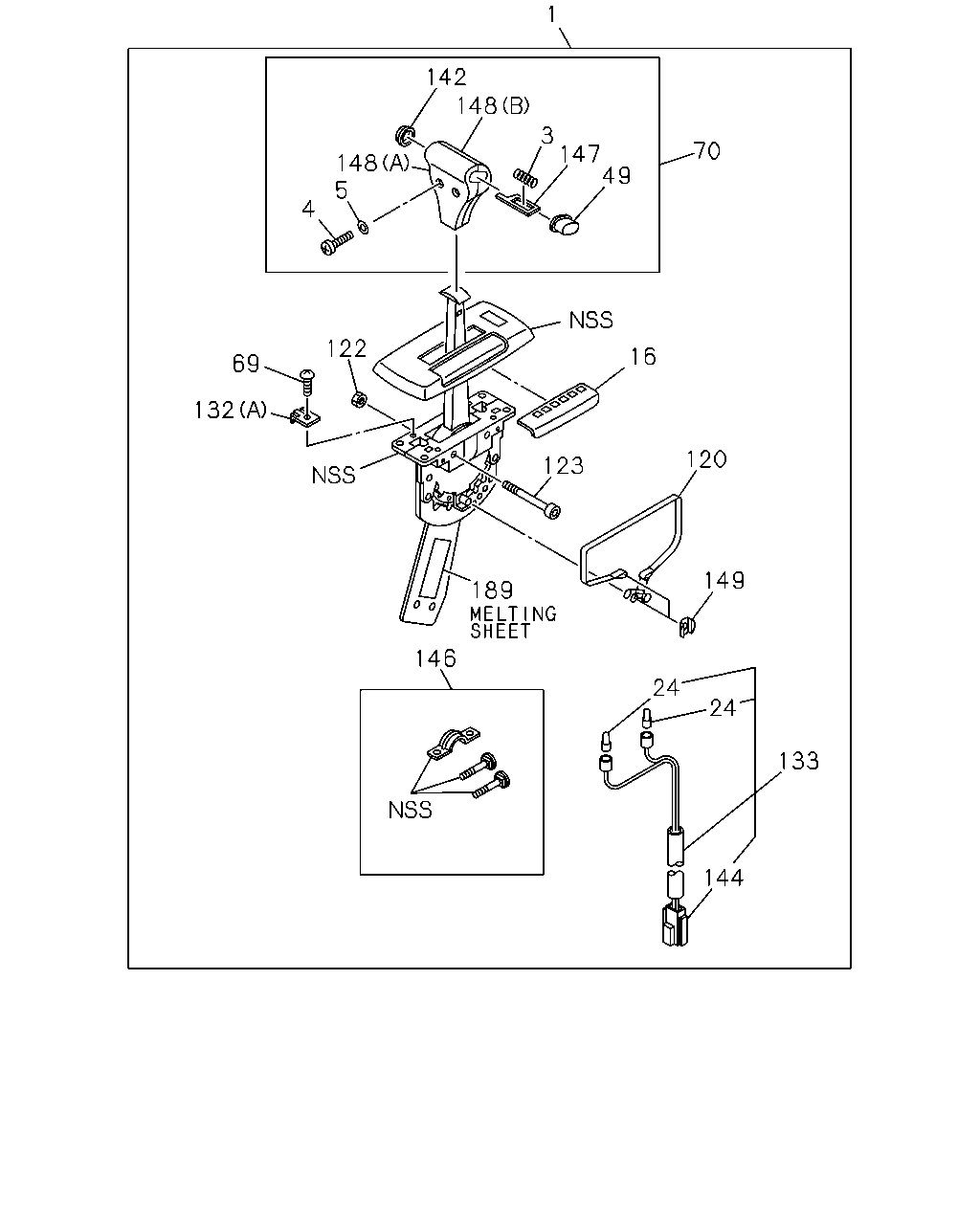

çizim 114438
144 133 24 24 149 120 16 70 1 49 147 3 142 148 148 5 4 122 69 132 146 189 123
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T 8-98017-517-1 01 1 1204-1306 ●
1 LEVER; SHIFT,A/T 8-98017-517-1 01 1 1307- ●
3 SPRING; RETURN,KNOB 1-34619-104-0 01 1 1204-1306 ●
3 SPRING; RETURN,KNOB 1-34619-104-0 01 1 1307- ●
4 SCREW; KNOB TO LEVER 1-34619-106-0 02 1 1204-1306 ●
4 SCREW; KNOB TO LEVER 1-34619-106-0 02 1 1307- ●
5 WASHER; KNOB TO LEVER 1-34619-107-0 02 1 1204-1306 ●
5 WASHER; KNOB TO LEVER 1-34619-107-0 02 1 1307- ●
16 LENS; INDICATOR 8-98096-402-0 01 1 1204-1306 ●
16 LENS; INDICATOR 8-98096-402-0 01 1 1307- ●
24 BULB; SHIFT LEVER,A/T
12V 3.4W 		1-34619-115-0 02 1 1204-1306 ●
24 BULB; SHIFT LEVER,A/T
12V 3.4W 		1-34619-115-0 02 1 1307- ●
49 BUTTON; PUSH,KNOB 1-34619-102-0 01 1 1204-1306 ●
49 BUTTON; PUSH,KNOB 1-34619-102-0 01 1 1307- ●
69 SCREW; COVER,SHIFT LEVER 1-34619-056-0 04 1 1204-1306 ●
69 SCREW; COVER,SHIFT LEVER 1-34619-056-0 04 1 1307- ●
70 KNOB; SHIFT LEVER 1-34612-003-0 01 1 1204-1306 ●
70 KNOB; SHIFT LEVER 1-34612-003-0 01 1 1307- ●
120 BELT; INDICATOR 1-34619-096-0 01 1 1204-1306 ●
120 BELT; INDICATOR 1-34619-096-0 01 1 1307- ●
122 NUT; SHIFT LEVER 1-34619-109-0 02 1 1204-1306 ●
122 NUT; SHIFT LEVER 1-34619-109-0 02 1 1307- ●
123 BOLT; SHIFT LEVER 1-34619-108-0 02 1 1204-1306 ●
123 BOLT; SHIFT LEVER 1-34619-108-0 02 1 1307- ●
132 CLIP; COVER
(A) 		1-34619-057-0 04 1 1204-1306 ●
132 CLIP; COVER
(A) 		1-34619-057-0 04 1 1307- ●
132 CLIP; COVER
(B) GRAY 		8-97405-308-0 06 1 1204-1306 ●
132 CLIP; COVER
(B) GRAY 		8-97405-308-0 06 1 1307- ●
133 HARNESS; INDICATOR 8-98096-403-0 01 1 1204-1306 ●
133 HARNESS; INDICATOR 8-98096-403-0 01 1 1307- ●
142 CAP; KNOB,SHIFT LEVER 1-34619-105-0 01 1 1204-1306 ●
142 CAP; KNOB,SHIFT LEVER 1-34619-105-0 01 1 1307- ●
144 CONNECTOR KIT; HARNESS 8-94437-417-0 01 1 1204-1306 ●
144 CONNECTOR KIT; HARNESS 8-94437-417-0 01 1 1307- ●
146 ATTACHMENT KIT; SHIFT LEVER 8-98100-080-0 01 1 1204-1306 ●
146 ATTACHMENT KIT; SHIFT LEVER 8-98100-080-0 01 1 1307- ●
147 PLATE; SLIDE,SHIFT LEVER 1-34619-103-0 01 1 1204-1306 ●
147 PLATE; SLIDE,SHIFT LEVER 1-34619-103-0 01 1 1307- ●
148 GRIP; SHIFT LEVER
(A) 		1-34619-100-0 01 1 1204-1306 ●
148 GRIP; SHIFT LEVER
(A) 		1-34619-100-0 01 1 1307- ●
148 GRIP; SHIFT LEVER
(B) 		1-34619-101-0 01 1 1204-1306 ●
148 GRIP; SHIFT LEVER
(B) 		1-34619-101-0 01 1 1307- ●
149 NUT; INDICATOR BELT 1-34619-094-0 02 1 1204-1306 ●
149 NUT; INDICATOR BELT 1-34619-094-0 02 1 1307- ●
189 SHEET; MELTING 8-98083-626-0 01 1 1204-1306 ●
189 SHEET; MELTING 8-98083-626-0 01 1 1307- ●
