2-53 — TRANSMISSION OIL COOLER SYSTEM (#71064) — 65 parça

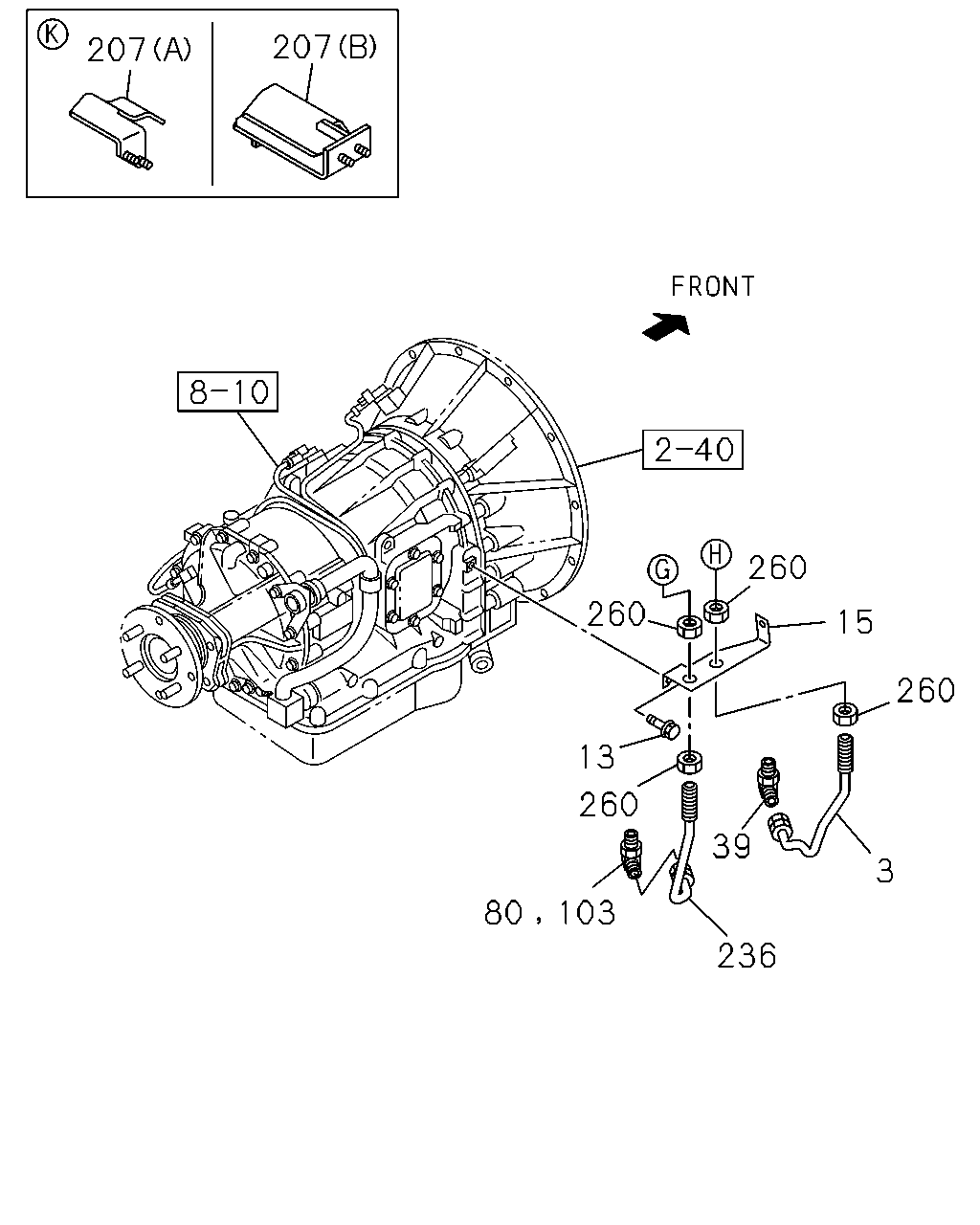

207 207 260 260 260 15 13 260 103 80 236 39 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	PIPE; OIL,A/T TO OIL COOLER LCT2000 A/T ALLISON(Y4F)	8-98158-383-1	01	1	1204-1306	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W)	8-98158-383-1	01	1	1307-1501	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	8-98158-383-1	01	1	1502-1503	●	●
3	PIPE; OIL,A/T TO OIL COOLER LCT2500 A/T ALLISON(Y5W)	8-98158-383-1	01	1	1504-	●	●
13	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X20 FLANGE	8-98105-048-0	01	1	1204-1306	●	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1307-1501	●	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M8X20 FLANGE	8-98105-048-0	01	1	1502-1503	●	●
13	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	8-98105-048-0	01	1	1504-	●	●
15	BRACKET; ATF PIPE LCT2000 A/T ALLISON(Y4F)	8-98075-836-0	01	1	1204-1306	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1307-1501	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	8-98075-836-0	01	1	1502-1503	●	●
15	BRACKET; ATF PIPE LCT2500 A/T ALLISON(Y5W)	8-98075-836-0	01	1	1504-	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	1204-1306	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1307-1501	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	1-09661-766-1	01	1	1502-1503	●	●
39	CONNECTOR; FLEX HOSE,A/T LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1504-	●	●
80	UNION; FLEX HOSE LCT2500 A/T ALLISON(Y5W) VIN MODEL YEAR 2015<VZF>	1-09661-766-1	01	1	1504-	●	●
103	CONNECTOR; OIL PIPE LCT2000 A/T ALLISON(Y4F)	1-09661-766-1	01	1	1204-1306	●	●
103	CONNECTOR; OIL PIPE LCT2500 A/T ALLISON(Y5W)	1-09661-766-1	01	1	1307-1501	●	●
103	CONNECTOR; OIL PIPE LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	1-09661-766-1	01	1	1502-	●	●
207	BRACKET; UNION A/T<X9D> (A)	8-98215-746-0	01	1	1204-1306	●	●
207	BRACKET; UNION A/T<X9D> (B)	8-98234-301-0	01	1	1307-	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2000 A/T ALLISON(Y4F)	8-98158-384-1	01	1	1204-1306	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1307-1501	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF>	8-98158-384-1	01	1	1502-1503	●	●
236	PIPE; OIL,OIL COOLER TO A/T LCT2500 A/T ALLISON(Y5W)	8-98158-384-1	01	1	1504-	●	●
260	NUT LCT2000 A/T ALLISON(Y4F) M30	1-09400-166-0	04	1	1204-1306	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1307-1501	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) EXC. VIN MODEL YEAR 2015<VZF> M30	1-09400-166-0	04	1	1502-1503	●	●
260	NUT LCT2500 A/T ALLISON(Y5W) M30	1-09400-166-0	04	1	1504-	●	●

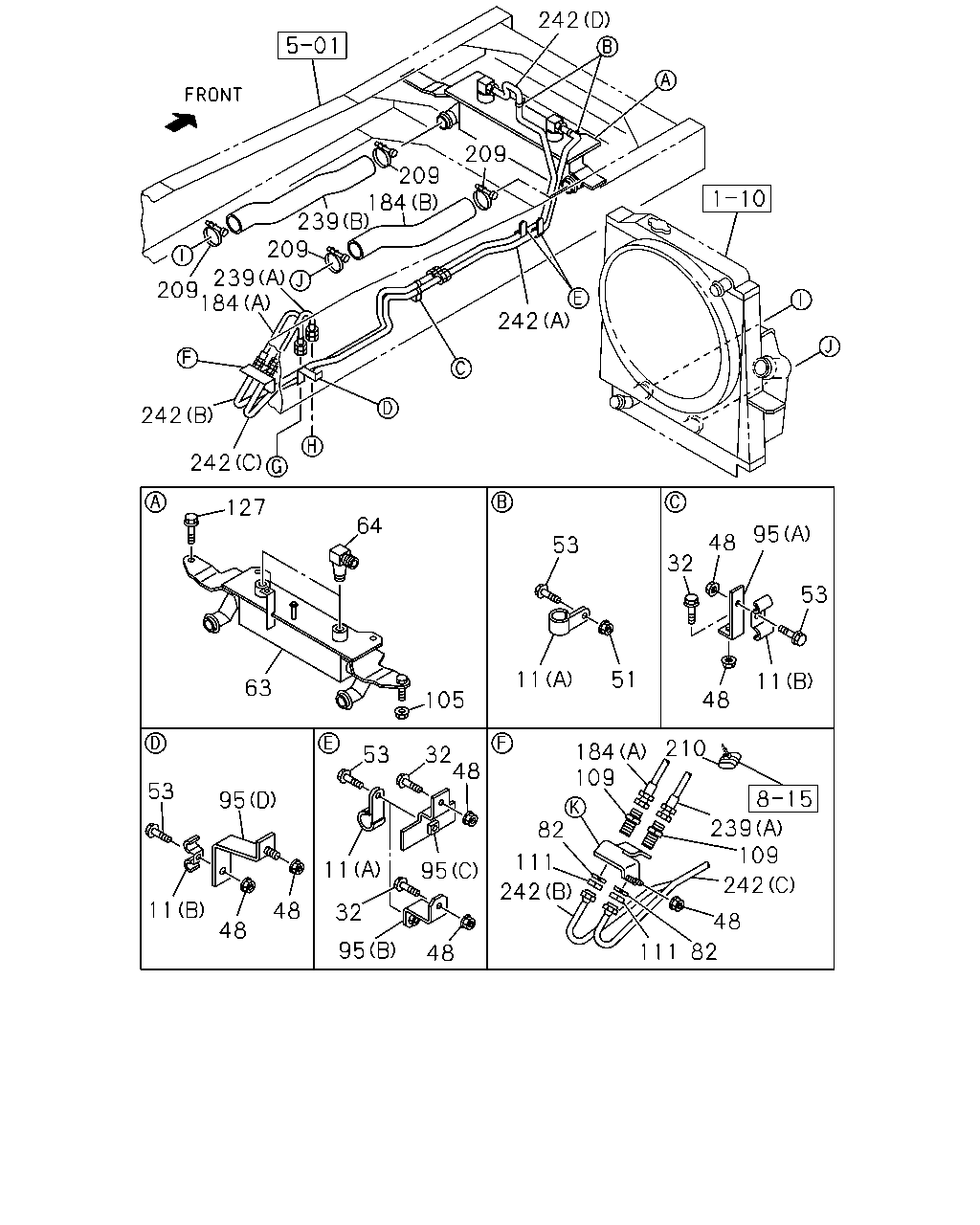

242 209 209 242 184 239 209 239 209 184 242 242 127 64 53 48 32 95 53 11 48 51 11 105 63 53 32 48 95 53 48 48 11 32 11 95 48 95 111 242 111 242 48 82 109 239 210 184 109 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE A/T<X9D> (A) ID=19 L=20	0-95235-836-0	04	1	1204-	●	●
11	CLIP; PIPE A/T<X9D> (B) ID=19 & 19	1-09701-324-0	02	1	1204-	●	●
32	BOLT; BRKT A/T<X9D> M8X30 FLANGE	0-28650-830-0	05	1	1204-	●	●
48	NUT; BRKT A/T<X9D> M8 FLANGE	0-91180-108-0	08	1	1204-	●	●
51	NUT; CLIP TO BRKT A/T<X9D> M8 FLANGE	0-91180-108-0	03	1	1204-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T A/T<X9D> M8X20 FLANGE	0-28650-820-0	06	1	1204-	●	●
63	COOLER; OIL A/T<X9D>	8-98211-166-1	01	1	1204-1207	●	●
63	COOLER; OIL A/T<X9D>	8-98225-333-0	01	1	1208-	●	●
64	CONNECTOR; OIL COOLER A/T<X9D>	9-09903-722-0	02	1	1204-	●	●
82	WASHER; LK,UNION A/T<X9D> ID=30.5	9-09150-530-0	02	1	1204-	●	●
95	BRACKET; CLIP A/T<X9D> (D)	8-98215-737-0	01	1	1204-	●	●
95	BRACKET; CLIP A/T<X9D> (A)	1-34656-009-0	02	1	1204-	●	●
95	BRACKET; CLIP A/T<X9D> (B)	1-47479-255-0	02	1	1204-	●	●
95	BRACKET; CLIP A/T<X9D> (C)	8-98089-351-0	01	1	1204-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	02	1	1204-	●	●
109	UNION A/T<X9D> M30 & M30 STRAIGHT	1-09664-191-0	02	1	1204-	●	●
111	NUT; UNION A/T<X9D> M30	9-09840-252-1	02	1	1204-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	1204-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98098-559-1	01	1	1204-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (A)	8-98157-887-0	01	1	1204-	●	●
209	CLIP; HOSE A/T<X9D> ID=63	1-09704-067-0	04	1	1204-	●	●
210	BAND; FLEX HOSE A/T<X9D> L=175	1-09707-178-0	01	1	1204-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98025-697-1	01	1	1204-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (A)	8-98080-165-0	01	1	1204-1306	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (A)	8-98233-757-0	01	1	1307-	●	●
242	PIPE; COOLER A/T<X9D> (A)	8-98215-735-0	01	1	1204-1306	●
242	PIPE; COOLER A/T<X9D> (A)	8-98233-661-0	01	1	1307-	●	●
242	PIPE; COOLER A/T<X9D> (D)	8-98215-732-0	01	1	1204-	●	●
242	PIPE; COOLER A/T<X9D> (B)	8-98215-733-0	01	1	1204-1306	●	●
242	PIPE; COOLER A/T<X9D> (B)	8-98233-659-0	01	1	1307-	●	●
242	PIPE; COOLER A/T<X9D> (C)	8-98215-736-0	01	1	1204-1306	●	●
242	PIPE; COOLER A/T<X9D> (C)	8-98233-660-0	01	1	1307-	●	●
242	PIPE; COOLER A/T<X9D> (A)	8-98215-734-0	01	1	1204-1306		●

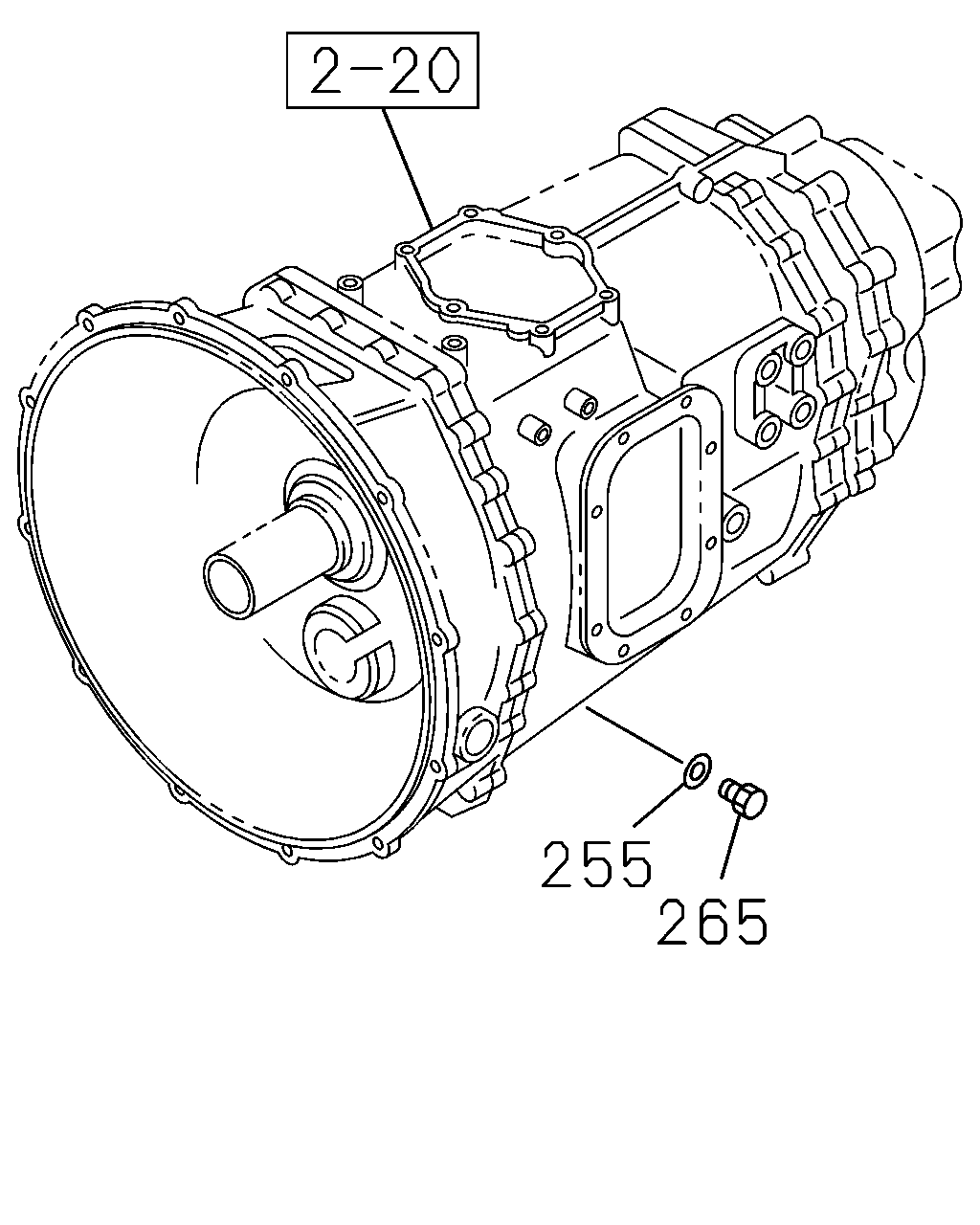

255 265

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	255	GASKET; SENSOR MZW6P M/T(RSZ) ID=12.2	9-09571-412-0	01	1	1405-	●	●
	265	PLUG; HOLE MZW6P M/T(RSZ) M12X9	0-92002-412-0	01	1	1405-	●	●
