◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42B - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42B — AUTO TRANS OIL PAN AND OIL CONTROL (#71063) — 36 parça

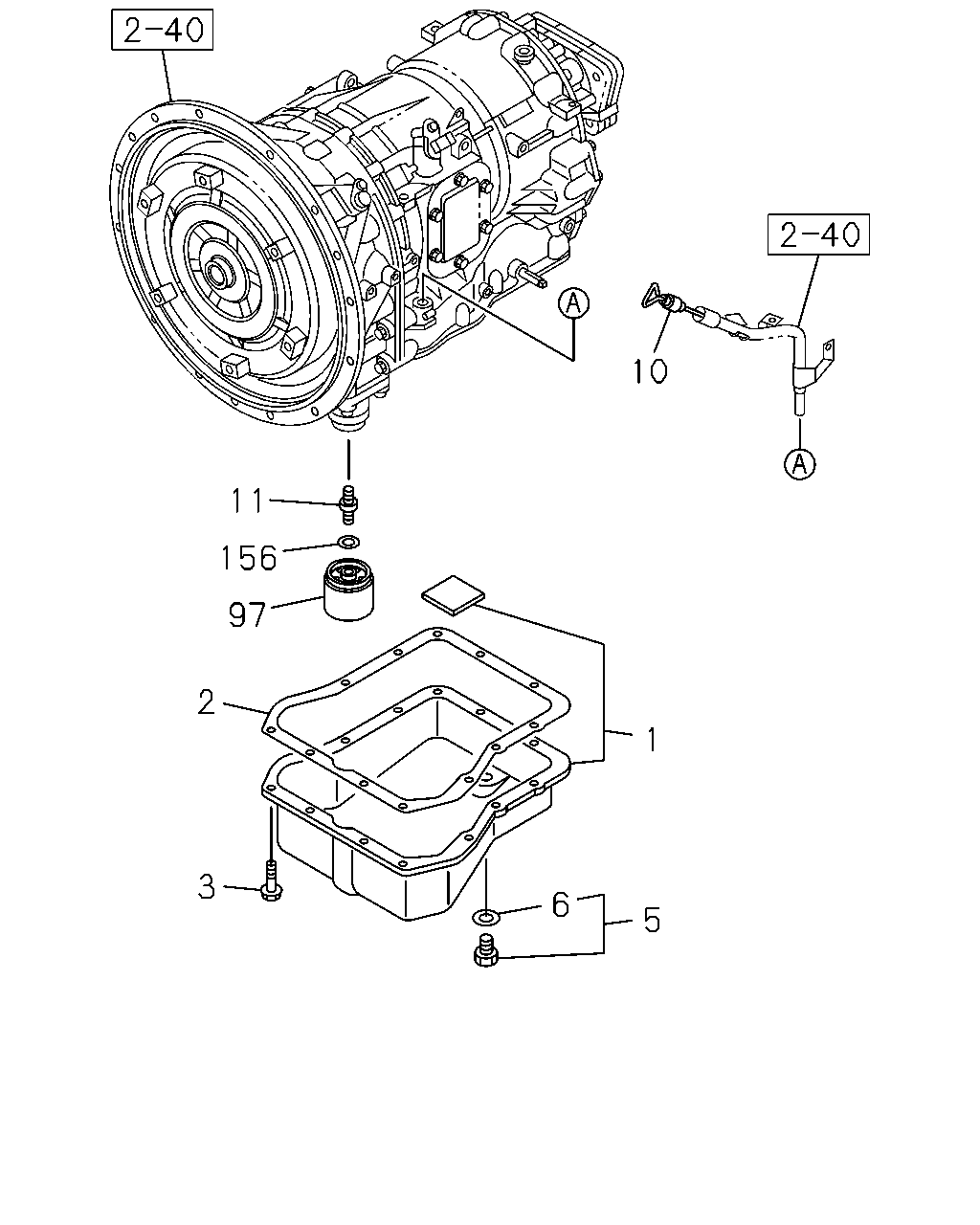

çizim 114593
10 1 5 6 3 97 2 156 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL,A/T 8-29536-522-0 01 1 1204-1306 ●
1 PAN ASM; OIL,A/T 8-29536-522-0 01 1 1307-1501 ●
1 PAN ASM; OIL,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		8-29536-522-0 01 1 1502-1503 ●
1 PAN ASM; OIL,A/T 8-29536-522-0 01 1 1504- ●
2 GASKET; OIL PAN,A/T 1-34132-013-0 01 1 1204-1306 ●
2 GASKET; OIL PAN,A/T 1-34132-013-0 01 1 1307-1501 ●
2 GASKET; OIL PAN,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		1-34132-013-0 01 1 1502-1503 ●
2 GASKET; OIL PAN,A/T 1-34132-013-0 01 1 1504- ●
3 BOLT; OIL PAN TO CASE 1-34119-111-0 12 1 1204-1306 ●
3 BOLT; OIL PAN TO CASE 1-34119-111-0 12 1 1307-1501 ●
3 BOLT; OIL PAN TO CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-111-0 12 1 1502-1503 ●
3 BOLT; OIL PAN TO CASE 1-34119-111-0 12 1 1504- ●
5 PLUG; OIL PAN 1-34139-062-0 01 1 1204-1306 ●
5 PLUG; OIL PAN 1-34139-062-0 01 1 1307-1501 ●
5 PLUG; OIL PAN
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-062-0 01 1 1502-1503 ●
5 PLUG; OIL PAN 1-34139-062-0 01 1 1504- ●
6 GASKET; OIL PAN TO PLUG 1-34139-063-0 01 1 1204-1306 ●
6 GASKET; OIL PAN TO PLUG 1-34139-063-0 01 1 1307-1501 ●
6 GASKET; OIL PAN TO PLUG
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-063-0 01 1 1502-1503 ●
6 GASKET; OIL PAN TO PLUG 1-34139-063-0 01 1 1504- ●
10 GAUGE; OIL LEVEL 8-98172-823-0 01 1 1204-1306 ●
10 GAUGE; OIL LEVEL 8-98172-823-0 01 1 1307-1501 ●
10 GAUGE; OIL LEVEL
EXC. VIN MODEL YEAR 2015<VZF> 		8-98172-823-0 01 1 1502-1503 ●
10 GAUGE; OIL LEVEL 8-98172-823-0 01 1 1504- ●
11 TUBE; OIL FILLER 1-34139-059-0 01 1 1204-1306 ●
11 TUBE; OIL FILLER 1-34139-059-0 01 1 1307-1501 ●
11 TUBE; OIL FILLER
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-059-0 01 1 1502-1503 ●
11 TUBE; OIL FILLER 1-34139-059-0 01 1 1504- ●
97 FILTER; OIL 8-29539-579-0 01 1 1204-1306 ●
97 FILTER; OIL 8-29539-579-0 01 1 1307-1501 ●
97 FILTER; OIL
EXC. VIN MODEL YEAR 2015<VZF> 		8-29539-579-0 01 1 1502-1503 ●
97 FILTER; OIL 8-29539-579-0 01 1 1504- ●
156 MAGNET; OIL FILTER 1-34139-060-0 01 1 1204-1306 ●
156 MAGNET; OIL FILTER 1-34139-060-0 01 1 1307-1501 ●
156 MAGNET; OIL FILTER
EXC. VIN MODEL YEAR 2015<VZF> 		1-34139-060-0 01 1 1502-1503 ●
156 MAGNET; OIL FILTER 1-34139-060-0 01 1 1504- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
