◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41B - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41B — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#71062) — 48 parça

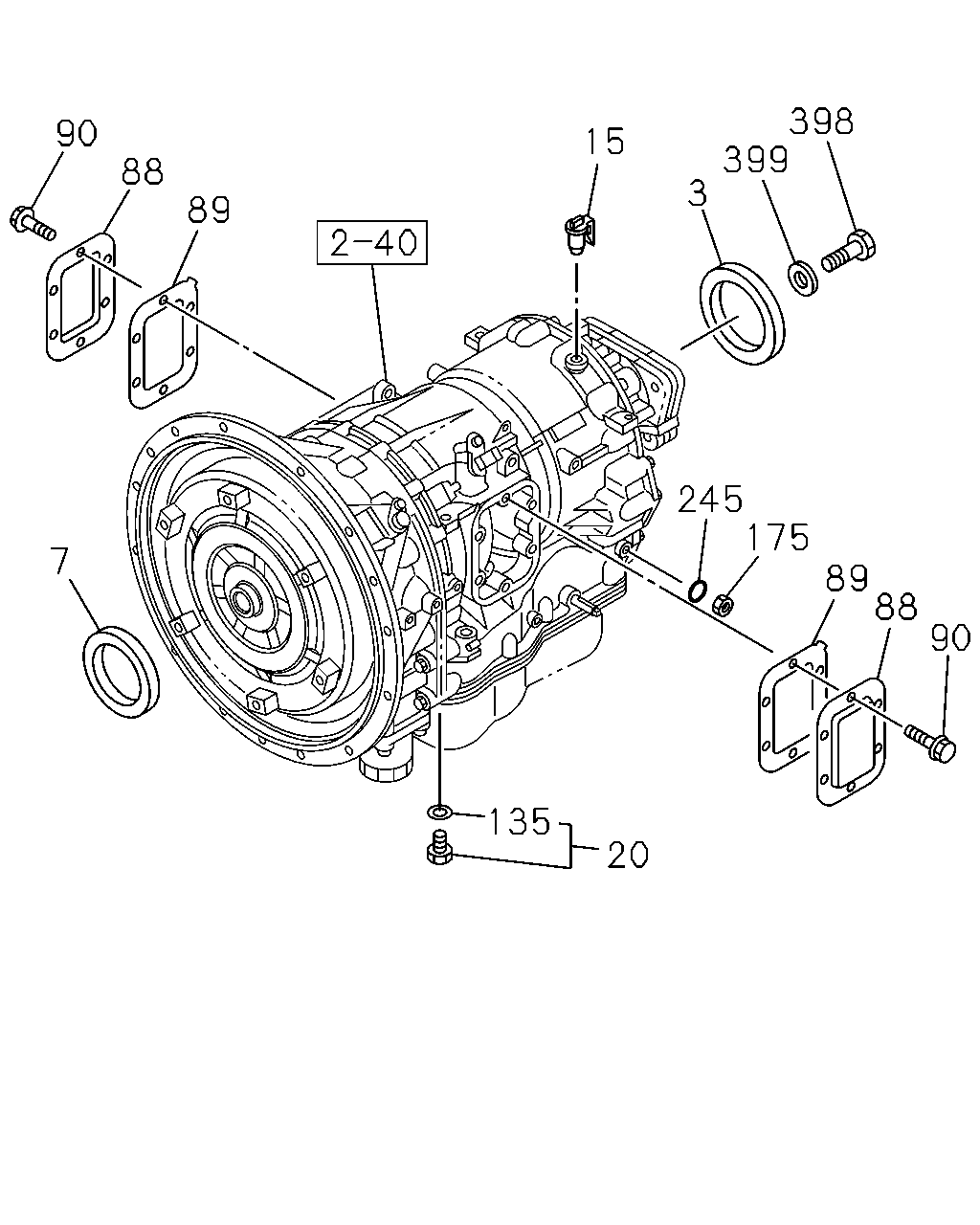

çizim 114258
90 88 89 175 245 3 399 398 15 20 135 89 88 90 7
BalonParca AdiParca NoAdetTipApplied Date A B
3 SEAL; OIL,RR COVER,A/T 1-34119-106-0 01 1 1204-1306 ●
3 SEAL; OIL,RR COVER,A/T 1-34119-106-0 01 1 1307-1501 ●
3 SEAL; OIL,RR COVER,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-106-0 01 1 1502-1503 ●
3 SEAL; OIL,RR COVER,A/T 1-34119-106-0 01 1 1504- ●
7 SEAL; OIL,LIP,A/T 8-29546-682-0 01 1 1204-1306 ●
7 SEAL; OIL,LIP,A/T 8-29546-682-0 01 1 1307-1501 ●
7 SEAL; OIL,LIP,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		8-29546-682-0 01 1 1502-1503 ●
7 SEAL; OIL,LIP,A/T 8-29546-682-0 01 1 1504- ●
15 BREATHER; A/T CASE 1-34119-109-0 01 1 1204-1306 ●
15 BREATHER; A/T CASE 1-34119-109-0 01 1 1307-1501 ●
15 BREATHER; A/T CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-109-0 01 1 1502-1503 ●
15 BREATHER; A/T CASE 1-34119-109-0 01 1 1504- ●
20 PLUG; TAPER,A/T CASE 1-34119-104-0 01 1 1204-1306 ●
20 PLUG; TAPER,A/T CASE 1-34119-104-0 01 1 1307-1501 ●
20 PLUG; TAPER,A/T CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-104-0 01 1 1502-1503 ●
20 PLUG; TAPER,A/T CASE 1-34119-104-0 01 1 1504- ●
88 COVER; SIDE,A/T 1-38131-007-0 02 1 1204-1306 ●
88 COVER; SIDE,A/T 1-38131-007-0 02 1 1307-1501 ●
88 COVER; SIDE,A/T
EXC. VIN MODEL YEAR 2015<VZF> 		1-38131-007-0 02 1 1502-1503 ●
88 COVER; SIDE,A/T 1-38131-007-0 02 1 1504- ●
89 GASKET; SIDE COVER 8-29531-325-0 02 1 1204-1306 ●
89 GASKET; SIDE COVER 8-29531-325-0 02 1 1307-1501 ●
89 GASKET; SIDE COVER
EXC. VIN MODEL YEAR 2015<VZF> 		8-29531-325-0 02 1 1502-1503 ●
89 GASKET; SIDE COVER 8-29531-325-0 02 1 1504- ●
90 BOLT; SIDE COVER 8-29537-510-0 12 1 1204-1306 ●
90 BOLT; SIDE COVER 8-29537-510-0 12 1 1307-1501 ●
90 BOLT; SIDE COVER
EXC. VIN MODEL YEAR 2015<VZF> 		8-29537-510-0 12 1 1502-1503 ●
90 BOLT; SIDE COVER 8-29537-510-0 12 1 1504- ●
135 GASKET; PLUG,A/T CASE 1-34119-105-0 01 1 1204-1306 ●
135 GASKET; PLUG,A/T CASE 1-34119-105-0 01 1 1307-1501 ●
135 GASKET; PLUG,A/T CASE
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-105-0 01 1 1502-1503 ●
135 GASKET; PLUG,A/T CASE 1-34119-105-0 01 1 1504- ●
175 NUT; SELECT SHAFT 1-09464-034-0 01 1 1204-1306 ●
175 NUT; SELECT SHAFT 1-09464-034-0 01 1 1307-1501 ●
175 NUT; SELECT SHAFT
EXC. VIN MODEL YEAR 2015<VZF> 		1-09464-034-0 01 1 1502-1503 ●
175 NUT; SELECT SHAFT 1-09464-034-0 01 1 1504- ●
245 SEAL; OIL 1-34119-137-0 01 1 1204-1306 ●
245 SEAL; OIL 1-34119-137-0 01 1 1307-1501 ●
245 SEAL; OIL
EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-137-0 01 1 1502-1503 ●
245 SEAL; OIL 1-34119-137-0 01 1 1504- ●
398 BOLT; OUTPUT SHAFT 1-09087-048-0 01 1 1204-1306 ●
398 BOLT; OUTPUT SHAFT 1-09087-048-0 01 1 1307-1501 ●
398 BOLT; OUTPUT SHAFT
EXC. VIN MODEL YEAR 2015<VZF> 		1-09087-048-0 01 1 1502-1503 ●
398 BOLT; OUTPUT SHAFT 1-09087-048-0 01 1 1504- ●
399 WASHER; OUTPUT SHAFT 1-37249-200-0 01 1 1204-1306 ●
399 WASHER; OUTPUT SHAFT 1-37249-200-0 01 1 1307-1501 ●
399 WASHER; OUTPUT SHAFT
EXC. VIN MODEL YEAR 2015<VZF> 		1-37249-200-0 01 1 1502-1503 ●
399 WASHER; OUTPUT SHAFT 1-37249-200-0 01 1 1504- ●
