11307 - FTS AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40B - AUTO TRANS ASM AND REPAIR KIT
▶

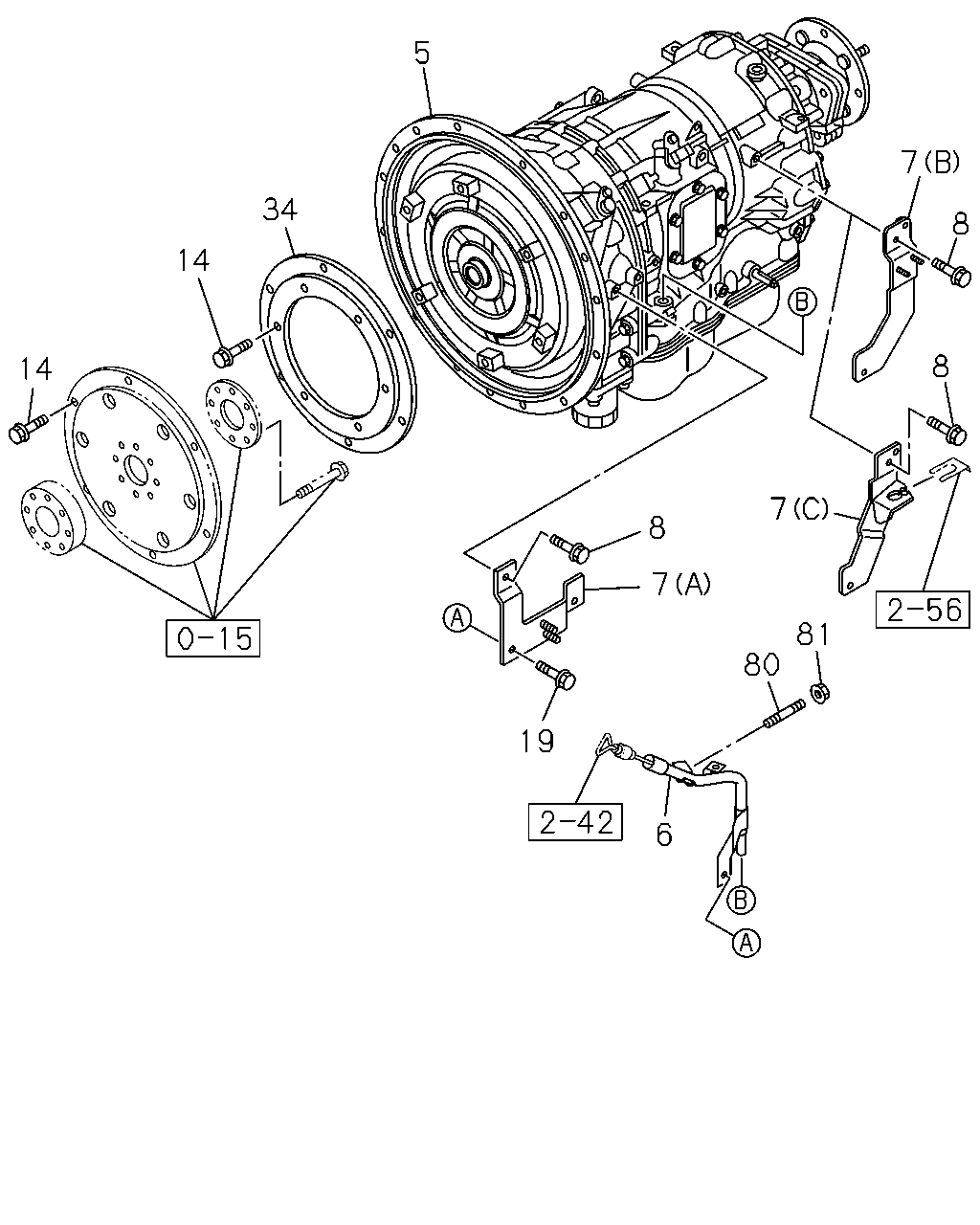

2-40B — AUTO TRANS ASM AND REPAIR KIT
(#71061) — 46 parça
Tümü
A - LCT2500 A/T ALLISON
B - LCT2000 A/T ALLISON
14
14
34
5
8
19
7
7
81
80
6
7
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
TRANSMISSION ASM; AUTO
VIN MODEL YEAR 2015<VZF>
8-98303-290-0
01
1
1504-
●
5
TRANSMISSION ASM; AUTO
8-98163-761-0
01
1
1204-1306
●
5
TRANSMISSION ASM; AUTO
8-98245-809-0
01
1
1307-1501
●
5
TRANSMISSION ASM; AUTO
EXC. VIN MODEL YEAR 2015<VZF>
8-98245-809-0
01
1
1502-
●
6
FILLER; OIL
8-98206-593-0
01
1
1204-1306
●
6
FILLER; OIL
8-98206-593-0
01
1
1307-1308
●
6
FILLER; OIL
8-98242-143-0
01
1
1309-1501
●
6
FILLER; OIL
EXC. VIN MODEL YEAR 2015<VZF>
8-98242-143-0
01
1
1502-1503
●
6
FILLER; OIL
8-98242-143-0
01
1
1504-
●
7
BRACKET; OIL FILLER
(A)
8-98206-978-1
01
1
1204-1306
●
7
BRACKET; OIL FILLER
(A)
8-98206-978-1
01
1
1307-1308
●
7
BRACKET; OIL FILLER
(B)
8-98229-565-0
01
1
1309-1402
●
7
BRACKET; OIL FILLER
(C)
8-98255-078-0
01
1
1403-1501
●
7
BRACKET; OIL FILLER
EXC. VIN MODEL YEAR 2015<VZF> (C)
8-98255-078-0
01
1
1502-1503
●
7
BRACKET; OIL FILLER
(C)
8-98255-078-0
01
1
1504-
●
8
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
01
1
1204-1306
●
8
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
01
1
1307-1501
●
8
BOLT; BRKT
EXC. VIN MODEL YEAR 2015<VZF> M8X20 FLANGE
0-28050-820-0
01
1
1502-1503
●
8
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
01
1
1504-
●
8
BOLT; BRKT
M8X20 FLANGE
8-98105-048-0
01
1
1204-1306
●
8
BOLT; BRKT
M8X20 FLANGE
8-98105-048-0
01
1
1307-1501
●
8
BOLT; BRKT
EXC. VIN MODEL YEAR 2015<VZF> M8X20 FLANGE
8-98105-048-0
01
1
1502-1503
●
8
BOLT; BRKT
M8X20 FLANGE
8-98105-048-0
01
1
1504-
●
14
BOLT; FLEX PLATE
1-09044-054-0
06
1
1204-1306
●
14
BOLT; FLEX PLATE
1-09044-054-0
06
1
1307-1503
●
14
BOLT; FLEX PLATE
1-09044-054-0
06
1
1504-
●
14
BOLT; FLEX PLATE
1-09044-054-0
12
1
1204-1306
●
14
BOLT; FLEX PLATE
1-09044-054-0
12
1
1307-1501
●
14
BOLT; FLEX PLATE
EXC. VIN MODEL YEAR 2015<VZF>
1-09044-054-0
12
1
1502-1503
●
19
BOLT; OIL FILLER
M8X20 FLANGE
0-28050-820-0
01
1
1204-1306
●
19
BOLT; OIL FILLER
M8X20 FLANGE
0-28050-820-0
01
1
1307-1308
●
19
BOLT; OIL FILLER
M8X20 FLANGE
8-98105-048-0
01
1
1309-1501
●
19
BOLT; OIL FILLER
EXC. VIN MODEL YEAR 2015<VZF> M8X20 FLANGE
8-98105-048-0
01
1
1502-1503
●
19
BOLT; OIL FILLER
M8X20 FLANGE
8-98105-048-0
01
1
1504-
●
34
ADAPTER
8-98079-143-0
01
1
1204-1306
●
34
ADAPTER
8-98079-143-0
01
1
1307-1501
●
34
ADAPTER
EXC. VIN MODEL YEAR 2015<VZF>
8-98079-143-0
01
1
1502-1503
●
34
ADAPTER
8-98079-143-0
01
1
1504-
●
80
STUD; TUBE,FILLER
M10X35 L=65
8-97178-725-0
01
1
1204-1306
●
80
STUD; TUBE,FILLER
M10X35 L=65
8-97178-725-0
01
1
1307-1501
●
80
STUD; TUBE,FILLER
EXC. VIN MODEL YEAR 2015<VZF> M10X35 L=65
8-97178-725-0
01
1
1502-1503
●
80
STUD; TUBE,FILLER
M10X35 L=65
8-97178-725-0
01
1
1504-
●
81
NUT; TUBE,FILLER
M10 FLANGE
0-91180-210-0
01
1
1204-1306
●
81
NUT; TUBE,FILLER
M10 FLANGE
0-91180-210-0
01
1
1307-1501
●
81
NUT; TUBE,FILLER
EXC. VIN MODEL YEAR 2015<VZF> M10 FLANGE
0-91180-210-0
01
1
1502-1503
●
81
NUT; TUBE,FILLER
M10 FLANGE
0-91180-210-0
01
1
1504-
●
