Isuzu WW
▶
TRUCKS
▶
FTS
▶
11307 - FTS AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶

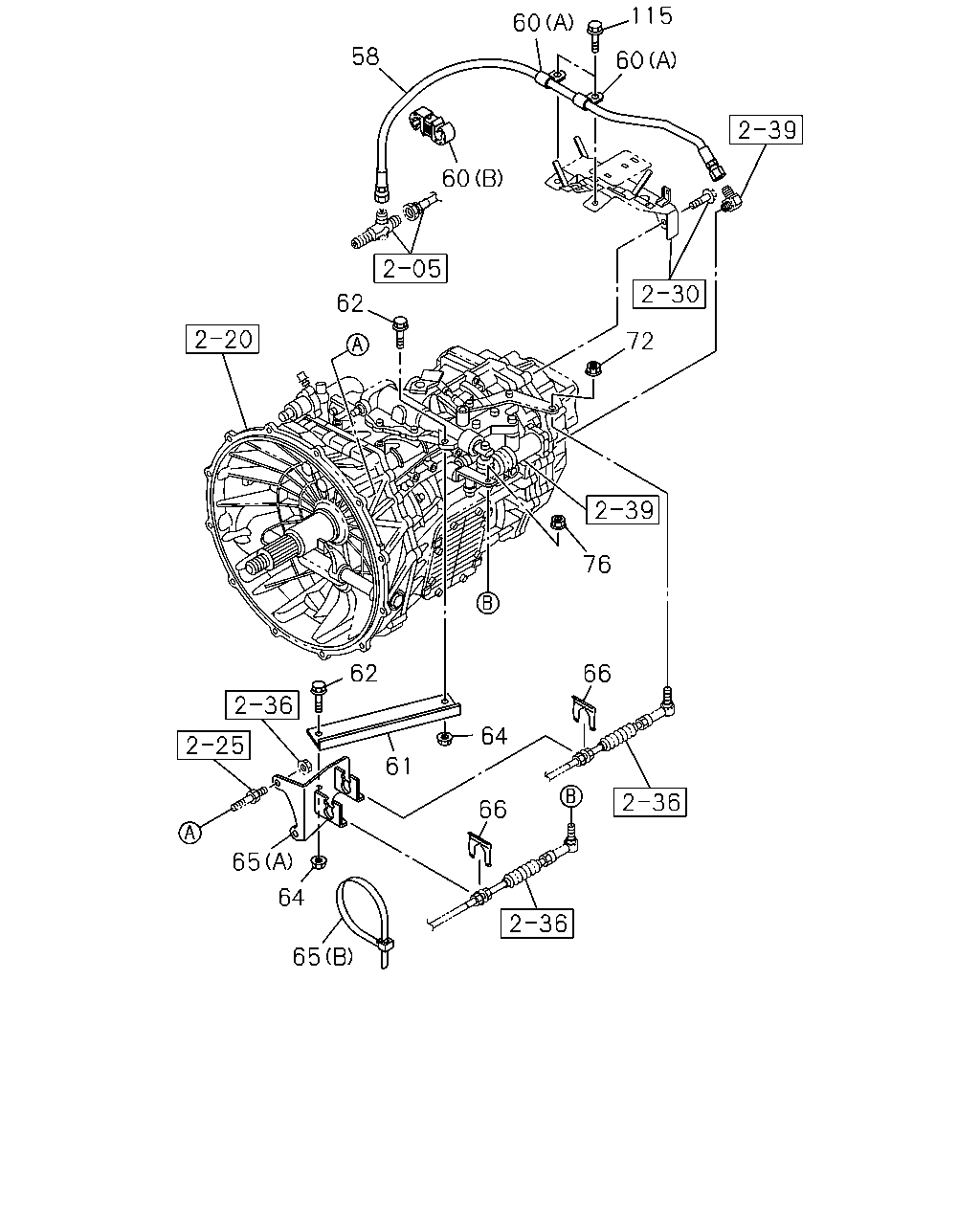

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#71059) — 24 parça
Tümü
A - FGS5MS
B - FGS5WS
115
58
60
62
72
60
76
66
62
61
65
64
65
66
64
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
58
HOSE; FLEX,POWER ASSISTOR
MZW6P M/T(RSZ) L=640
1-09363-626-1
01
1
1011-
●
●
60
CLIP; FLEX HOSE
MZW6P M/T(RSZ) (A) ID=13 L=20
0-95235-235-0
02
1
1011-
●
●
60
CLIP; FLEX HOSE
MZW6P M/T(RSZ) (B) ID=10 & 10
1-09709-277-1
01
1
1011-
●
●
61
STAY; BRKT,TRANS CONT
1-33657-267-0
01
1
1011-1203
●
●
61
STAY; BRKT,TRANS CONT
MZW6P M/T(RSZ)
1-33657-267-0
01
1
1204-
●
●
62
BOLT; STAY
MZW6P M/T(RSZ) M10X30 FLANGE
0-28651-030-0
02
1
1011-
●
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
1011-1203
●
●
64
NUT; STAY
MANUAL TRANSMISSION<X9C> M10 FLANGE
0-91180-210-0
02
1
1204-1306
●
●
64
NUT; STAY
MZW6P M/T(RSZ) M10 FLANGE
0-91180-210-0
02
1
1307-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
(B) L=300
1-09707-001-1
01
1
1011-1109
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (A)
8-98125-513-0
01
1
1011-1203
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (A)
8-98125-513-0
01
1
1204-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)
8-98010-160-0
01
1
1011-1203
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)
8-98010-160-0
01
1
1204-
●
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1011-1203
●
●
66
CLIP; SELECT BRKT
MANUAL TRANSMISSION<X9C> ID=22.2
1-09701-209-1
02
1
1204-1306
●
●
66
CLIP; SELECT BRKT
MZW6P M/T(RSZ) ID=22.2
1-09701-209-1
02
1
1307-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1011-1203
●
●
72
NUT; TRANS CONT,SELECT
MANUAL TRANSMISSION<X9C> M8 FLANGE
1-09440-049-0
01
1
1204-1306
●
●
72
NUT; TRANS CONT,SELECT
MZW6P M/T(RSZ) M8 FLANGE
1-09440-049-0
01
1
1307-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
1011-1203
●
●
76
NUT; BALL JOINT,SELECT WIRE
MANUAL TRANSMISSION<X9C> M8 FLANGE
1-09440-049-0
01
1
1204-1306
●
●
76
NUT; BALL JOINT,SELECT WIRE
MZW6P M/T(RSZ) M8 FLANGE
1-09440-049-0
01
1
1307-
●
●
115
BOLT; CLIP
MZW6P M/T(RSZ) M8X16 FLANGE
0-28050-816-0
02
1
1011-
●
●
