◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#71058) — 137 parça

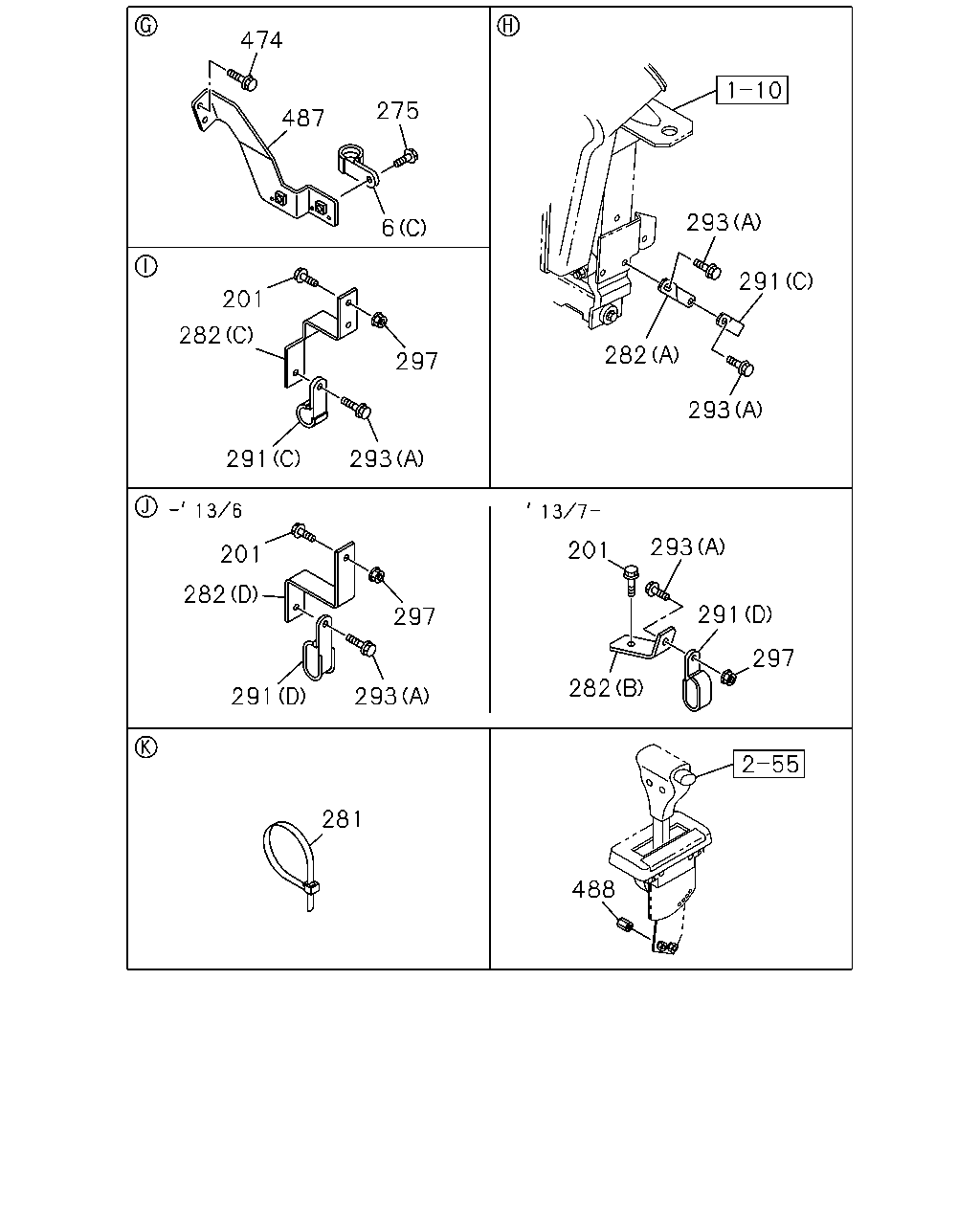

474 487 275 6 201 282 297 293 291 201 282 291 293 281 297 293 291 293 282 201 293 291 297 282 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=20	0-95235-236-0	01	1	1204-	●	●
6	CLIP; CABLE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1011-1203	●	●
6	CLIP; CABLE MANUAL TRANSMISSION<X9C> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1204-1306	●	●
6	CLIP; CABLE MZW6P M/T(RSZ) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1307-	●	●
6	CLIP; CABLE MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1011-	●	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1011-1203	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	01	1	1011-1203	●	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	1204-1306	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	01	1	1204-1306	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	1011-1203	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28050-820-0	01	1	1204-1306	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X20 FLANGE	0-28050-820-0	01	1	1307-	●	●
201	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X30 FLANGE	0-28650-830-0	03	1	1204-1306	●	●
201	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
275	BOLT; CONT CABLE CLIP LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER	0-51640-825-0	01	1	1204-	●	●
281	CLIP; BAND L=300	1-09707-001-1	01	1	1011-	●	●
282	BRACKET; TRANS SIDE (B)	1-82699-199-0	01	1	1011-1203	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (B)	1-82699-199-0	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (B)	1-82699-199-0	01	1	1307-	●	●
282	BRACKET; TRANS SIDE (A)	8-98098-265-2	01	1	1011-1203	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (A)	8-98098-265-2	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (A)	8-98098-265-2	01	1	1307-	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (C)	8-98206-767-1	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (D)	8-98206-768-1	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (C)	8-98213-073-0	01	1	1204-	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (A)	8-98216-877-0	01	1	1204-	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (B)	1-82699-199-0	01	1	1307-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	1011-1203	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	1011-1203	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	1204-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	1204-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (A) ID=11X2 L=16	0-95325-026-0	02	1	1307-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1011-1203	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1204-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1307-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=24	0-95235-245-0	02	1	1204-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (D) ID=13 & 13 L=32	8-97389-264-0	01	1	1204-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	1011-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	1011-1203	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28050-820-0	01	1	1204-1306	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (B) M8X20 FLANGE	0-28050-820-0	01	1	1307-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28650-820-0	01	1	1011-1203	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (C) M8X20 FLANGE	0-28650-820-0	01	1	1204-1306	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
297	NUT; CLIP MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
297	NUT; CLIP LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	1204-	●	●
474	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER	0-51640-825-0	02	1	1204-	●	●
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1011-1203	●	●
474	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X25 W/WASHER	0-51640-825-0	03	1	1204-1306	●	●
474	BOLT; BRKT MZW6P M/T(RSZ) M8X25 W/WASHER	0-51640-825-0	03	1	1307-	●	●
487	BRACKET; CONT CABLE	8-98021-920-2	01	1	1011-1012	●	●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1101-	●	●
488	NUT; CABLE LCT2000 A/T ALLISON(Y4F)	5-09400-048-0	02	1	1204-	●	●

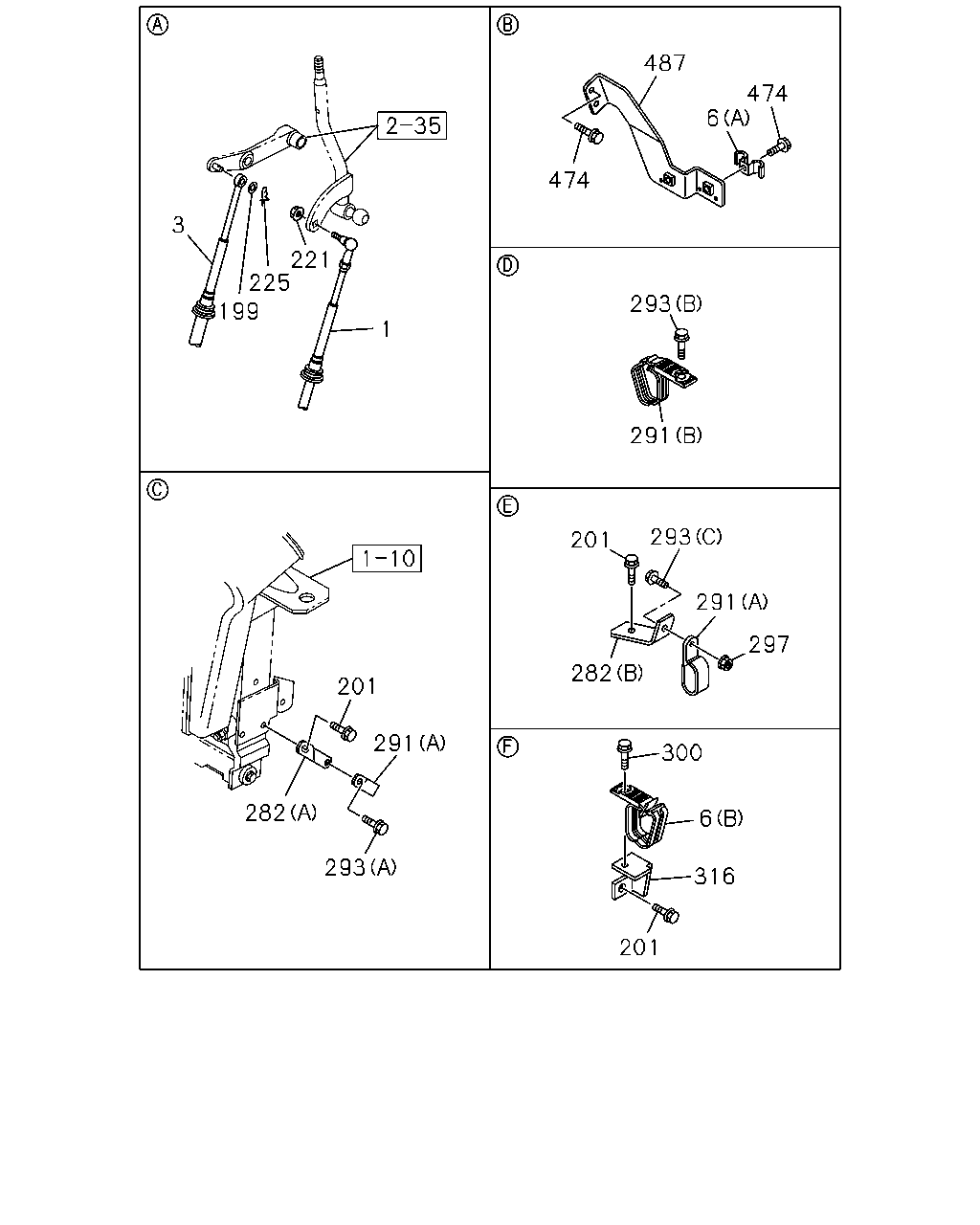

3 199 225 221 1 201 291 282 293 201 293 291 297 282 300 6 316 201 474 487 474 6 293 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	1011-	●	●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	1011-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	1011-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	1011-	●	●
6	CLIP; CABLE LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=20	0-95235-236-0	01	1	1204-	●	●
6	CLIP; CABLE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1011-1203	●	●
6	CLIP; CABLE MANUAL TRANSMISSION<X9C> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1204-1306	●	●
6	CLIP; CABLE MZW6P M/T(RSZ) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1307-	●	●
6	CLIP; CABLE MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1011-	●	●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1011-1203	●	●
199	WASHER; PL,SELECT MANUAL TRANSMISSION<X9C> ID=8.4 OD=16	0-91614-508-0	01	1	1204-1306	●	●
199	WASHER; PL,SELECT MZW6P M/T(RSZ) ID=8.4 OD=16	0-91614-508-0	01	1	1307-	●	●
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	1011-1203	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	01	1	1011-1203	●	●
201	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X16 FLANGE	0-28050-816-0	01	1	1204-1306	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	01	1	1204-1306	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	1011-1203	●	●
201	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28050-820-0	01	1	1204-1306	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X20 FLANGE	0-28050-820-0	01	1	1307-	●	●
201	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X30 FLANGE	0-28650-830-0	03	1	1204-1306	●	●
201	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	1011-1011	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-1203	●	●
221	NUT; SHIFT WIRE TO LEVER MANUAL TRANSMISSION<X9C> M8 FLANGE	1-09440-062-1	01	1	1204-1306	●	●
221	NUT; SHIFT WIRE TO LEVER MZW6P M/T(RSZ) M8 FLANGE	1-09440-062-1	01	1	1307-	●	●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1011-1203	●	●
225	PIN; SELECT CABLE MANUAL TRANSMISSION<X9C> L=27.7	8-94111-137-0	01	1	1204-1306	●	●
225	PIN; SELECT CABLE MZW6P M/T(RSZ) L=27.7	8-94111-137-0	01	1	1307-	●	●
282	BRACKET; TRANS SIDE (B)	1-82699-199-0	01	1	1011-1203	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (B)	1-82699-199-0	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (B)	1-82699-199-0	01	1	1307-	●	●
282	BRACKET; TRANS SIDE (A)	8-98098-265-2	01	1	1011-1203	●	●
282	BRACKET; TRANS SIDE MANUAL TRANSMISSION<X9C> (A)	8-98098-265-2	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (A)	8-98098-265-2	01	1	1307-	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (C)	8-98206-767-1	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (D)	8-98206-768-1	01	1	1204-1306	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (C)	8-98213-073-0	01	1	1204-	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (A)	8-98216-877-0	01	1	1204-	●	●
282	BRACKET; TRANS SIDE LCT2000 A/T ALLISON(Y4F) (B)	1-82699-199-0	01	1	1307-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	1011-1203	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	1011-1203	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	1204-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (A) ID=11X2 L=16	0-95325-026-0	01	1	1204-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (A) ID=11X2 L=16	0-95325-026-0	02	1	1307-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1011-1203	●	●
291	CLIP; SHIFT TO SELECT,FRAME MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1204-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1307-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (C) ID=13 L=24	0-95235-245-0	02	1	1204-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2000 A/T ALLISON(Y4F) (D) ID=13 & 13 L=32	8-97389-264-0	01	1	1204-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	1011-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28050-820-0	01	1	1011-1203	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (B) M8X20 FLANGE	0-28050-820-0	01	1	1204-1306	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (B) M8X20 FLANGE	0-28050-820-0	01	1	1307-	●	●
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28650-820-0	01	1	1011-1203	●	●
293	BOLT; CLIP,SHIFT TO SELECT MANUAL TRANSMISSION<X9C> (C) M8X20 FLANGE	0-28650-820-0	01	1	1204-1306	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1011-1203	●	●
297	NUT; CLIP MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1204-1306	●	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
297	NUT; CLIP LCT2000 A/T ALLISON(Y4F) M8 FLANGE	0-91180-108-0	03	1	1204-	●	●
300	BOLT; CLIP MZW6P M/T(RSZ) M8X20 FLANGE	0-28650-820-0	01	1	1011-	●	●
316	BRACKET; CLIP MZW6P M/T(RSZ)	8-98073-017-1	01	1	1011-	●	●
474	BOLT; BRKT LCT2000 A/T ALLISON(Y4F) M8X25 W/WASHER	0-51640-825-0	02	1	1204-	●	●
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1011-1203	●	●
474	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X25 W/WASHER	0-51640-825-0	03	1	1204-1306	●	●
474	BOLT; BRKT MZW6P M/T(RSZ) M8X25 W/WASHER	0-51640-825-0	03	1	1307-	●	●
487	BRACKET; CONT CABLE	8-98021-920-2	01	1	1011-1012	●	●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1101-	●	●

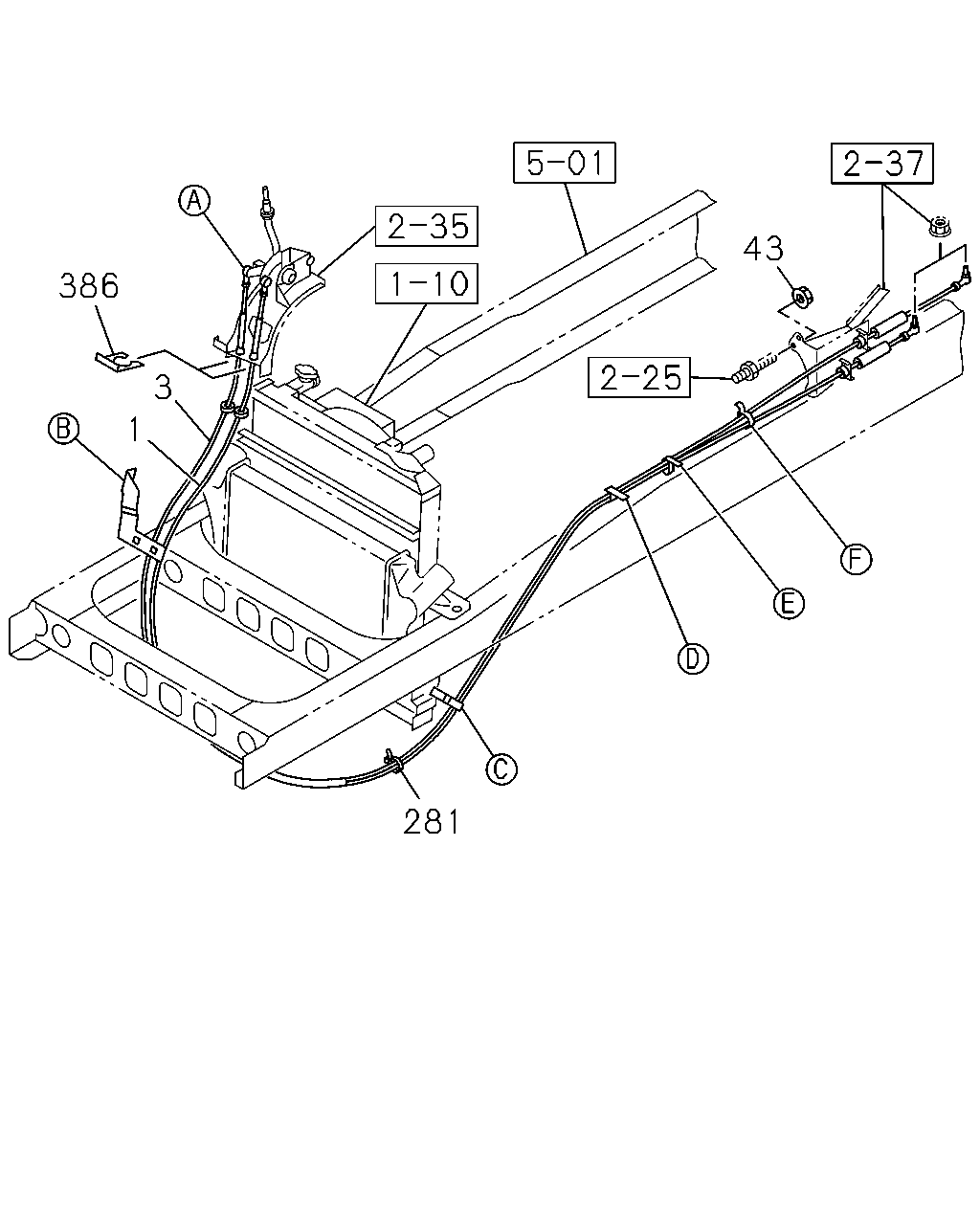

43 386 3 1 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	1011-	●	●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	1011-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	1011-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	1011-	●	●
43	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1011-1203	●	●
43	NUT; BRKT MANUAL TRANSMISSION<X9C> M10 FLANGE	0-91180-210-0	02	1	1204-1306	●	●
43	NUT; BRKT MZW6P M/T(RSZ) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
281	CLIP; BAND L=300	1-09707-001-1	01	1	1011-	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1011-1203	●	●
386	CLIP; CONT CABLE & TUBE MANUAL TRANSMISSION<X9C>	1-09700-966-1	02	1	1204-1306	●	●
386	CLIP; CONT CABLE & TUBE MZW6P M/T(RSZ)	1-09700-966-1	02	1	1307-	●	●

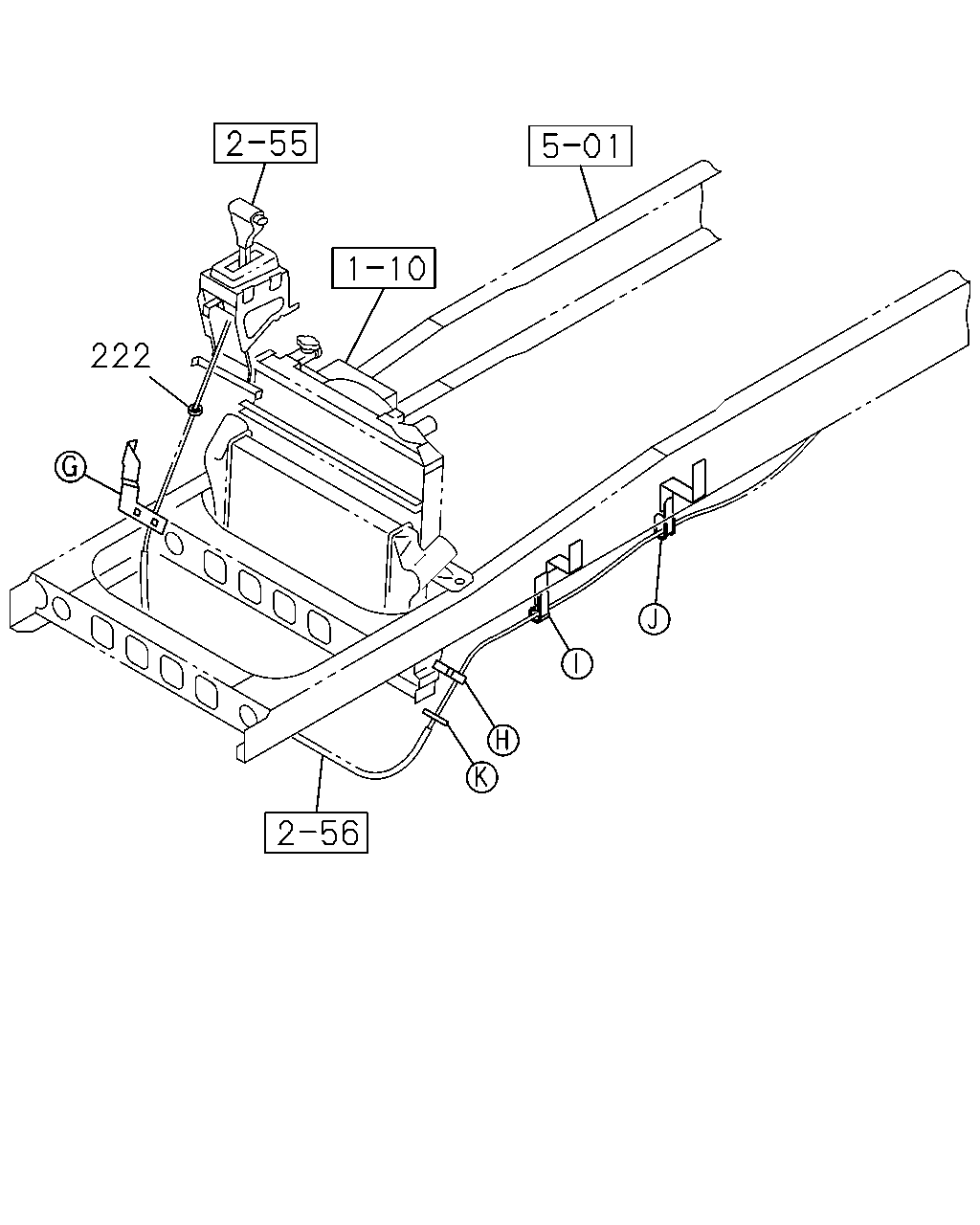

222

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	222	GROMMET; CABLE LCT2000 A/T ALLISON(Y4F)	8-98043-470-0	01	1	1204-1502	●	●
