◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#71057) — 48 parça

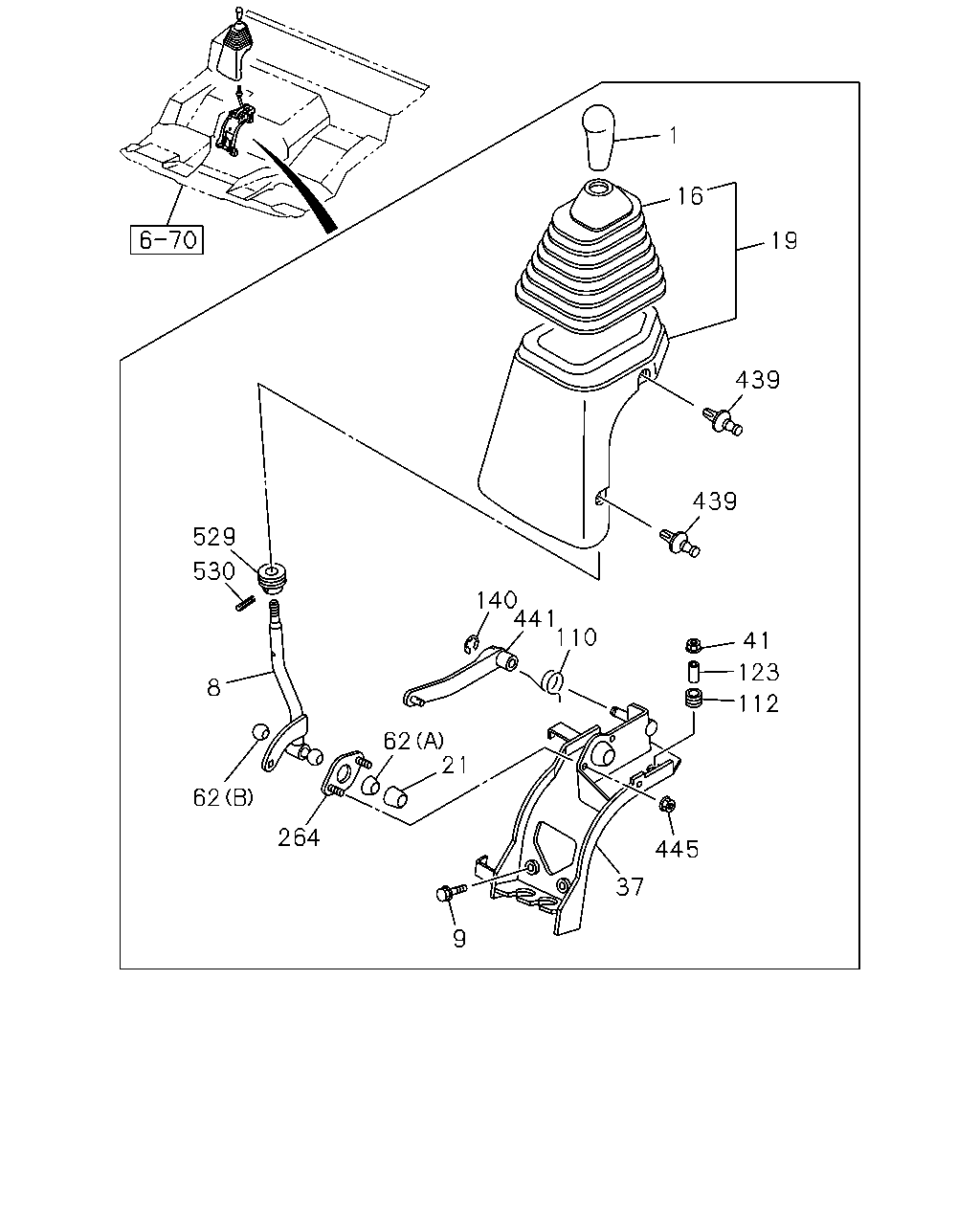

çizim 113883
529 530 8 62 264 62 21 140 441 110 445 112 123 41 439 439 19 16 1 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 1011-1203 ● ●
1 KNOB; CHANGE LEVER
MZW6P M/T(RSZ) 		1-33611-070-1 01 1 1204- ● ●
8 LEVER; CHANGE 8-98071-282-0 01 1 1011-1203 ● ●
8 LEVER; CHANGE
MZW6P M/T(RSZ) 		8-98071-282-0 01 1 1204- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1011-1203 ● ●
9 BOLT; CHANGE LEVER
MANUAL TRANSMISSION<X9C> M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1204-1306 ● ●
9 BOLT; CHANGE LEVER
MZW6P M/T(RSZ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1307- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1011-1203 ● ●
16 BOOT; CHANGE LEVER
MANUAL TRANSMISSION<X9C> 		1-79998-751-4 01 1 1204- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1011-1203 ● ●
19 COVER; CHANGE LEVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-954-0 01 1 1204- ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1011-1203 ● ●
21 SEAT; CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-429-0 01 1 1204- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-302-0 01 1 1011-1203 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MZW6P M/T(RSZ) 		8-98071-302-0 01 1 1204- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1011-1203 ● ●
41 NUT; CHANGE LEVER
MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER 		8-97329-625-0 02 1 1204-1306 ● ●
41 NUT; CHANGE LEVER
MZW6P M/T(RSZ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1307- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1011-1203 ● ●
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ) (A) 		1-33619-427-0 01 1 1204- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1011-1203 ● ●
62 SEAT; BALL,CHANGE LEVER
MZW6P M/T(RSZ) (B) 		8-97049-147-0 01 1 1204- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 1011-1203 ● ●
110 SPRING; RETURN,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-586-0 01 1 1204- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1011-1203 ● ●
112 RUBBER; CUSHION
MZW6P M/T(RSZ) 		1-33619-442-0 04 1 1204- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1011-1203 ● ●
123 COLLAR; DIST,CHANGE LEVER
MZW6P M/T(RSZ) 		1-33619-443-0 04 1 1204- ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1011-1203 ● ●
140 RING; SNAP
MZW6P M/T(RSZ) ID=10 		0-91805-510-0 01 1 1204- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 1011-1203 ● ●
264 PLATE; COVER
MZW6P M/T(RSZ) 		1-33619-430-0 01 1 1204- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1011-1203 ● ●
439 FASTENER; COVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-955-0 04 1 1204- ● ●
439 FASTENER; COVER
LCT2000 A/T ALLISON(Y4F) GRAY 		8-97407-955-0 05 1 1204-1306 ● ●
439 FASTENER; COVER
LCT2500 A/T ALLISON(Y5W) GRAY 		8-97407-955-0 05 1 1307- ● ●
441 LEVER; SELECT 8-98071-283-0 01 1 1011-1203 ● ●
441 LEVER; SELECT
MZW6P M/T(RSZ) 		8-98071-283-0 01 1 1204- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1011-1203 ● ●
445 NUT; PLATE
MZW6P M/T(RSZ) M6 FLANGE 		0-91180-106-0 02 1 1204- ● ●
529 RING; BOOT 1-33619-504-0 01 1 1011-1203 ● ●
529 RING; BOOT
MZW6P M/T(RSZ) 		1-33619-504-0 01 1 1204- ● ●
530 PIN; SPRING 1-33619-505-0 01 1 1011-1203 ● ●
530 PIN; SPRING
MZW6P M/T(RSZ) 		1-33619-505-0 01 1 1204- ● ●
çizim 189336
439 439
BalonParca AdiParca NoAdetTipApplied Date A B
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1011-1203 ● ●
439 FASTENER; COVER
MANUAL TRANSMISSION<X9C> GRAY 		8-97407-955-0 04 1 1204- ● ●
439 FASTENER; COVER
LCT2000 A/T ALLISON(Y4F) GRAY 		8-97407-955-0 05 1 1204-1306 ● ●
439 FASTENER; COVER
LCT2500 A/T ALLISON(Y5W) GRAY 		8-97407-955-0 05 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
