2-25B — SPEEDOMETER DRIVEN GEAR (#71054) — 25 parça

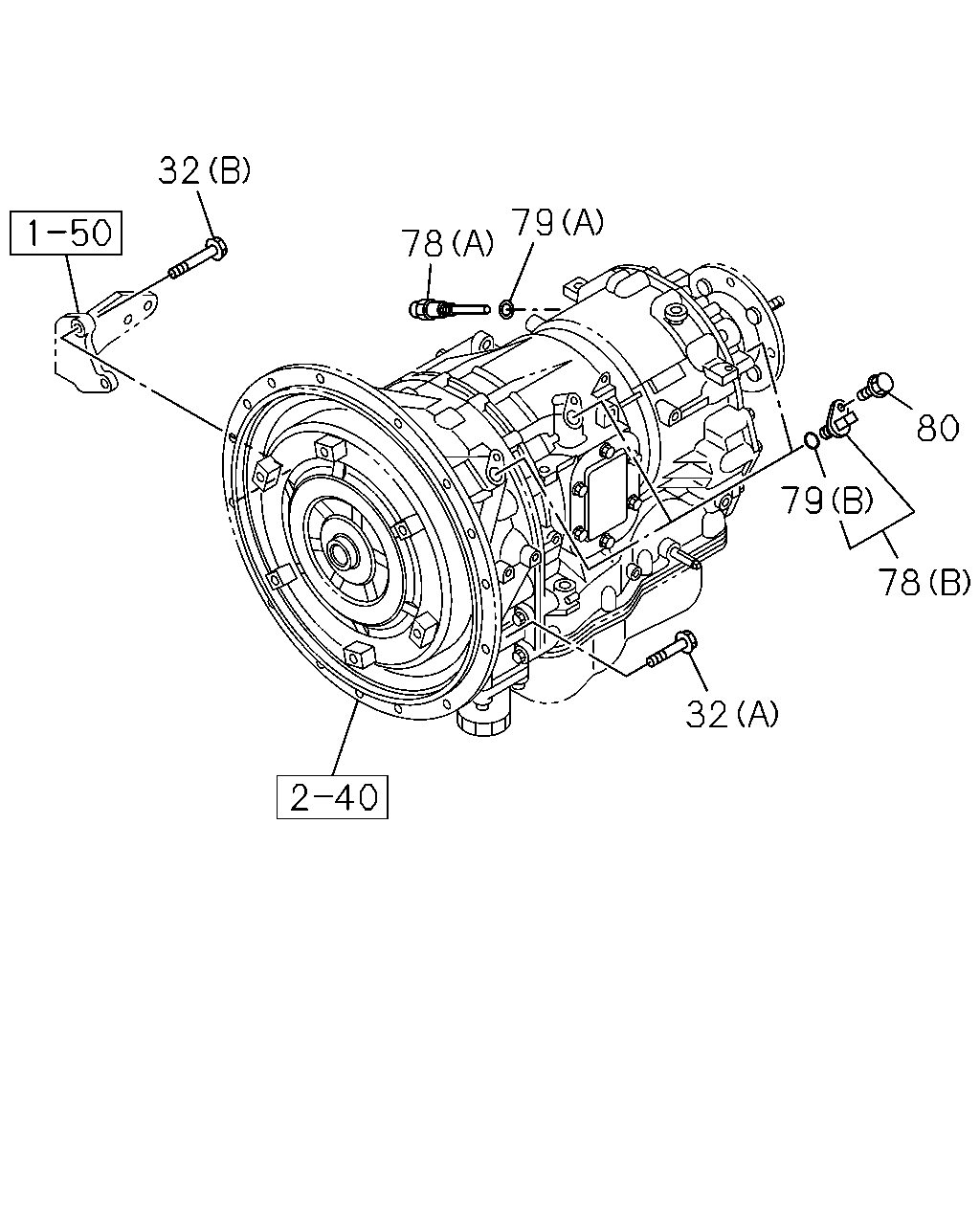

çizim 109737
32 78 79 32 79 80 78
BalonParca AdiParca NoAdetTipApplied Date A B
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28151-030-0 10 1 1204-1306 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X30 FLANGE 		0-28151-030-0 10 1 1307- ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE 		8-98116-723-0 02 1 1204-1211 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE 		8-98234-150-0 02 1 1212-1306 ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE 		8-98234-150-0 02 1 1307- ●
78 SENSOR; SPD
(B) 		1-34119-101-0 03 1 1204-1306 ●
78 SENSOR; SPD
(B) 		1-34119-101-0 03 1 1307-1501 ●
78 SENSOR; SPD
EXC. VIN MODEL YEAR 2015<VZF> (B) 		1-34119-101-0 03 1 1502-1503 ●
78 SENSOR; SPD
(B) 		1-34119-101-0 03 1 1504- ●
78 SENSOR; SPD
(A) 		8-98151-663-0 01 1 1204-1306 ●
78 SENSOR; SPD
(A) 		8-98151-663-0 01 1 1307-1501 ●
78 SENSOR; SPD
EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-98151-663-0 01 1 1502-1503 ●
78 SENSOR; SPD
(A) 		8-98151-663-0 01 1 1504- ●
79 GASKET; SPD SENSOR
(B) 		1-34119-102-0 03 1 1204-1306 ●
79 GASKET; SPD SENSOR
(B) 		1-34119-102-0 03 1 1307-1501 ●
79 GASKET; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> (B) 		1-34119-102-0 03 1 1502-1503 ●
79 GASKET; SPD SENSOR
(B) 		1-34119-102-0 03 1 1504- ●
79 GASKET; SPD SENSOR
(A) T=1.0 		8-98087-227-0 01 1 1204-1306 ●
79 GASKET; SPD SENSOR
(A) T=1.0 		8-98087-227-0 01 1 1307-1501 ●
79 GASKET; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> (A) T=1.0 		8-98087-227-0 01 1 1502-1503 ●
79 GASKET; SPD SENSOR
(A) T=1.0 		8-98087-227-0 01 1 1504- ●
80 BOLT; SPD SENSOR 8-29537-511-0 03 1 1204-1306 ●
80 BOLT; SPD SENSOR 8-29537-511-0 03 1 1307-1501 ●
80 BOLT; SPD SENSOR
EXC. VIN MODEL YEAR 2015<VZF> 		8-29537-511-0 03 1 1502-1503 ●
80 BOLT; SPD SENSOR 8-29537-511-0 03 1 1504- ●
