◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶

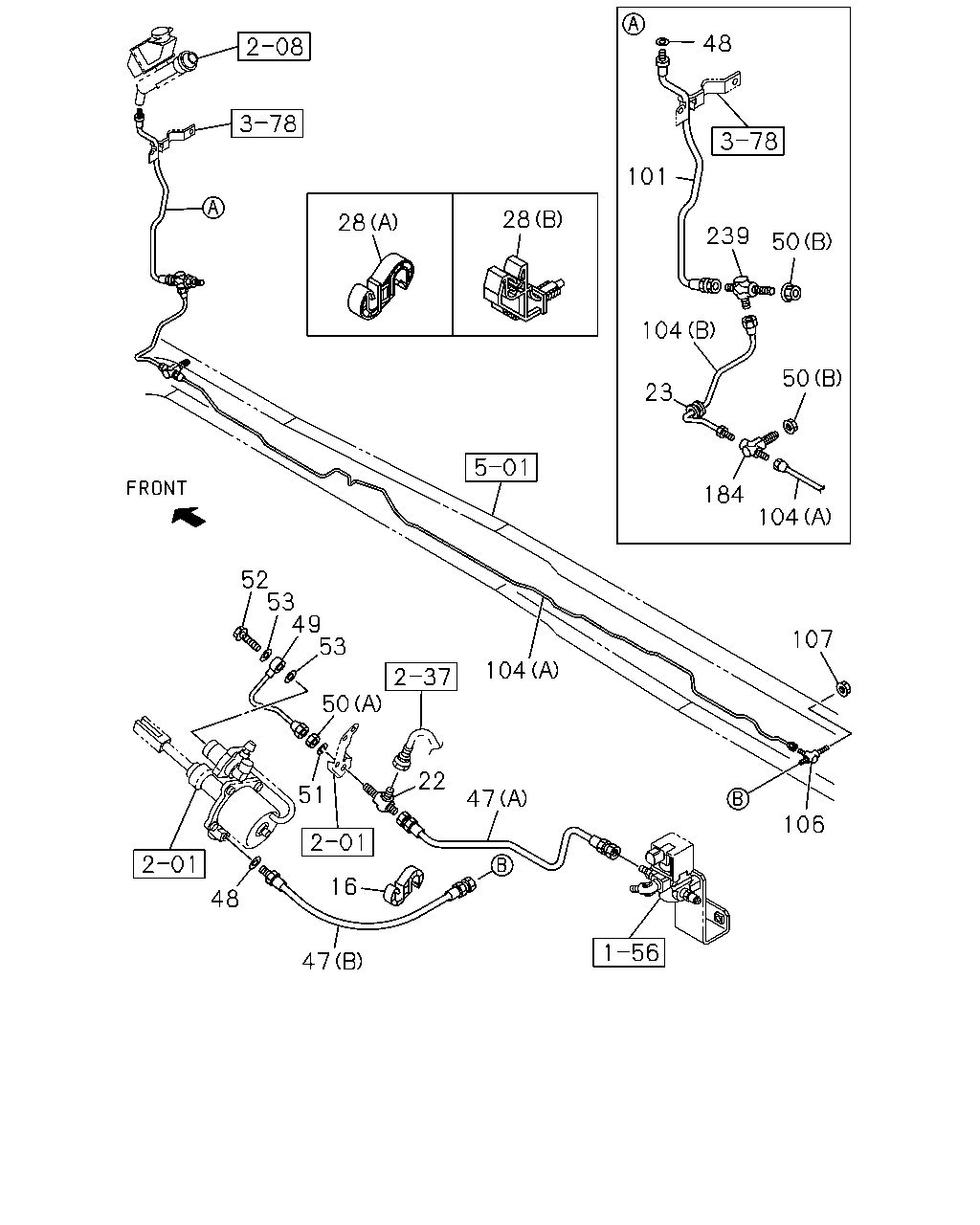

2-05 — CLUTCH PIPING (#71048) — 141 parça

28 28 48 101 239 104 50 50 52 53 49 53 104 107 106 47 22 50 51 16 47 48 23 184 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1011-1203	●	●
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	1204-	●	●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	1011-1203	●	●
22	UNION; CLU PIPE 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1204-1306	●	●
22	UNION; CLU PIPE MZW6P M/T(RSZ) M12 3WAY	0-92138-706-0	01	1	1307-	●	●
23	GROMMET; CLU PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1011-1203	●	●
23	GROMMET; CLU PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1204-	●	●
28	CLIP; OIL PIPE (B) ID=6.35	1-09701-247-1	04	1	1011-1203	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	04	1	1204-	●	●
28	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1011-1203	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1204-	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=400	8-97638-149-0	01	1	1307-		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	1011-1306	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=370	8-98168-369-0	01	1	1307-	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1011-1203	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1011-1203		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1204-1306	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1204-1306		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=415	8-98206-619-0	01	1	1307-	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	1011-1203	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	1204-1306	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=300	1-09363-611-0	01	1	1307-	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	1011-1203	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	1204-1306	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=350	1-09363-877-0	01	1	1307-	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	1011-1203		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	1204-1306		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=430	8-98072-351-0	01	1	1307-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1011-1203	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1204-1306	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239	1-49117-401-0	01	1	1011-1203	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1204-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1011-1203	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1011-1203	●	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	1204-	●	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	1204-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1011-1203	●	●
50	NUT; UNION 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1204-1306	●	●
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1307-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> (A) M12	9-09840-280-0	01	1	1307-	●	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1011-1203	●	●
51	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1204-1306	●	●
51	WASHER; LK MZW6P M/T(RSZ) ID=12.2	0-91510-812-0	01	1	1307-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1011-1203	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1204-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1011-1203	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1204-1312	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1011-1203	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=440	8-98072-346-0	01	1	1204-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2824 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (A) L=2824 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2803 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	1011-1203	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	1204-1306	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	1307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (A) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2821 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
106	UNION; OIL PIPE M12 2WAY	1-09654-059-2	01	1	1011-1203	●	●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> M12 2WAY	1-09654-059-2	01	1	1204-1306	●	●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> M12 L=56.5	0-92113-106-0	01	1	1307-	●	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	1011-1203	●	●
107	NUT; UNION,OIL PIPE MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1204-1306	●	●
184	UNION; FLEX HOSE	8-98150-865-0	01	1	1011-1203	●	●
184	UNION; FLEX HOSE MANUAL TRANSMISSION<X9C>	8-98150-865-0	01	1	1204-	●	●
239	UNION; CLU HOSE M12 2WAY	1-09654-059-2	01	1	1011-1203	●	●
239	UNION; CLU HOSE MANUAL TRANSMISSION<X9C> M12 2WAY	1-09654-059-2	01	1	1204-	●	●

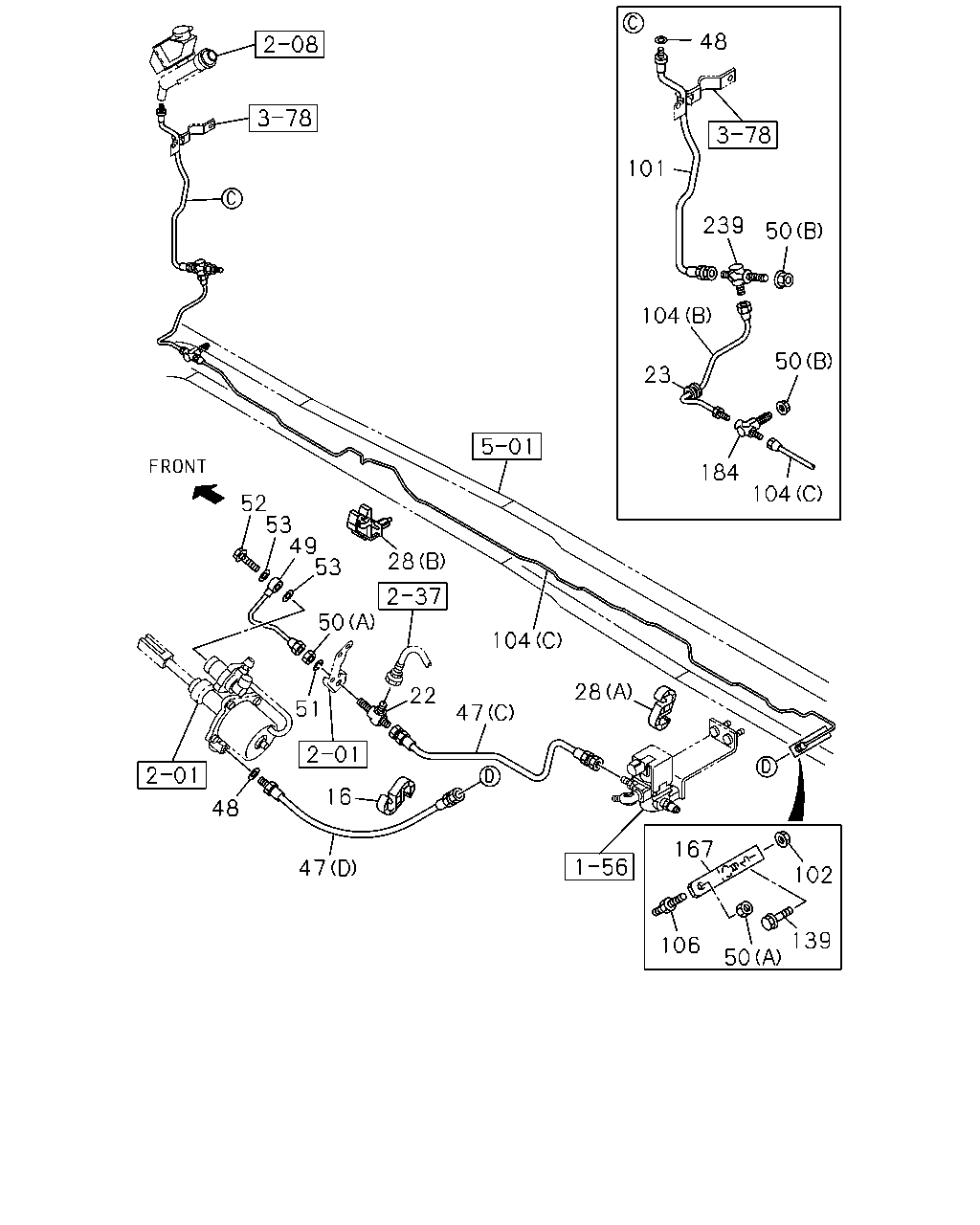

50 53 49 53 52 28 104 28 167 102 139 106 47 48 51 22 47 16 104 184 23 104 50 50 239 101 48 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1011-1203	●	●
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	1204-	●	●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	1011-1203	●	●
22	UNION; CLU PIPE 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1204-1306	●	●
22	UNION; CLU PIPE MZW6P M/T(RSZ) M12 3WAY	0-92138-706-0	01	1	1307-	●	●
23	GROMMET; CLU PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1011-1203	●	●
23	GROMMET; CLU PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1204-	●	●
28	CLIP; OIL PIPE (B) ID=6.35	1-09701-247-1	04	1	1011-1203	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (B) ID=6.35	1-09701-247-1	04	1	1204-	●	●
28	CLIP; OIL PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1011-1203	●	●
28	CLIP; OIL PIPE MANUAL TRANSMISSION<X9C> (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1204-	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=400	8-97638-149-0	01	1	1307-		●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480	8-98072-349-0	01	1	1011-1306	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=370	8-98168-369-0	01	1	1307-	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1011-1203	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1011-1203		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1204-1306	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530	8-98072-348-0	01	1	1204-1306		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=415	8-98206-619-0	01	1	1307-	●
47	HOSE; FLEX,CLU CONT POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	1011-1203	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280	1-09363-672-0	01	1	1204-1306	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=300	1-09363-611-0	01	1	1307-	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	1011-1203	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340	1-09363-617-0	01	1	1204-1306	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=350	1-09363-877-0	01	1	1307-	●	●
47	HOSE; FLEX,CLU CONT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	1011-1203		●
47	HOSE; FLEX,CLU CONT MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590	8-98072-352-0	01	1	1204-1306		●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) L=430	8-98072-351-0	01	1	1307-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1011-1203	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1204-1306	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	01	1	1307-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239	1-49117-401-0	01	1	1011-1203	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1204-	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1011-1203	●	●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1011-1203	●	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	1204-	●	●
50	NUT; UNION MANUAL TRANSMISSION<X9C> (B) M12	0-91111-512-0	01	1	1204-	●	●
50	NUT; UNION (A) M12	9-09840-280-0	01	1	1011-1203	●	●
50	NUT; UNION 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1204-1306	●	●
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	1307-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> (A) M12	9-09840-280-0	01	1	1307-	●	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1011-1203	●	●
51	WASHER; LK 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1204-1306	●	●
51	WASHER; LK MZW6P M/T(RSZ) ID=12.2	0-91510-812-0	01	1	1307-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1011-1203	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1204-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	1011-1203	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1204-1312	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1011-1203	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=440	8-98072-346-0	01	1	1204-	●	●
102	NUT; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2824 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (A) L=2824 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2803 SERVICED BY L=2900	1-47428-744-0	01	1	1307-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	1011-1203	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	1204-1306	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550	1-47428-724-0	01	1	1307-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	1011-1203		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (A) L=2674 SERVICED BY L=2900	1-47428-744-0	01	1	1204-1306		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MANUAL TRANSMISSION<X9C> (C) L=2821 SERVICED BY L=2900	1-47428-744-0	01	1	1307-		●
106	UNION; OIL PIPE M12 2WAY	1-09654-059-2	01	1	1011-1203	●	●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> M12 2WAY	1-09654-059-2	01	1	1204-1306	●	●
106	UNION; OIL PIPE MANUAL TRANSMISSION<X9C> M12 L=56.5	0-92113-106-0	01	1	1307-	●	●
139	BOLT; BRKT MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	01	1	1307-	●	●
167	BRACKET; UNION MANUAL TRANSMISSION<X9C>	8-98244-257-0	01	1	1307-	●	●
184	UNION; FLEX HOSE	8-98150-865-0	01	1	1011-1203	●	●
184	UNION; FLEX HOSE MANUAL TRANSMISSION<X9C>	8-98150-865-0	01	1	1204-	●	●
239	UNION; CLU HOSE M12 2WAY	1-09654-059-2	01	1	1011-1203	●	●
239	UNION; CLU HOSE MANUAL TRANSMISSION<X9C> M12 2WAY	1-09654-059-2	01	1	1204-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
