◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#71043) — 124 parça

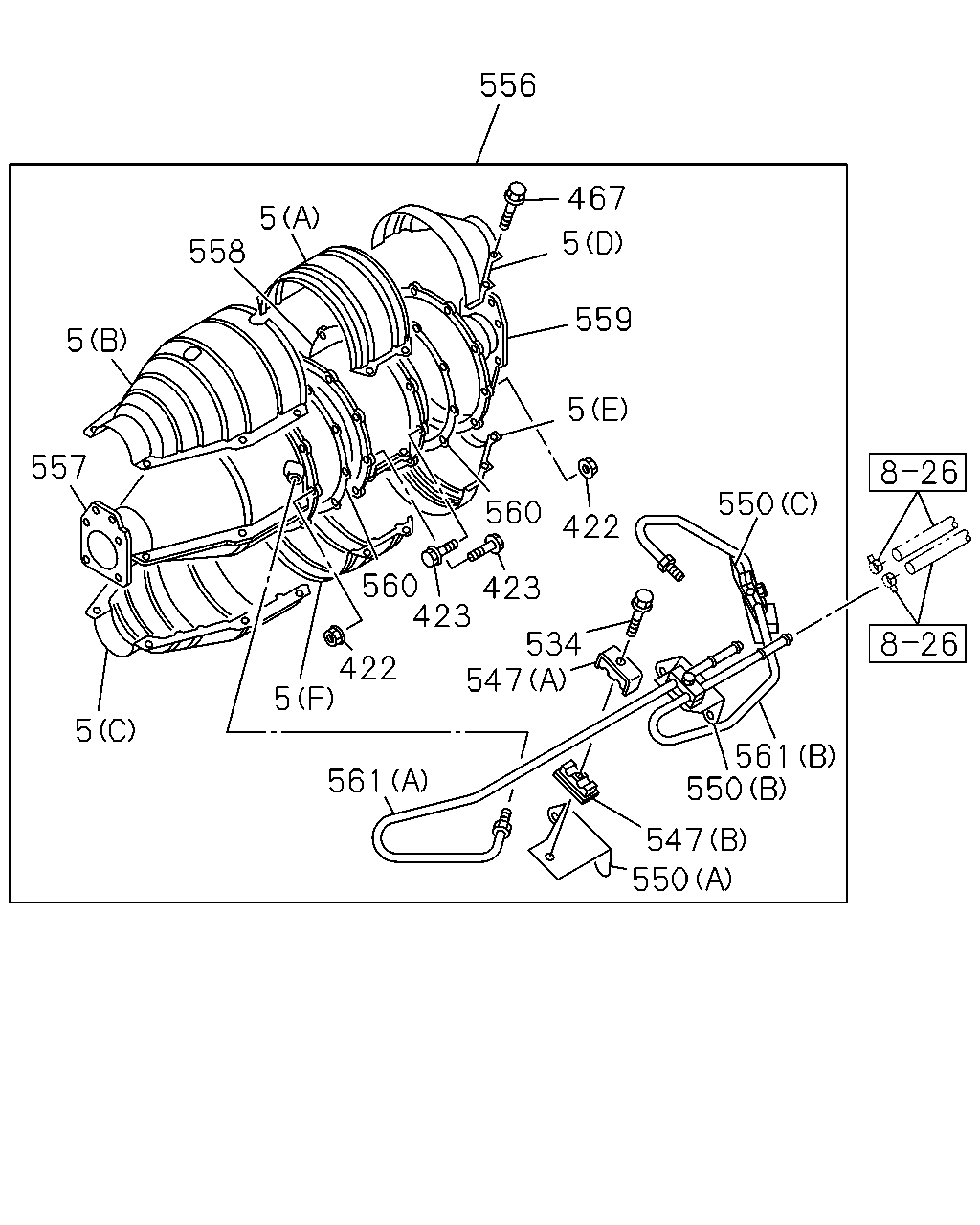

çizim 97293
556 467 5 559 5 422 550 561 550 547 550 534 547 561 5 5 422 423 560 423 560 557 5 558 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1011- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1011- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1011- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1011- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1011- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1011- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1011- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1011- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1011- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1011- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1011- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1011- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1011- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1011- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1011- ● ●
556 DPD ASM 8-97613-331-6 01 1 1011-1011 ● ●
556 DPD ASM 8-97622-883-4 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-8 01 1 1011- ● ●
558 FILTER ASM 8-97608-057-3 01 1 1011- ● ●
559 COVER; RR 8-97611-078-0 01 1 1011-1011 ● ●
559 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 1011- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 1011-1011 ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 1011-1011 ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ● ●

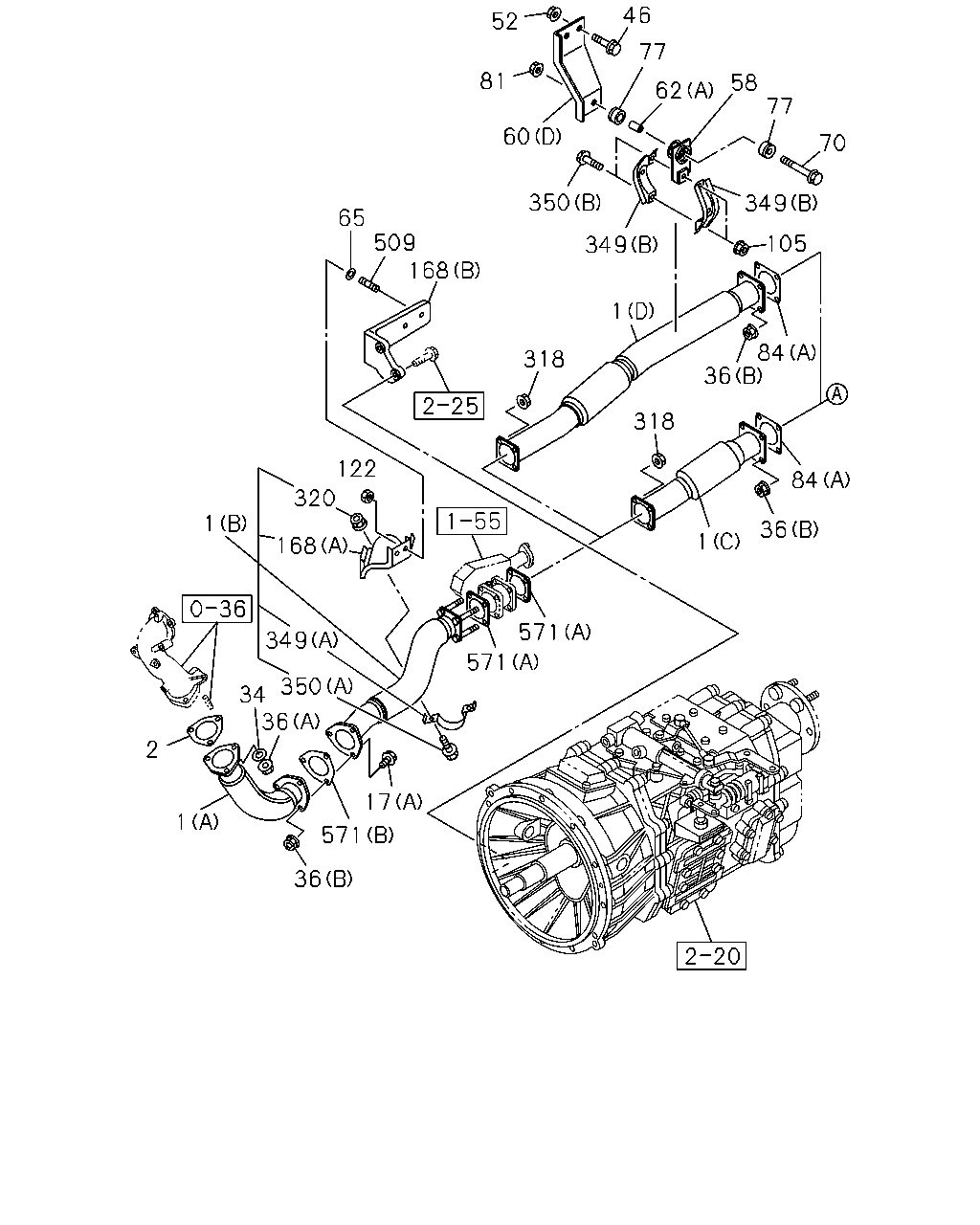

çizim 189238
36 1 2 571 36 34 350 349 1 168 320 122 65 509 168 318 1 349 350 60 81 52 46 77 62 58 77 70 349 105 84 36 318 84 36 1 571 571 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B) 		8-98122-456-0 01 1 1011-1209 ● ●
1 PIPE; EXH
MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (B) 		8-98226-282-0 01 1 1210-1306 ● ●
1 PIPE; EXH
(B) 		8-98226-282-0 01 1 1307- ● ●
1 PIPE; EXH
(A) 		8-98134-290-1 01 1 1011-1209 ● ●
1 PIPE; EXH
(A) 		8-97643-264-0 01 1 1210- ● ●
1 PIPE; EXH
(C) 		8-97614-621-1 01 1 1011- ●
1 PIPE; EXH
(D) 		8-98050-587-1 01 1 1011- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1011- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1011- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1011- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1011- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1011- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1011- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1011- ● ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1011- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1011- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1011- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011- ●
58 BRACKET; EXH PIPE,RR
L=94 		1-22131-575-0 01 1 1011- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-628-0 02 1 1011-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98071-228-1 01 1 1011- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1011- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98104-021-0 01 1 1011- ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 04 1 1011- ● ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1011- ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 1011- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 04 1 1011- ● ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 01 1 1011- ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 02 1 1011- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1011- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1011- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1011- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1011- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1011- ●
122 NUT; HANGER BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
168 BRACKET; EXH PIPE,FRT
LCT2000 A/T ALLISON(Y4F) (B) 		8-98123-998-0 01 1 1204-1306 ● ●
168 BRACKET; EXH PIPE,FRT
LCT2500 A/T ALLISON(Y5W) (B) 		8-98123-998-0 01 1 1307- ● ●
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98120-492-0 01 1 1011- ● ●
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98120-493-0 01 1 1011- ● ●
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (A) 		8-98071-144-0 01 1 1011-1209 ● ●
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ),LCT2000 A/T ALLISON(Y4F) (A) 		8-98221-369-1 01 1 1210-1306 ● ●
168 BRACKET; EXH PIPE,FRT
(A) 		8-98221-369-1 01 1 1307- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1011- ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
349 CLAMP; EXH PIPE
(A) 		8-98115-162-0 01 1 1011- ● ●
349 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 1011- ●
350 BOLT; CLAMP,EXH PIPE
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1011- ● ●
350 BOLT; CLAMP,EXH PIPE
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1011- ●
509 STUD; BRKT
M10X25 L=40 		0-44011-025-0 02 1 1011- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1011- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1011- ● ●

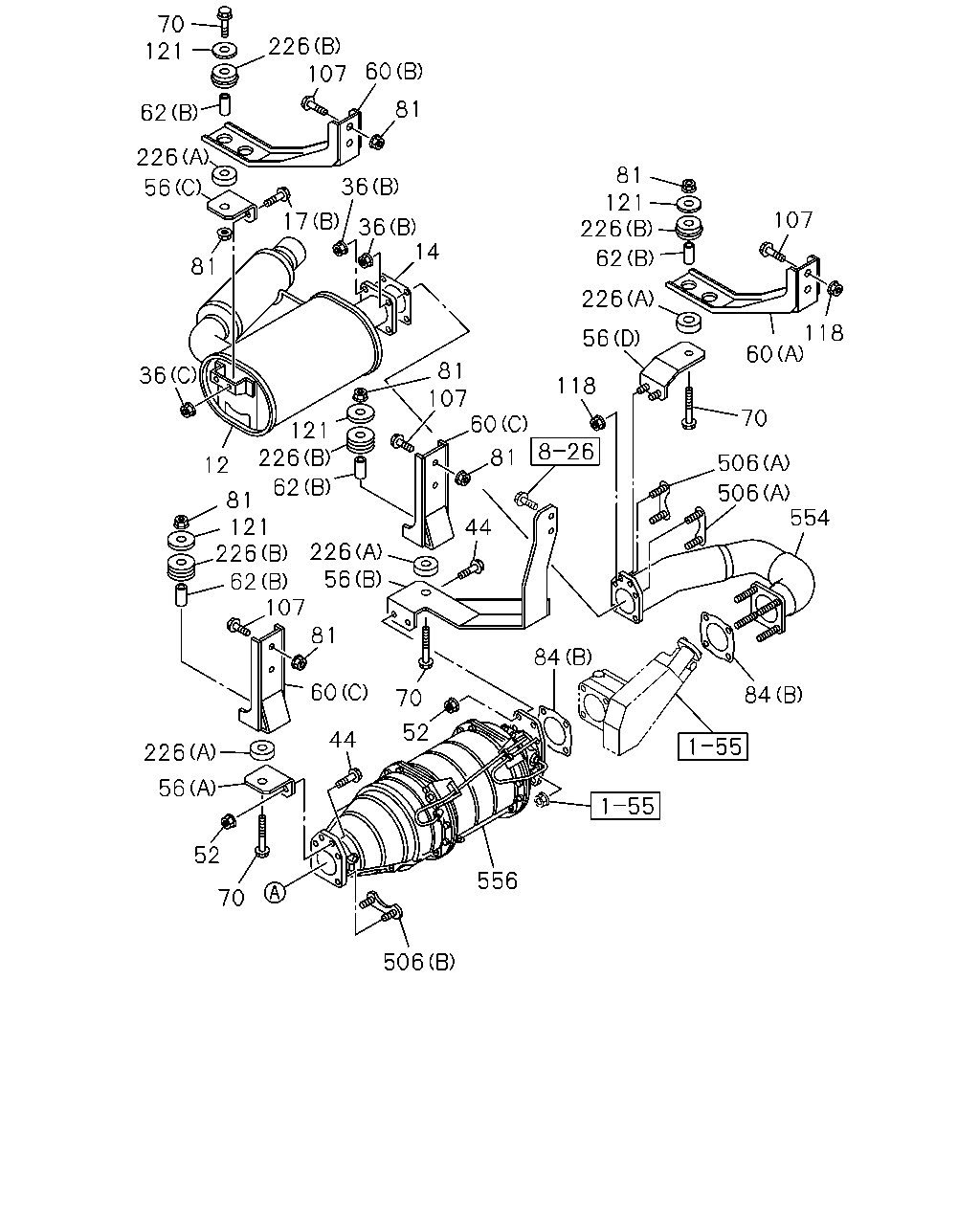

çizim 189239
70 226 121 107 60 62 81 36 226 36 56 17 14 81 36 121 81 118 81 107 121 226 226 62 60 118 56 70 506 554 506 60 107 81 44 84 84 556 506 70 52 56 226 44 60 70 52 81 107 62 56 226 226 62 226 121 81 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 1011- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 1011- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1011- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1011- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1011- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1011- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1011- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1011- ● ●
44 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1011- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1011- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1011- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1011- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1011- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 1011- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 1011- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-628-0 02 1 1011-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98071-228-1 01 1 1011- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1011- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98104-021-0 01 1 1011- ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 04 1 1011- ● ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1011- ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 04 1 1011- ● ●
70 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 01 1 1011- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1011- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1011- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1011- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1011- ● ●
107 BOLT; BRKT
M10X45 FLANGE 		0-28051-045-0 02 1 1011- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1011- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1306 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1306 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 04 1 1307- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 04 1 1011- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 04 1 1011- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 04 1 1011- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1011- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 1011- ● ●
554 PIPE; EXH,SILENCER 1-22126-626-0 01 1 1011- ● ●
556 DPD ASM 8-97613-331-6 01 1 1011-1011 ● ●
556 DPD ASM 8-97622-883-4 01 1 1011- ● ●
