◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11307 - FTS AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#71040) — 55 parça
çizim 93123
455 454 487 487 279 279 457 468 468 285 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ● ●
279 UNION; FUEL PIPE
(A) M16 L=74 		0-92123-310-0 01 1 1011- ● ●
279 UNION; FUEL PIPE
(B) M14 		0-92113-308-0 01 1 1011- ● ●
285 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1306 ● ●
454 PIPE; FUEL,DELIVERY
L=1805 SERVICED BY L=1900 		1-47428-881-0 01 1 1011-1306 ● ●
454 PIPE; FUEL,DELIVERY
L=1609 		8-98244-679-0 01 1 1307- ● ●
455 PIPE; FUEL,RETURN
L=1701 SERVICED BY L=1800 		1-47428-853-0 01 1 1011-1306 ● ●
455 PIPE; FUEL,RETURN
L=1524 		8-98244-680-0 01 1 1307- ● ●
457 BRACKET; UNION,FUEL PIPE 8-98098-184-0 01 1 1011-1306 ● ●
468 NUT
(B) M14 		0-91111-514-0 01 1 1011- ● ●
468 NUT
(A) M16 		0-91111-516-0 01 1 1011- ● ●
487 PIPE; FUEL HOSE
(E) L=1290 SERVICED BY L=1400 		1-47428-850-0 01 1 1307- ● ●
487 PIPE; FUEL HOSE
(B) L=1184 SERVICED BY L=1250 		1-47428-849-0 01 1 1011-1306 ● ●
487 PIPE; FUEL HOSE
(D) L=458 		8-98244-219-0 01 1 1307- ● ●
487 PIPE; FUEL HOSE
(A) 		8-98132-315-0 01 1 1011-1306 ● ●
487 PIPE; FUEL HOSE
(C) 		8-98243-925-0 01 1 1307- ● ●

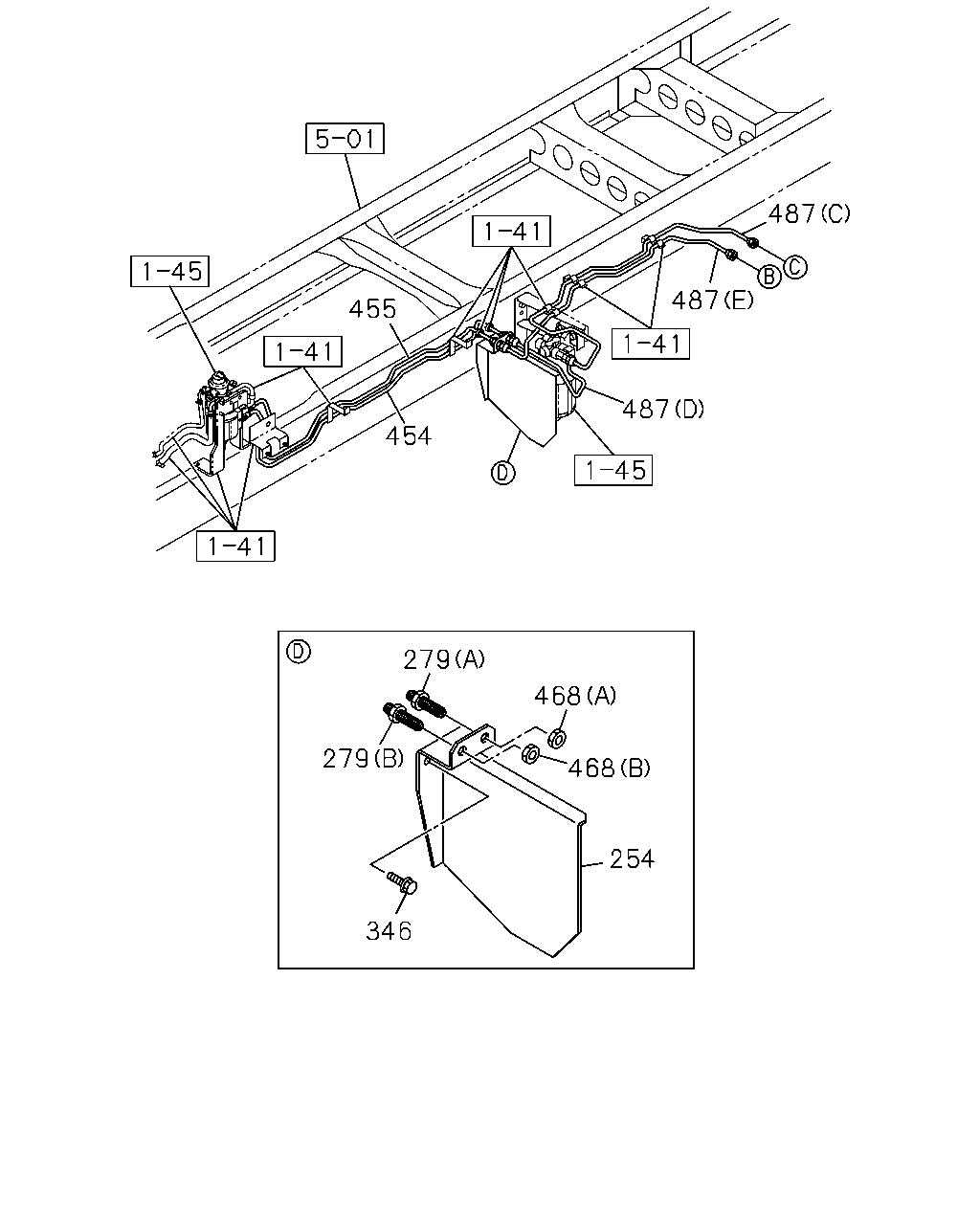

çizim 93301
455 454 487 487 487 279 468 468 279 346 254
BalonParca AdiParca NoAdetTipApplied Date A B
254 GUARD 8-98232-426-1 01 1 1307- ● ●
279 UNION; FUEL PIPE
(A) M16 L=74 		0-92123-310-0 01 1 1011- ● ●
279 UNION; FUEL PIPE
(B) M14 		0-92113-308-0 01 1 1011- ● ●
346 BOLT; GUARD
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
454 PIPE; FUEL,DELIVERY
L=1805 SERVICED BY L=1900 		1-47428-881-0 01 1 1011-1306 ● ●
454 PIPE; FUEL,DELIVERY
L=1609 		8-98244-679-0 01 1 1307- ● ●
455 PIPE; FUEL,RETURN
L=1701 SERVICED BY L=1800 		1-47428-853-0 01 1 1011-1306 ● ●
455 PIPE; FUEL,RETURN
L=1524 		8-98244-680-0 01 1 1307- ● ●
468 NUT
(B) M14 		0-91111-514-0 01 1 1011- ● ●
468 NUT
(A) M16 		0-91111-516-0 01 1 1011- ● ●
487 PIPE; FUEL HOSE
(E) L=1290 SERVICED BY L=1400 		1-47428-850-0 01 1 1307- ● ●
487 PIPE; FUEL HOSE
(B) L=1184 SERVICED BY L=1250 		1-47428-849-0 01 1 1011-1306 ● ●
487 PIPE; FUEL HOSE
(D) L=458 		8-98244-219-0 01 1 1307- ● ●
487 PIPE; FUEL HOSE
(A) 		8-98132-315-0 01 1 1011-1306 ● ●
487 PIPE; FUEL HOSE
(C) 		8-98243-925-0 01 1 1307- ● ●

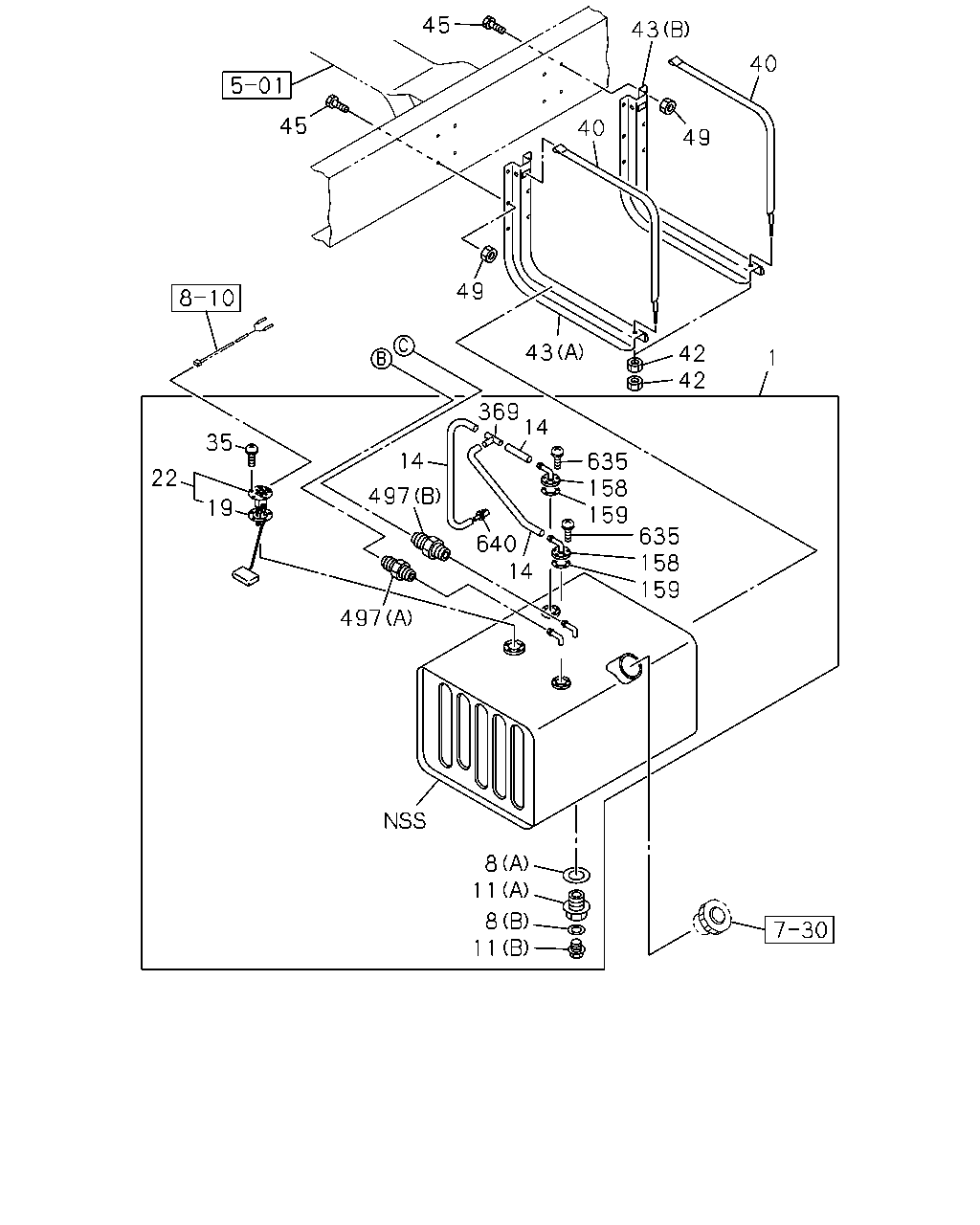

çizim 362753
45 43 40 49 40 49 43 42 1 42 45 369 635 635 158 158 159 159 640 14 497 19 35 22 14 497 8 11 8 11 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
855X603X453 200L 		8-98122-997-2 01 1 1011- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30 		8-98067-041-0 01 1 1011- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1011- ● ●
11 PLUG; DRAIN,FUEL TANK
(A) M30 		8-98067-038-0 01 1 1011- ● ●
11 PLUG; DRAIN,FUEL TANK
(B) M14X14 		9-09862-156-0 01 1 1011- ● ●
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 1011- ● ●
14 HOSE; BREATHER,OUTLET
L=170 SERVICED BY L=3000 		0-01256-300-0 01 1 1011- ● ●
14 HOSE; BREATHER,OUTLET
L=540 SERVICED BY L=3000 		0-01256-300-0 01 1 1011- ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1011- ● ●
22 UNIT; FUEL TANK 8-98099-321-0 01 1 1011- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1011- ● ●
40 BELT; SUPPORT,FUEL TANK
L=1070 		8-98067-501-1 02 1 1011- ● ●
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 1011- ● ●
43 BRACKET; FUEL TANK
(A) 		8-98010-733-0 01 1 1011- ● ●
43 BRACKET; FUEL TANK
(B) 		8-98122-884-0 01 1 1011- ● ●
45 BOLT; BRKT,FUEL TANK
M12X40 FLANGE 		0-28651-240-0 08 1 1011- ● ●
49 NUT; BRKT
M12 FLANGE 		0-91180-212-0 08 1 1011- ● ●
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 1011- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1011- ● ●
369 JOINT; HOSE 8-98067-080-0 01 1 1011- ● ●
497 NIPPLE; FUEL PIPE
(A) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 1011- ● ●
497 NIPPLE; FUEL PIPE
(B) M16 & NPTF3/8 STRAIGHT 		1-09650-405-1 01 1 1011- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 1011- ● ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1011- ● ●
