3-46 — AIR DRYER
(#7104) — 76 parça
Tümü
A - LVD5FB
B - LVR5FB
◀
[346A] AIR DRYER AND OTHER PARTS (32 parça)

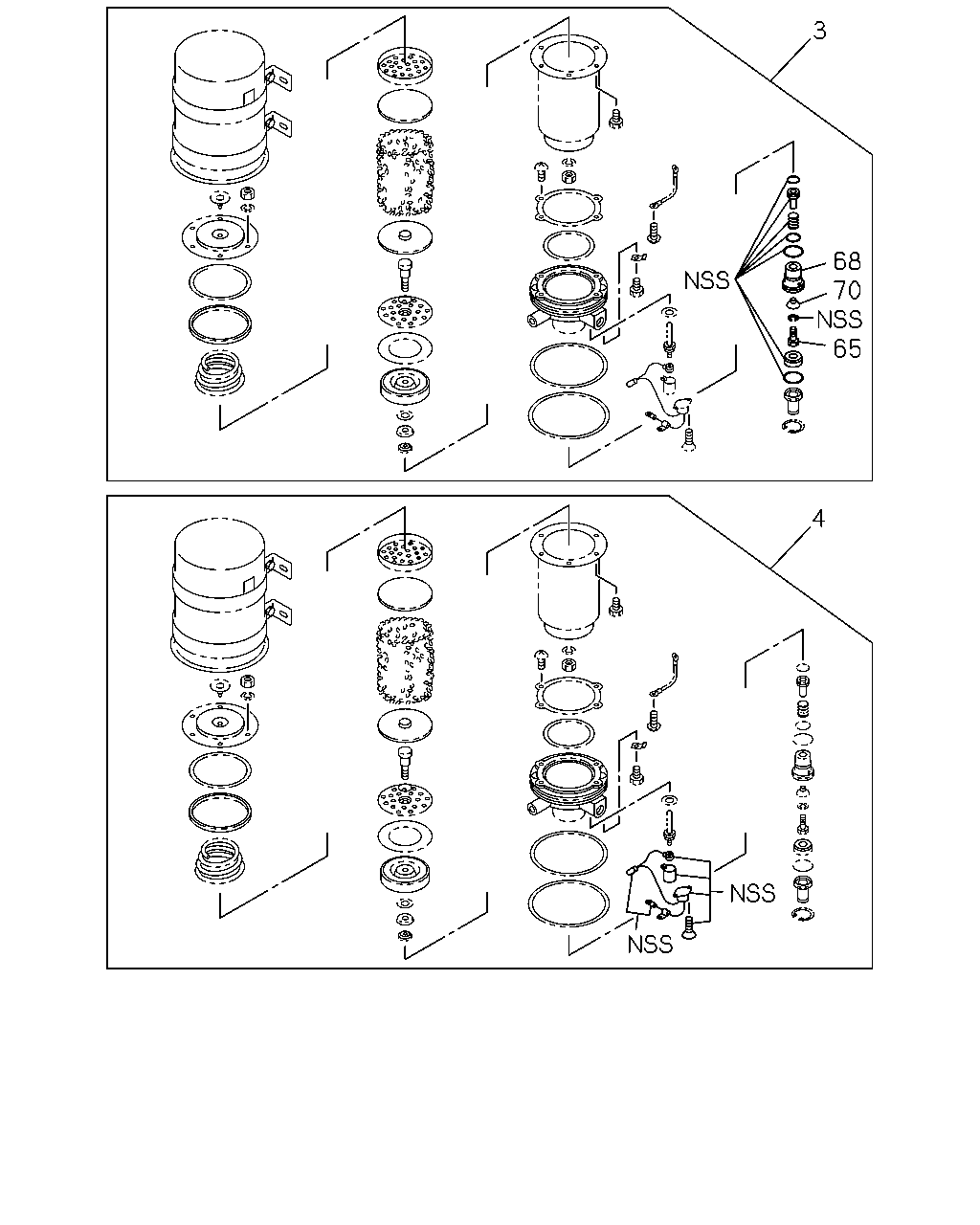

[346A] PISTON,THERMOSTAT KIT (10 parça)

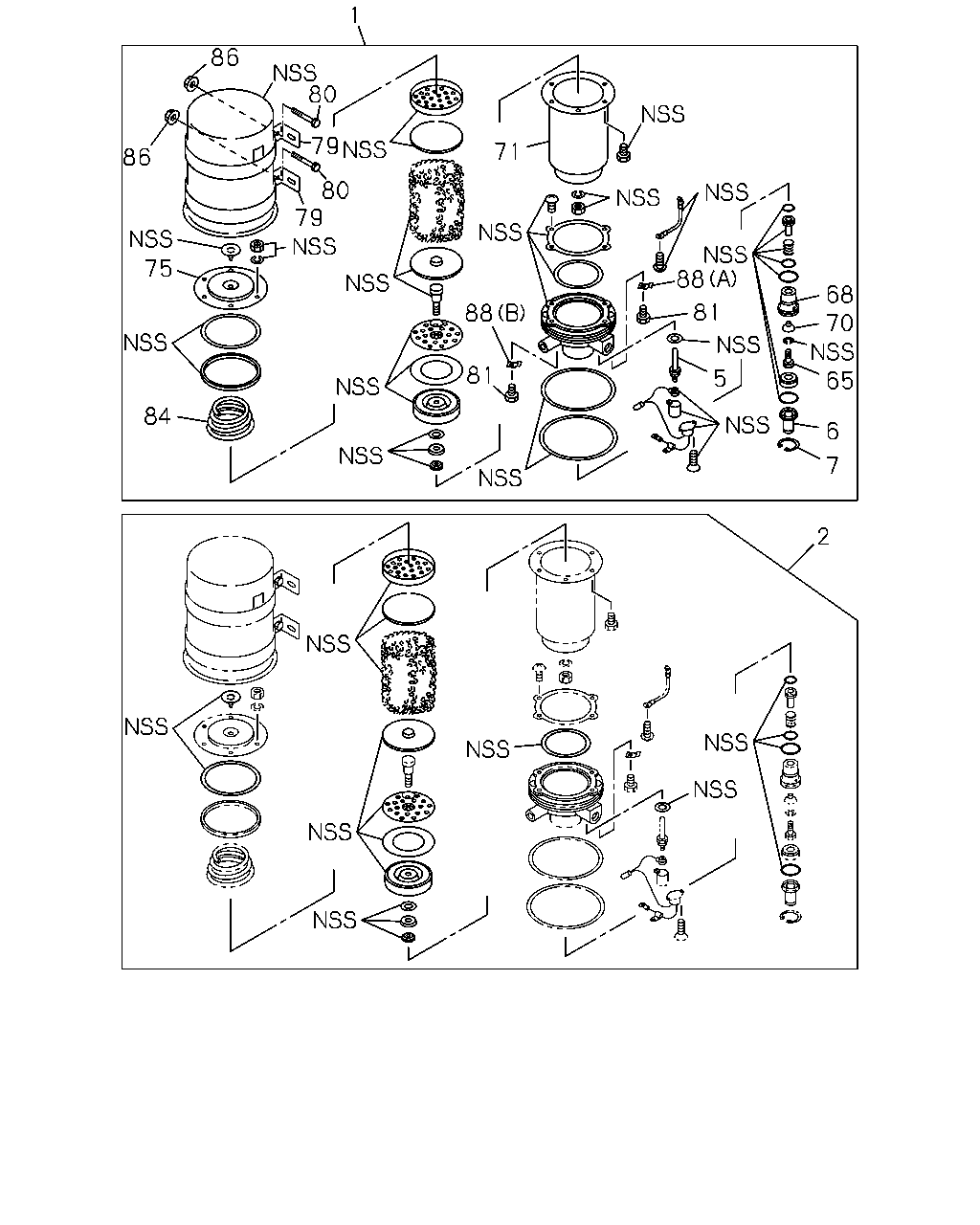

[346A] COMPONENT AND REPAIR KIT (34 parça)
▶
1
12
16
1
9
10
11
9
13
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-277-1
01
1
0012-
●
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
0012-
●
8
CONNECTOR; OUT,AIR DRYER
1-48320-041-0
01
1
0012-
●
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7>
1-48320-041-0
01
1
0012-
●
9
CONNECTOR; PIPE,AIR DRYER
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0012-
●
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0012-
●
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0012-0607
●
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0012-0607
●
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
●
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
●
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28681-030-0
04
1
0012-0512
●
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28681-030-0
04
1
0012-0512
●
10
BOLT; AIR DRYER
M10X30 FLANGE
0-28651-030-0
04
1
0601-
●
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28651-030-0
04
1
0601-
●
11
BRACKET; AIR DRYER
1-48317-876-0
01
1
0012-
●
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48317-876-0
01
1
0012-
●
12
BOLT; BRKT
M10X35 FLANGE
0-28681-035-0
04
1
0012-0512
●
12
BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE
0-28681-035-0
04
1
0012-0512
●
12
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
0601-
●
12
BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE
0-28651-035-0
04
1
0601-
●
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
0012-0602
●
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0012-0602
●
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
●
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
●
16
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0012-0203
●
16
NUT; BRKT
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
02
1
0012-0203
●
16
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0204-0602
●
16
NUT; BRKT
6SD1 TC(32L) AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
02
1
0204-0602
●
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
●
16
NUT; BRKT
6SD1 TC(32L) AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
02
1
0603-
●
16
NUT; BRKT
6WA1 TC-C(55L) AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0204-0602
●
16
NUT; BRKT
6WA1 TC-C(55L) AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
●
3
68
70
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
PISTON KIT; AIR DRYER
1-85576-057-1
01
1
0012-
●
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-057-1
01
1
0012-
●
4
THERMOSTAT KIT; AIR DRYER
1-85576-254-0
01
1
0012-
●
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-254-0
01
1
0012-
●
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0012-
●
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0012-
●
68
BODY; VALVE
1-48199-216-0
01
1
0012-
●
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0012-
●
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0012-
●
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0012-
●
1
86
80
79
71
86
80
79
75
88
68
70
65
81
88
81
5
84
6
7
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-277-1
01
1
0012-
●
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
0012-
●
2
REPAIR KIT; AIR DRYER
1-85576-226-0
01
1
0012-
●
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-226-0
01
1
0012-
●
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
0012-
●
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
02
1
0012-
●
6
COVER; EXH,AIR DRYER
1-48199-101-0
01
1
0012-
●
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-101-0
01
1
0012-
●
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
0012-
●
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-154-0
01
1
0012-
●
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0012-
●
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0012-
●
68
BODY; VALVE
1-48199-216-0
01
1
0012-
●
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0012-
●
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0012-
●
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0012-
●
71
CASE; INNER,AIR DRYER
1-48199-156-1
01
1
0012-
●
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
1-48199-156-1
01
1
0012-
●
75
COVER; CASE,AIR DRYER
1-48199-167-0
01
1
0012-
●
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-167-0
01
1
0012-
●
79
BRACKET; AIR DRYER
1-48199-189-0
02
1
0012-
●
79
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48199-189-0
02
1
0012-
●
80
BOLT; BRKT
1-48199-190-0
02
1
0012-
●
80
BOLT; BRKT
AIR DRYER<PS7>
1-48199-190-0
02
1
0012-
●
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
0012-
●
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-177-0
02
1
0012-
●
84
SPRING; AIR DRYER
1-48199-166-0
01
1
0012-
●
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-166-0
01
1
0012-
●
86
NUT; BRKT
1-48199-320-0
02
1
0012-
●
86
NUT; BRKT
AIR DRYER<PS7>
1-48199-320-0
02
1
0012-
●
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
0012-
●
88
PLATE; STOPPER
AIR DRYER<PS7> (A)
1-48199-178-0
01
1
0012-
●
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
0012-
●
88
PLATE; STOPPER
AIR DRYER<PS7> (B)
1-48199-179-0
01
1
0012-
●
