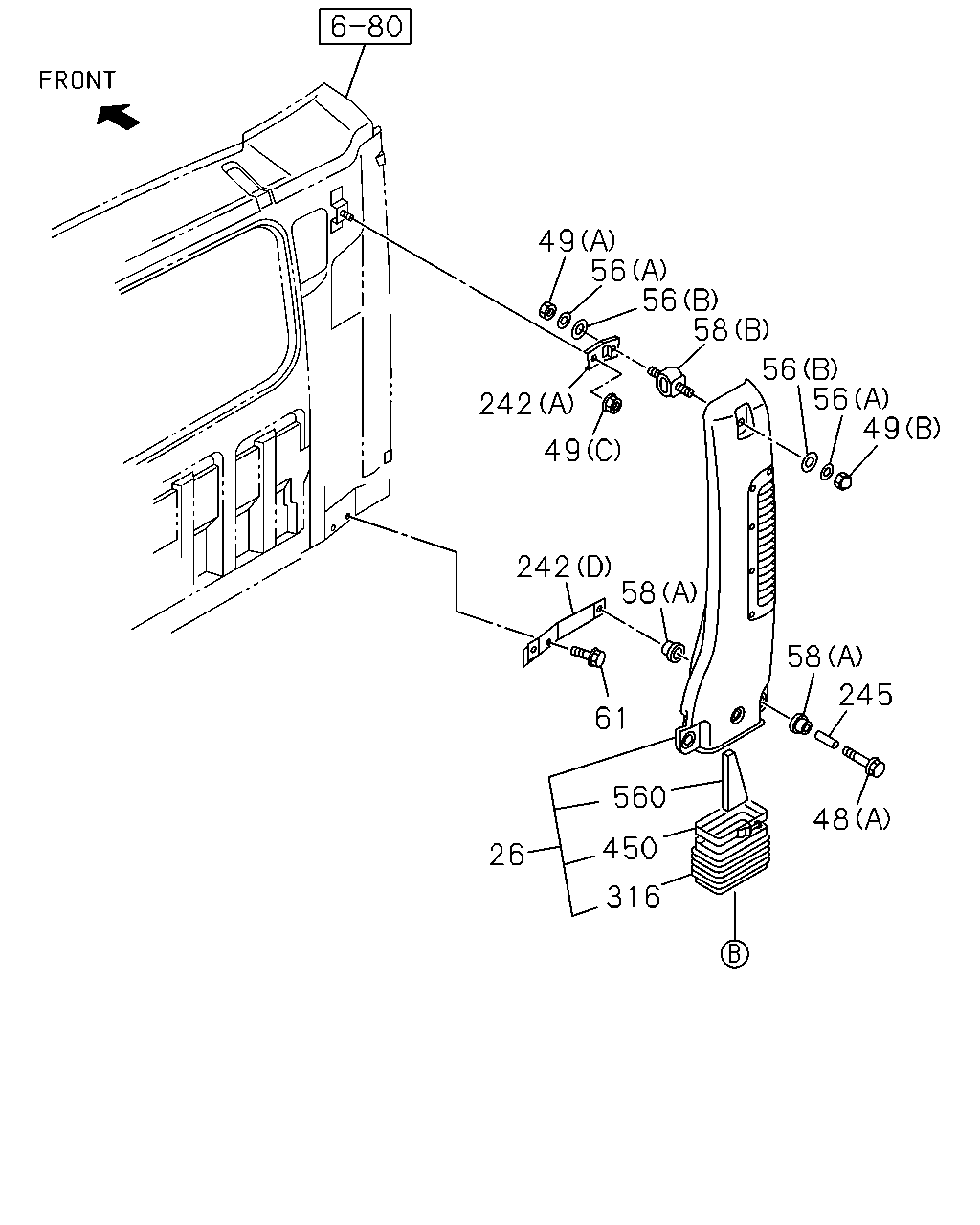

1-31 — AIR DUCT (#71038) — 130 parça

316 26 450 560 48 61 245 58 58 242 49 49 242 56 56 58 56 56 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1011-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1011-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1011-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-122-0	01	1	1011-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	01	1	1011-
49	NUT; AIR DUCT FTS WIDE SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	1011-
49	NUT; AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	1011-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1011-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1011-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1011-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1011-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1011-
242	BRACKET; AIR DUCT (A)	8-98019-301-3	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (B)	8-98019-302-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-304-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	1011-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1011-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1011-
450	CLAMP; HOSE	9-09915-504-1	01	1	1011-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1307-
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	1011-1306

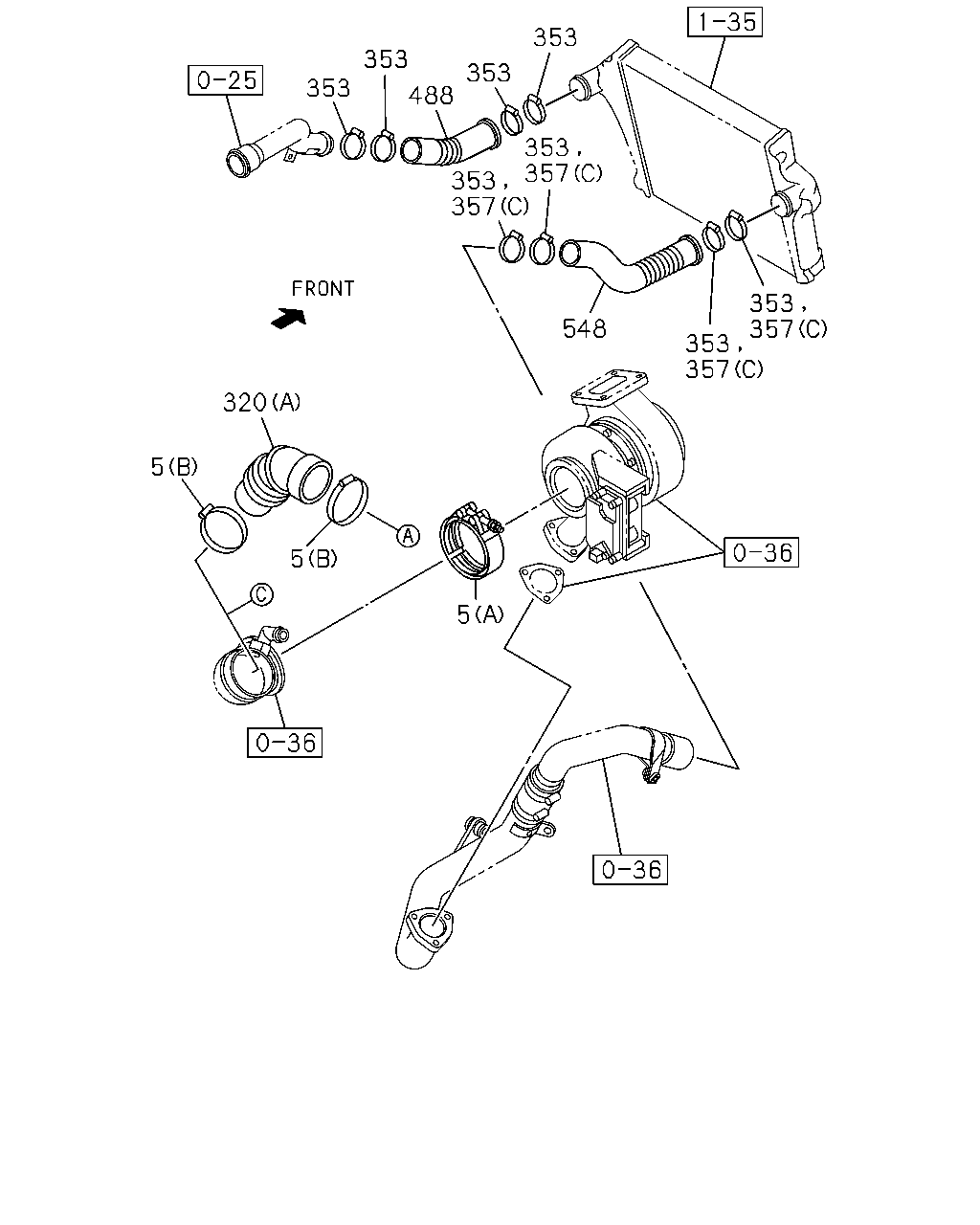

353 353 353 353 488 353 353 357 357 353 353 548 357 357 5 320 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT (A) ID=114	8-15178-030-0	01	1	1011-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1011-1306
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1011-1306
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-139-0	01	1	1307-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1307-
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) ID=104-142	1-09707-139-0	04	1	1011-1306
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) ID=104-142	1-09707-139-0	03	1	1307-
320	HOSE; CONN,ACL FTS WIDE SGL CAB(FG*M) (A)	8-97616-752-1	01	1	1011-
320	HOSE; CONN,ACL FTS WIDE DBL CAB(FG*W) (B)	8-98092-944-1	01	1	1011-
353	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	08	1	1011-1306
353	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	04	1	1307-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1307-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1011-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1011-1306
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1307-
488	HOSE; RUBBER,PIPE	8-98050-686-0	01	1	1011-
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98050-685-0	01	1	1011-

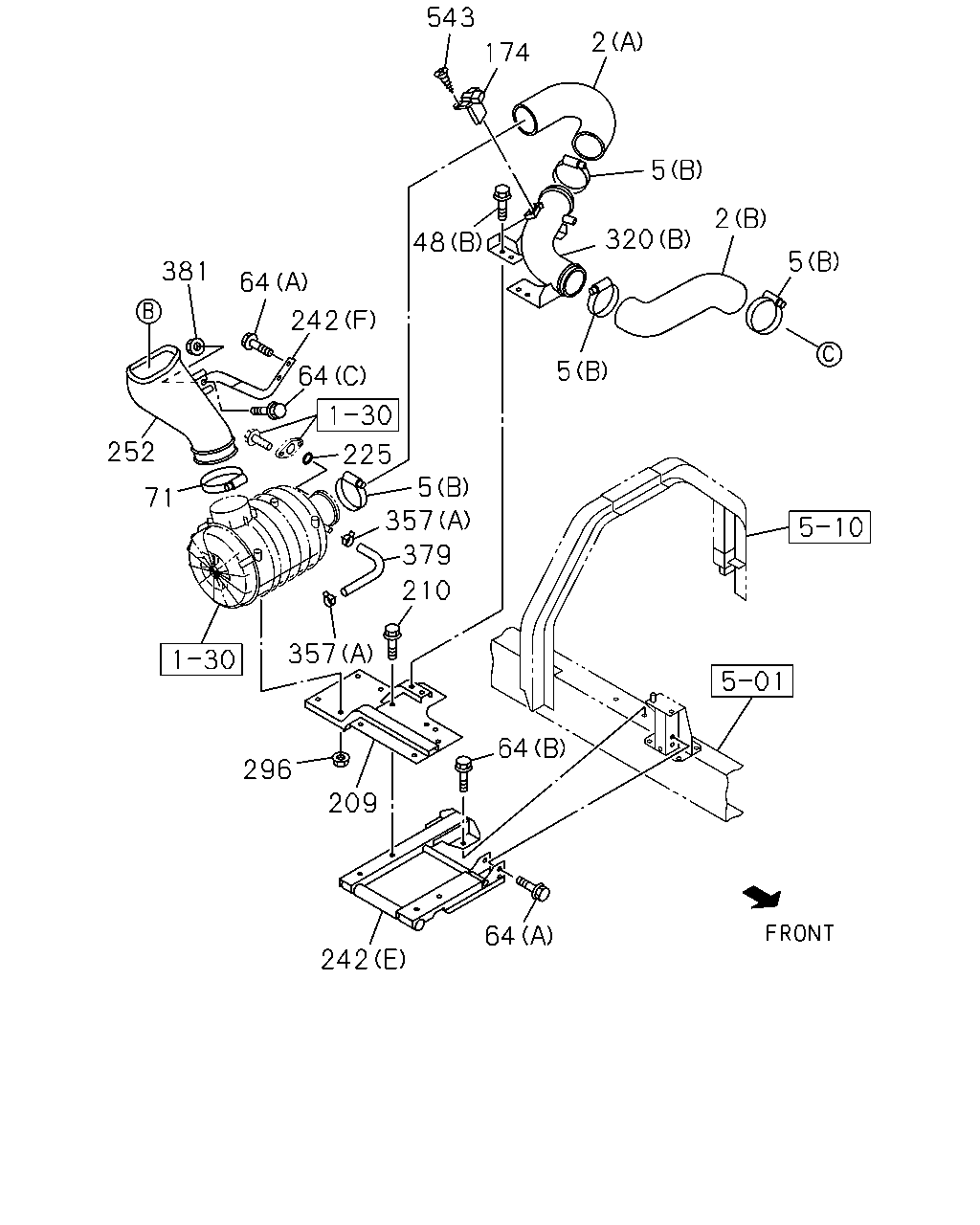

242 64 209 296 64 357 210 379 357 5 225 71 252 64 242 64 381 5 5 5 2 320 48 2 174 543

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FTS WIDE DBL CAB(FG*W) (A)	8-98050-682-0	01	1	1011-
2	HOSE; ACL FTS WIDE DBL CAB(FG*W) (B)	8-98050-684-0	01	1	1011-
5	CLIP; AIR DUCT (A) ID=114	8-15178-030-0	01	1	1011-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1011-1306
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1011-1306
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-139-0	01	1	1307-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1307-
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) ID=104-142	1-09707-139-0	04	1	1011-1306
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) ID=104-142	1-09707-139-0	03	1	1307-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1011-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1011-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1011-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (A) M10X25 FLANGE	0-28651-025-0	03	1	1011-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1011-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1011-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1011-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1011-
209	BRACKET; ACL FTS WIDE SGL CAB(FG*M)	8-98021-995-1	01	1	1011-
209	BRACKET; ACL FTS WIDE DBL CAB(FG*W)	8-98089-455-1	01	1	1011-
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1011-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1011-1306
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1307-
242	BRACKET; AIR DUCT (A)	8-98019-301-3	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (B)	8-98019-302-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-304-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	1011-
252	DUCT; AIR INT FTS WIDE SGL CAB(FG*M)	8-98012-861-1	01	1	1011-
252	DUCT; AIR INT FTS WIDE DBL CAB(FG*W)	8-98050-681-0	01	1	1011-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1011-
320	HOSE; CONN,ACL FTS WIDE SGL CAB(FG*M) (A)	8-97616-752-1	01	1	1011-
320	HOSE; CONN,ACL FTS WIDE DBL CAB(FG*W) (B)	8-98092-944-1	01	1	1011-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1307-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1011-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1011-1306
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1307-
379	HOSE; RUBBER FTS WIDE SGL CAB(FG*M)	8-97619-196-0	01	1	1011-
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98124-699-0	01	1	1011-
381	NUT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	1011-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1011-1308
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1309-

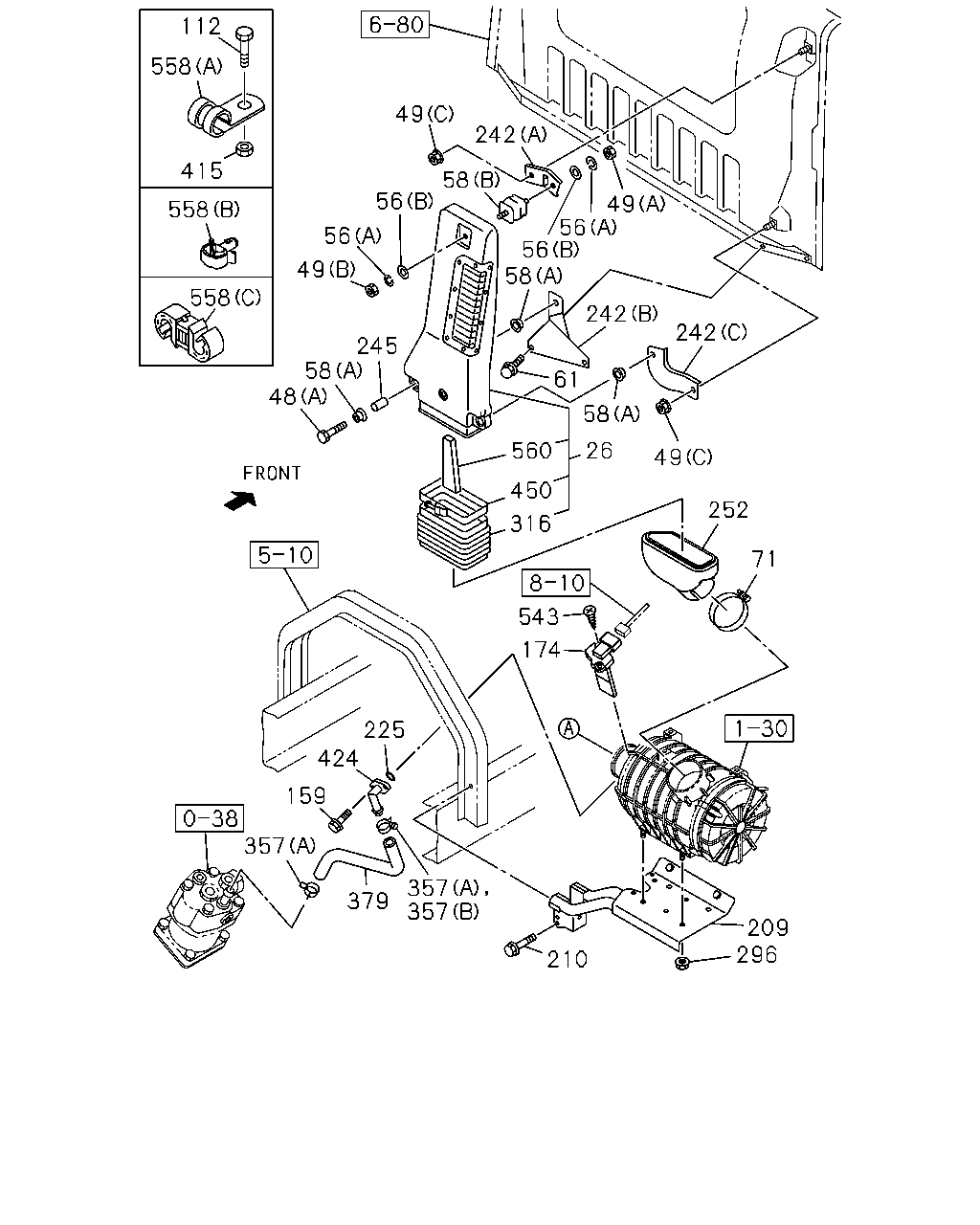

112 558 415 558 558 49 242 49 56 56 58 242 242 61 58 26 49 252 71 209 296 210 357 357 379 357 159 424 225 174 543 316 450 560 48 58 245 49 56 56 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1011-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1011-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1011-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-122-0	01	1	1011-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	01	1	1011-
49	NUT; AIR DUCT FTS WIDE SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	1011-
49	NUT; AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	1011-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1011-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1011-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1011-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1011-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1011-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1011-
112	BOLT; CLIP FTS WIDE SGL CAB(FG*M) M8X25 FLANGE	0-28650-825-0	03	1	1011-1306
159	BOLT; AIR PIPE FTS WIDE SGL CAB(FG*M) M6X16 FLANGE	0-28050-616-0	02	1	1011-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1011-
209	BRACKET; ACL FTS WIDE SGL CAB(FG*M)	8-98021-995-1	01	1	1011-
209	BRACKET; ACL FTS WIDE DBL CAB(FG*W)	8-98089-455-1	01	1	1011-
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1011-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1011-1306
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1307-
242	BRACKET; AIR DUCT (A)	8-98019-301-3	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (B)	8-98019-302-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-304-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	1011-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	1011-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1011-
252	DUCT; AIR INT FTS WIDE SGL CAB(FG*M)	8-98012-861-1	01	1	1011-
252	DUCT; AIR INT FTS WIDE DBL CAB(FG*W)	8-98050-681-0	01	1	1011-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1011-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1011-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1307-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1011-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1011-1306
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1307-
379	HOSE; RUBBER FTS WIDE SGL CAB(FG*M)	8-97619-196-0	01	1	1011-
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98124-699-0	01	1	1011-
415	NUT; CLIP FTS WIDE SGL CAB(FG*M) M8 FLANGE	0-91180-108-0	03	1	1011-1306
424	PIPE; AIR,INL FTS WIDE SGL CAB(FG*M)	8-98081-834-0	01	1	1011-
450	CLAMP; HOSE	9-09915-504-1	01	1	1011-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1011-1308
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1309-
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (A) ID=15 L=28	1-09701-216-0	03	1	1011-1306
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (C) ID=10 & 15	1-09709-279-1	01	1	1011-1306
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1011-1306
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1307-
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	1011-1306
