Isuzu WW
▶
TRUCKS
▶
FTS
▶
11307 - FTS AUST/NZ EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

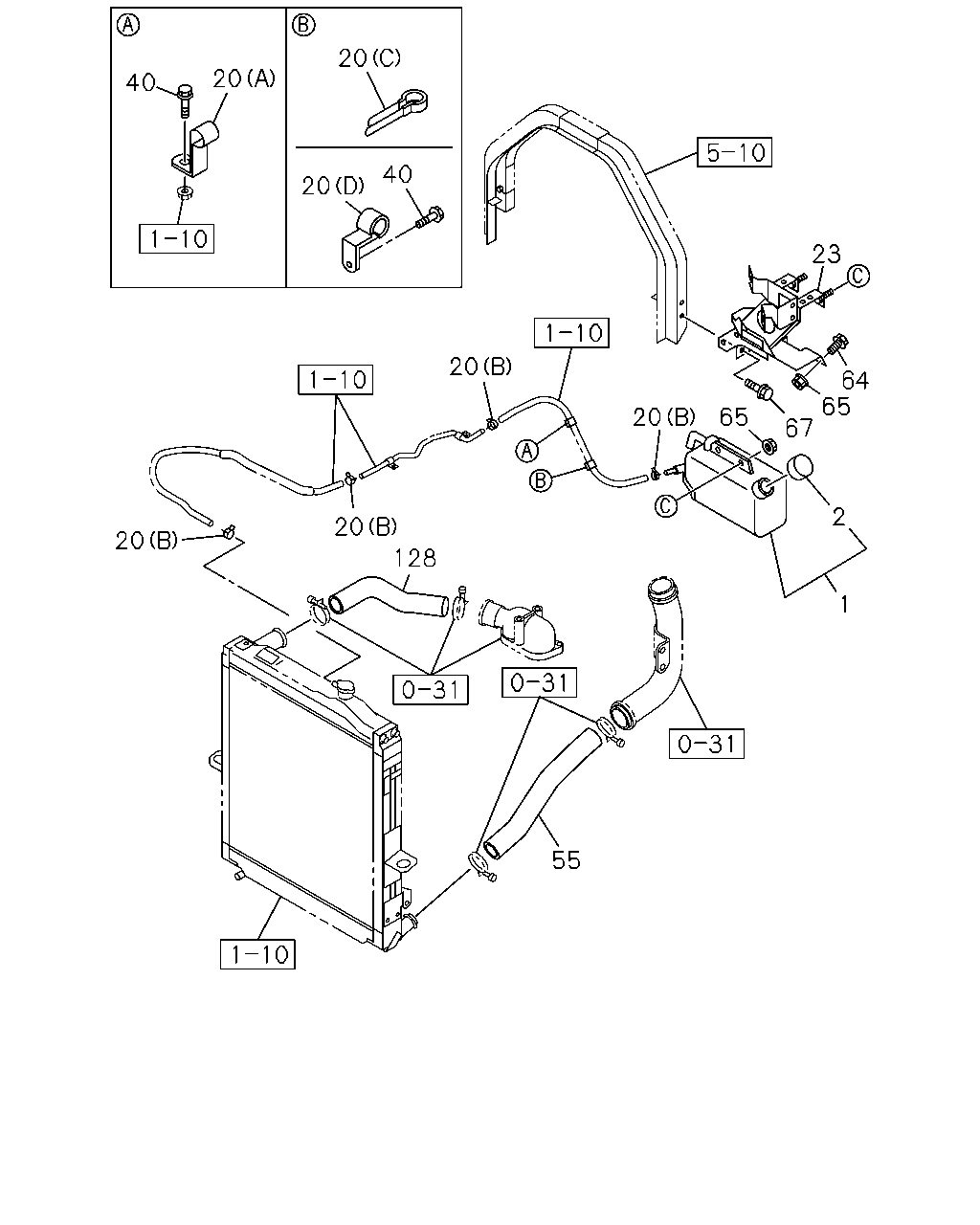

1-11 — RADIATOR HOSE AND SUB TANK
(#71036) — 18 parça
1
2
55
128
20
20
20
20
65
65
64
67
23
20
40
20
20
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1011-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1011-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1011-1306
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
1307-
20
CLIP; HOSE,RAD
FTS WIDE SGL CAB(FG**M*) (A) ID=13 H=40 L=25
1-09700-620-0
01
1
1011-
20
CLIP; HOSE,RAD
FTS WIDE SGL CAB(FG**M*) (C) ID=20 L=50
9-09917-430-0
01
1
1011-
20
CLIP; HOSE,RAD
FTS WIDE DBL CAB(FG**W*) (D) ID=13 L=50
0-95235-286-0
02
1
1011-
23
BRACKET; RESERVE TANK
FTS WIDE SGL CAB(FG**M*)
8-98049-965-4
01
1
1011-
23
BRACKET; RESERVE TANK
FTS WIDE DBL CAB(FG**W*)
8-98058-220-2
01
1
1011-
40
BOLT; CLIP
FTS WIDE SGL CAB(FG**M*) M8X20 FLANGE
0-28650-820-0
01
1
1011-
40
BOLT; CLIP
FTS WIDE DBL CAB(FG**W*) M8X20 FLANGE
0-28650-820-0
02
1
1011-
55
HOSE; WATER,RAD OUTLET
8-98050-926-1
01
1
1011-
64
BOLT; BRKT,SUB TANK
FTS WIDE SGL CAB(FG**M*) M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1011-
64
BOLT; BRKT,SUB TANK
FTS WIDE DBL CAB(FG**W*) M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1011-
65
NUT; BRKT,SUB TANK
FTS WIDE SGL CAB(FG**M*) M8 FLANGE
0-91180-108-0
03
1
1011-
65
NUT; BRKT,SUB TANK
FTS WIDE DBL CAB(FG**W*) M8 FLANGE
0-91180-108-0
01
1
1011-
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
1011-
128
HOSE; WATER,RAD INL
8-98050-925-1
01
1
1011-
