1 |

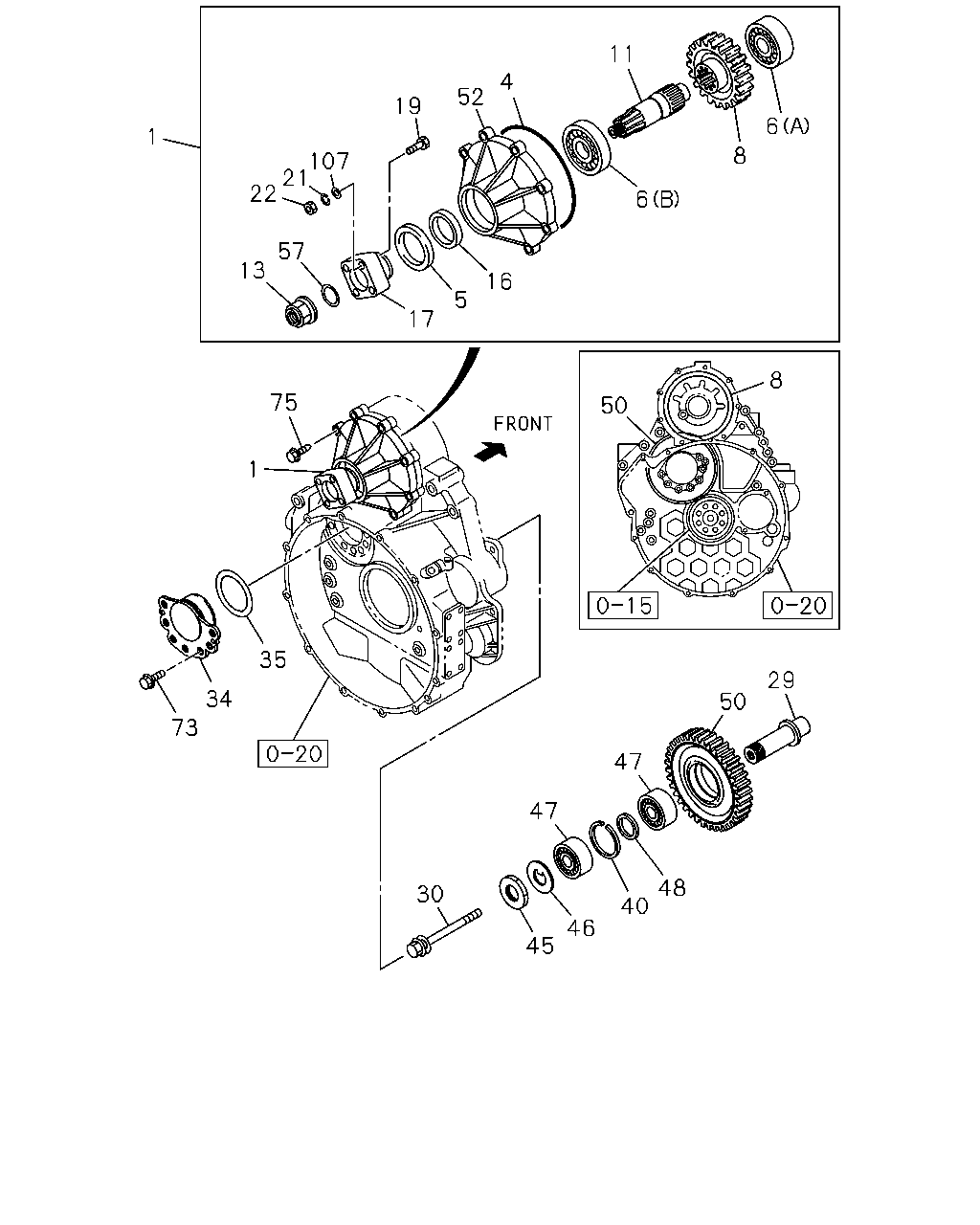

POWER TAKE OFF ASM; ENG RR
POWER TAKE OFF-FLYWHEEL(6SZ)
|
8-98011-447-1 |
01 |
1 |
1011- |
| |
4 |
GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
POWER TAKE OFF-FLYWHEEL(6SZ)
ID=196.3
|
9-09720-519-0 |
01 |
1 |
1011- |
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
POWER TAKE OFF-FLYWHEEL(6SZ)
|
8-97388-533-0 |
01 |
1 |
1011- |
| |
6 |
BEARING; FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
(B)
|
8-98011-439-0 |
01 |
1 |
1011- |
| |
6 |
BEARING; FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
(A)
|
8-98066-078-0 |
01 |
1 |
1011- |
| |
8 |
GEAR; FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
Z=60
|
8-98011-441-0 |
01 |
1 |
1011- |
| |
11 |
SHAFT; PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ)
|
8-98011-444-1 |
01 |
1 |
1011- |
| |
13 |
NUT; SHAFT,FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
M27 H=25
|
8-97360-410-0 |
01 |
1 |
1011- |
| |
16 |
THROWER; OIL,FLYWHEEL PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
|
8-98011-449-0 |
01 |
1 |
1011- |
| |
17 |
FLANGE; PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ)
|
1-38189-010-2 |
01 |
1 |
1011- |
| |
19 |
BOLT; FLANGE
POWER TAKE OFF-FLYWHEEL(6SZ)
M12X40
|
0-20951-240-0 |
04 |
1 |
1011- |
| |
21 |
WASHER; LK,FLANGE
POWER TAKE OFF-FLYWHEEL(6SZ)
ID=12.2
|
0-91510-812-0 |
04 |
1 |
1011- |
| |
22 |
NUT; FLANGE
POWER TAKE OFF-FLYWHEEL(6SZ)
M12
|
0-91110-512-0 |
04 |
1 |
1011- |
| |
29 |
SPINDLE; IDLE GEAR,PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
|
8-94396-895-1 |
01 |
1 |
1011- |
| |
30 |
BOLT; SPINDLE
POWER TAKE OFF-FLYWHEEL(6SZ)
M14X125 FLANGE W/PL WASHER
|
1-09070-043-1 |
01 |
1 |
1011- |
| |
34 |
COVER; PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ)
|
8-97600-138-0 |
01 |
1 |
1011- |
| |
35 |
GASKET; COVER
POWER TAKE OFF-FLYWHEEL(6SZ)
ID=80.5
|
8-94396-903-0 |
01 |
1 |
1011- |
| |
40 |
SPACER; IDLE GEAR
POWER TAKE OFF-FLYWHEEL(6SZ)
T=3
|
1-38226-015-0 |
01 |
1 |
1011- |
| |
45 |
NUT; BRG,IDLE GEAR
POWER TAKE OFF-FLYWHEEL(6SZ)
M45
|
8-98013-634-0 |
01 |
1 |
1011- |
| |
46 |
WASHER; LK,BRG
POWER TAKE OFF-FLYWHEEL(6SZ)
ID=47
|
1-09533-003-0 |
01 |
1 |
1011- |
| |
47 |
BEARING; TAPER ROLLER
POWER TAKE OFF-FLYWHEEL(6SZ)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.05
|
1-38226-016-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.12
|
1-38226-017-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.19
|
1-38226-018-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.26
|
1-38226-019-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.33
|
1-38226-020-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.40
|
1-38226-021-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.47
|
1-38226-022-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.54
|
1-38226-023-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.61
|
1-38226-024-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.68
|
1-38226-025-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.75
|
1-38226-026-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.82
|
1-38226-027-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.89
|
1-38226-028-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=6.96
|
1-38226-029-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=7.03
|
1-38226-030-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=7.10
|
1-38226-031-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=7.17
|
1-38226-032-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=7.24
|
1-38226-033-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=7.31
|
1-38226-034-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=7.38
|
1-38226-035-0 |
01 |
1 |
1011- |
| |
48 |
SPACER; INNER
POWER TAKE OFF-FLYWHEEL(6SZ)
T=7.45
|
1-38226-036-0 |
01 |
1 |
1011- |
| |
50 |
GEAR; IDLE A
POWER TAKE OFF-FLYWHEEL(6SZ)
Z=72
|
8-98011-442-0 |
01 |
1 |
1011- |
| |
52 |
CASE; BRG,PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
|
8-98011-446-1 |
01 |
1 |
1011- |
| |
57 |
GASKET; FLANGE,PTO,FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ)
ID=35.7
|
1-09623-285-0 |
01 |
1 |
1011- |
| |
73 |
BOLT; COVER,PTO
POWER TAKE OFF-FLYWHEEL(6SZ)
M10X25 FLANGE
|
0-28151-025-0 |
07 |
1 |
1011- |
| |
75 |
BOLT; COVER
POWER TAKE OFF-FLYWHEEL(6SZ)
M10X30 FLANGE
|
0-28151-030-0 |
06 |
1 |
1011- |
| |
107 |
WASHER; PL,FLANGE
POWER TAKE OFF-FLYWHEEL(6SZ)
ID=12.5 OD=22
|
0-91610-512-0 |
04 |
1 |
1011- |
