0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#71030) — 94 parça

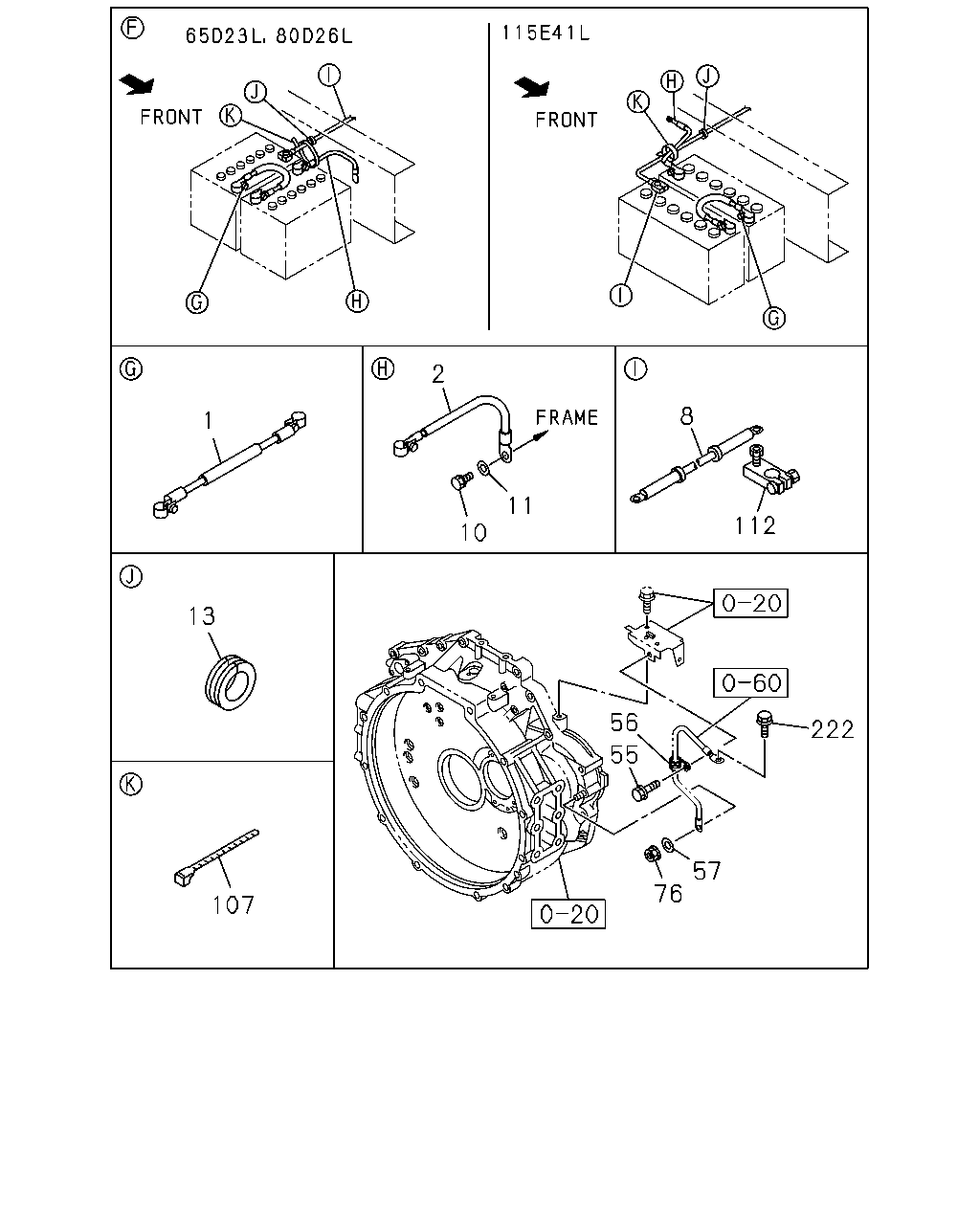

çizim 73282
1 2 10 11 8 112 56 55 57 76 222 107 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1011- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1011-1306 ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=480 		8-97618-525-1 01 1 1307- ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1011- ●
2 CABLE; BATTERY
L=240 		1-82650-403-1 01 1 1011- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-442-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98235-514-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-543-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-443-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98235-515-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-544-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-441-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98235-263-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-542-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98159-444-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98235-516-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98295-545-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-447-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-447-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-547-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-446-0 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-546-0 01 1 1503- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1011- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1011- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1011- ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1011- ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1011- ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1011- ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1011-1109 ●
107 CLIP; BAND
COUNTRY NEW ZEALAND<CX6> L=140 		5-09707-031-1 01 1 1110-1203 ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1110-1203 ●
107 CLIP; BAND
MZW6P M/T(RSZ) COUNTRY NEW ZEALAND<CX6> L=140 		5-09707-031-1 01 1 1204-1306 ●
107 CLIP; BAND
LCT2000 A/T ALLISON(Y4F) L=140 		5-09707-031-1 01 1 1204-1306 ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1204-1306 ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1307- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1011-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1011- ● ●

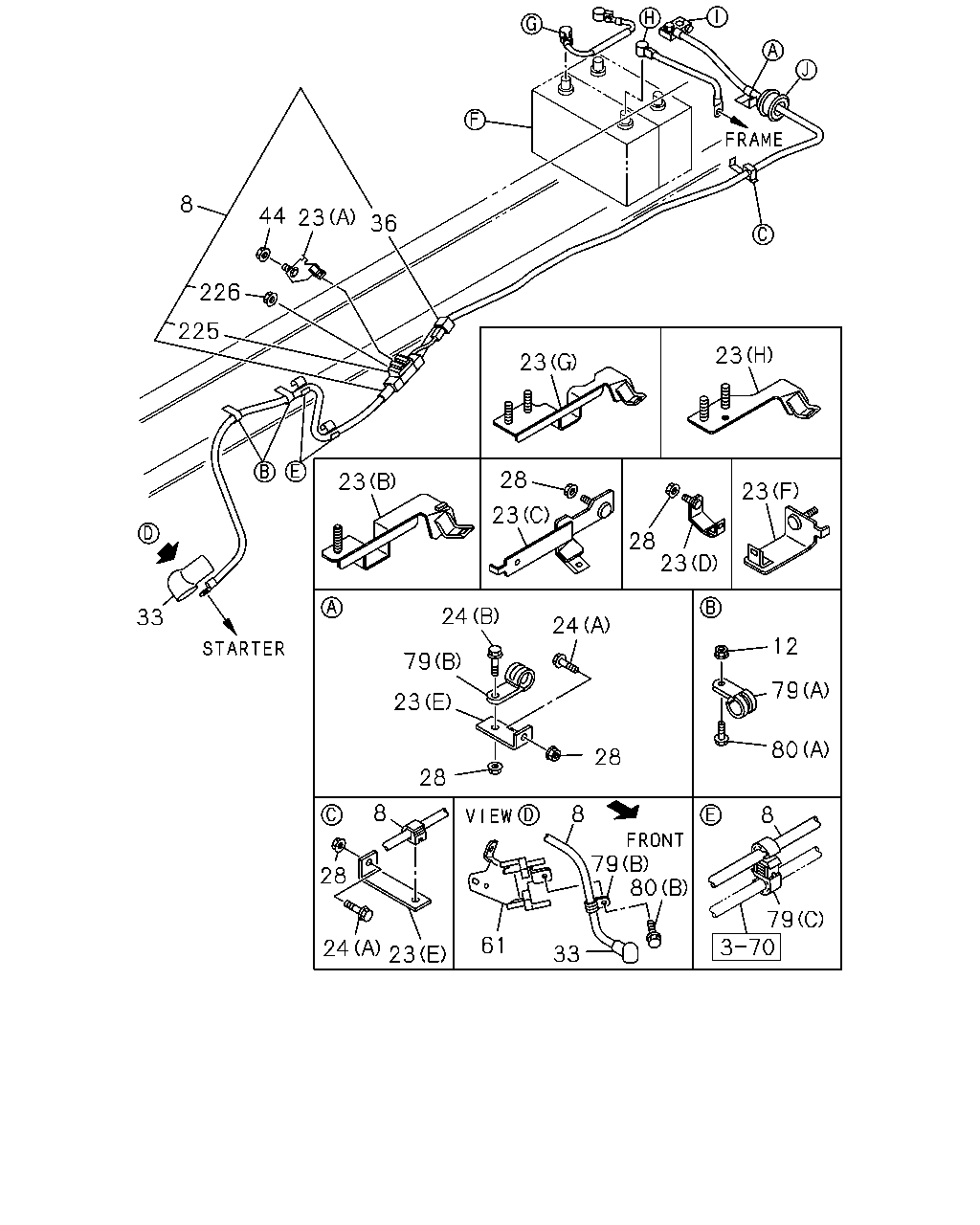

çizim 73435
8 225 226 44 23 36 33 23 23 23 28 23 23 28 23 24 24 79 23 28 28 12 79 80 8 28 24 23 33 61 79 80 79 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-442-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98235-514-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-543-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-443-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98235-515-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-544-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-441-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98235-263-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-542-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98159-444-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98235-516-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98295-545-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-447-0 01 1 1011-1306 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-447-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-547-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-446-0 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-546-0 01 1 1503- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1011- ●
23 BRACKET; CABLE CLIP TO FRAME
LCT2000 A/T ALLISON(Y4F) (A) 		8-98207-206-1 01 1 1204-1306 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 03 1 1011- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98095-861-0 01 1 1011-1111 ●
23 BRACKET; CABLE CLIP TO FRAME
(H) 		8-98201-147-0 01 1 1112- ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1011- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98091-358-0 01 1 1011- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98092-593-0 01 1 1011-1111 ● ●
23 BRACKET; CABLE CLIP TO FRAME
MZW6P M/T(RSZ) (A) 		8-98092-593-0 01 1 1112-1306 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98092-593-0 01 1 1307- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 01 1 1011- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98118-499-0 01 1 1011-1111 ●
23 BRACKET; CABLE CLIP TO FRAME
(G) 		8-98195-169-0 01 1 1112- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1011- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1011- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1011- ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1011- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-1306 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1011- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1011- ● ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1011- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1011-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1011- ● ●
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 01 1 1011- ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 01 1 1011- ● ●
79 CLIP; BATTERY CABLE
(C) ID=10 & 10 		1-09709-277-1 01 1 1011- ● ●
79 CLIP; BATTERY CABLE
(C) ID=10.5 & 18 		8-94381-420-0 01 1 1011- ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1011- ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1011- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1011-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1011-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●
