0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#71021) — 70 parça

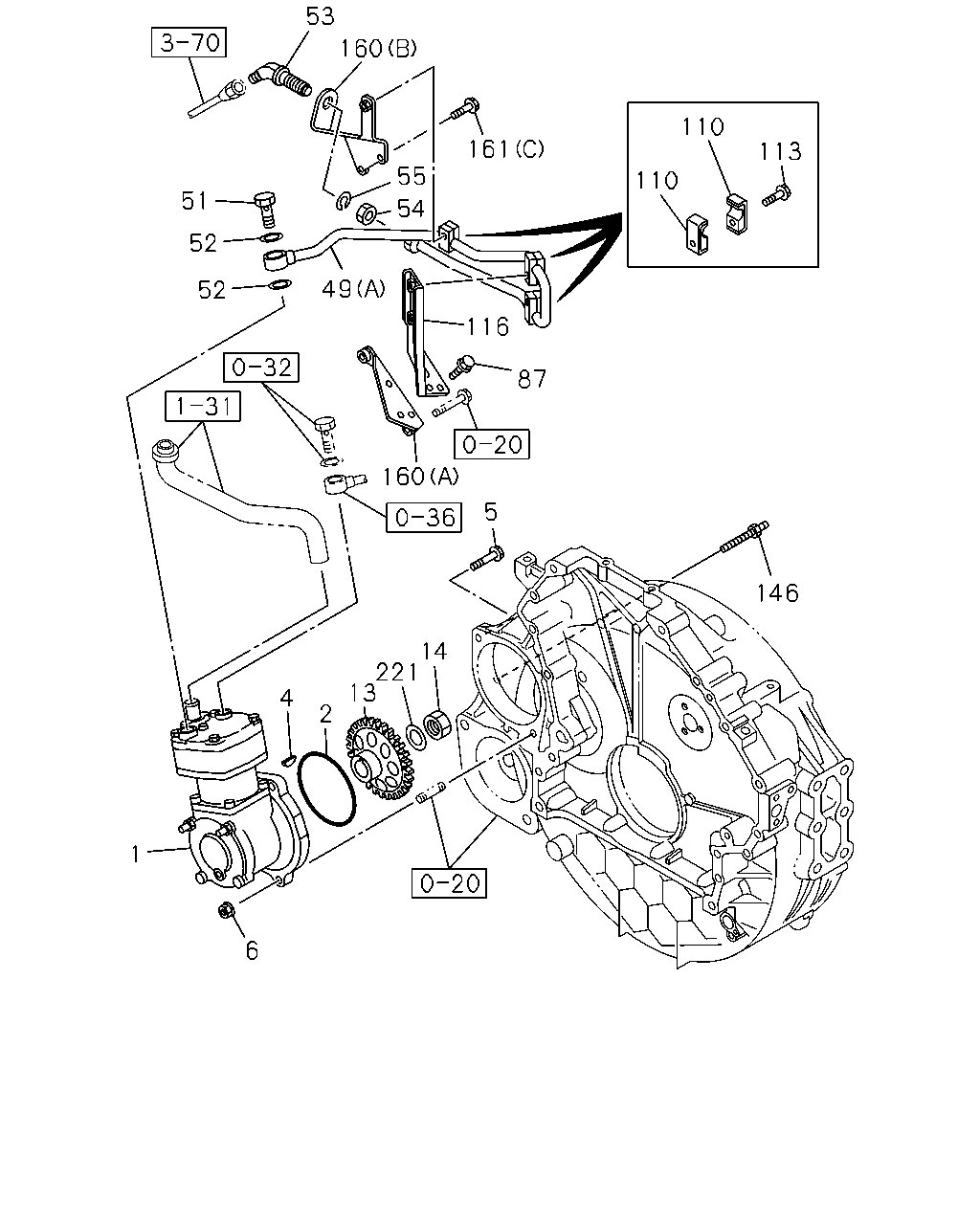

53 51 52 52 49 116 54 87 160 161 160 55 110 110 113 5 4 14 221 13 2 6 1 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	1011-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-303-0	01	1	1108-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1011-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1011-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1011-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1011-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1011-
14	NUT; GEAR M20	0-91110-520-0	01	1	1011-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	1011-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	1011-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1011-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1011-
53	UNION; CHARGE PIPE POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 ELBOW	8-98008-887-2	01	1	1011-
53	UNION; CHARGE PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1011-
54	NUT; PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) M26	8-98049-390-0	01	1	1011-
54	NUT; PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22	0-91111-522-0	01	1	1011-
55	WASHER; LK,PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) ID=27.5	0-91510-527-0	01	1	1011-
55	WASHER; LK,PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.5	0-91510-522-0	01	1	1011-
87	BOLT; BRKT FIX EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE	0-28050-820-0	03	1	1011-
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1011-
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1011-
116	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97614-183-1	01	1	1011-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	1011-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	1011-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	1011-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	1011-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	1011-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	1011-
161	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	1011-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1011-

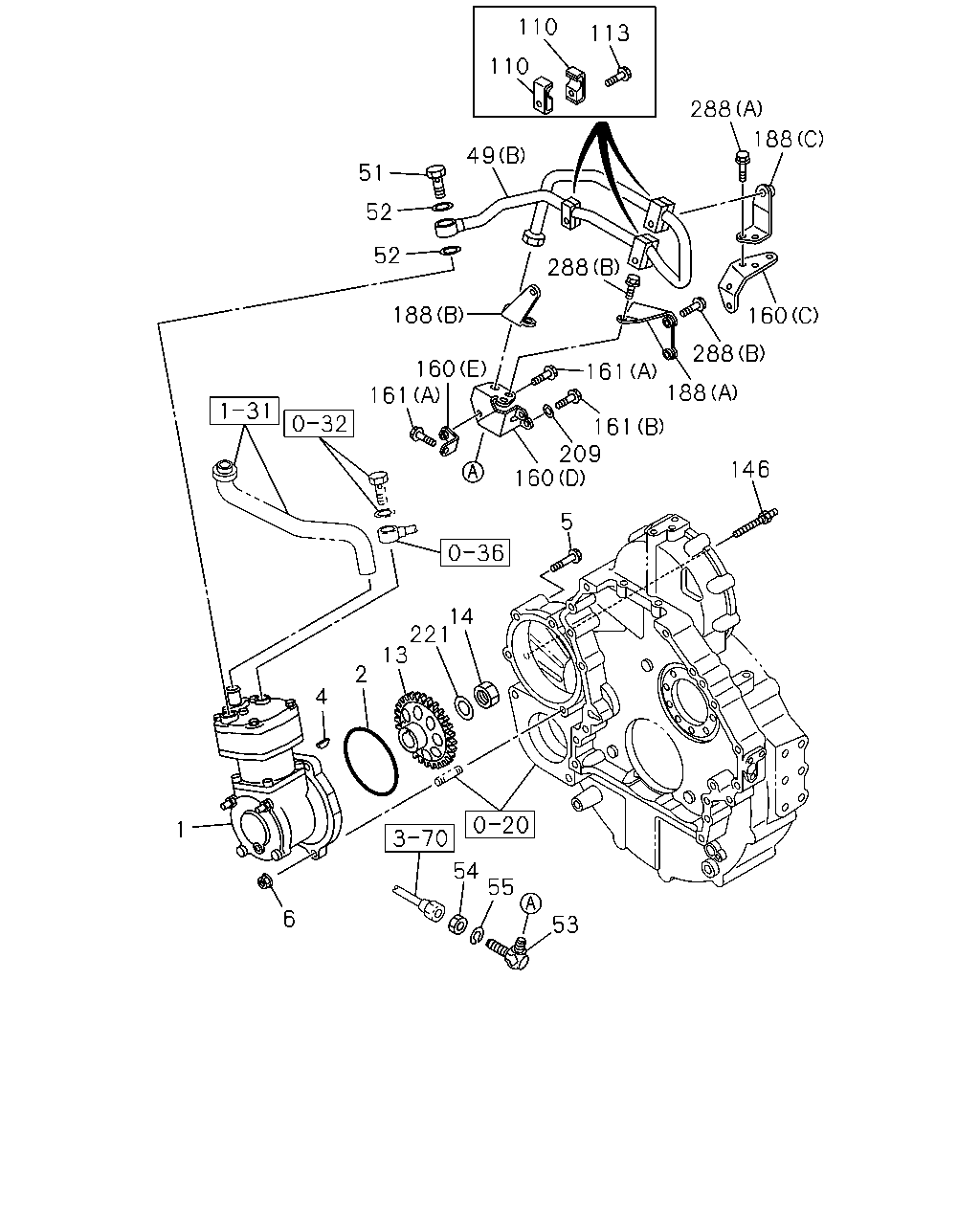

110 110 113 288 49 51 52 52 288 188 160 161 161 209 160 161 188 288 160 188 146 14 221 13 2 4 6 54 55 53 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	1011-1107
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-303-0	01	1	1108-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1011-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	1011-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1011-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1011-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1011-
14	NUT; GEAR M20	0-91110-520-0	01	1	1011-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98052-016-0	01	1	1011-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98042-002-0	01	1	1011-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1011-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1011-
53	UNION; CHARGE PIPE POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 ELBOW	8-98008-887-2	01	1	1011-
53	UNION; CHARGE PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1011-
54	NUT; PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) M26	8-98049-390-0	01	1	1011-
54	NUT; PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M22	0-91111-522-0	01	1	1011-
55	WASHER; LK,PIPE UNION POWER TAKE OFF-FLYWHEEL(6SZ) ID=27.5	0-91510-527-0	01	1	1011-
55	WASHER; LK,PIPE UNION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=22.5	0-91510-522-0	01	1	1011-
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1011-
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1011-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D)	8-98047-336-2	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E)	8-98052-613-1	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98052-614-0	01	1	1011-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97614-182-2	01	1	1011-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98042-844-1	01	1	1011-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X30 FLANGE	0-28151-030-0	02	1	1011-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X185	8-94393-483-0	01	1	1011-
161	BOLT; BRKT,AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X128	8-94399-252-0	01	1	1011-
161	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X16 FLANGE	0-28050-816-0	02	1	1011-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98052-615-1	01	1	1011-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98053-882-0	01	1	1011-
188	STAY; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98053-883-0	01	1	1011-
209	WASHER; PL POWER TAKE OFF-FLYWHEEL(6SZ) ID=12.5 OD=22	8-94393-140-1	02	1	1011-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1011-
288	BOLT; STAY FIX POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X20 FLANGE	0-28050-820-0	03	1	1011-
288	BOLT; STAY FIX POWER TAKE OFF-FLYWHEEL(6SZ) (B) M10X45 FLANGE	0-28151-045-0	02	1	1011-
