0-36 — TURBOCHARGER SYSTEM (#71020) — 47 parça

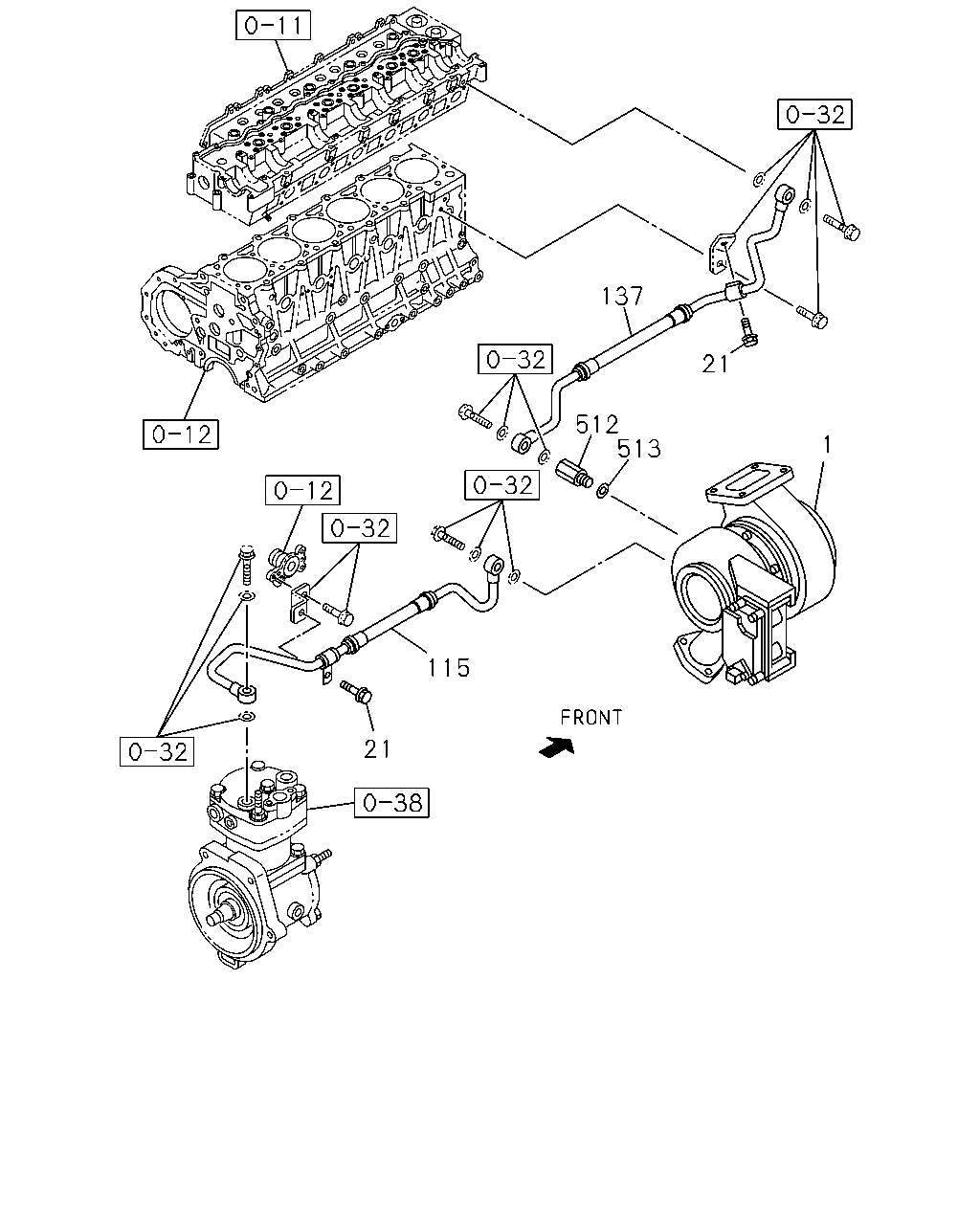

çizim 61007
21 115 513 512 21 137 1
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1011-
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1011-
115 PIPE; WATER,TURBOCHARGER OUT 8-97615-877-0 01 1 1011-
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1011-
512 CONNECTOR; TURBO 8-98031-856-0 01 1 1011-
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 1011-1312
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-

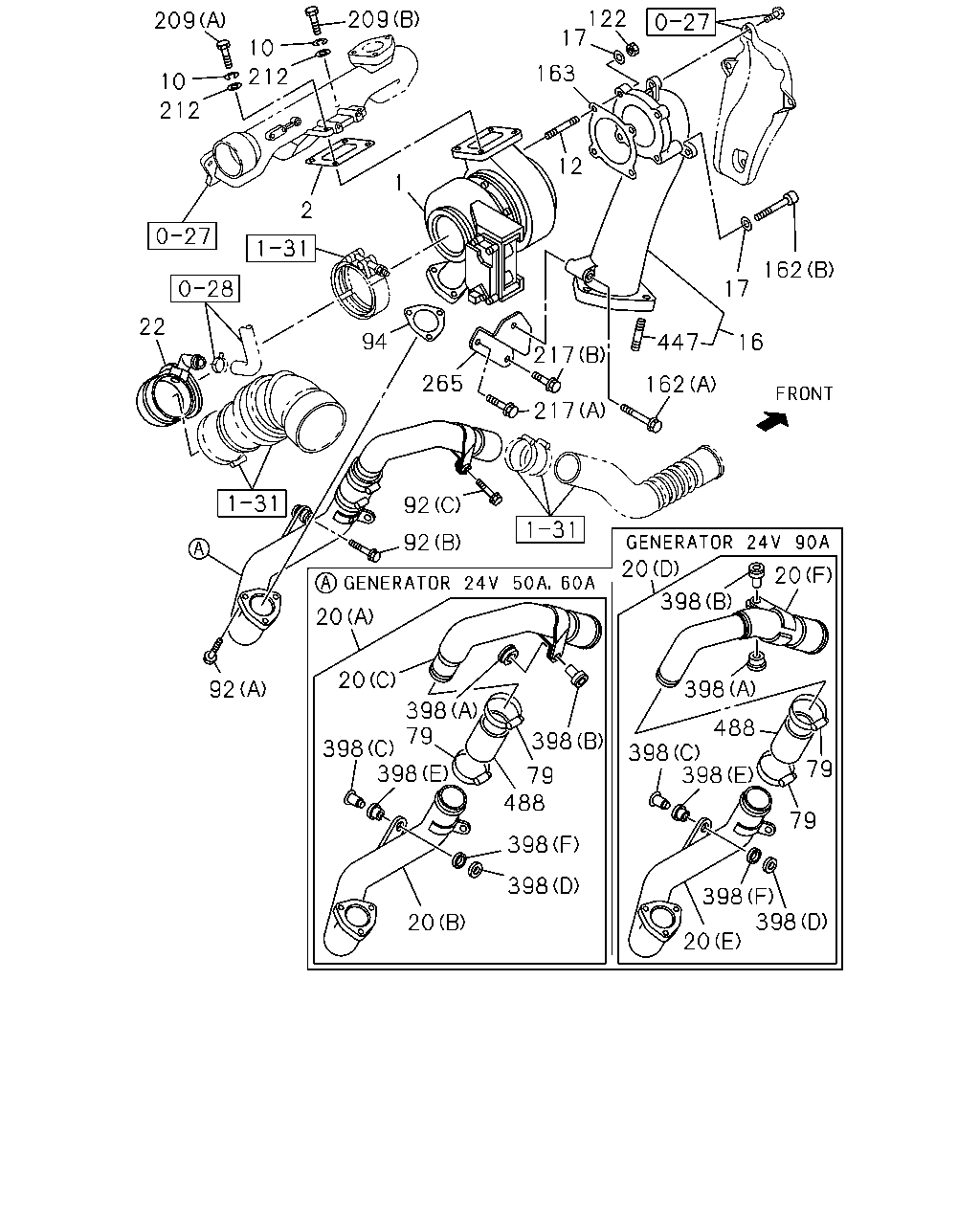

çizim 189227
398 398 398 398 398 398 398 398 398 398 398 162 447 16 17 162 12 163 17 122 209 212 10 10 212 209 2 1 94 22 92 20 20 79 79 398 488 20 20 79 79 488 20 20 217 217 265 92 92
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1011-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1011-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1011-
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 1011-
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 1011-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1011-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 1011-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 1011-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 1011-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1011-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1011-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1011-
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 1011-
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1011-
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1011-
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1011-
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1011-
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 1011-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1011-
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1011-
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1011-
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-2 01 1 1011-
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 1011-
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 1011-
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1011-
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1011-
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1011-
265 BRACKET; EXH PIPE 8-98260-415-0 01 1 1307-
265 BRACKET; EXH PIPE 8-97609-517-1 01 1 1011-1306
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1011-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1011-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1011-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1011-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1011-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1011-
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 1011-
488 HOSE; RUBBER 8-98046-356-0 01 1 1011-1408
488 HOSE; RUBBER
ID=52.5 L=70 		8-98245-242-0 01 1 1409-
