Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#7100) — 336 parça

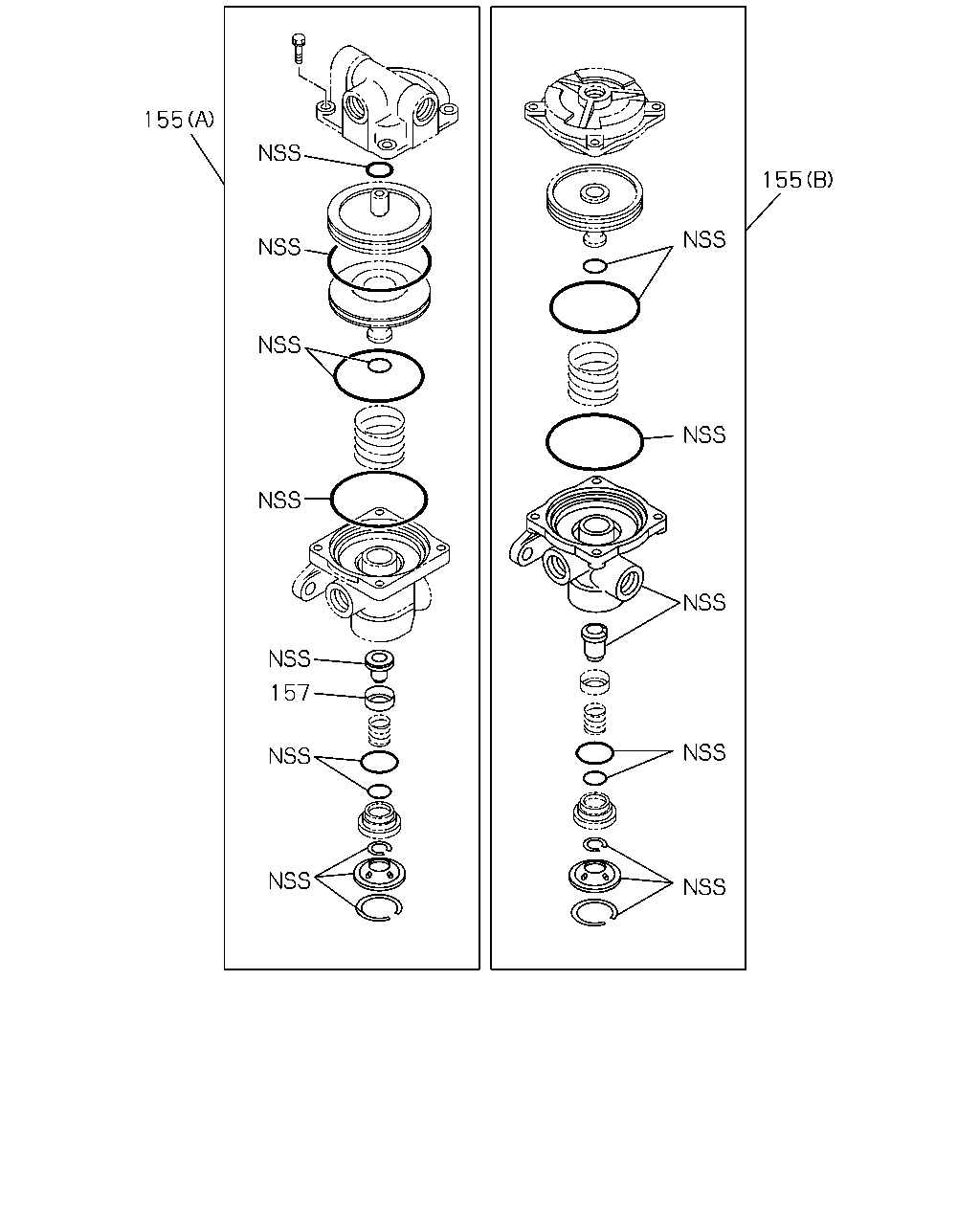

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-85576-035-0	01	1	0012-0106	●
155	REPAIR KIT; RELAY VALVE EURO3 SPECIFICATION(NJX) (A)	1-85576-035-0	01	1	0107-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0012-0106	●	●
155	REPAIR KIT; RELAY VALVE EXC. ANTI SKID BRK SYSTEM<SFL>,BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	01	1	0012-0106	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0012-0106		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0012-0106		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0107-0107	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0107-0107	●	●
155	REPAIR KIT; RELAY VALVE EXC. EURO3 SPECIFICATION(NJX) (B)	1-85576-033-0	01	1	0107-0107	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0107-0107		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0108-0203	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0108-0203	●	●
155	REPAIR KIT; RELAY VALVE EXC. EURO3 SPECIFICATION(NJX) (B)	1-85576-033-0	01	1	0108-0203	●
155	REPAIR KIT; RELAY VALVE EURO3 SPECIFICATION(NJX) BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	01	1	0108-0203	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0108-0203		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0204-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0204-	●	●
155	REPAIR KIT; RELAY VALVE EXC. EURO3 SPECIFICATION(NJX) (B)	1-85576-033-0	01	1	0204-	●	●
155	REPAIR KIT; RELAY VALVE EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	01	1	0204-	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0012-	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0012-	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0012-	●	●

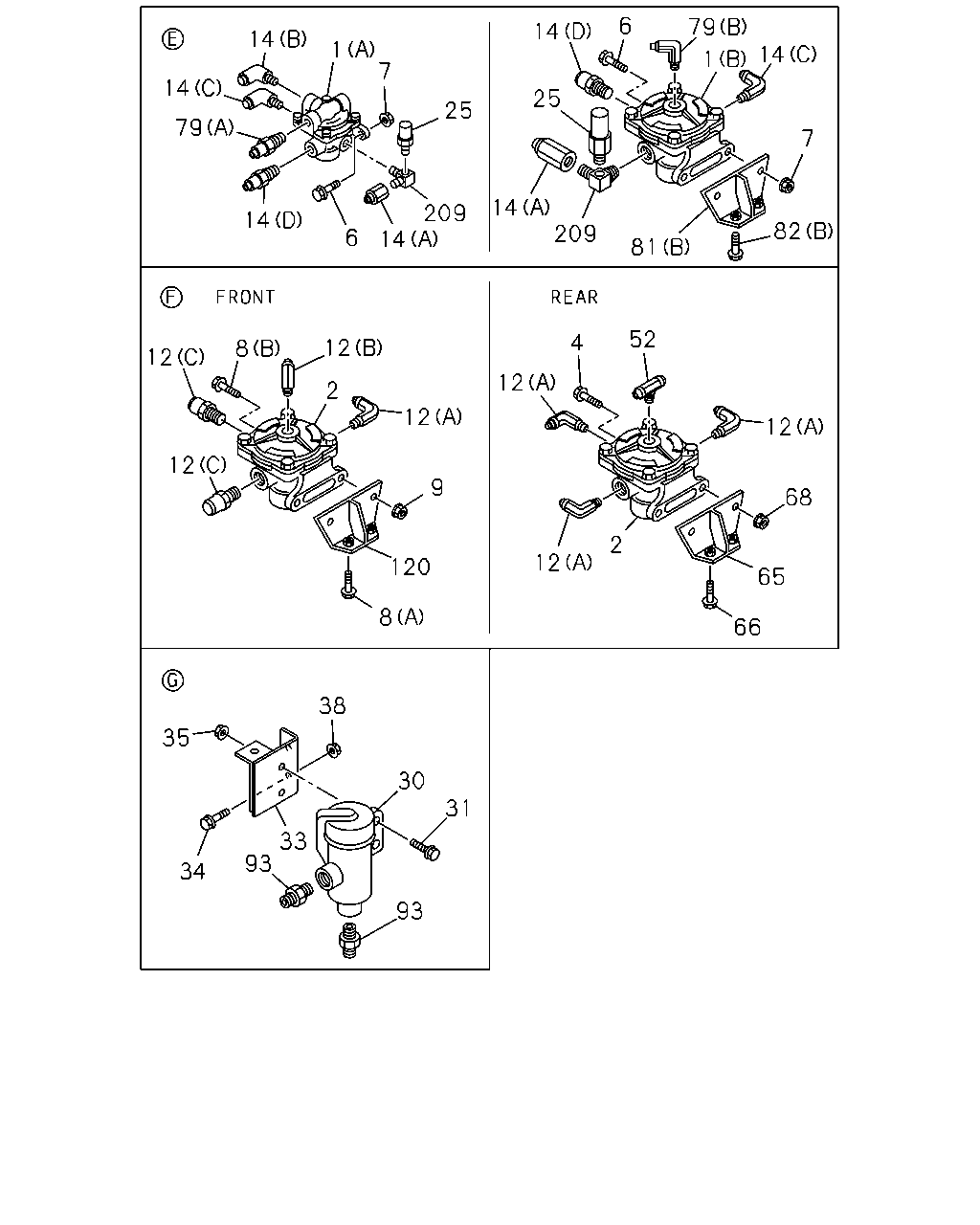

6 79 14 14 1 7 14 1 14 25 25 79 7 14 209 209 14 14 82 6 81 52 4 12 8 12 12 2 12 12 12 9 68 2 12 120 65 8 66 38 35 30 31 33 93 34 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-143-0	01	1	0012-0106	●
1	VALVE; RELAY RWD RR EURO3 SPECIFICATION(NJX) (A)	1-48210-143-0	01	1	0107-	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-278-0	01	1	0012-0106	●
1	VALVE; RELAY RWD RR (B)	1-48210-278-0	01	1	0012-0106		●
1	VALVE; RELAY RWD RR EXC. EURO3 SPECIFICATION(NJX) (B)	1-48210-278-0	01	1	0107-0107	●
1	VALVE; RELAY RWD RR (B)	1-48210-278-0	01	1	0107-0107		●
1	VALVE; RELAY RWD RR EXC. EURO3 SPECIFICATION(NJX) (B)	1-48210-278-0	01	1	0108-	●
1	VALVE; RELAY RWD RR EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-278-0	01	1	0108-	●
1	VALVE; RELAY RWD RR (B)	1-48210-278-0	01	1	0108-		●
2	VALVE; RELAY	1-48210-278-0	01	1	0012-0203	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	0012-0203	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	0204-	●	●
2	VALVE; RELAY EXC. EURO3 SPECIFICATION(NJX)	1-48210-278-0	01	1	0204-	●
2	VALVE; RELAY	1-48210-278-0	01	1	0204-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0012-0512	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
6	BOLT; VLV M10X40 FLANGE	0-28681-040-0	02	1	0012-0512	●	●
6	BOLT; VLV M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0012-0602	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
8	BOLT; BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0012-0512	●	●
8	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	0012-0512	●	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0012-0602	●	●
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
12	CONNECTOR; RELAY VLV ANTI SKID BRK SYSTEM<SFL> BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	0012-0107	●
12	CONNECTOR; RELAY VLV ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	0108-0306	●
12	CONNECTOR; RELAY VLV ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0307-	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0012-0106	●	●
12	CONNECTOR; RELAY VLV EXC. ANTI SKID BRK SYSTEM<SFL>,BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0012-0106	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0012-0106		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0107	●	●
12	CONNECTOR; RELAY VLV EXC. EURO3 SPECIFICATION(NJX) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0107	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0107-0107		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0108-0306	●	●
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0108-0306	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0108-0306		●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0307-	●	●
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0307-	●
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0307-		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0012-0106	●	●
12	CONNECTOR; RELAY VLV EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0012-0106	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0012-0106		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0107-0107	●	●
12	CONNECTOR; RELAY VLV EXC. EURO3 SPECIFICATION(NJX) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0107-0107	●
12	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0107-0107	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0107-0107		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0108-0306	●	●
12	CONNECTOR; RELAY VLV EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0108-0306	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0108-0306		●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0307-	●	●
12	CONNECTOR; RELAY VLV EXC. ANTI SKID BRK SYSTEM<SFL> (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0307-	●
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0307-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0012-0106	●	●
12	CONNECTOR; RELAY VLV EXC. ANTI SKID BRK SYSTEM<SFL> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0012-0106	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0012-0106		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0107-0107	●	●
12	CONNECTOR; RELAY VLV EXC. EURO3 SPECIFICATION(NJX) (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0107-0107	●
12	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) EXC. ANTI SKID BRK SYSTEM<SFL> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0107-0107	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0107-0107		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0108-0306	●	●
12	CONNECTOR; RELAY VLV EXC. ANTI SKID BRK SYSTEM<SFL> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0108-0306	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	0108-0306		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0307-	●	●
12	CONNECTOR; RELAY VLV EXC. ANTI SKID BRK SYSTEM<SFL> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0307-	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0307-		●
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0012-0106	●
14	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0107-0306	●
14	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0307-	●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	0012-0306	●	●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0307-	●	●
14	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	0012-0306	●	●
14	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0307-	●	●
14	CONNECTOR; RELAY VLV (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0012-	●	●
25	SWITCH; PRESSURE	1-82410-163-1	01	1	0012-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0012-	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0012-0512	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
33	BRACKET; GOV,AIR CONT	1-48317-877-0	01	1	0012-	●	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28680-825-0	02	1	0012-0512	●	●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	0012-0203	●
52	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	0204-	●
65	BRACKET; RELAY VLV RR	1-48219-145-0	01	1	0012-	●	●
66	BOLT; BRKT,RELAY VLV RR M10X35 FLANGE	0-28681-035-0	02	1	0012-0512	●	●
66	BOLT; BRKT,RELAY VLV RR M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0012-0602	●	●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
79	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	0012-0106	●
79	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	0107-0306	●
79	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0307-	●
79	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0012-0106	●
79	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0012-0106		●
79	CONNECTOR; RELAY VLV EXC. EURO3 SPECIFICATION(NJX) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0107-0107	●
79	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0107-0107		●
79	CONNECTOR; RELAY VLV EXC. EURO3 SPECIFICATION(NJX) (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0108-0306	●
79	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0108-0306	●
79	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0108-0306		●
79	CONNECTOR; RELAY VLV EXC. EURO3 SPECIFICATION(NJX) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0307-	●
79	CONNECTOR; RELAY VLV EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0307-	●
79	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0307-		●
81	BRACKET; RELAY VLV,PARKING BRK (A)	1-48495-222-0	01	1	0012-	●	●
81	BRACKET; RELAY VLV,PARKING BRK (B)	1-48219-145-0	01	1	0012-		●
82	BOLT; BRKT,RELAY VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0012-0512	●	●
82	BOLT; BRKT,RELAY VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
82	BOLT; BRKT,RELAY VLV (B) M10X35 FLANGE	0-28681-035-0	02	1	0012-0512		●
82	BOLT; BRKT,RELAY VLV (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0012-	●	●
120	BRACKET; VLV	1-48219-145-0	01	1	0012-	●	●
209	CONNECTOR; 3WAY,DEL	1-09656-673-0	01	1	0012-	●	●

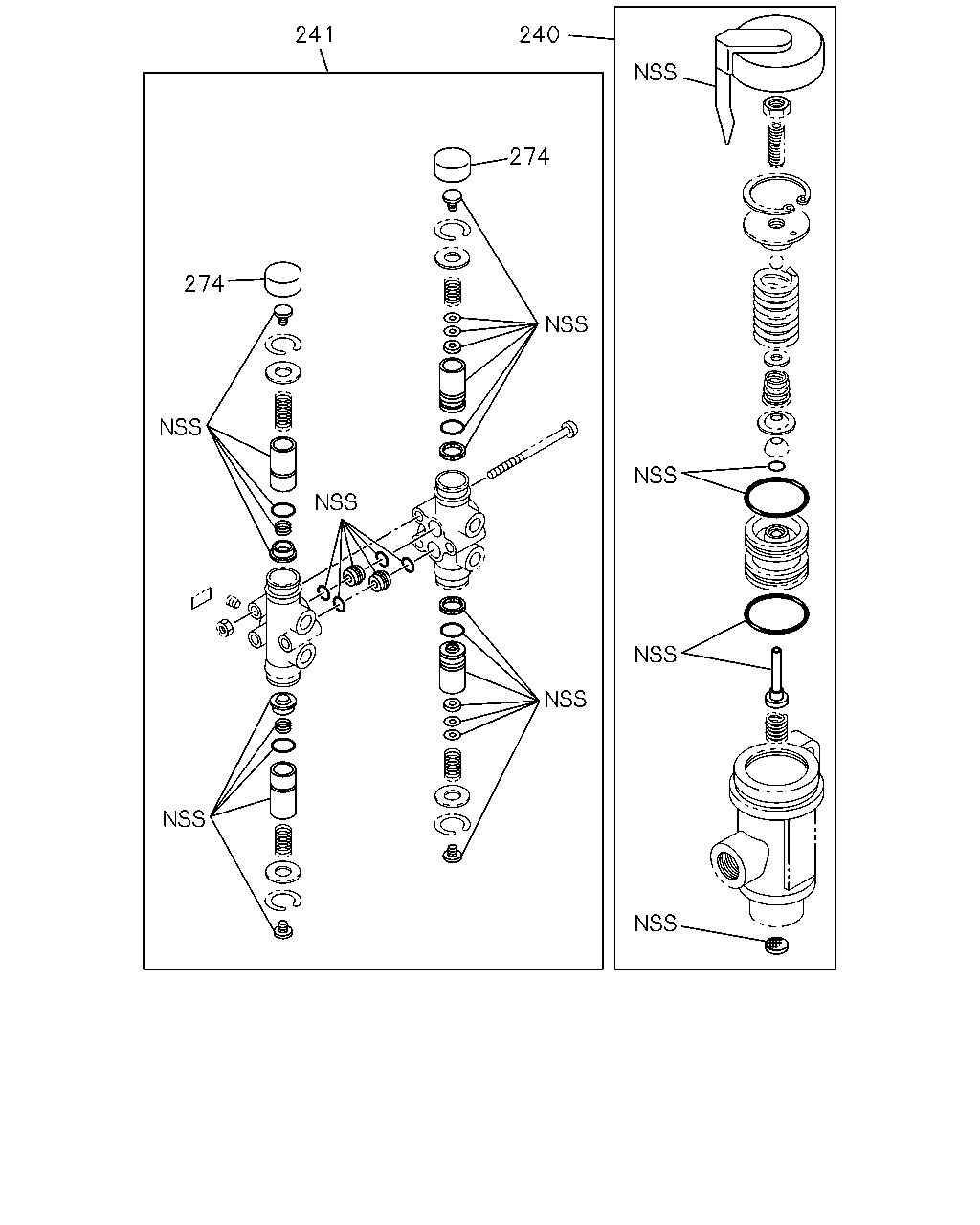

241 240 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0107-	●	●
240	REPAIR KIT; AIR CONT GOV EXC. EURO3 SPECIFICATION(NJX)	1-85576-303-0	01	1	0012-0106	●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0012-0106		●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0012-	●	●
274	COVER; DUST	1-48119-450-0	02	1	0107-	●	●

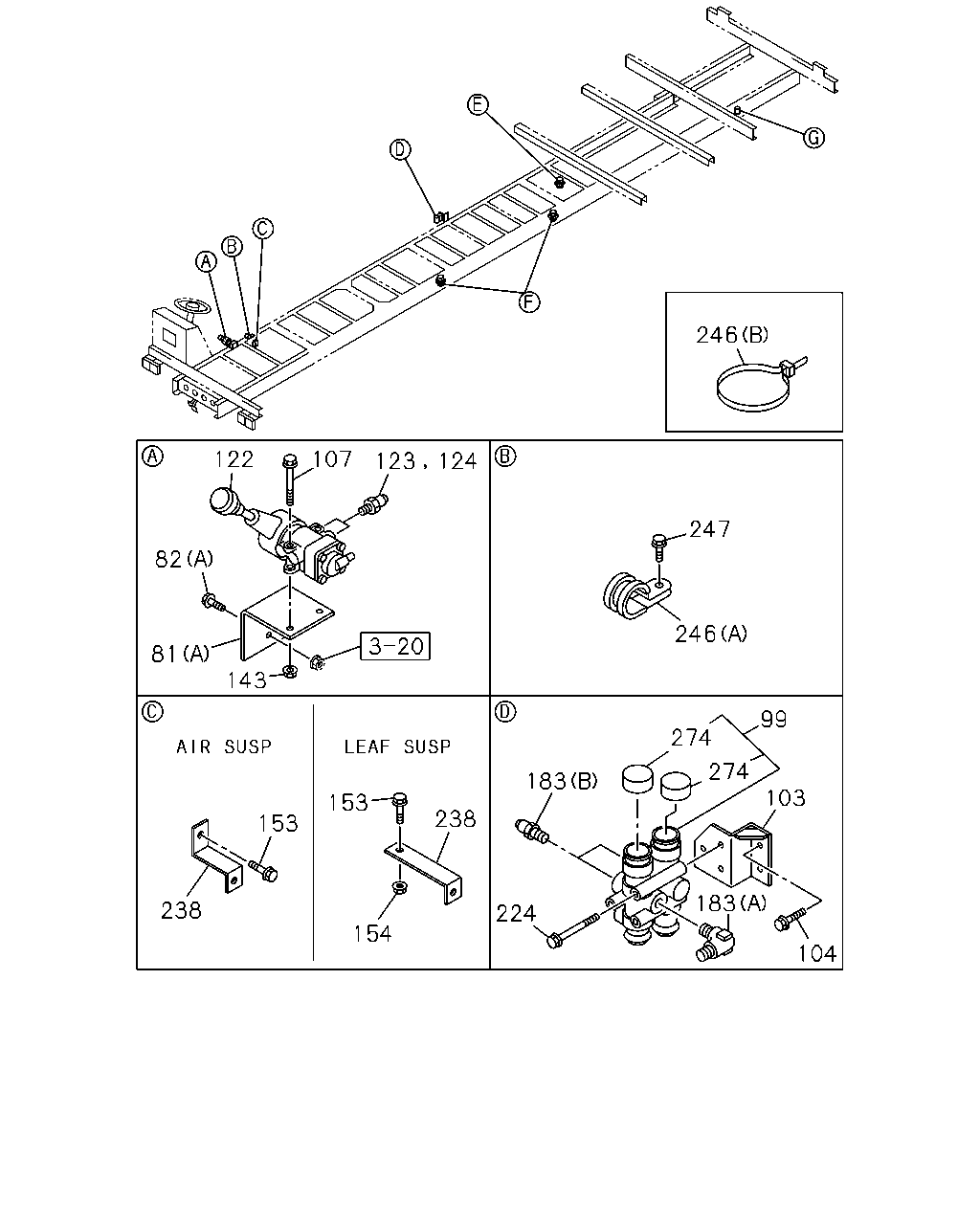

246 122 107 123 124 247 82 246 81 143 99 274 274 183 103 153 238 153 183 238 224 154 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BRACKET; RELAY VLV,PARKING BRK (A)	1-48495-222-0	01	1	0012-	●	●
81	BRACKET; RELAY VLV,PARKING BRK (B)	1-48219-145-0	01	1	0012-		●
82	BOLT; BRKT,RELAY VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0012-0512	●	●
82	BOLT; BRKT,RELAY VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
82	BOLT; BRKT,RELAY VLV (B) M10X35 FLANGE	0-28681-035-0	02	1	0012-0512		●
82	BOLT; BRKT,RELAY VLV (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
99	VALVE; PROTECTION	1-48110-103-5	01	1	0012-	●	●
103	BRACKET; PROTECTION VALVE	1-47478-544-0	01	1	0012-	●	●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28680-825-0	02	1	0012-0512	●	●
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
107	BOLT; VLV M8X70 FLANGE	0-28080-870-0	02	1	0012-0512	●	●
107	BOLT; VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●
122	VALVE ASM; CONT,WHEEL PARKING	1-48460-319-0	01	1	0012-	●	●
123	CONNECTOR; PARKING VLV DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0012-0306	●	●
123	CONNECTOR; PARKING VLV DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0307-	●	●
124	CONNECTOR; PARKING VLV DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0012-0306	●	●
124	CONNECTOR; PARKING VLV DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0307-	●	●
143	NUT; VLV M8 FLANGE	0-91150-108-0	02	1	0012-0602	●	●
143	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
153	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
153	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
154	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0602		●
154	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
183	CONNECTOR; PROTECTION VLV (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0012-0306	●	●
183	CONNECTOR; PROTECTION VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0307-	●	●
183	CONNECTOR; PROTECTION VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	04	1	0012-0306	●	●
183	CONNECTOR; PROTECTION VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0307-	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0012-0602	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
238	BRACKET; CLIP	1-47478-917-0	01	1	0012-	●
238	BRACKET; CLIP	1-47478-899-0	01	1	0012-		●
246	CLIP; NYLON TUBE (A) ID=28 L=40	1-09701-261-0	01	1	0012-	●
246	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0012-	●
246	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0012-		●
247	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●
247	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
274	COVER; DUST	1-48119-450-0	02	1	0107-	●	●

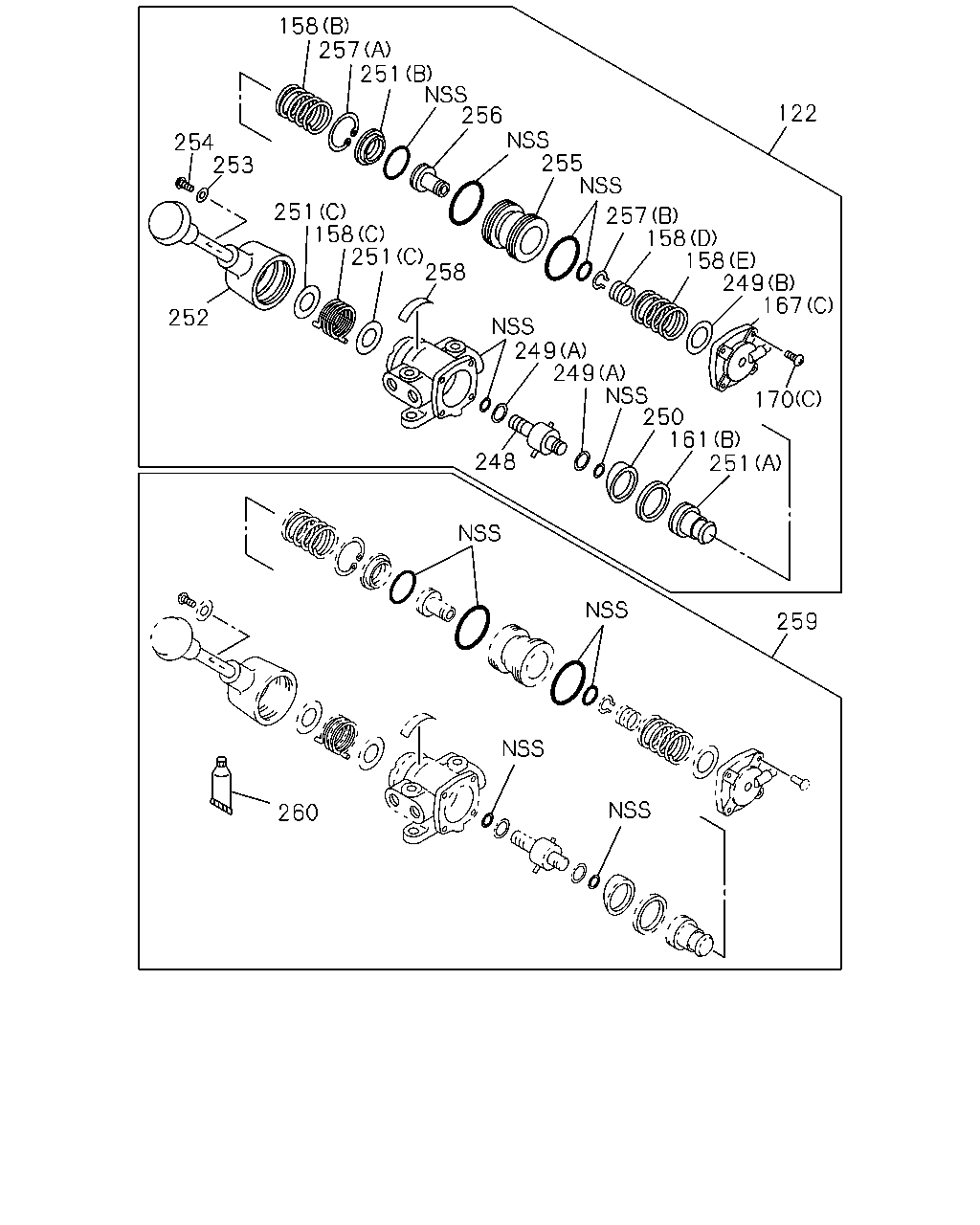

158 257 251 256 255 122 254 253 251 158 251 258 257 158 158 249 167 252 249 249 250 161 251 248 259 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
122	VALVE ASM; CONT,WHEEL PARKING	1-48460-319-0	01	1	0012-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0012-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0012-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0012-	●	●
158	SPRING; VALVE (C)	1-48469-059-0	01	1	0012-	●	●
158	SPRING; VALVE (B)	1-48469-063-0	01	1	0012-	●	●
158	SPRING; VALVE (D)	1-48469-070-0	01	1	0012-	●	●
158	SPRING; VALVE (E)	1-48469-089-0	01	1	0012-	●	●
161	GUIDE; VALVE (A)	1-48129-014-0	01	1	0012-	●	●
161	GUIDE; VALVE (A)	1-48129-014-0	01	1	0012-	●	●
161	GUIDE; VALVE (A)	1-48129-014-0	01	1	0012-	●	●
161	GUIDE; VALVE (B)	1-48469-058-0	01	1	0012-	●	●
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	0012-0106	●
167	COVER; VALVE EURO3 SPECIFICATION(NJX) (B)	1-48219-050-1	01	1	0107-	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0012-0106	●	●
167	COVER; VALVE EXC. ANTI SKID BRK SYSTEM<SFL>,BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0012-0106	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0012-0106		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0012-0106		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0107-0107	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0107-0107	●	●
167	COVER; VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-070-0	01	1	0107-0107	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0107-0107		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0108-0203	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0108-0203	●	●
167	COVER; VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-070-0	01	1	0108-0203	●
167	COVER; VALVE EURO3 SPECIFICATION(NJX) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0108-0203	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0108-0203		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0204-	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0204-	●	●
167	COVER; VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-070-0	01	1	0204-	●	●
167	COVER; VALVE EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0204-	●
167	COVER; VALVE (C)	1-48469-090-0	01	1	0012-	●	●
248	HOLDER; VALVE	1-48469-054-0	01	1	0012-	●	●
249	SHIM; VALVE (A)	1-48469-055-0	AR	1	0012-	●	●
249	SHIM; VALVE (B)	1-48469-072-0	AR	1	0012-	●	●
250	RING; VALVE	1-48469-056-0	01	1	0012-	●	●
251	SEAT; VALVE (A)	1-48469-057-0	01	1	0012-	●	●
251	SEAT; VALVE (B)	1-48469-066-0	01	1	0012-	●	●
251	SEAT; VALVE (C)	1-48469-082-0	02	1	0012-	●	●
252	HANDLE ASM; VALVE	1-48469-126-0	01	1	0012-	●	●
253	WASHER; VALVE	1-48469-061-0	01	1	0012-	●	●
254	SCREW; VALVE	1-48469-062-0	01	1	0012-	●	●
255	PISTON; VALVE	1-48469-064-0	01	1	0012-	●	●
256	VALVE; FEED	1-48469-065-0	01	1	0012-	●	●
257	RING; SNAP (A)	1-48469-067-0	01	1	0012-	●	●
257	RING; SNAP (B)	1-48469-068-0	01	1	0012-	●	●
258	PLATE; CAUTION	1-48469-093-0	01	1	0012-	●	●
259	REPAIR KIT; VALVE	1-48469-096-0	01	1	0012-	●	●
260	GREASE; VALVE	1-48469-084-0	01	1	0012-	●	●

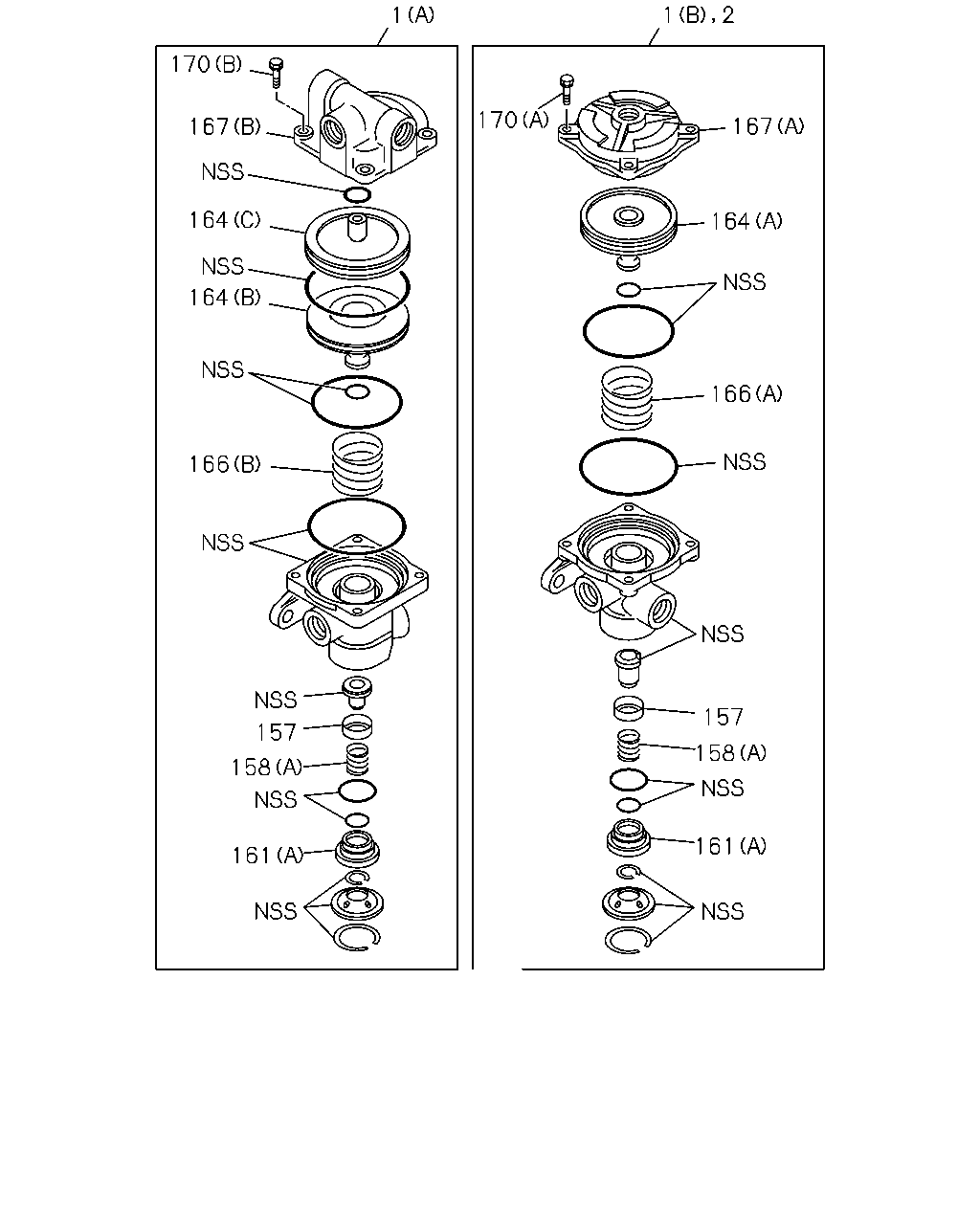

1 170 170 167 167 164 164 164 166 166 157 157 158 158 161 161 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-143-0	01	1	0012-0106	●
1	VALVE; RELAY RWD RR EURO3 SPECIFICATION(NJX) (A)	1-48210-143-0	01	1	0107-	●
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-278-0	01	1	0012-0106	●
1	VALVE; RELAY RWD RR (B)	1-48210-278-0	01	1	0012-0106		●
1	VALVE; RELAY RWD RR EXC. EURO3 SPECIFICATION(NJX) (B)	1-48210-278-0	01	1	0107-0107	●
1	VALVE; RELAY RWD RR (B)	1-48210-278-0	01	1	0107-0107		●
1	VALVE; RELAY RWD RR EXC. EURO3 SPECIFICATION(NJX) (B)	1-48210-278-0	01	1	0108-	●
1	VALVE; RELAY RWD RR EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-278-0	01	1	0108-	●
1	VALVE; RELAY RWD RR (B)	1-48210-278-0	01	1	0108-		●
2	VALVE; RELAY	1-48210-278-0	01	1	0012-0203	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	0012-0203	●	●
2	VALVE; RELAY	1-48210-278-0	01	1	0204-	●	●
2	VALVE; RELAY EXC. EURO3 SPECIFICATION(NJX)	1-48210-278-0	01	1	0204-	●
2	VALVE; RELAY	1-48210-278-0	01	1	0204-		●
157	RETAINER; VALVE	1-48213-002-0	01	1	0012-	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0012-	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	0012-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0012-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0012-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0012-	●	●
158	SPRING; VALVE (C)	1-48469-059-0	01	1	0012-	●	●
158	SPRING; VALVE (B)	1-48469-063-0	01	1	0012-	●	●
158	SPRING; VALVE (D)	1-48469-070-0	01	1	0012-	●	●
158	SPRING; VALVE (E)	1-48469-089-0	01	1	0012-	●	●
161	GUIDE; VALVE (A)	1-48129-014-0	01	1	0012-	●	●
161	GUIDE; VALVE (A)	1-48129-014-0	01	1	0012-	●	●
161	GUIDE; VALVE (A)	1-48129-014-0	01	1	0012-	●	●
161	GUIDE; VALVE (B)	1-48469-058-0	01	1	0012-	●	●
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-032-0	01	1	0012-0106	●
164	PISTON; RELAY VALVE EURO3 SPECIFICATION(NJX) (B)	1-48219-032-0	01	1	0107-	●
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-047-0	01	1	0012-0106	●
164	PISTON; RELAY VALVE EURO3 SPECIFICATION(NJX) (C)	1-48219-047-0	01	1	0107-	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0012-0106	●	●
164	PISTON; RELAY VALVE EXC. ANTI SKID BRK SYSTEM<SFL>,BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	01	1	0012-0106	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0012-0106		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0012-0106		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0107-0107	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0107-0107	●	●
164	PISTON; RELAY VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-071-0	01	1	0107-0107	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0107-0107		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0108-0203	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0108-0203	●	●
164	PISTON; RELAY VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-071-0	01	1	0108-0203	●
164	PISTON; RELAY VALVE EURO3 SPECIFICATION(NJX) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	01	1	0108-0203	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0108-0203		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0204-	●	●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0204-	●	●
164	PISTON; RELAY VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-071-0	01	1	0204-	●	●
164	PISTON; RELAY VALVE EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	01	1	0204-	●
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-048-0	01	1	0012-0106	●
166	SPRING; PISTON EURO3 SPECIFICATION(NJX) (B)	1-48219-048-0	01	1	0107-	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0012-0106	●	●
166	SPRING; PISTON EXC. ANTI SKID BRK SYSTEM<SFL>,BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	01	1	0012-0106	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0012-0106		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0012-0106		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0107-0107	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0107-0107	●	●
166	SPRING; PISTON EXC. EURO3 SPECIFICATION(NJX) (A)	1-47819-090-0	01	1	0107-0107	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0107-0107		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0108-0203	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0108-0203	●	●
166	SPRING; PISTON EXC. EURO3 SPECIFICATION(NJX) (A)	1-47819-090-0	01	1	0108-0203	●
166	SPRING; PISTON EURO3 SPECIFICATION(NJX) BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	01	1	0108-0203	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0108-0203		●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0204-	●	●
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0204-	●	●
166	SPRING; PISTON EXC. EURO3 SPECIFICATION(NJX) (A)	1-47819-090-0	01	1	0204-	●	●
166	SPRING; PISTON EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	01	1	0204-	●
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	0012-0106	●
167	COVER; VALVE EURO3 SPECIFICATION(NJX) (B)	1-48219-050-1	01	1	0107-	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0012-0106	●	●
167	COVER; VALVE EXC. ANTI SKID BRK SYSTEM<SFL>,BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0012-0106	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0012-0106		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0012-0106		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0107-0107	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0107-0107	●	●
167	COVER; VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-070-0	01	1	0107-0107	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0107-0107		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0108-0203	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0108-0203	●	●
167	COVER; VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-070-0	01	1	0108-0203	●
167	COVER; VALVE EURO3 SPECIFICATION(NJX) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0108-0203	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0108-0203		●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0204-	●	●
167	COVER; VALVE (A)	1-48219-070-0	01	1	0204-	●	●
167	COVER; VALVE EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-070-0	01	1	0204-	●	●
167	COVER; VALVE EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0204-	●
167	COVER; VALVE (C)	1-48469-090-0	01	1	0012-	●	●
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-041-0	04	1	0012-0106	●
170	SCREW; COVER TO BODY EURO3 SPECIFICATION(NJX) (B)	1-48219-041-0	04	1	0107-	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0012-0106	●	●
170	SCREW; COVER TO BODY EXC. ANTI SKID BRK SYSTEM<SFL>,BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	04	1	0012-0106	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0012-0106		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0012-0106		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0107-0107	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0107-0107	●	●
170	SCREW; COVER TO BODY EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-039-0	04	1	0107-0107	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0107-0107		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0108-0203	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0108-0203	●	●
170	SCREW; COVER TO BODY EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-039-0	04	1	0108-0203	●
170	SCREW; COVER TO BODY EURO3 SPECIFICATION(NJX) BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	04	1	0108-0203	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0108-0203		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0204-	●	●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0204-	●	●
170	SCREW; COVER TO BODY EXC. EURO3 SPECIFICATION(NJX) (A)	1-48219-039-0	04	1	0204-	●	●
170	SCREW; COVER TO BODY EURO3 SPECIFICATION(NJX) EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	04	1	0204-	●
170	SCREW; COVER TO BODY (C)	1-48469-118-0	04	1	0012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
