◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#71) — 206 parça

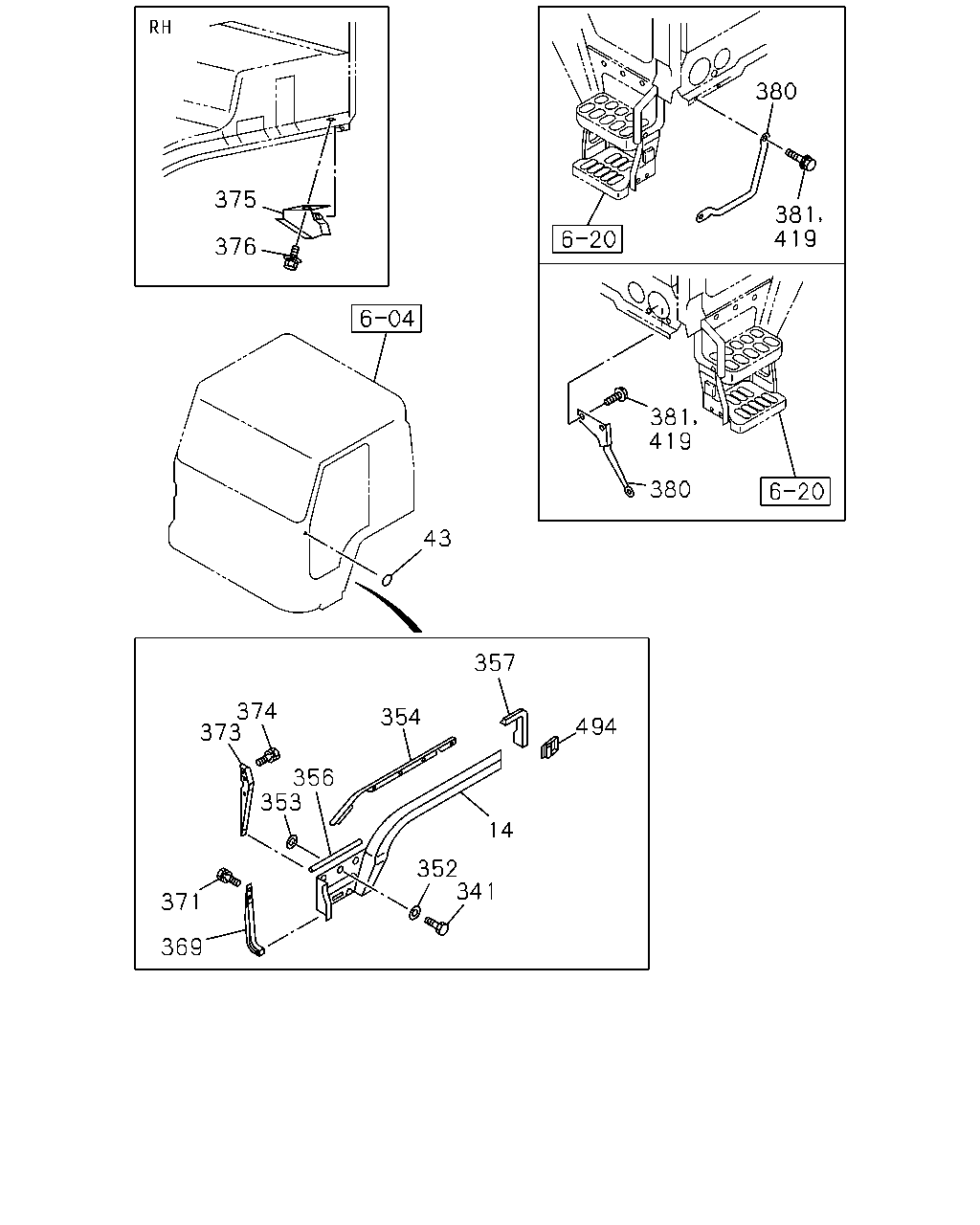

çizim 92529
375 376 43 380 381 419 381 419 380 369 371 353 356 373 374 354 357 494 14 352 341
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
FRONT FENDER WIDE<SA4> 		1-65480-727-4 01 1 9202- ●
14 FENDER; FRT
FRONT FENDER WIDE<SA4> 		1-65480-726-4 01 1 9202- ●
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> 		1-65480-681-6 01 1 9202- ●
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> 		1-65480-680-6 01 1 9202- ●
14 FENDER; FRT
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65481-302-0 01 1 9202- ●
14 FENDER; FRT
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65481-300-0 01 1 9202- ●
14 FENDER; FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65480-856-0 01 1 9202- ●
14 FENDER; FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65480-855-0 01 1 9202- ●
14 FENDER; FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-685-5 01 1 9202- ●
14 FENDER; FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-684-5 01 1 9202- ●
43 GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK 		1-76798-018-0 02 1 9202- ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 9202- ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9202- ● ●
341 BOLT; FENDER TO COWL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9202- ●
341 BOLT; FENDER TO COWL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER 		1-09980-495-0 10 1 9202- ●
352 WASHER; NYLON 1-09985-171-0 06 1 9202- ● ●
353 SPACER; FENDER TO CAB
FRONT FENDER WIDE<SA4> ID=12.5 		1-09503-171-0 02 1 9501- ●
353 SPACER; FENDER TO CAB
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09985-195-0 02 1 9202- ●
354 SEAL; FENDER SIDE 1-71998-307-1 01 1 9202- ●
354 SEAL; FENDER SIDE 1-71998-306-1 01 1 9202- ●
354 SEAL; FENDER SIDE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-404-0 01 1 9202- ●
354 SEAL; FENDER SIDE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-403-0 01 1 9202- ●
354 SEAL; FENDER SIDE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-309-1 01 1 9202- ●
354 SEAL; FENDER SIDE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-308-1 01 1 9202- ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-228-0 01 1 9202- ● ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-148-1 01 1 9202- ● ●
357 FINISHER; WIDE FENDER RR
FRONT FENDER WIDE<SA4> 		1-71998-311-0 01 1 9202- ●
357 FINISHER; WIDE FENDER RR
FRONT FENDER WIDE<SA4> 		1-71998-310-0 01 1 9202- ●
369 SUPPORT; FENDER STEP FRT 1-65680-300-3 01 1 9202- ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-299-3 01 1 9202- ● ●
371 BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-280-5 01 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-279-5 01 1 9202- ● ●
374 BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ● ●
375 SUPPORT; FENDER REAR 1-65680-663-0 01 1 9202- ●
376 BOLT; SUPPORT,FENDER RR
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9202- ●
380 STAY ASM; FENDER STEP FRT
AUXILIARY STEPS<E29> 		1-65680-795-0 01 1 9202- ● ●
380 STAY ASM; FENDER STEP FRT
AUXILIARY STEPS<E29> 		1-65680-792-0 01 1 9202- ● ●
381 BOLT; STAY,FENDER STEP
AUXILIARY STEPS<E29> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 9202- ● ●
381 BOLT; STAY,FENDER STEP
AUXILIARY STEPS<E29> M8X20 W/LK&PL WASHER 		1-09980-496-0 01 1 9202- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ● ●
494 FINISHER; FENDER
EXC. FRONT FENDER WIDE<SA4> 		1-71998-150-1 01 1 9202- ●
494 FINISHER; FENDER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-150-1 01 1 9202- ●
494 FINISHER; FENDER
EXC. FRONT FENDER WIDE<SA4> 		1-71998-149-1 01 1 9202- ●
494 FINISHER; FENDER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-149-1 01 1 9202- ●
494 FINISHER; FENDER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-431-0 01 1 9202- ●
494 FINISHER; FENDER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-430-0 01 1 9202- ●

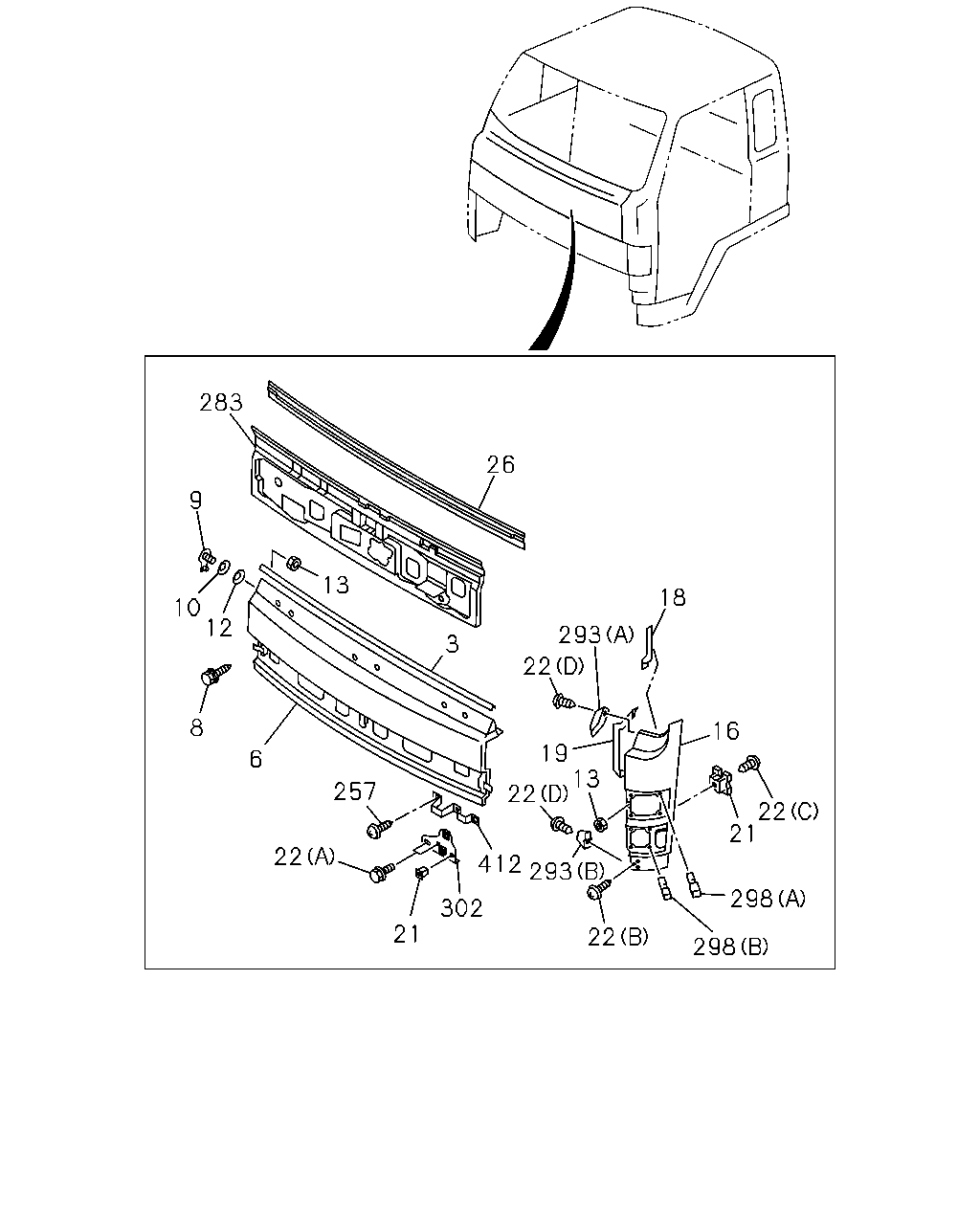

çizim 92744
26 283 9 13 3 10 12 8 6 257 22 21 302 412 22 298 298 21 22 16 18 293 22 19 13 22 293
BalonParca AdiParca NoAdetTipApplied Date A B
3 FINISHER; FRT PANEL UPR 1-71907-093-0 01 1 9202- ● ●
6 PANEL; FRONT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-151-0 01 1 9310- ●
6 PANEL; FRONT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-910-0 01 1 9202- ●
6 PANEL; FRONT 1-65480-910-0 01 1 9202- ●
8 SCREW; FRT PANEL
M6X16 W/LK&PL WASHER 		1-09980-574-0 07 1 9202- ● ●
9 FASTENER; FRT PANEL TO SIDE PANEL 1-65570-152-1 02 1 9202- ● ●
10 WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20 		1-09985-145-0 02 1 9202- ● ●
12 WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22 		9-09160-708-0 02 1 9202- ● ●
13 NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE 		1-09984-064-0 02 1 9202- ● ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-041-5 01 1 9310- ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-040-5 01 1 9310- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE 1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-533-8 01 1 9202- ●
16 PANEL; FRONT,SIDE 1-65480-533-8 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-531-0 01 1 9310- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-530-0 01 1 9310- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-171-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-171-1 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-575-2 01 1 9310- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-574-2 01 1 9310- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL 1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-194-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL 1-65580-194-0 01 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=10.5 M5 WHITE 		1-09983-115-0 06 1 9310- ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 08 1 9310- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-497-0 04 1 9310- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M5X20 		1-09981-454-0 06 1 9310- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M6X10 		1-09981-520-0 02 1 9310- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
(B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
(C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 1-61480-408-5 01 1 9202- ● ●
257 BOLT; BRKT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9310- ●
283 PANEL ASM; FRT CENTER,INNER 1-61480-410-4 01 1 9202-9311 ● ●
283 PANEL ASM; FRT CENTER,INNER
EXC. AUSTRALIA PACKAGE<D2Y>,AUSTRALIA EQUIPMENT(RR3) 		1-61480-410-4 01 1 9312- ● ●
283 PANEL ASM; FRT CENTER,INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-756-0 01 1 9312- ● ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) 		1-65481-043-3 01 1 9310- ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) 		1-65481-045-1 01 1 9310- ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) 		1-65481-042-3 01 1 9310- ●
293 BRACKET; PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) 		1-65481-044-1 01 1 9310- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M5 		1-09983-116-0 08 1 9310- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M4 		1-09983-117-0 08 1 9310- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		8-94279-039-0 08 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL 8-94279-039-0 08 1 9202- ●
302 BRACKET; FRT SIDE,HD LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-054-1 01 1 9310- ●
302 BRACKET; FRT SIDE,HD LAMP
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-053-1 01 1 9310- ●
412 BRACKET ASM; HD LAMP UPR
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-79998-619-2 01 1 9310- ●
412 BRACKET ASM; HD LAMP UPR
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-79998-895-1 01 1 9310- ●

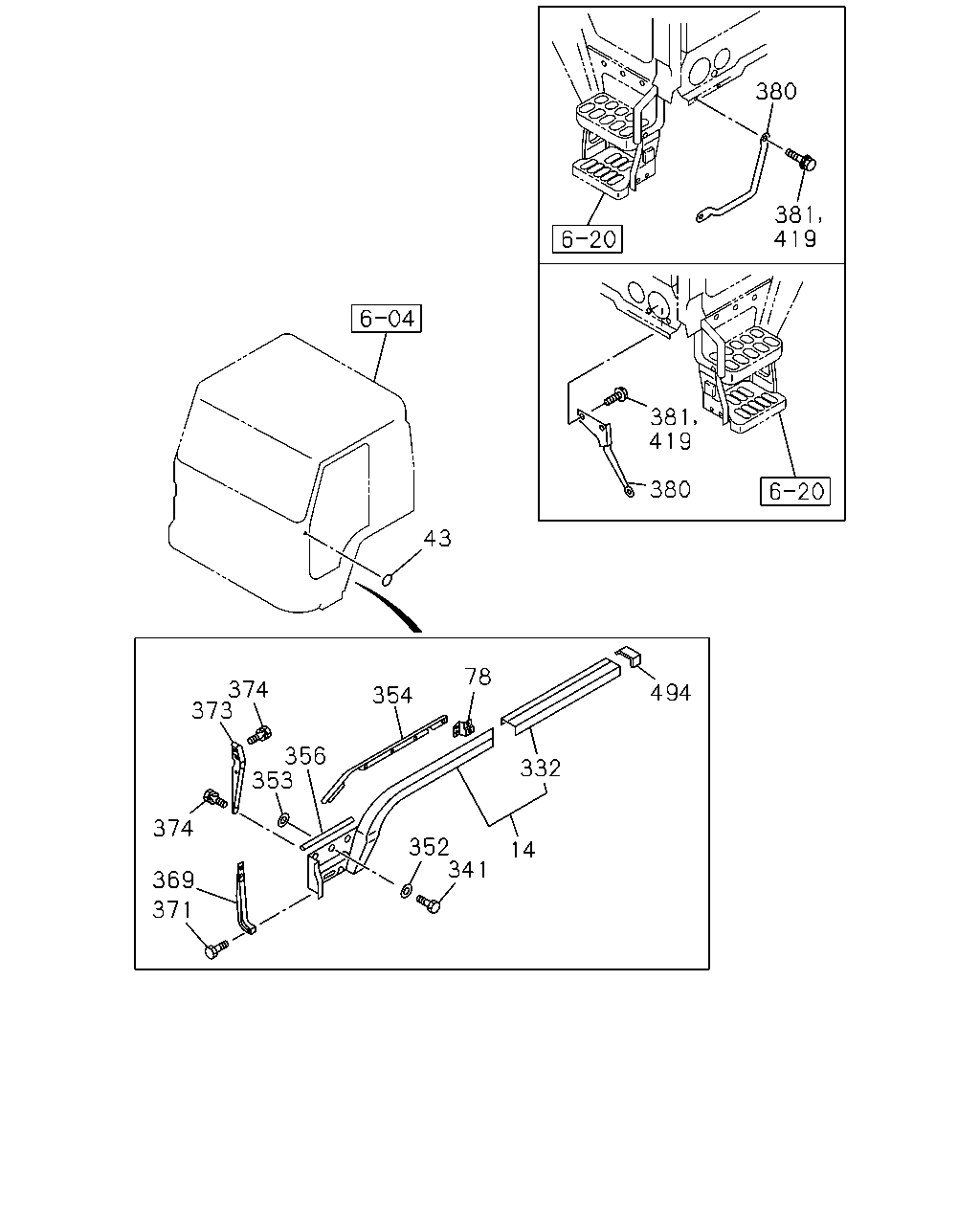

çizim 92850
380 381 419 381 419 380 43 494 332 78 14 341 352 371 369 374 353 356 373 374 354
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
FRONT FENDER WIDE<SA4> 		1-65480-727-4 01 1 9202- ●
14 FENDER; FRT
FRONT FENDER WIDE<SA4> 		1-65480-726-4 01 1 9202- ●
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> 		1-65480-681-6 01 1 9202- ●
14 FENDER; FRT
EXC. FRONT FENDER WIDE<SA4> 		1-65480-680-6 01 1 9202- ●
14 FENDER; FRT
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65481-302-0 01 1 9202- ●
14 FENDER; FRT
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65481-300-0 01 1 9202- ●
14 FENDER; FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65480-856-0 01 1 9202- ●
14 FENDER; FRT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65480-855-0 01 1 9202- ●
14 FENDER; FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-685-5 01 1 9202- ●
14 FENDER; FRT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-684-5 01 1 9202- ●
43 GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK 		1-76798-018-0 02 1 9202- ● ●
78 BRACKET; FENDER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-780-1 01 1 9202- ●
78 BRACKET; FENDER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-779-1 01 1 9202- ●
332 FENDER; RR
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-757-1 01 1 9202- ●
332 FENDER; RR
FRONT FENDER WIDE<SA4> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-756-1 01 1 9202- ●
332 FENDER; RR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65480-864-1 01 1 9202- ●
332 FENDER; RR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. FRONT FENDER WIDE<SA4> 		1-65480-863-1 01 1 9202- ●
332 FENDER; RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-679-3 01 1 9202- ●
332 FENDER; RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-65480-678-3 01 1 9202- ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 9202- ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9202- ● ●
341 BOLT; FENDER TO COWL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9202- ●
341 BOLT; FENDER TO COWL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M6X20 W/LK&PL WASHER 		1-09980-495-0 10 1 9202- ●
352 WASHER; NYLON 1-09985-171-0 06 1 9202- ● ●
353 SPACER; FENDER TO CAB
FRONT FENDER WIDE<SA4> ID=12.5 		1-09503-171-0 02 1 9501- ●
353 SPACER; FENDER TO CAB
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-09985-195-0 02 1 9202- ●
354 SEAL; FENDER SIDE 1-71998-307-1 01 1 9202- ●
354 SEAL; FENDER SIDE 1-71998-306-1 01 1 9202- ●
354 SEAL; FENDER SIDE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-404-0 01 1 9202- ●
354 SEAL; FENDER SIDE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-403-0 01 1 9202- ●
354 SEAL; FENDER SIDE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-309-1 01 1 9202- ●
354 SEAL; FENDER SIDE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-308-1 01 1 9202- ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-228-0 01 1 9202- ● ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-148-1 01 1 9202- ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-300-3 01 1 9202- ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-299-3 01 1 9202- ● ●
371 BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-280-5 01 1 9202- ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-279-5 01 1 9202- ● ●
374 BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ● ●
380 STAY ASM; FENDER STEP FRT
AUXILIARY STEPS<E29> 		1-65680-795-0 01 1 9202- ● ●
380 STAY ASM; FENDER STEP FRT
AUXILIARY STEPS<E29> 		1-65680-792-0 01 1 9202- ● ●
381 BOLT; STAY,FENDER STEP
AUXILIARY STEPS<E29> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 9202- ● ●
381 BOLT; STAY,FENDER STEP
AUXILIARY STEPS<E29> M8X20 W/LK&PL WASHER 		1-09980-496-0 01 1 9202- ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9202- ● ●
494 FINISHER; FENDER
EXC. FRONT FENDER WIDE<SA4> 		1-71998-150-1 01 1 9202- ●
494 FINISHER; FENDER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-150-1 01 1 9202- ●
494 FINISHER; FENDER
EXC. FRONT FENDER WIDE<SA4> 		1-71998-149-1 01 1 9202- ●
494 FINISHER; FENDER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-149-1 01 1 9202- ●
494 FINISHER; FENDER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-431-0 01 1 9202- ●
494 FINISHER; FENDER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-430-0 01 1 9202- ●

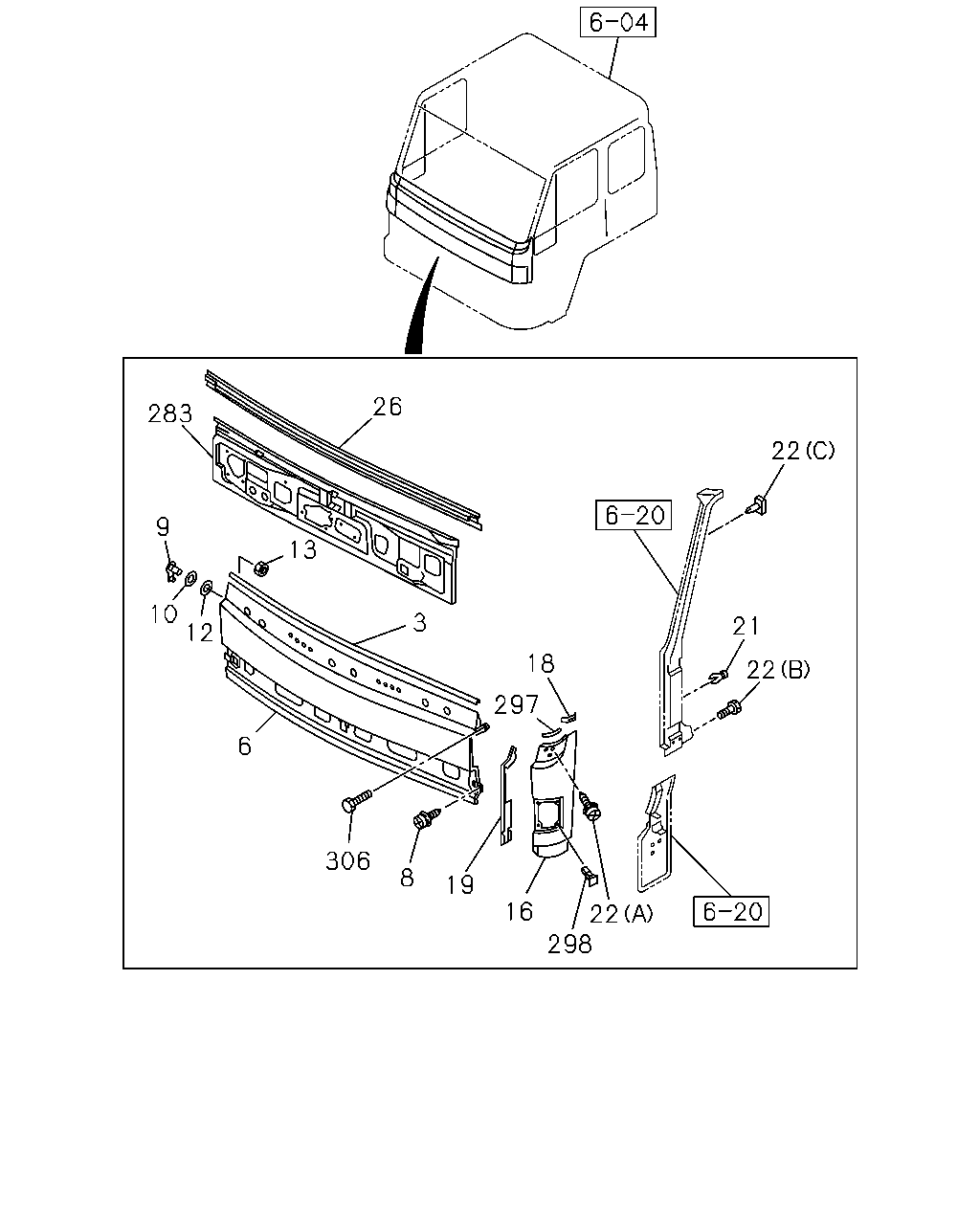

çizim 93144
283 26 22 21 22 9 10 12 13 3 6 306 8 19 16 298 22 297 18
BalonParca AdiParca NoAdetTipApplied Date A B
3 FINISHER; FRT PANEL UPR 1-71907-093-0 01 1 9202- ● ●
6 PANEL; FRONT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-151-0 01 1 9310- ●
6 PANEL; FRONT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-910-0 01 1 9202- ●
6 PANEL; FRONT 1-65480-910-0 01 1 9202- ●
8 SCREW; FRT PANEL
M6X16 W/LK&PL WASHER 		1-09980-574-0 07 1 9202- ● ●
9 FASTENER; FRT PANEL TO SIDE PANEL 1-65570-152-1 02 1 9202- ● ●
10 WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20 		1-09985-145-0 02 1 9202- ● ●
12 WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22 		9-09160-708-0 02 1 9202- ● ●
13 NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE 		1-09984-064-0 02 1 9202- ● ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-041-5 01 1 9310- ●
16 PANEL; FRONT,SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65481-040-5 01 1 9310- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE 1-65480-536-8 01 1 9202- ●
16 PANEL; FRONT,SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65480-533-8 01 1 9202- ●
16 PANEL; FRONT,SIDE 1-65480-533-8 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-531-0 01 1 9310- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-530-0 01 1 9310- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-172-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65570-171-1 01 1 9202- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-171-1 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-575-2 01 1 9310- ●
19 SEAL; FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-71998-574-2 01 1 9310- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL 1-65580-195-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-65580-194-0 01 1 9202- ●
19 SEAL; FRT SIDE PANEL 1-65580-194-0 01 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=10.5 M5 WHITE 		1-09983-115-0 06 1 9310- ●
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=10X10 L=8 M6 		1-09983-119-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 08 1 9310- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-497-0 04 1 9310- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M5X20 		1-09981-454-0 06 1 9310- ●
22 SCREW; FRT PANEL SIDE
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) M6X10 		1-09981-520-0 02 1 9310- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
(B) M6X16 W/LK&PL WASHER 		1-09981-426-0 04 1 9202- ●
22 SCREW; FRT PANEL SIDE
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
22 SCREW; FRT PANEL SIDE
(C) D=10X16 L=8 M6 		1-09983-118-0 02 1 9202- ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 1-61480-408-5 01 1 9202- ● ●
283 PANEL ASM; FRT CENTER,INNER 1-61480-410-4 01 1 9202-9311 ● ●
283 PANEL ASM; FRT CENTER,INNER
EXC. AUSTRALIA PACKAGE<D2Y>,AUSTRALIA EQUIPMENT(RR3) 		1-61480-410-4 01 1 9312- ● ●
283 PANEL ASM; FRT CENTER,INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-756-0 01 1 9312- ● ●
297 FINISHER; SIDE PANEL,CAB
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> L=190 		1-71998-300-0 02 1 9202- ●
297 FINISHER; SIDE PANEL,CAB
L=190 		1-71998-300-0 02 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M5 		1-09983-116-0 08 1 9310- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M4 		1-09983-117-0 08 1 9310- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		8-94279-039-0 08 1 9202- ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL 8-94279-039-0 08 1 9202- ●
306 BOLT; SUPPORT,OUTSIDE MIRROR BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9208-9209 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
