◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#70996) — 12 parça

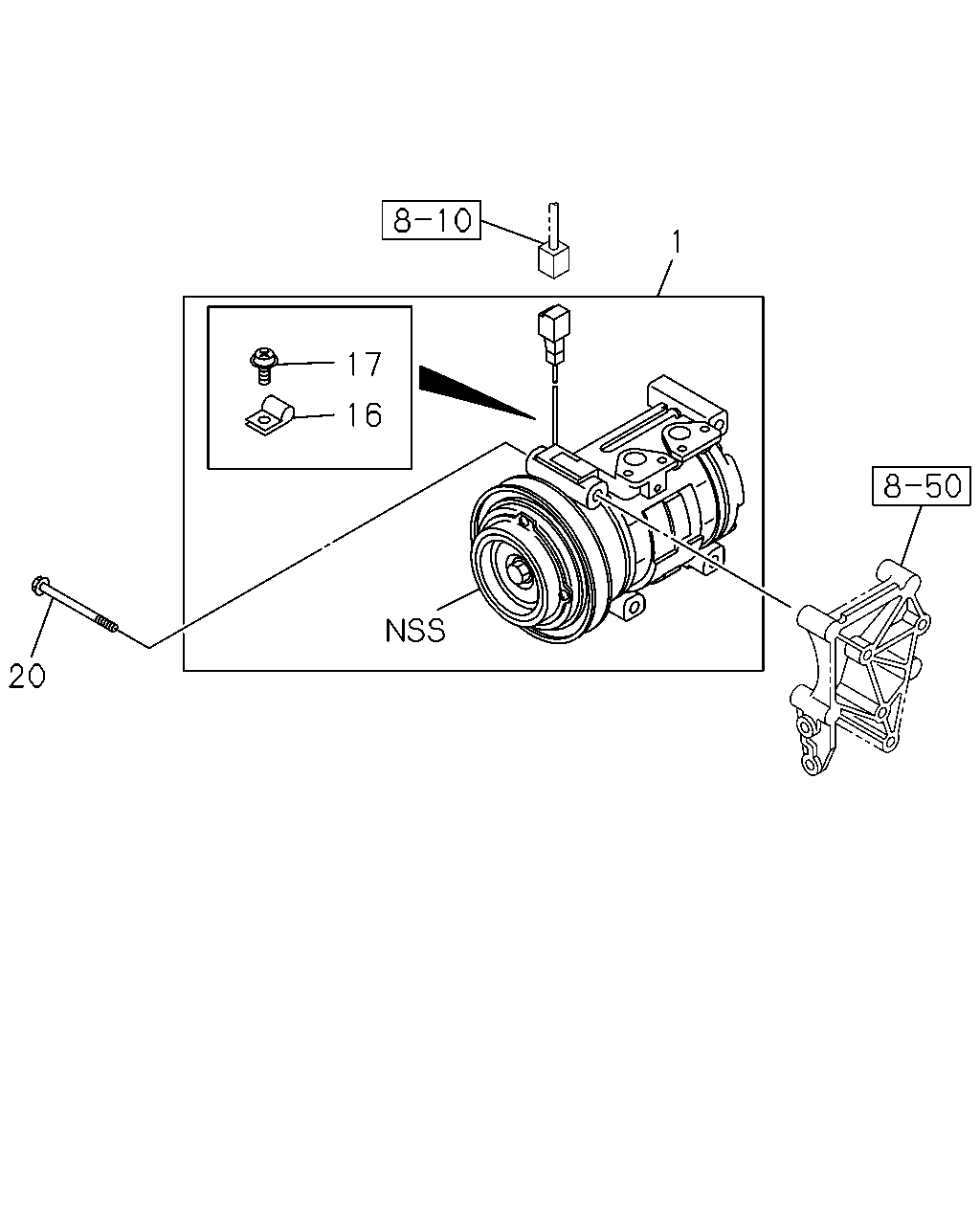

çizim 189188
20 17 16 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83532-326-1 01 1 1011-1102 ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83532-326-1 01 1 1103- ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-326-1 01 1 1103- ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1011-1102 ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1103- ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1103- ●
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 02 1 1011-1102 ●
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 02 1 1103- ●
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1103- ●
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X75 FLANGE 		1-09044-073-0 04 1 1011-1102 ●
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X75 FLANGE 		1-09044-073-0 04 1 1103- ●
20 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE 		1-09044-073-0 04 1 1103- ●
