2 |
TANK; AIR
ANTI SKID BRK SYSTEM<SFL>
(D)
|
1-48370-863-1 |
01 |
1 |
0012- |
● |
|
| |
2 |
TANK; AIR
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
|
1-48371-007-0 |
02 |
1 |
0012- |
● |
|
| |
2 |
TANK; AIR
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
|
1-48371-007-0 |
01 |
1 |
0012- |
● |
|
| |
2 |
TANK; AIR
(E)
|
1-48370-904-0 |
01 |
1 |
0012-0202 |
● |
● |
| |
2 |
TANK; AIR
(E)
|
1-48370-223-1 |
01 |
1 |
0203- |
● |
● |
| |
2 |
TANK; AIR
(B)
|
1-48370-414-0 |
01 |
1 |
0012- |
● |
● |
| |
2 |
TANK; AIR
(C)
|
1-48370-862-0 |
01 |
1 |
0012- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
05 |
1 |
0012-0811 |
● |
|
| |
3 |
VALVE; CHECK,AIR TANK
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0812- |
● |
|
| |
3 |
VALVE; CHECK,AIR TANK
(B)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
0012- |
● |
● |
| |
3 |
VALVE; CHECK,AIR TANK
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
04 |
1 |
0012-0811 |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
(B)
|
1-48312-015-0 |
01 |
1 |
0012-0107 |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
AIR DRYER<PS7>
(B)
|
1-48312-015-0 |
01 |
1 |
0012-0107 |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
(B)
|
1-48312-015-0 |
01 |
1 |
0108-0207 |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
EURO3 SPECIFICATION(NJX)
(B)
|
1-48312-015-0 |
01 |
1 |
0108-0207 |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
AIR DRYER<PS7>
(B)
|
1-48312-015-0 |
01 |
1 |
0108-0207 |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
(B)
|
1-48312-015-0 |
01 |
1 |
0208- |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
AIR DRYER<PS7>
(B)
|
1-48312-015-0 |
01 |
1 |
0208- |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
08 |
1 |
0012-0106 |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
08 |
1 |
0107-0203 |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
08 |
1 |
0204- |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
07 |
1 |
0012-0106 |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
07 |
1 |
0107-0203 |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
07 |
1 |
0204- |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
05 |
1 |
0012- |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
05 |
1 |
0012- |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(B)
|
1-48312-015-0 |
06 |
1 |
0012- |
● |
|
| |
6 |
COCK; DRAIN,AIR TANK
EXC. AIR DRYER<PS7>
(A)
|
9-09904-177-0 |
01 |
1 |
0012- |
|
● |
| |
6 |
COCK; DRAIN,AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48312-015-0 |
04 |
1 |
0012- |
|
● |
| |
7 |
GASKET; DRAIN COCK
(B)
ID=14
|
1-09630-145-0 |
01 |
1 |
0012-0107 |
● |
|
| |
7 |
GASKET; DRAIN COCK
AIR DRYER<PS7>
(B)
ID=14
|
1-09630-145-0 |
01 |
1 |
0012-0107 |
|
● |
| |
7 |
GASKET; DRAIN COCK
(B)
ID=14
|
1-09630-145-0 |
01 |
1 |
0108-0207 |
● |
|
| |
7 |
GASKET; DRAIN COCK
EURO3 SPECIFICATION(NJX)
(B)
ID=14
|
1-09630-145-0 |
01 |
1 |
0108-0207 |
● |
|
| |
7 |
GASKET; DRAIN COCK
AIR DRYER<PS7>
(B)
ID=14
|
1-09630-145-0 |
01 |
1 |
0108-0207 |
|
● |
| |
7 |
GASKET; DRAIN COCK
(B)
ID=14
|
1-09630-145-0 |
01 |
1 |
0208- |
● |
|
| |
7 |
GASKET; DRAIN COCK
AIR DRYER<PS7>
(B)
ID=14
|
1-09630-145-0 |
01 |
1 |
0208- |
|
● |
| |
7 |
GASKET; DRAIN COCK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
08 |
1 |
0012-0106 |
● |
|
| |
7 |
GASKET; DRAIN COCK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
08 |
1 |
0107-0203 |
● |
|
| |
7 |
GASKET; DRAIN COCK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
08 |
1 |
0204- |
● |
|
| |
7 |
GASKET; DRAIN COCK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
07 |
1 |
0012-0106 |
● |
|
| |
7 |
GASKET; DRAIN COCK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
07 |
1 |
0107-0203 |
● |
|
| |
7 |
GASKET; DRAIN COCK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
07 |
1 |
0204- |
● |
|
| |
7 |
GASKET; DRAIN COCK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
05 |
1 |
0012- |
● |
|
| |
7 |
GASKET; DRAIN COCK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
05 |
1 |
0012- |
|
● |
| |
7 |
GASKET; DRAIN COCK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(B)
ID=14
|
1-09630-145-0 |
06 |
1 |
0012- |
● |
|
| |
7 |
GASKET; DRAIN COCK
EXC. AIR DRYER<PS7>
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0012- |
|
● |
| |
7 |
GASKET; DRAIN COCK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
ID=14
|
1-09630-145-0 |
04 |
1 |
0012- |
|
● |
| |
13 |
ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
05 |
1 |
0012- |
● |
|
| |
13 |
ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
04 |
1 |
0012- |
|
● |
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
(A)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0012-0106 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0012-0106 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
(A)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0107-0202 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
PT3/8
|
9-09204-517-0 |
05 |
1 |
0107-0202 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
(A)
PT3/8
|
9-09204-517-0 |
06 |
1 |
0203-0506 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
PT3/8
|
9-09204-517-0 |
06 |
1 |
0203-0506 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
(A)
PT3/8
|
9-09204-517-0 |
08 |
1 |
0507- |
● |
|
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
12 |
1 |
0012-0106 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
12 |
1 |
0107-0202 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
11 |
1 |
0203-0203 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
11 |
1 |
0204-0506 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
09 |
1 |
0507- |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
PT3/8
|
9-09204-517-0 |
07 |
1 |
0012-0202 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
PT3/8
|
9-09204-517-0 |
08 |
1 |
0203-0506 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
PT3/8
|
9-09204-517-0 |
06 |
1 |
0507- |
|
● |
| |
26 |
PLUG; SUB AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
07 |
1 |
0012-0202 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
07 |
1 |
0012-0202 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
06 |
1 |
0203-0506 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
06 |
1 |
0203-0506 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
06 |
1 |
0507- |
● |
● |
| |
26 |
PLUG; SUB AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
06 |
1 |
0507- |
● |
|
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(B)
PT1/4
|
9-99204-513-0 |
09 |
1 |
0012-0202 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
09 |
1 |
0012-0202 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
09 |
1 |
0012-0202 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(B)
PT1/4
|
9-99204-513-0 |
08 |
1 |
0203-0506 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
08 |
1 |
0203-0506 |
● |
|
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
08 |
1 |
0203-0506 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(B)
PT1/4
|
9-99204-513-0 |
08 |
1 |
0507- |
● |
|
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(B)
PT1/4
|
9-99204-513-0 |
08 |
1 |
0507- |
● |
|
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
PT1/4
|
9-99204-513-0 |
08 |
1 |
0507- |
|
● |
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(C)
PT3/4
|
9-09204-526-0 |
01 |
1 |
0012- |
● |
● |
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
PT3/8
|
9-09204-517-0 |
06 |
1 |
0012-0202 |
|
● |
| |
26 |
PLUG; SUB AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
PT3/8
|
9-09204-517-0 |
07 |
1 |
0203- |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
(F)
M20 & PT3/4 ELBOW
|
8-98067-083-1 |
04 |
1 |
0812- |
● |
● |
| |
27 |
UNION; ELBOW,AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
10 |
1 |
0812-0906 |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
(B)
DIN8 & R1/4 ELBOW
|
1-09660-649-1 |
02 |
1 |
0012-0306 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
02 |
1 |
0307- |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
(E)
530KPA
|
1-48340-054-1 |
05 |
1 |
0012- |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
11 |
1 |
0012-0106 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
11 |
1 |
0107-0203 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
11 |
1 |
0204-0306 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
11 |
1 |
0307-0811 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
19 |
1 |
0812-0906 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
11 |
1 |
0907- |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
09 |
1 |
0012-0106 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
09 |
1 |
0107-0203 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
09 |
1 |
0204-0306 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0307-0811 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
16 |
1 |
0812-0906 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
09 |
1 |
0907- |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
05 |
1 |
0012-0306 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
05 |
1 |
0012-0306 |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
05 |
1 |
0307-0811 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
05 |
1 |
0307-0811 |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
05 |
1 |
0812-0906 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
05 |
1 |
0907- |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
05 |
1 |
0907- |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
07 |
1 |
0012-0306 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0307-0811 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
13 |
1 |
0812-0906 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
07 |
1 |
0907- |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(D)
DIN12 & R1/4 ELBOW
|
1-09660-655-1 |
01 |
1 |
0012-0102 |
● |
● |
| |
27 |
UNION; ELBOW,AIR TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(D)
DIN12 & R1/4 ELBOW
|
1-09660-655-1 |
01 |
1 |
0012-0102 |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
(D)
DIN12 & R1/4 ELBOW
|
1-09660-655-1 |
01 |
1 |
0103- |
● |
|
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(D)
DIN12 & R1/4 ELBOW
|
1-09660-655-1 |
01 |
1 |
0103- |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
(C)
DIN12 & R1/2 ELBOW
|
1-09660-654-1 |
01 |
1 |
0012-0306 |
● |
● |
| |
27 |
UNION; ELBOW,AIR TANK
(C)
DIN12 & R1/2 ELBOW
|
1-09660-960-0 |
01 |
1 |
0307- |
● |
● |
| |
27 |
UNION; ELBOW,AIR TANK
(B)
DIN8 & R1/4 ELBOW
|
1-09660-649-1 |
01 |
1 |
0012-0306 |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
(B)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
0307- |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
(E)
530KPA
|
1-48340-054-1 |
04 |
1 |
0012- |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
06 |
1 |
0012-0306 |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
06 |
1 |
0307-0811 |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
12 |
1 |
0812-0906 |
|
● |
| |
27 |
UNION; ELBOW,AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
06 |
1 |
0907- |
|
● |
| |
30 |
BRACKET; AIR TANK,SUB
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
|
1-48317-900-0 |
04 |
1 |
0012- |
● |
|
| |
30 |
BRACKET; AIR TANK,SUB
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
|
1-48317-900-0 |
04 |
1 |
0012- |
● |
|
| |
30 |
BRACKET; AIR TANK,SUB
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
|
1-48317-900-0 |
02 |
1 |
0012- |
● |
|
| |
30 |
BRACKET; AIR TANK,SUB
|
1-48317-900-0 |
02 |
1 |
0012- |
|
● |
| |
31 |
BOLT; BRKT TO FRAME
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X35 FLANGE
|
0-28681-235-0 |
16 |
1 |
0012-0512 |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X35 FLANGE
|
0-28681-235-0 |
16 |
1 |
0012-0512 |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X35 FLANGE
|
0-28651-235-0 |
16 |
1 |
0601- |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X35 FLANGE
|
0-28651-235-0 |
16 |
1 |
0601- |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
M12X35 FLANGE
|
0-28681-235-0 |
08 |
1 |
0012-0512 |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
08 |
1 |
0012-0512 |
|
● |
| |
31 |
BOLT; BRKT TO FRAME
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0601- |
● |
|
| |
31 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0601- |
|
● |
| |
39 |
U-BOLT; AIR TANK
ANTI SKID BRK SYSTEM<SFL>
(A)
|
1-48317-675-0 |
06 |
1 |
0012- |
● |
|
| |
39 |
U-BOLT; AIR TANK
EXC. ANTI SKID BRK SYSTEM<SFL>
(A)
|
1-48317-675-0 |
04 |
1 |
0012- |
● |
|
| |
39 |
U-BOLT; AIR TANK
(A)
|
1-48317-675-0 |
04 |
1 |
0012- |
|
● |
| |
39 |
U-BOLT; AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48317-289-0 |
04 |
1 |
0012- |
● |
|
| |
39 |
U-BOLT; AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
(B)
|
1-48317-289-0 |
02 |
1 |
0012- |
● |
|
| |
39 |
U-BOLT; AIR TANK
(C)
L=250
|
1-48317-308-0 |
02 |
1 |
0012- |
● |
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X25 FLANGE
|
0-28681-225-0 |
08 |
1 |
0012-0512 |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X25 FLANGE
|
0-28681-225-0 |
08 |
1 |
0012-0512 |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X25 FLANGE
|
0-28651-225-0 |
08 |
1 |
0601- |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M12X25 FLANGE
|
0-28651-225-0 |
08 |
1 |
0601- |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
M12X25 FLANGE
|
0-28681-225-0 |
04 |
1 |
0012-0512 |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
M12X25 FLANGE
|
0-28681-225-0 |
04 |
1 |
0012-0512 |
|
● |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
M12X25 FLANGE
|
0-28651-225-0 |
04 |
1 |
0601- |
● |
|
| |
43 |
BOLT; STAY,AIR TANK,MAIN
M12X25 FLANGE
|
0-28651-225-0 |
04 |
1 |
0601- |
|
● |
| |
46 |
NUT; U-BOLT
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
9-09110-408-0 |
48 |
1 |
0012-0106 |
● |
|
| |
46 |
NUT; U-BOLT
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
9-09110-408-0 |
48 |
1 |
0107-0203 |
● |
|
| |
46 |
NUT; U-BOLT
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
9-09110-408-0 |
48 |
1 |
0204-0512 |
● |
|
| |
46 |
NUT; U-BOLT
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
0-91110-508-0 |
48 |
1 |
0601- |
● |
|
| |
46 |
NUT; U-BOLT
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
M8
|
9-09110-408-0 |
32 |
1 |
0012-0512 |
● |
|
| |
46 |
NUT; U-BOLT
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
9-09110-408-0 |
32 |
1 |
0012-0512 |
|
● |
| |
46 |
NUT; U-BOLT
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
M8
|
0-91110-508-0 |
32 |
1 |
0601- |
● |
|
| |
46 |
NUT; U-BOLT
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
0-91110-508-0 |
32 |
1 |
0601- |
|
● |
| |
46 |
NUT; U-BOLT
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
M8
|
9-09110-408-0 |
40 |
1 |
0012-0512 |
● |
|
| |
46 |
NUT; U-BOLT
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
9-09110-408-0 |
40 |
1 |
0012-0512 |
● |
|
| |
46 |
NUT; U-BOLT
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
M8
|
0-91110-508-0 |
40 |
1 |
0601- |
● |
|
| |
46 |
NUT; U-BOLT
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
0-91110-508-0 |
40 |
1 |
0601- |
● |
|
| |
46 |
NUT; U-BOLT
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
9-09110-408-0 |
24 |
1 |
0012-0512 |
|
● |
| |
46 |
NUT; U-BOLT
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
M8
|
0-91110-508-0 |
24 |
1 |
0601- |
|
● |
| |
67 |

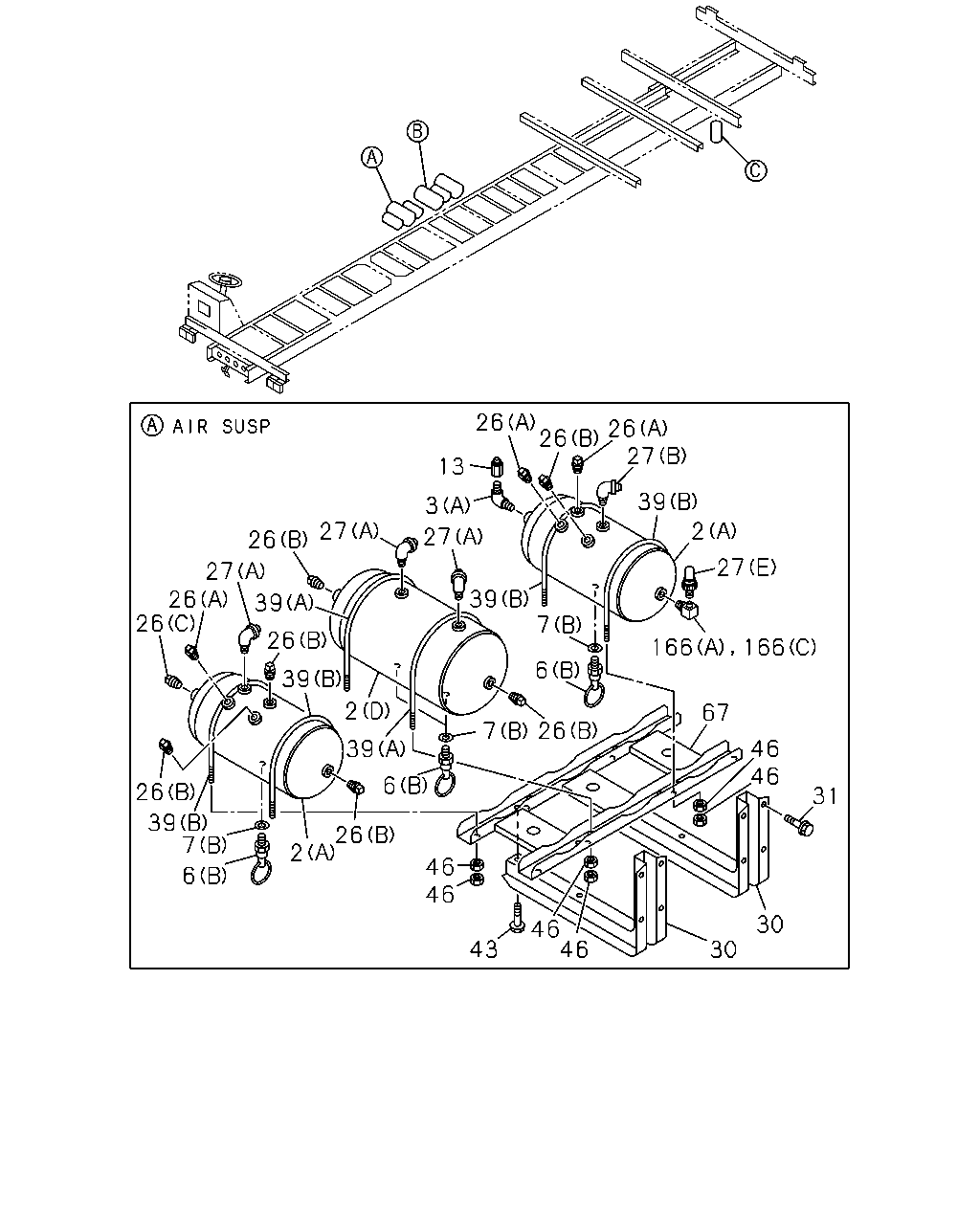

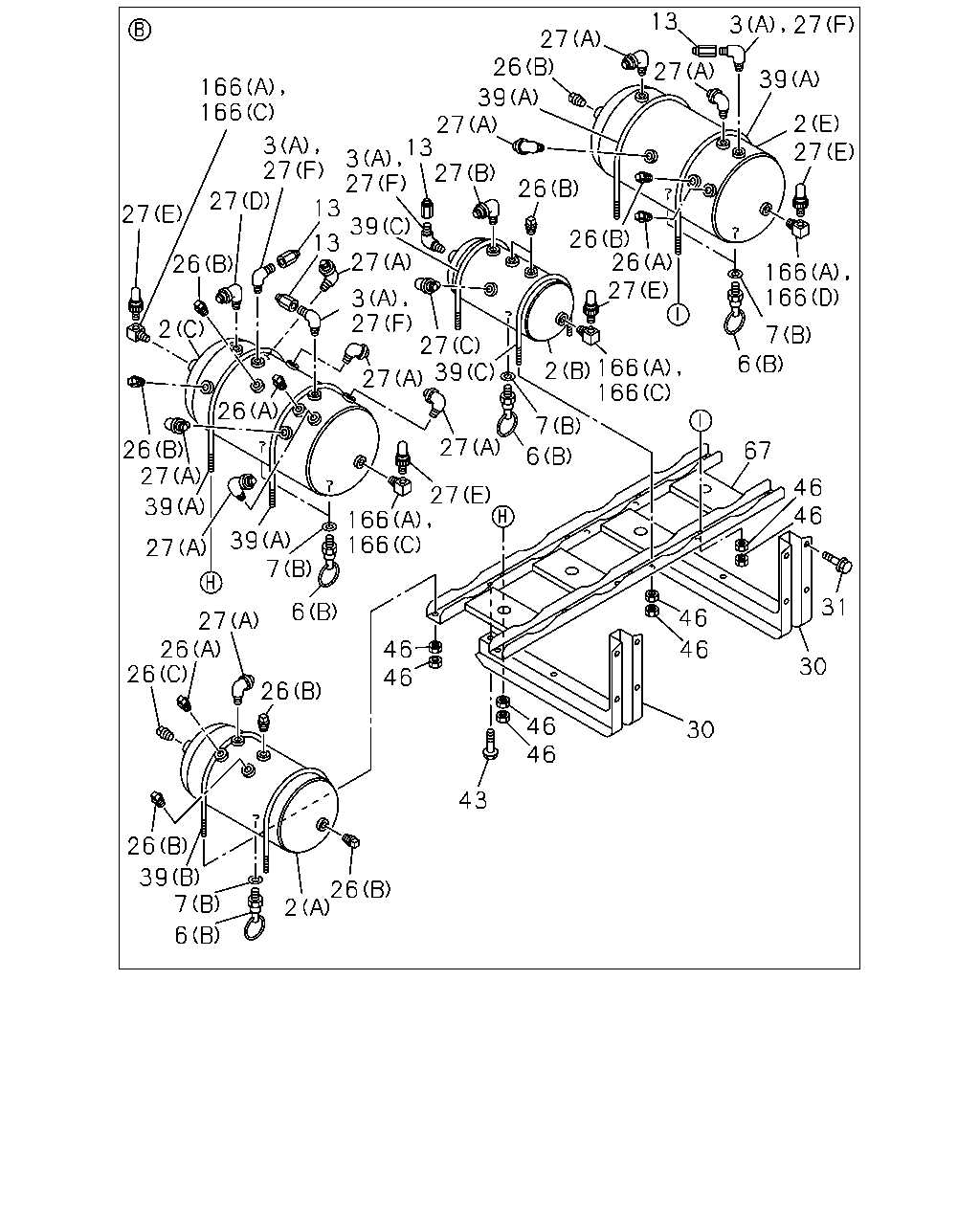

STAY; SUB TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=921 WHEEL BASE 5500MM
|
1-48317-918-0 |
01 |
1 |
0012-0106 |
● |
|
| |
67 |
STAY; SUB TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=921 WHEEL BASE 5500MM
|
1-48317-918-0 |
01 |
1 |
0107-0203 |
● |
|
| |
67 |
STAY; SUB TANK
ANTI SKID BRK SYSTEM<SFL>
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=921 WHEEL BASE 5500MM
|
1-48317-918-0 |
01 |
1 |
0204- |
● |
|
| |
67 |
STAY; SUB TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=921 WHEEL BASE 6200MM
|
1-48317-917-0 |
01 |
1 |
0012- |
● |
|
| |
67 |
STAY; SUB TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=921 WHEEL BASE 6200MM
|
1-48317-917-0 |
01 |
1 |
0012- |
● |
|
| |
67 |
STAY; SUB TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=921 WHEEL BASE 6200MM
|
1-48317-917-0 |
01 |
1 |
0012- |
|
● |
| |
67 |
STAY; SUB TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=648
|
1-48317-919-0 |
01 |
1 |
0012-0106 |
● |
|
| |
67 |
STAY; SUB TANK
EURO3 SPECIFICATION(NJX)
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=648
|
1-48317-919-0 |
01 |
1 |
0107-0203 |
● |
|
| |
67 |
STAY; SUB TANK
ANTI SKID BRK SYSTEM<SFL>
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=648
|
1-48317-919-0 |
01 |
1 |
0204- |
● |
|
| |
67 |
STAY; SUB TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
L=1249
|
1-48317-921-0 |
01 |
1 |
0012- |
● |
|
| |
67 |
STAY; SUB TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
L=1249
|
1-48317-921-0 |
01 |
1 |
0012- |
|
● |
| |
67 |
STAY; SUB TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW>
EXC. ANTI SKID BRK SYSTEM<SFL>
L=648
|
1-48317-920-0 |
01 |
1 |
0012- |
● |
|
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
(A)
R1/4 & RC1/4 ELBOW
|
1-09660-501-0 |
05 |
1 |
0012-0202 |
● |
|
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
(C)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
0203- |
● |
|
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
(B)
530KPA
|
1-48340-054-1 |
01 |
1 |
0012- |
● |
● |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
(D)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0203-0811 |
● |
● |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
EXC. ANTI SKID BRK SYSTEM<SFL>,DOOR CONTROL AIR
W/SUB AIR TANK<SGW>
(D)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0812-0906 |
● |
|
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
(D)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0907- |
● |
● |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
(A)
R1/4 & RC1/4 ELBOW
|
1-09660-501-0 |
04 |
1 |
0012-0202 |
|
● |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
(C)
PT1/4 2WAY
|
1-09660-693-0 |
03 |
1 |
0203- |
|
● |
