8-28 — CHASSIS ELECTRICAL (#70989) — 141 parça

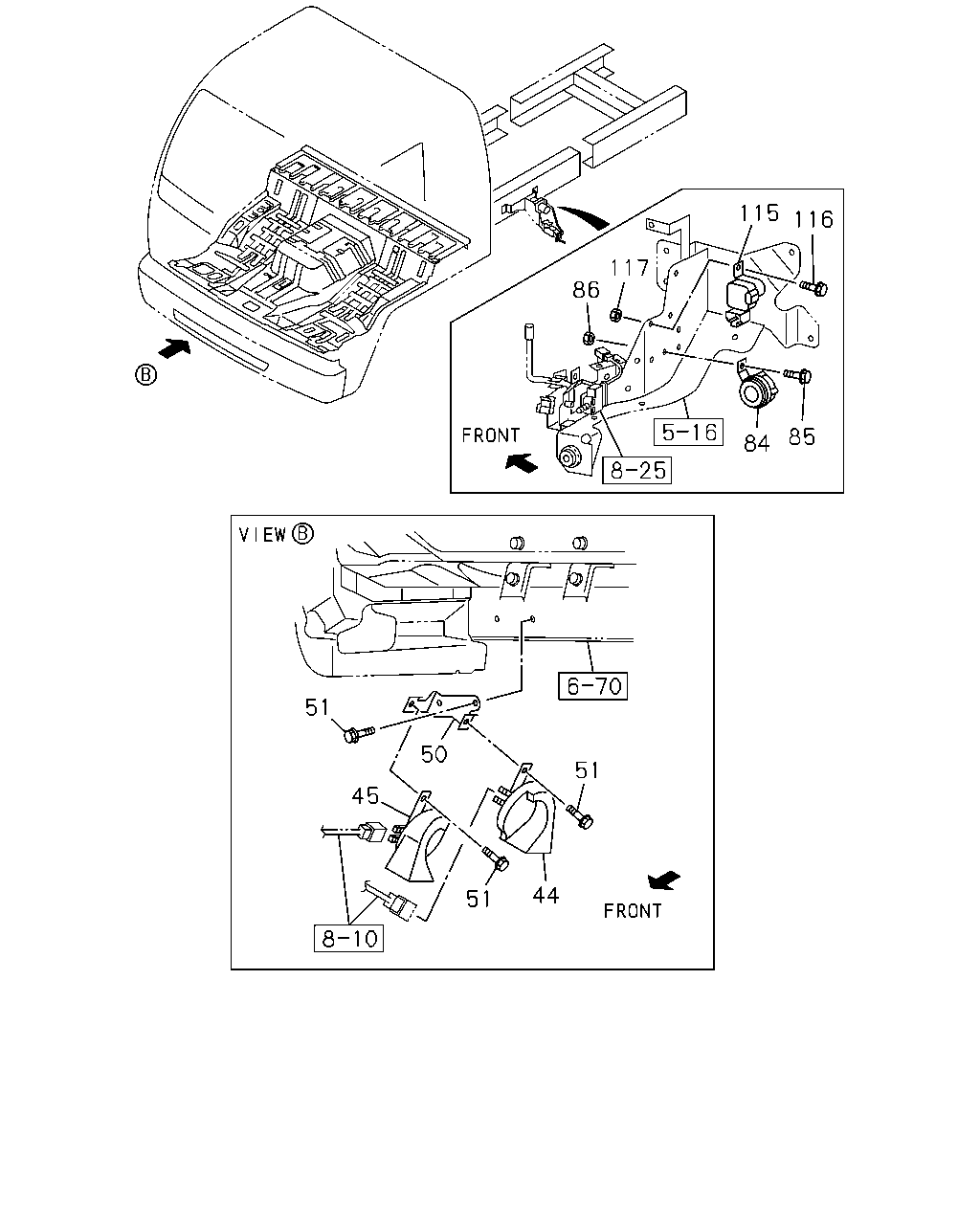

51 50 51 44 51 45 84 85 115 116 86 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1011-1102	●
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1103-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1011-1102	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1103-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1307-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1011-1102	●
50	BRACKET; HORN	8-97613-300-2	01	1	1103-1306	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1011-1102	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1011-1102	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1103-1306	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1103-1306	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1307-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1103-		●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1103-		●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1103-		●
115	RELAY; POWER CAB TILT UNIT 24V NIKKO	8-98005-631-1	01	1	1103-		●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1103-		●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1103-		●

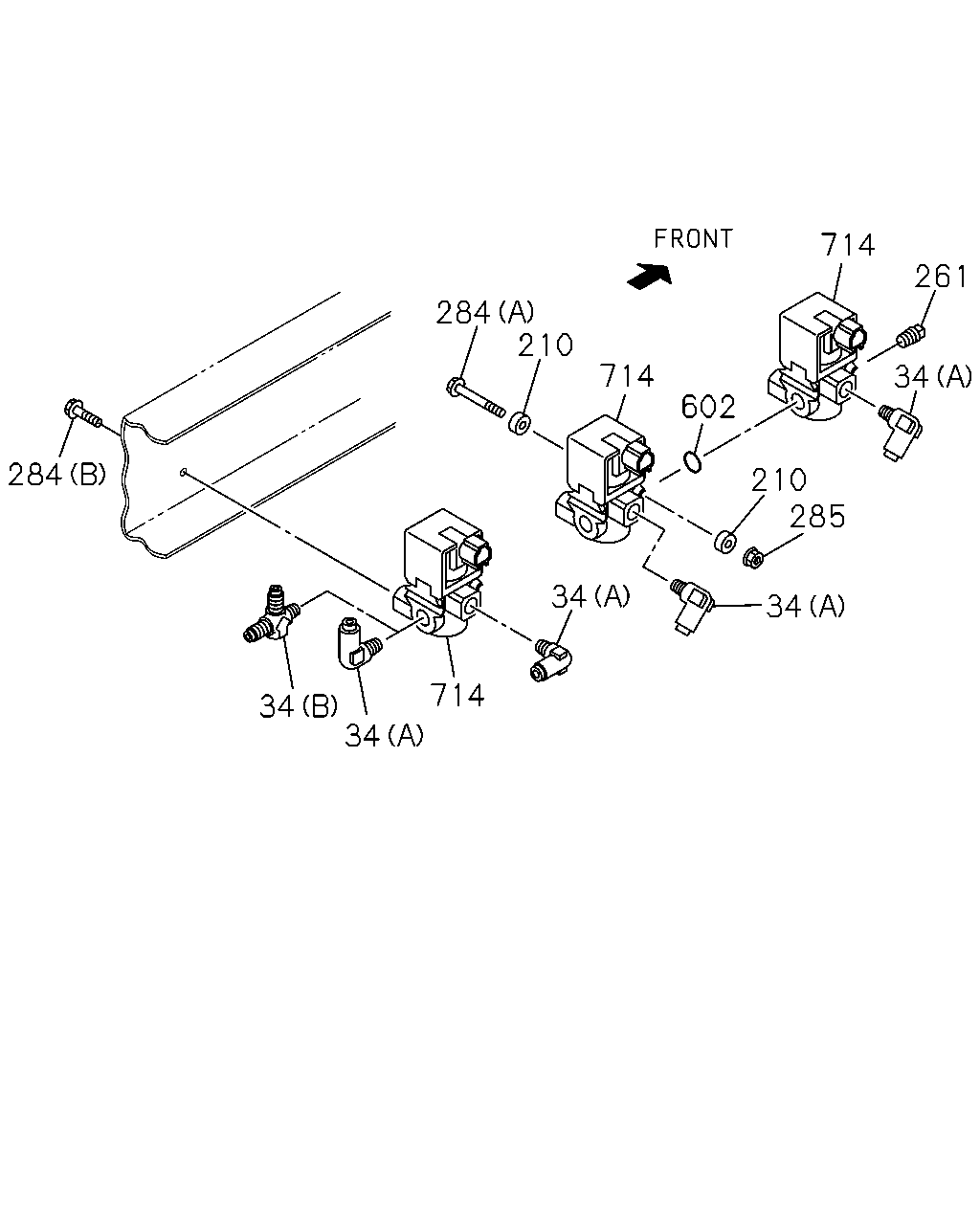

261 34 714 285 34 210 602 714 34 714 210 284 34 34 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1103-		●
34	CONNECTOR; MAG VLV,INL PORT (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1103-		●
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	1011-	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1011-1102	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1103-	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1011-1102	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1103-1306	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1307-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1011-1102	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1103-	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	1011-1102	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	1103-	●	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	1011-1102	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1011-1102	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1103-1306	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M6X50 FLANGE	0-28050-650-0	01	1	1307-	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1011-1102	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1103-	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1011-1102	●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1103-1306	●	●
285	NUT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE	0-91180-106-0	01	1	1307-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1011-1102	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1103-	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1011-1102	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1103-1306	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1307-	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	03	1	1011-1102	●
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	03	1	1103-	●	●

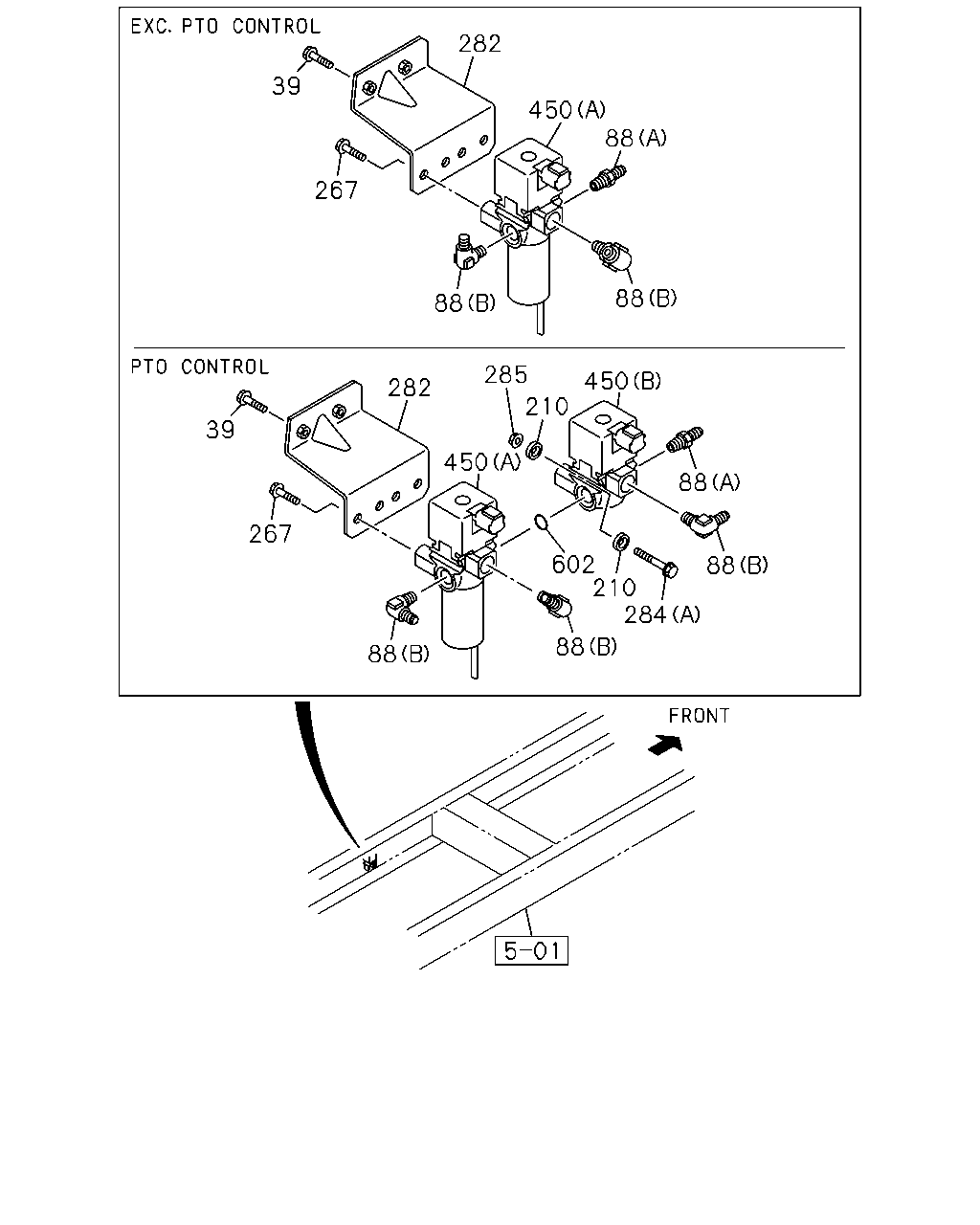

450 282 88 88 88 267 39 450 88 88 284 210 602 210 285 282 39 267 88 88 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1011-1102	●
39	BOLT; BRKT,MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1103-	●	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1011-1102	●
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1103-	●	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1011-1102	●
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1103-1306	●	●
88	CONNECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1307-	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1011-1102	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1103-1306	●	●
88	CONNECTOR; MAG VLV EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1307-	●	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1011-1102	●
210	WASHER; PL,BRKT	1-82569-266-0	04	1	1103-	●	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1011-1102	●
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1103-1306	●	●
210	WASHER; PL,BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82569-266-0	02	1	1307-	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
282	BRACKET; MAG VLV	8-98034-702-0	01	1	1011-1102	●
282	BRACKET; MAG VLV	8-98034-702-0	01	1	1103-	●	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	1011-1102	●
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	02	1	1103-	●	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	1011-1102	●
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1011-1102	●
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1103-1306	●	●
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M6X50 FLANGE	0-28050-650-0	01	1	1307-	●	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1011-1102	●
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	02	1	1103-	●	●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1011-1102	●
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1103-1306	●	●
285	NUT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE	0-91180-106-0	01	1	1307-	●	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1011-1102	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1103-	●	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1011-1102	●
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1103-1306	●	●
450	VALVE; MAG TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-82563-871-2	01	1	1307-	●	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1011-1102	●
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	1103-	●	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1011-1102	●
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1103-1306	●	●
602	GASKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8	9-09565-117-0	01	1	1307-	●	●

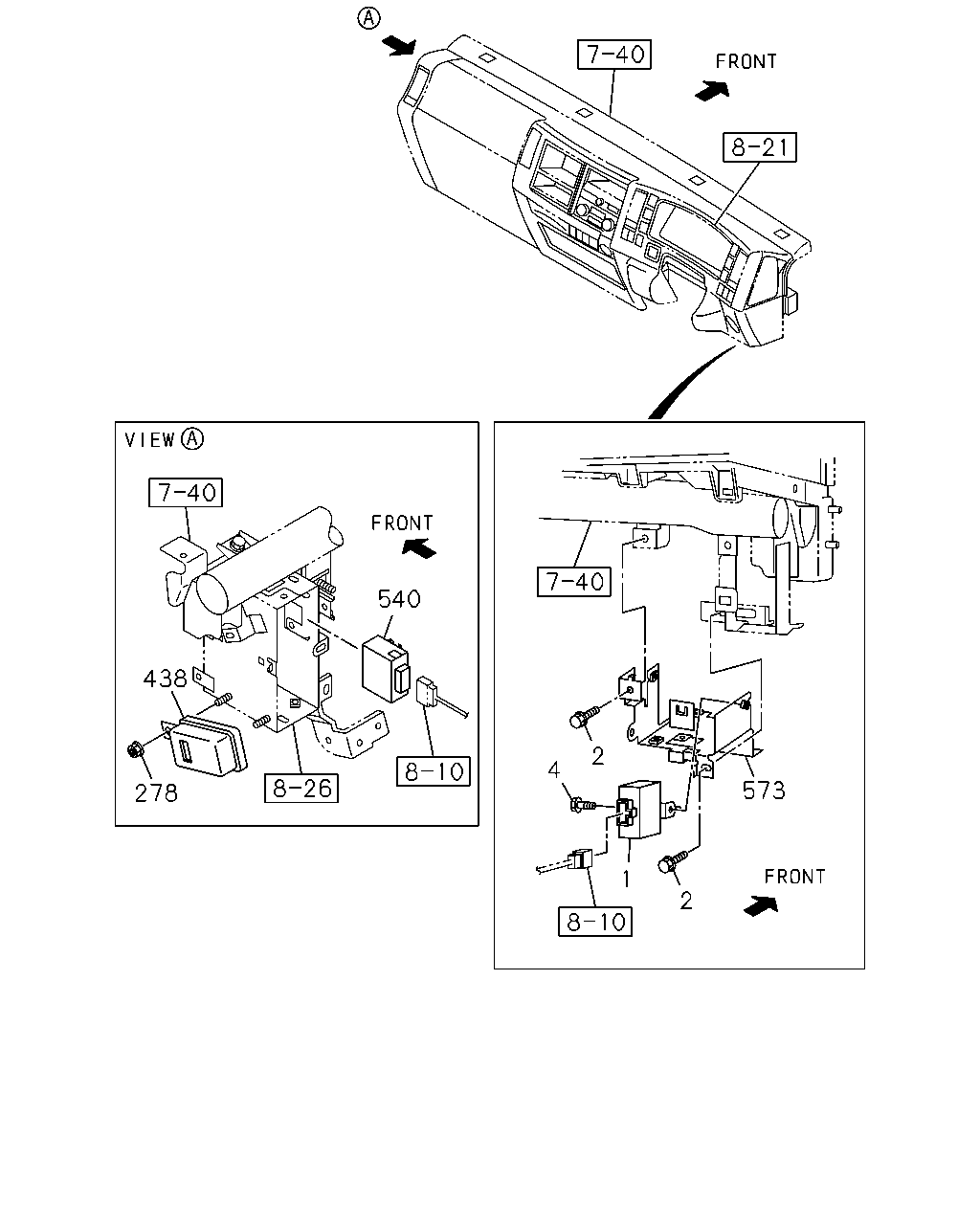

540 438 278 2 4 573 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1011-1102	●
1	UNIT; FLASHER	8-98025-533-1	01	1	1103-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1011-1102	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1103-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1011-1102	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1103-	●	●
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1011-1102	●
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1103-	●	●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1011-1102	●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1103-	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1011-1102	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1103-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1011-1102	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1103-	●	●

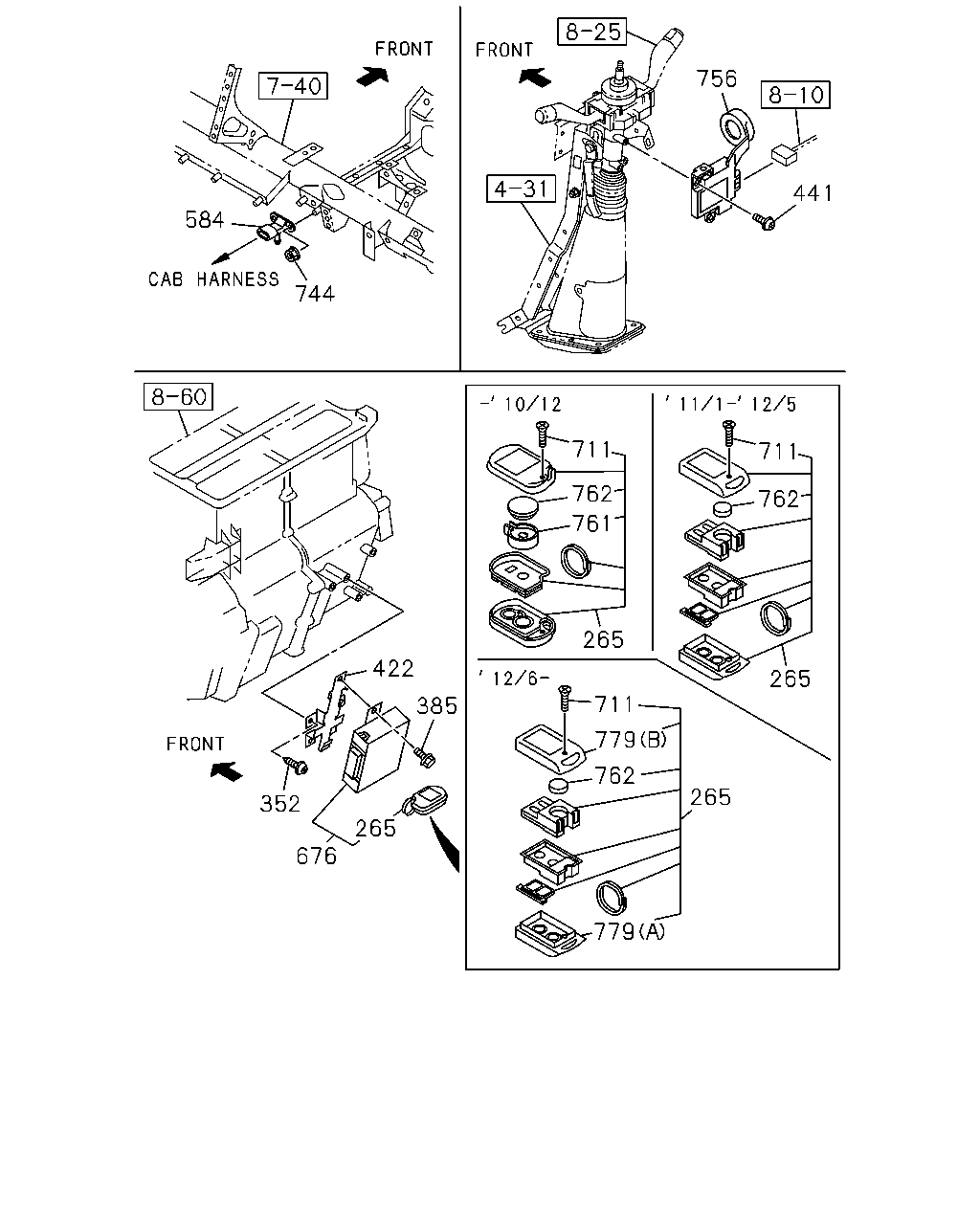

584 744 756 441 352 422 385 265 676 265 762 711 761 711 779 762 265 779 711 762 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	1011-1012	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1102	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1103-1205	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1011-1102	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1103-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1011-1102	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1103-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1011-1102	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1103-	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1011-1102	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1103-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1011-1102	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1103-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	1011-1012	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1102	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1103-1205	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	1011-1102	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	1103-1205	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1011-1102	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1103-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1011-1102	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1103-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1011-1012	●
762	BATTERY	8-98078-061-0	02	1	1011-1102	●
762	BATTERY	8-98078-061-0	02	1	1103-	●	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-	●	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-	●	●

531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1011-1102	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1103-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

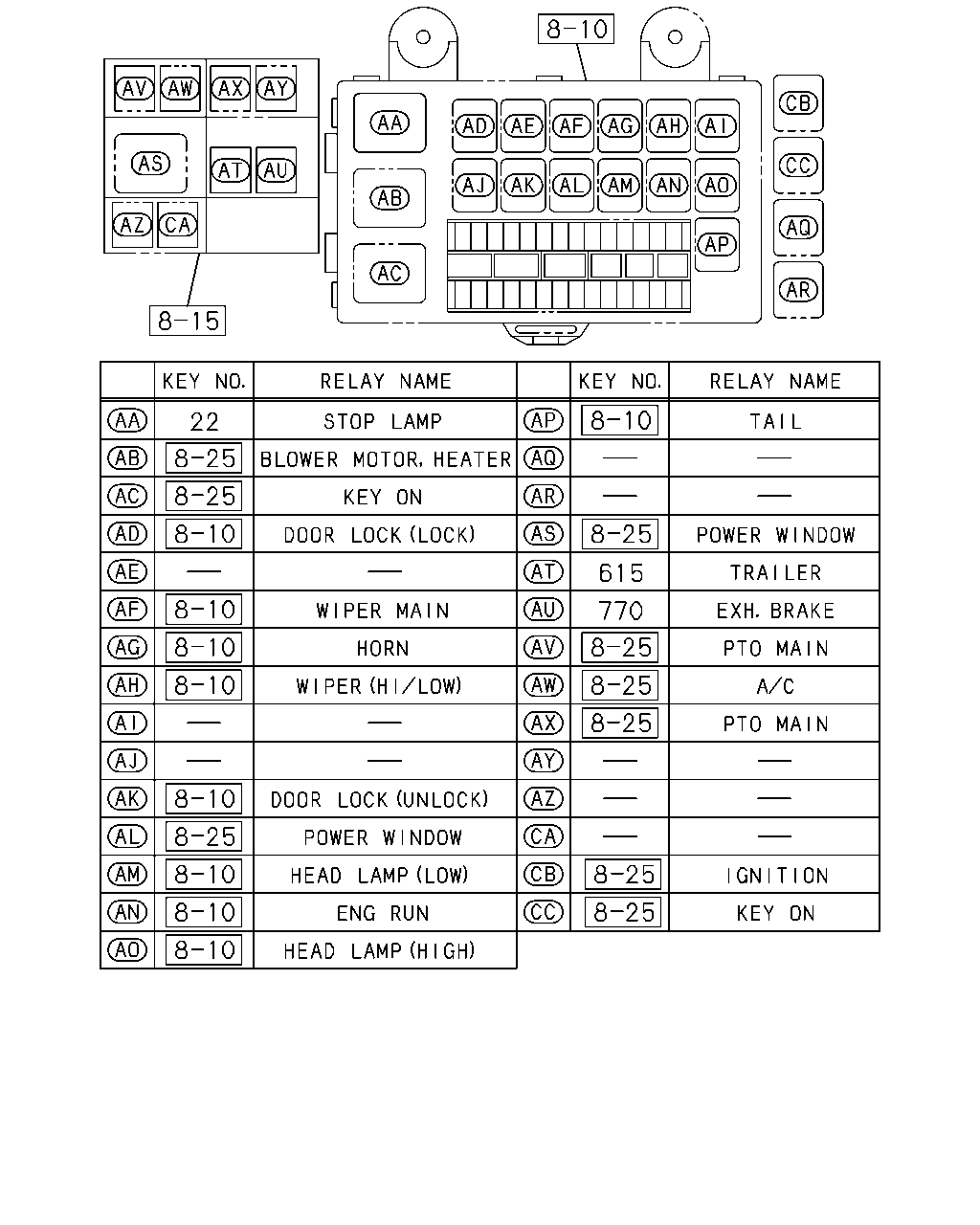

22 615 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1011-1102	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1103-	●	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1011-1102	●
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1103-	●	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1307-	●	●
