◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#70985) — 59 parça

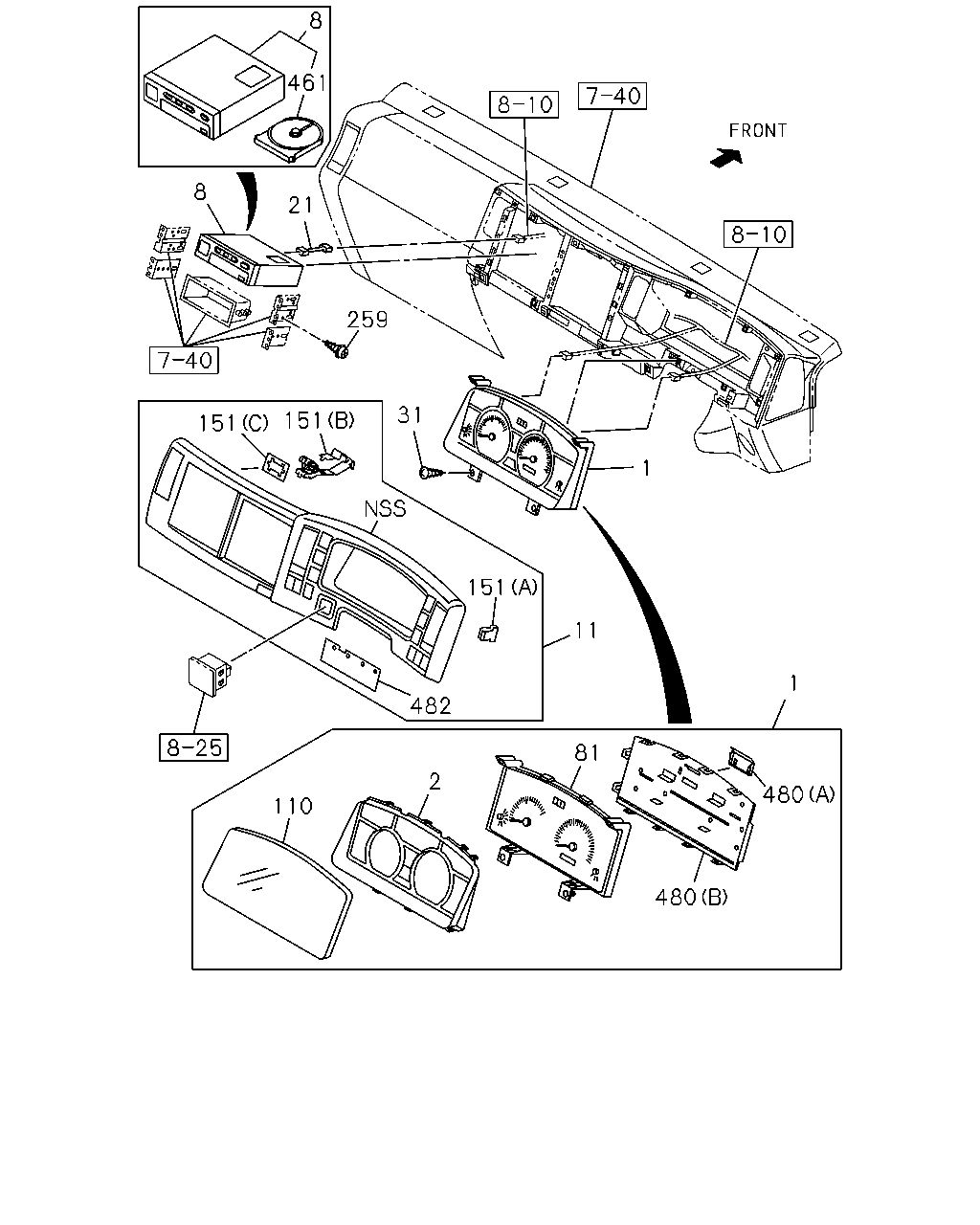

çizim 137797
8 110 2 81 480 480 1 11 482 151 1 31 151 151 259 8 21 461
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98153-452-1 01 1 1011-1102 ●
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98153-452-1 01 1 1011-1102 ●
1 METER COMPL; CLUSTER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98153-452-1 01 1 1103-1306 ● ●
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98153-452-1 01 1 1103-1306 ● ●
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98231-799-0 01 1 1307- ● ●
1 METER COMPL; CLUSTER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98064-926-6 01 1 1011-1102 ●
1 METER COMPL; CLUSTER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98064-926-6 01 1 1103- ● ●
2 PANEL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-638-0 01 1 1307- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1011-1102 ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1103-1306 ● ●
2 PANEL; CLUSTER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98054-432-0 01 1 1307- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1011-1102 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1103- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1011-1102 ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1103- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> CAN INTERFACE FMS STD<8PG> 		8-98225-657-0 01 1 1210-1306 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98225-657-0 01 1 1307- ● ●
21 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG> EXC. TACHOGRAPH 140KM/H<WC7> 		8-98204-881-1 01 1 1210-1306 ● ●
21 HARNESS; TACHOGRAPH
EXC. TACHOGRAPH 140KM/H<WC7> 		8-98204-881-1 01 1 1307- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1011-1102 ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 1103-1209 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> EXC. CAN INTERFACE FMS STD<8PG> 		8-98074-077-0 01 1 1210-1306 ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1011-1102 ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1103- ● ●
81 METER SUB ASM
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98154-362-0 01 1 1011-1102 ●
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98154-362-0 01 1 1011-1102 ●
81 METER SUB ASM
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98154-362-0 01 1 1103-1306 ● ●
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98154-362-0 01 1 1103-1306 ● ●
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98231-805-0 01 1 1307- ● ●
81 METER SUB ASM
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98079-674-0 01 1 1011-1102 ●
81 METER SUB ASM
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98079-674-0 01 1 1103- ● ●
110 GLASS; CLUSTER METER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1011-1102 ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1011-1102 ●
110 GLASS; CLUSTER METER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1103-1306 ● ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1103-1306 ● ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1307- ● ●
110 GLASS; CLUSTER METER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1011-1102 ●
110 GLASS; CLUSTER METER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1103- ● ●
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1011-1102 ●
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1103- ● ●
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1011-1102 ●
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1103- ● ●
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1011-1102 ●
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1103- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1011-1102 ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1103- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1011-1102 ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1103- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1011-1102 ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1103-1306 ● ●
480 COVER; METER
EXC. AUTO CRUISE<K30>,MULTI INFORMATION DISPLAY<7NY> (B) BLACK 		8-98054-433-0 01 1 1307- ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (B) BLACK 		8-98054-433-0 01 1 1307- ● ●
480 COVER; METER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1011-1102 ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1011-1102 ●
480 COVER; METER
AUTO CRUISE<K30> EXC. MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1103-1306 ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1103-1306 ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1307- ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1011-1102 ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
