Sayfa 8-15 - Isuzu EPC

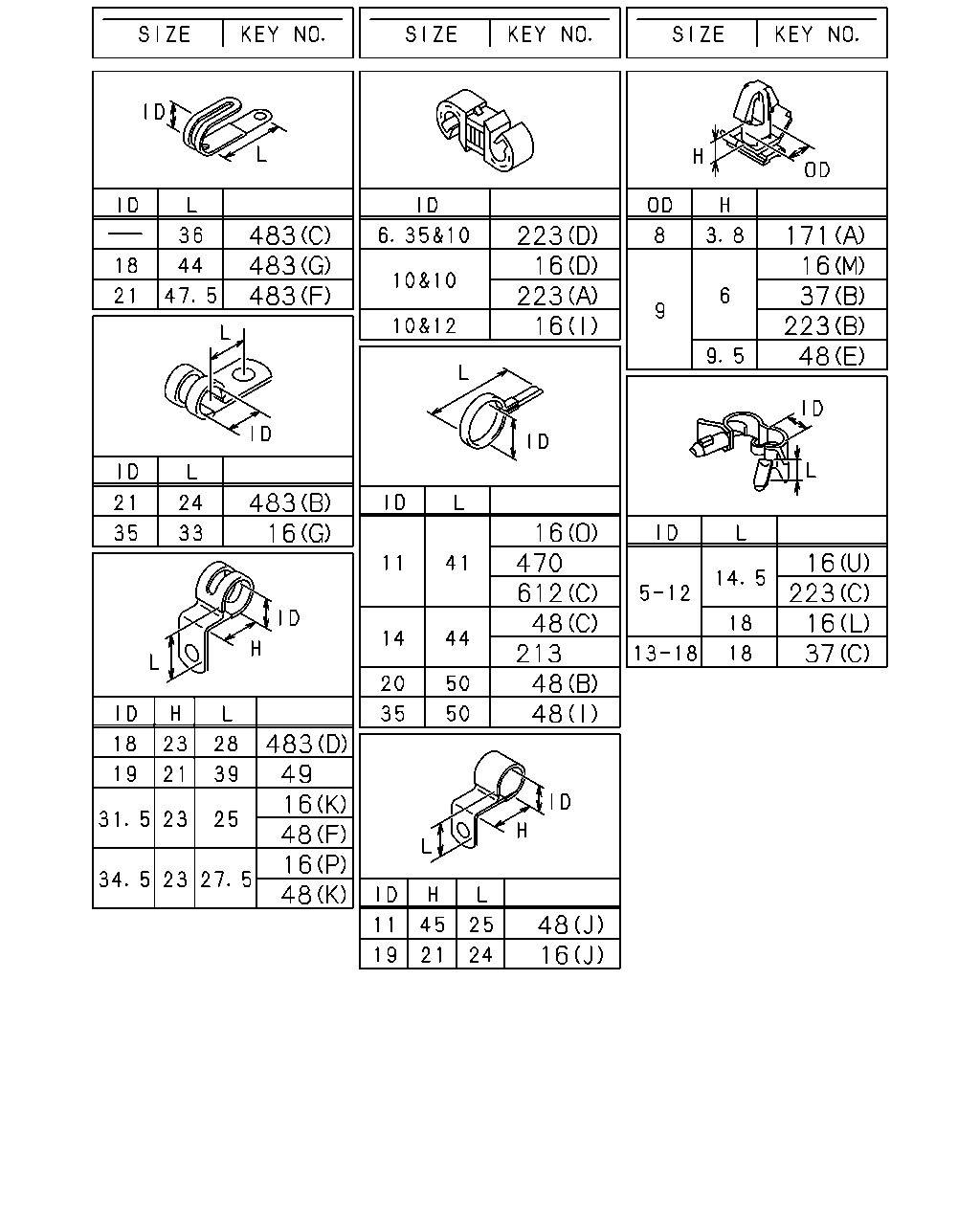

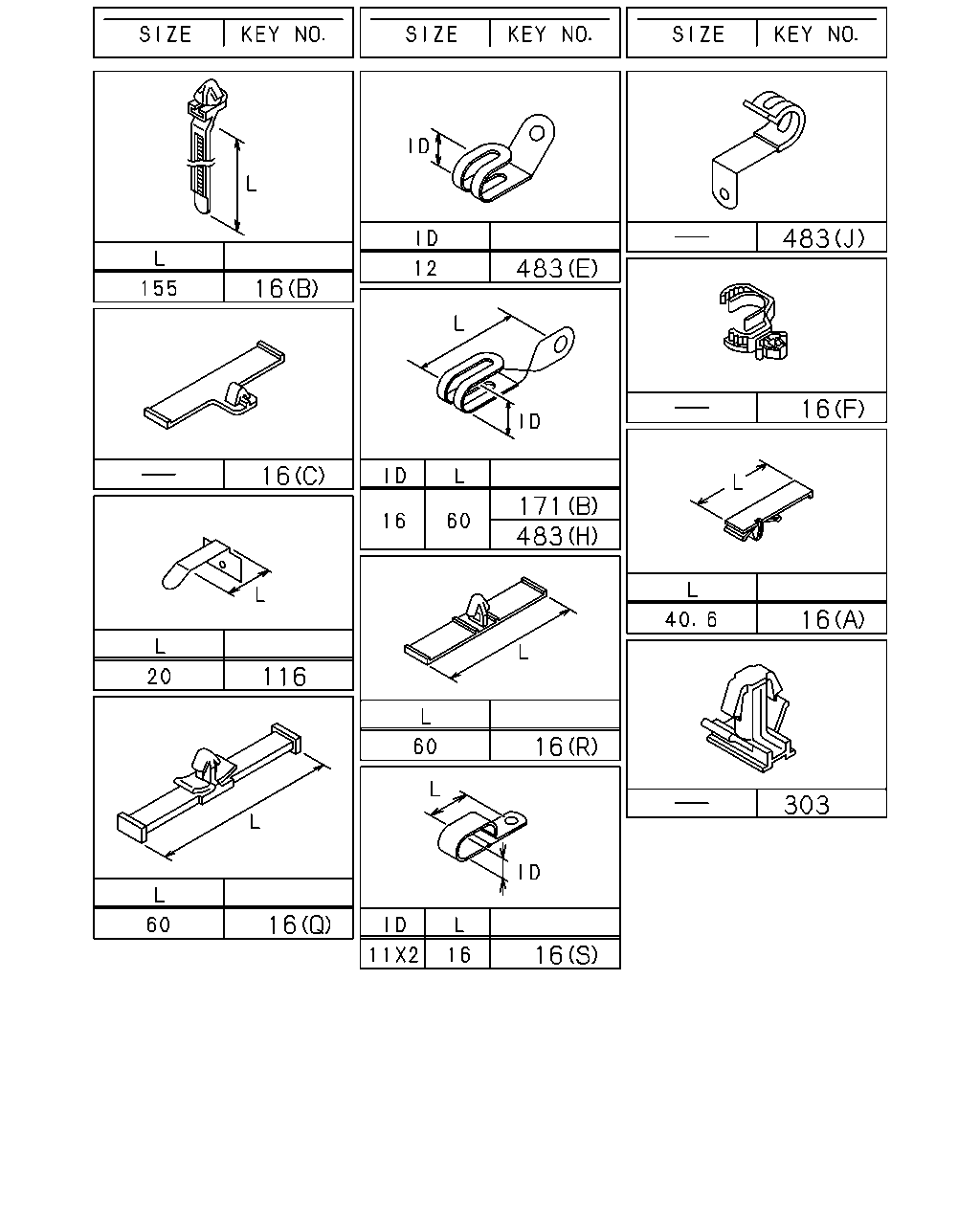

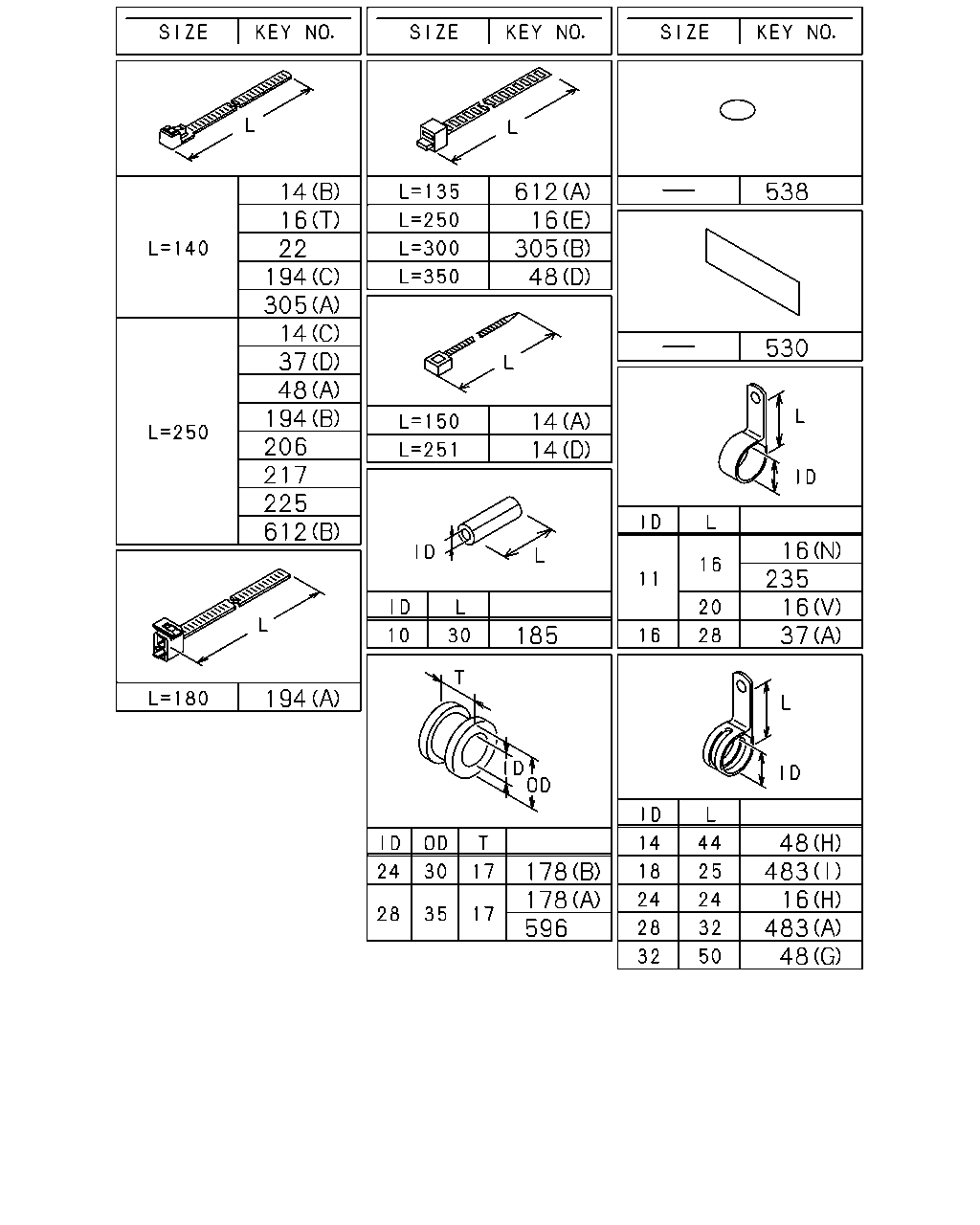

8-15 — FIXING PARTS; WIRING HARNESS (#70984) — 472 parça

16 16 116 16 483 171 483 16 16 303 16 16 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (O) ID=11 L=41	1-09700-403-0	01	1	1103-1306	●
16	CLIP; HARNESS (S) ID=11X2 L=16	0-95325-025-0	01	1	1307-	●	●
16	CLIP; HARNESS (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1103-1306	●
16	CLIP; HARNESS (D) ID=10 & 10	1-09709-277-1	03	1	1103-1306	●
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	02	1	1103-1306	●
16	CLIP; HARNESS (Q) L=60	8-94449-165-0	02	1	1103-	●
16	CLIP; HARNESS (R) L=60	8-97063-335-0	02	1	1103-	●
16	CLIP; HARNESS (N) ID=11 L=16	0-95235-025-0	06	1	1011-1306		●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1408	●	●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1408	●	●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	04	1	1409-	●	●
16	CLIP; HARNESS (G) ID=35 L=33	1-09700-945-0	01	1	1011-1306		●
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1011-1102		●
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1103-	●	●
16	CLIP; HARNESS (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1011-1306		●
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1011-1102		●
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1103-1306	●	●
16	CLIP; HARNESS (T) L=140	5-09707-031-1	01	1	1307-	●	●
16	CLIP; HARNESS (M) OD=9 H=6	1-09709-178-0	01	1	1011-1102		●
16	CLIP; HARNESS (M) OD=9 H=6	1-09709-178-0	01	1	1103-1306	●	●
16	CLIP; HARNESS (D) ID=10 & 10	1-09709-277-1	04	1	1011-1306		●
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	01	1	1011-1306		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	01	1	1011-1306		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	02	1	1011-1102		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	02	1	1103-1306	●	●
16	CLIP; HARNESS (V) ID=11 L=20	0-95235-035-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1011-1102		●
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1103-	●	●
16	CLIP; HARNESS (F) ID=10 & 16	8-94413-325-0	01	1	1011-1102		●
16	CLIP; HARNESS (F) ID=10 & 16	8-94413-325-0	01	1	1103-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1011-1102		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1103-1202	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1011-1102		●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1103-1202	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1103-1202	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6	8-97229-357-0	02	1	1203-	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1011-1102		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1103-1202	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1307-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	02	1	1112-	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1011-1102		●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1103-1306	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	1307-	●	●
171	CLIP; STARTER HARNESS (A) OD=8 H=3.8	1-09709-309-0	01	1	1011-1102		●
171	CLIP; STARTER HARNESS (A) OD=8 H=3.8	1-09709-309-0	01	1	1103-	●	●
171	CLIP; STARTER HARNESS (B)	8-97101-436-0	01	1	1011-1102		●
171	CLIP; STARTER HARNESS (B)	8-97101-436-0	01	1	1103-	●	●
303	CLIP; HARNESS POWER TILT RELAY OD=8.95 H=6.25	8-97375-754-0	01	1	1103-	●
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1103-	●	●
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (J)	1-09987-281-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (J)	1-09987-281-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	1103-	●	●
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	02	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	02	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (H)	8-97101-436-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (H)	8-97101-436-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44	8-97367-985-1	02	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44	8-97367-985-1	02	1	1103-	●	●
483	CLIP; ENG HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	01	1	1103-	●	●

14 16 22 194 305 14 37 48 194 206 217 225 612 194 612 16 305 48 14 14 185 178 178 596 538 530 16 235 16 37 48 483 16 483 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1011-1102		●
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1103-	●	●
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140	5-09707-031-1	02	1	1011-1102		●
14	CLIP; BAND,HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140	5-09707-031-1	02	1	1011-1102		●
14	CLIP; BAND,HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140	5-09707-031-1	02	1	1103-1107	●	●
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140	5-09707-031-1	02	1	1103-1107		●
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	02	1	1103-1107	●
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-	●	●
14	CLIP; BAND,HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140	5-09707-031-1	02	1	1108-	●	●
14	CLIP; BAND,HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140	5-09707-031-1	05	1	1011-1102		●
14	CLIP; BAND,HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140	5-09707-031-1	05	1	1103-	●	●
14	CLIP; BAND,HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=250	5-09707-030-1	01	1	1011-1102		●
14	CLIP; BAND,HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=250	5-09707-030-1	01	1	1103-	●	●
14	CLIP; BAND,HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=150	8-97355-273-0	02	1	1011-1102		●
14	CLIP; BAND,HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=150	8-97355-273-0	02	1	1103-	●	●
16	CLIP; HARNESS (O) ID=11 L=41	1-09700-403-0	01	1	1103-1306	●
16	CLIP; HARNESS (S) ID=11X2 L=16	0-95325-025-0	01	1	1307-	●	●
16	CLIP; HARNESS (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1103-1306	●
16	CLIP; HARNESS (D) ID=10 & 10	1-09709-277-1	03	1	1103-1306	●
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	02	1	1103-1306	●
16	CLIP; HARNESS (Q) L=60	8-94449-165-0	02	1	1103-	●
16	CLIP; HARNESS (R) L=60	8-97063-335-0	02	1	1103-	●
16	CLIP; HARNESS (N) ID=11 L=16	0-95235-025-0	06	1	1011-1306		●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1408	●	●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1408	●	●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	04	1	1409-	●	●
16	CLIP; HARNESS (G) ID=35 L=33	1-09700-945-0	01	1	1011-1306		●
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1011-1102		●
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1103-	●	●
16	CLIP; HARNESS (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1011-1306		●
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1011-1102		●
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1103-1306	●	●
16	CLIP; HARNESS (T) L=140	5-09707-031-1	01	1	1307-	●	●
16	CLIP; HARNESS (M) OD=9 H=6	1-09709-178-0	01	1	1011-1102		●
16	CLIP; HARNESS (M) OD=9 H=6	1-09709-178-0	01	1	1103-1306	●	●
16	CLIP; HARNESS (D) ID=10 & 10	1-09709-277-1	04	1	1011-1306		●
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	01	1	1011-1306		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	01	1	1011-1306		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	02	1	1011-1102		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	02	1	1103-1306	●	●
16	CLIP; HARNESS (V) ID=11 L=20	0-95235-035-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1011-1102		●
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1103-	●	●
16	CLIP; HARNESS (F) ID=10 & 16	8-94413-325-0	01	1	1011-1102		●
16	CLIP; HARNESS (F) ID=10 & 16	8-94413-325-0	01	1	1103-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1011-1102		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1103-1202	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1011-1102		●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1103-1202	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1103-1202	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6	8-97229-357-0	02	1	1203-	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1011-1102		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1103-1202	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-	●	●
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1011-1102		●
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	1103-	●	●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	1103-1306	●
37	CLIP; HARNESS,POWER TILT (B) OD=9 H=6	1-09709-178-0	01	1	1103-1306	●
37	CLIP; HARNESS,POWER TILT (C) ID=13-18 L=18	1-09709-291-0	02	1	1103-1306	●
37	CLIP; HARNESS,POWER TILT (D) L=250	5-09707-030-1	01	1	1103-1306	●
48	CLIP; FRAME HARNESS (J) ID=11 H=45 L=25	1-09700-866-0	01	1	1108-1306		●
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	12	1	1103-1306	●
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1103-1306	●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1307-	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1011-1102		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1103-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1011-1306		●
48	CLIP; FRAME HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-		●
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1011-1306		●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1011-1102		●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1103-1306	●	●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1103-1306	●
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1011-1102		●
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1103-1306	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1011-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (C) ID=14 L=44	9-09917-427-0	09	1	1011-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	02	1	1011-1102		●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	1103-1201	●	●
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	1202-1306	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1011-1102		●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1011-1102		●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1103-1306	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1103-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1011-1102		●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1103-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1307-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1011-1102		●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1103-1306	●	●
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	1011-1102		●
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	1103-	●	●
194	CLIP; BAND (C) L=140	5-09707-031-1	01	1	1103-1306	●
194	CLIP; BAND (A) L=180	1-09707-162-1	01	1	1011-1102		●
194	CLIP; BAND (A) L=180	1-09707-162-1	01	1	1103-1306	●	●
194	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1011-1102		●
194	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1103-1306	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	1011-1306		●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1011-1102		●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1103-1306	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1011-1102		●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1103-1306	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1103-1306	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	1011-1306		●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=16	0-95235-025-0	01	1	1307-	●	●
305	CLIP; ENG HARNESS (B) L=300	1-09707-001-1	01	1	1011-1102		●
305	CLIP; ENG HARNESS (B) L=300	1-09707-001-1	01	1	1103-	●	●
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	02	1	1011-1102		●
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	02	1	1103-	●	●
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1103-	●	●
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (J)	1-09987-281-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (J)	1-09987-281-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	1103-	●	●
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	02	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	02	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (H)	8-97101-436-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (H)	8-97101-436-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44	8-97367-985-1	02	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44	8-97367-985-1	02	1	1103-	●	●
483	CLIP; ENG HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	01	1	1103-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1306-	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1011-1102		●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1103-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1011-1102		●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1103-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-		●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1011-1102		●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1103-	●	●
596	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1011-1102		●
596	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1103-1306	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1103-1306	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	02	1	1307-	●
612	CLIP; HARNESS DPD (A) L=135	1-09987-143-1	01	1	1011-1102		●
612	CLIP; HARNESS DPD (A) L=135	1-09987-143-1	01	1	1103-1306	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1011-1102		●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1103-1306	●	●

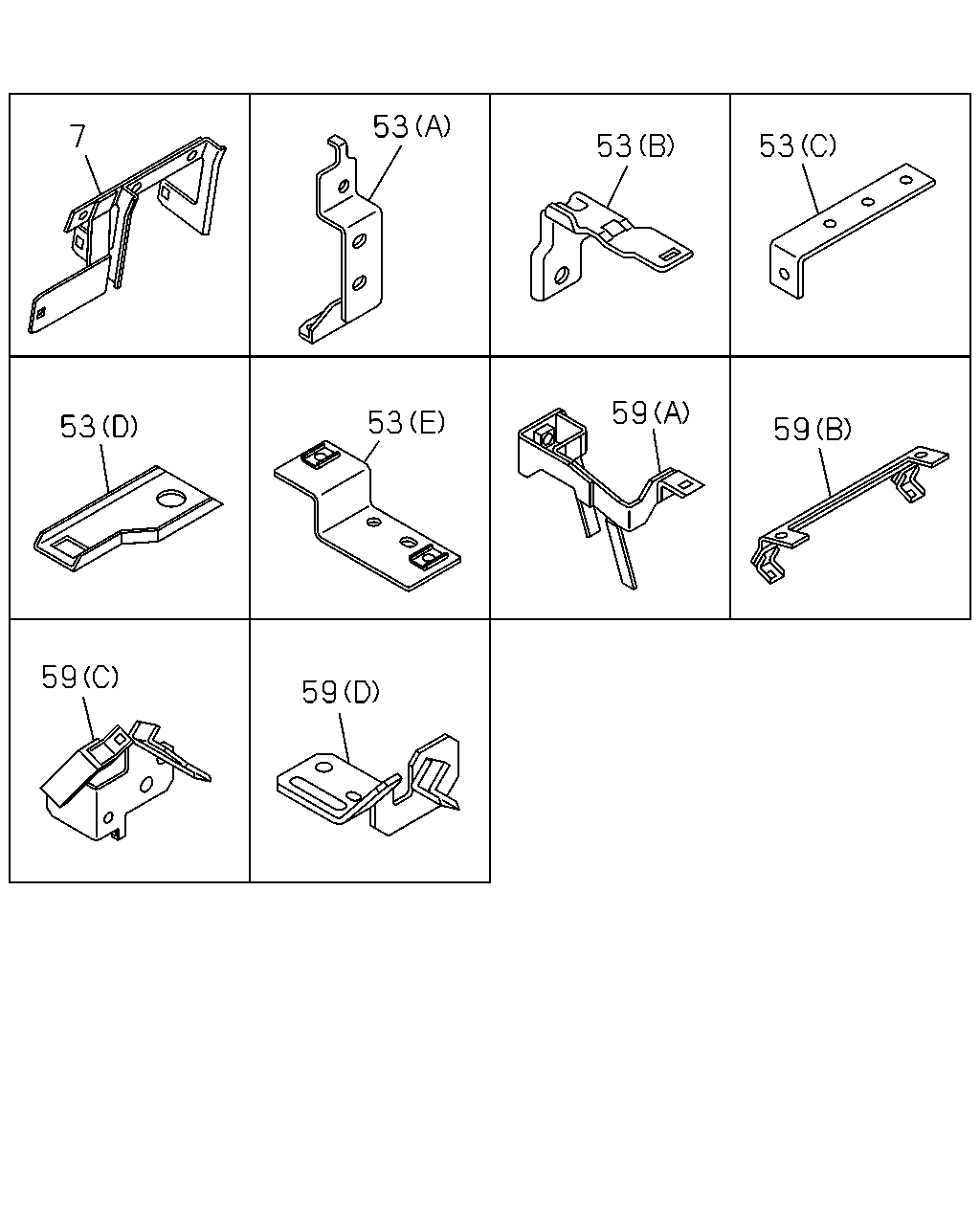

53 59 59 53 53 53 53 7 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1011-1102		●
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1103-	●	●
53	BRACKET; HARNESS (C)	1-47479-630-1	01	1	1108-1306		●
53	BRACKET; HARNESS (A)	8-98236-571-0	01	1	1307-		●
53	BRACKET; HARNESS (D)	1-82698-569-0	01	1	1108-		●
53	BRACKET; HARNESS (A)	8-98049-871-0	01	1	1011-1102		●
53	BRACKET; HARNESS (A)	8-98049-871-0	01	1	1103-1306	●	●
53	BRACKET; HARNESS (E)	8-98244-721-0	01	1	1307-	●	●
53	BRACKET; HARNESS (A)	8-98049-871-0	01	1	1307-	●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1011-1102		●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1103-	●	●
59	BRACKET; FRAME HARNESS (A)	8-98099-963-0	01	1	1103-1306	●
59	BRACKET; FRAME HARNESS (A)	8-98099-963-0	01	1	1307-	●
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1011-		●
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1011-1102		●
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	1103-1306	●	●
59	BRACKET; FRAME HARNESS (B)	8-98047-276-1	01	1	1011-1102		●
59	BRACKET; FRAME HARNESS (B)	8-98047-276-1	01	1	1103-1306	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1011-1102		●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1103-1306	●	●

483 483 483 483 483 16 49 16 48 16 48 223 223 16 16 16 612 48 470 213 48 48 48 16 171 37 16 223 16 48 223 16 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (O) ID=11 L=41	1-09700-403-0	01	1	1103-1306	●
16	CLIP; HARNESS (S) ID=11X2 L=16	0-95325-025-0	01	1	1307-	●	●
16	CLIP; HARNESS (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1103-1306	●
16	CLIP; HARNESS (D) ID=10 & 10	1-09709-277-1	03	1	1103-1306	●
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	02	1	1103-1306	●
16	CLIP; HARNESS (Q) L=60	8-94449-165-0	02	1	1103-	●
16	CLIP; HARNESS (R) L=60	8-97063-335-0	02	1	1103-	●
16	CLIP; HARNESS (N) ID=11 L=16	0-95235-025-0	06	1	1011-1306		●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1408	●	●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	02	1	1307-1408	●	●
16	CLIP; HARNESS (U) ID=5-12 L=14.5	1-09987-221-0	04	1	1409-	●	●
16	CLIP; HARNESS (G) ID=35 L=33	1-09700-945-0	01	1	1011-1306		●
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1011-1102		●
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1103-	●	●
16	CLIP; HARNESS (K) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1011-1306		●
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1011-1102		●
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1103-1306	●	●
16	CLIP; HARNESS (T) L=140	5-09707-031-1	01	1	1307-	●	●
16	CLIP; HARNESS (M) OD=9 H=6	1-09709-178-0	01	1	1011-1102		●
16	CLIP; HARNESS (M) OD=9 H=6	1-09709-178-0	01	1	1103-1306	●	●
16	CLIP; HARNESS (D) ID=10 & 10	1-09709-277-1	04	1	1011-1306		●
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	01	1	1011-1306		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	01	1	1011-1306		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	02	1	1011-1102		●
16	CLIP; HARNESS (L) ID=5-12 L=18	1-09709-287-0	02	1	1103-1306	●	●
16	CLIP; HARNESS (V) ID=11 L=20	0-95235-035-0	02	1	1307-	●	●
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1011-1102		●
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	1103-	●	●
16	CLIP; HARNESS (F) ID=10 & 16	8-94413-325-0	01	1	1011-1102		●
16	CLIP; HARNESS (F) ID=10 & 16	8-94413-325-0	01	1	1103-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1011-1102		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1103-1202	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B) L=155	8-97173-307-0	18	1	1203-	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1011-1102		●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1103-1202	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1103-1202	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) L=40.6	8-97229-357-0	02	1	1203-	●	●
16	CLIP; HARNESS (A) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1011-1102		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1103-1202	●	●
16	CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C)	8-98052-679-0	02	1	1203-	●	●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	1103-1306	●
37	CLIP; HARNESS,POWER TILT (B) OD=9 H=6	1-09709-178-0	01	1	1103-1306	●
37	CLIP; HARNESS,POWER TILT (C) ID=13-18 L=18	1-09709-291-0	02	1	1103-1306	●
37	CLIP; HARNESS,POWER TILT (D) L=250	5-09707-030-1	01	1	1103-1306	●
48	CLIP; FRAME HARNESS (J) ID=11 H=45 L=25	1-09700-866-0	01	1	1108-1306		●
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	12	1	1103-1306	●
48	CLIP; FRAME HARNESS (I) ID=35 L=50	1-09701-214-0	01	1	1103-1306	●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1307-	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1011-1102		●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1103-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1011-1306		●
48	CLIP; FRAME HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-		●
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1011-1306		●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1011-1102		●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1103-1306	●	●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	01	1	1103-1306	●
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1011-1102		●
48	CLIP; FRAME HARNESS (E) OD=9 H=9.5	1-09709-179-0	01	1	1103-1306	●	●
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1011-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (C) ID=14 L=44	9-09917-427-0	09	1	1011-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (B) ID=20 L=50	9-09917-430-0	02	1	1011-1102		●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	1103-1201	●	●
48	CLIP; FRAME HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	1202-1306	●	●
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1011-1102		●
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1103-	●	●
171	CLIP; STARTER HARNESS (A) OD=8 H=3.8	1-09709-309-0	01	1	1011-1102		●
171	CLIP; STARTER HARNESS (A) OD=8 H=3.8	1-09709-309-0	01	1	1103-	●	●
171	CLIP; STARTER HARNESS (B)	8-97101-436-0	01	1	1011-1102		●
171	CLIP; STARTER HARNESS (B)	8-97101-436-0	01	1	1103-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1011-1102		●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1103-1306	●	●
223	CLIP; AIR TANK HARNESS (D) ID=6.35 & 10.0	1-09709-274-1	01	1	1103-1306	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1011-1102		●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1011-1102		●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1103-1306	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1103-1306	●	●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	02	1	1011-1102		●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	02	1	1103-1306	●	●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1011-1102		●
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1103-1306	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1011-1102		●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1103-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND<CX6> OD=9 H=6	1-09709-178-0	01	1	1206-		●
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS (A) ID=28 L=32	1-09701-107-1	01	1	1103-	●	●
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (B) ID=21 L=24	1-09701-201-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (J)	1-09987-281-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (J)	1-09987-281-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS (I) ID=18 L=25	8-94121-004-1	01	1	1103-	●	●
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS (F) ID=21 L=47.5	8-94178-108-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	02	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	02	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (H)	8-97101-436-0	01	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (H)	8-97101-436-0	01	1	1103-	●	●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44	8-97367-985-1	02	1	1011-1102		●
483	CLIP; ENG HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (G) ID=18 L=44	8-97367-985-1	02	1	1103-	●	●
483	CLIP; ENG HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	01	1	1011-1102		●
483	CLIP; ENG HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=36	8-94224-891-1	01	1	1103-	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1103-1306	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	02	1	1307-	●
612	CLIP; HARNESS DPD (A) L=135	1-09987-143-1	01	1	1011-1102		●
612	CLIP; HARNESS DPD (A) L=135	1-09987-143-1	01	1	1103-1306	●	●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1011-1102		●
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	1103-1306	●	●

150 150 139 38 139 139 358 377 38 386 47 38 386 139 139 139 313 242 139 38 242 150 139 38 150 23 524 294 525 515 552 524 294 184 219 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	NUT; FLOOR STAY M8 FLANGE	0-91180-108-0	01	1	1103-1306	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1011-1306		●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1011-1102		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1103-1107	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1108-1306	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1108-1306		●
38	BOLT; CLIP,HARNESS (E) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	06	1	1011-1306		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1307-		●
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1011-1102		●
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1103-1201	●	●
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	01	1	1309-	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1011-1102		●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
139	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1102		●
139	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1011-1102		●
139	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-1306	●	●
139	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-1306		●
139	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-		●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1011-		●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	01	1	1011-1102		●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	01	1	1103-1107	●	●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	01	1	1108-1306	●	●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	01	1	1108-1306		●
139	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
139	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	02	1	1011-1102		●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	02	1	1103-1306	●	●
139	BOLT; BRKT (F) M8X30 FLANGE	0-28650-830-0	04	1	1307-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1011-1102		●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1103-1306	●	●
139	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1307-	●	●
139	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1011-1102		●
139	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1103-1306	●	●
139	BOLT; BRKT (H) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M8X65 FLANGE	1-09044-072-1	01	1	1011-1102		●
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M8X65 FLANGE	1-09044-072-1	01	1	1103-		●
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) M8X65 FLANGE	1-09044-072-1	01	1	1103-	●
150	BOLT; CLIP (B) M6X20 FLANGE	0-28050-620-0	02	1	1011-1102		●
150	BOLT; CLIP (B) M6X20 FLANGE	0-28050-620-0	02	1	1103-	●	●
150	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	01	1	1011-1102		●
150	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	01	1	1103-	●	●
150	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1011-1102		●
150	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1103-1306	●	●
150	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE	0-28050-812-0	01	1	1011-1102		●
150	BOLT; CLIP (C) M8X12 FLANGE	0-28050-812-0	01	1	1011-1102		●
150	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (C) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
150	BOLT; CLIP (C) M8X12 FLANGE	0-28050-812-0	01	1	1103-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1011-1102		●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1103-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1011-1107		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1108-1306		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1108-1306		●
219	NUT M8 FLANGE	0-91180-108-0	05	1	1011-1306		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1108-		●
242	BOLT; BRKT,HARNESS (A) M8X25 FLANGE	0-28650-825-0	01	1	1011-1102		●
242	BOLT; BRKT,HARNESS (A) M8X25 FLANGE	0-28650-825-0	01	1	1103-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1011-1102		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1103-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1103-1306	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1103-1306	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1307-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1011-1102		●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1103-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	1307-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1011-1306		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1011-1306		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1011-1102		●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1103-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1307-	●	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1011-1102		●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1103-1306	●	●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1011-1306		●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1103-1306	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1103-1306	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1011-1102		●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1103-1306	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1307-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1011-1102		●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1103-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1108-1306		●
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	04	1	1011-1102		●
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	04	1	1103-	●	●
524	NUT; HARNESS (A) M10 FLANGE	0-91180-110-0	01	1	1011-1102		●
524	NUT; HARNESS (A) M10 FLANGE	0-91180-110-0	01	1	1103-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1011-1102		●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-1306	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1103-1306	●	●
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1011-1102		●
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1103-1107	●	●
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1108-	●	●
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1108-		●

428 428 335 324 137 137 312 312 137 137 137 137 246

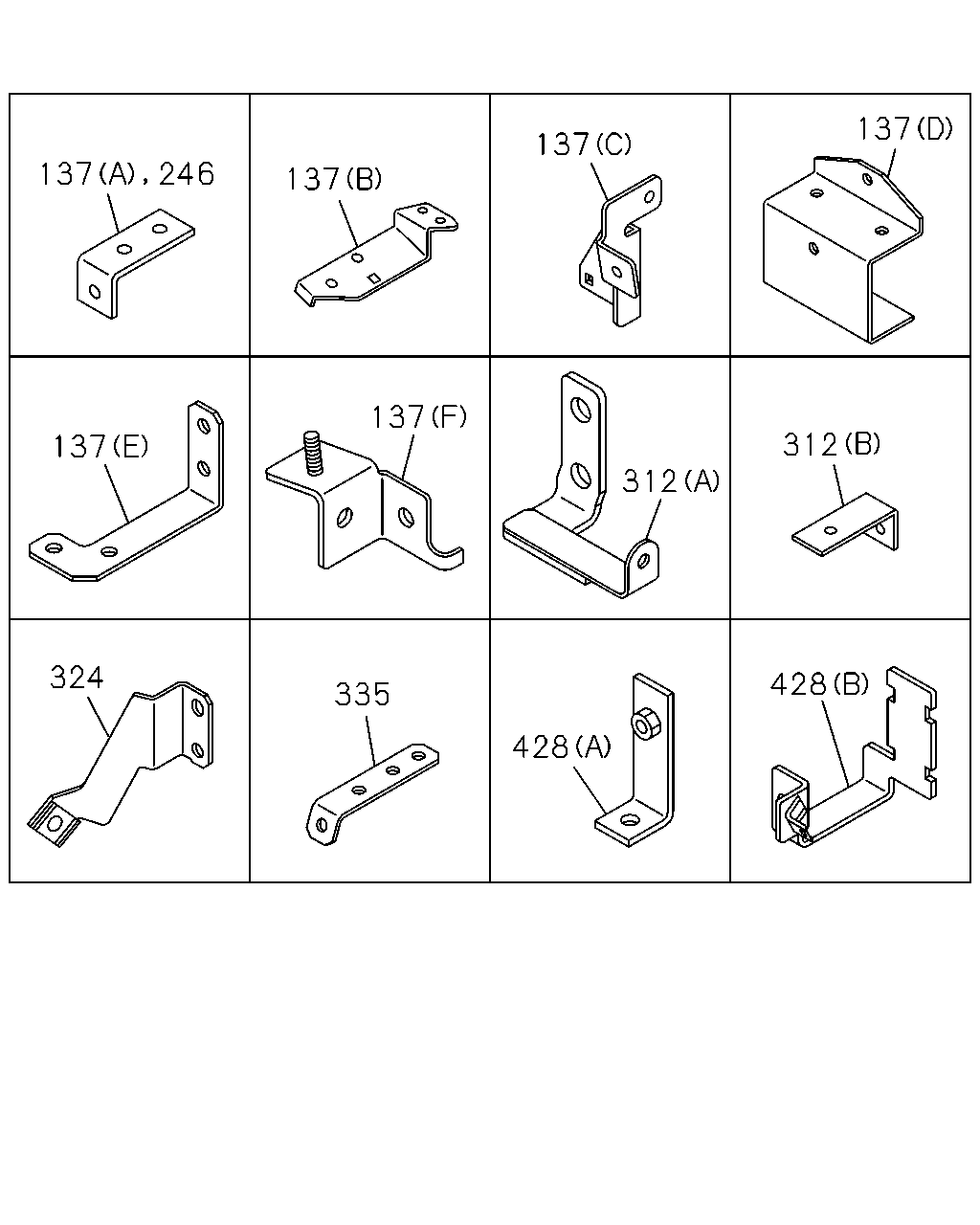

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (F)	8-98097-516-0	01	1	1307-	●
137	BRACKET; HARNESS CLAMP (E)	8-98244-722-0	01	1	1307-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-98085-819-0	01	1	1103-	●
137	BRACKET; HARNESS CLAMP (A) L=62	1-21464-170-2	01	1	1011-		●
137	BRACKET; HARNESS CLAMP (B)	8-97616-565-1	01	1	1011-		●
137	BRACKET; HARNESS CLAMP (D)	8-97609-797-1	02	1	1307-	●	●
246	BRACKET; CLIP,SPD SENSOR L=62	1-21464-170-2	01	1	1011-1102		●
246	BRACKET; CLIP,SPD SENSOR L=62	1-21464-170-2	01	1	1103-1306	●	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1011-1102		●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1103-1306	●	●
312	BRACKET; CLIP HARNESS (A)	8-98094-804-0	01	1	1011-1102		●
312	BRACKET; CLIP HARNESS (A)	8-98094-804-0	01	1	1103-	●	●
324	BRACKET; CLIP	8-98209-752-0	01	1	1307-	●	●
324	BRACKET; CLIP	8-98232-424-0	01	1	1307-	●	●
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1011-1102		●
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1103-1306	●	●
428	BRACKET (A)	1-47475-519-0	01	1	1011-1306		●
428	BRACKET (B)	8-98116-461-0	01	1	1011-1102		●
428	BRACKET (B)	8-98116-461-0	01	1	1103-1306	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
