◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#70983) — 742 parça

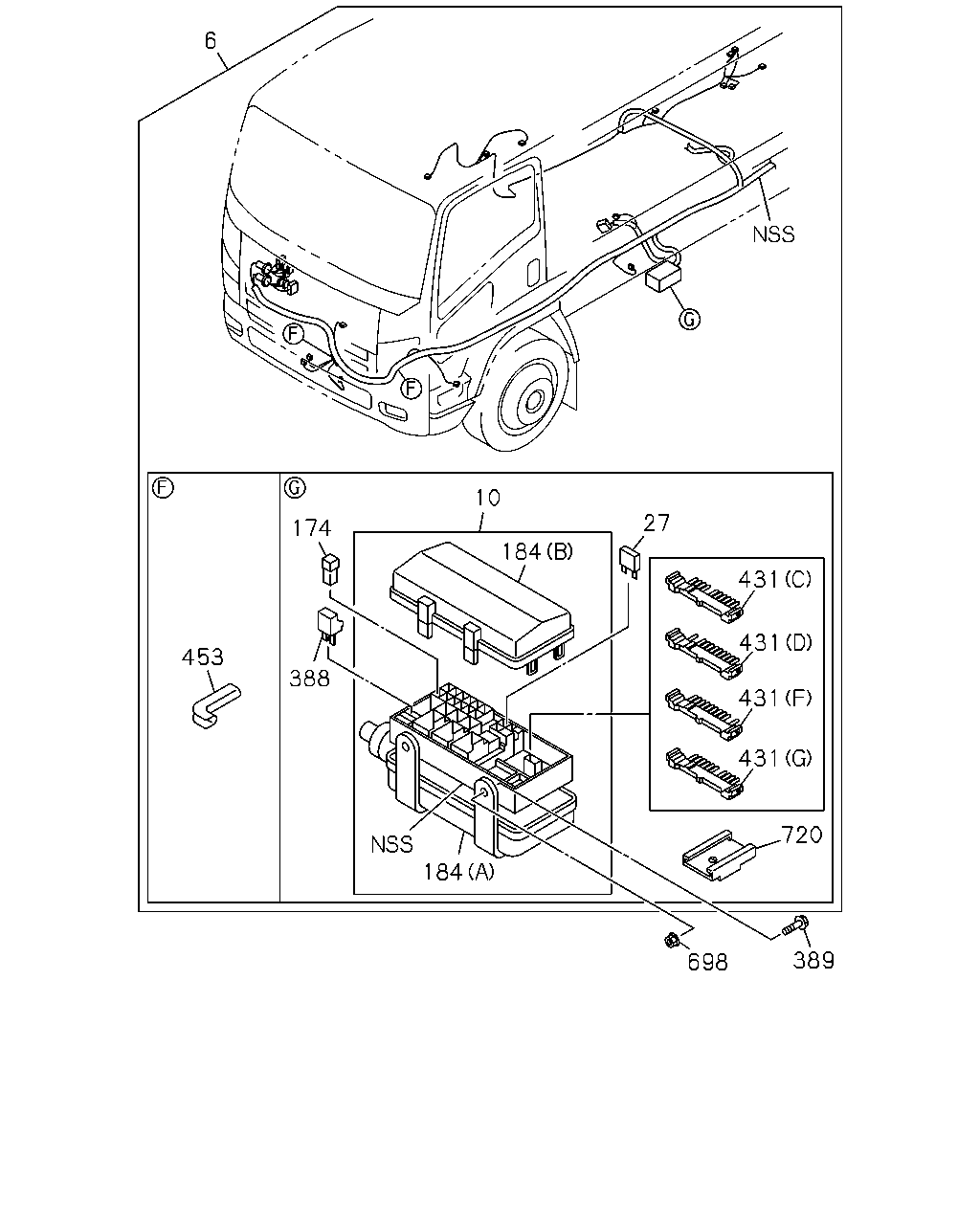

çizim 135983
6 453 174 388 10 184 184 27 431 431 431 431 720 389 698
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME 8-98118-103-1 01 1 1103-1306 ●
6 HARNESS; FRAME 8-98231-828-1 01 1 1307- ●
6 HARNESS; FRAME 8-98174-419-0 01 1 1011-1107 ●
6 HARNESS; FRAME 8-98185-102-1 01 1 1108-1306 ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) 		8-98231-827-1 01 1 1307- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1011-1102 ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1103- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1011-1102 ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1103- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1011-1102 ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1103-1306 ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1307- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1107-1107 ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-1107 ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1108- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1011-1102 ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1103- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1011-1102 ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1103- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1011-1102 ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1103- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1011-1102 ●
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1103- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1011-1102 ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1103- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 1011-1102 ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1103- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1011-1102 ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1103- ● ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1011-1102 ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1103-1306 ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1103-1306 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 1103-1306 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1011-1306 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1011-1102 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1103-1306 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1011-1306 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1103-1306 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1011-1102 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1103-1206 ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1011-1102 ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1103-1206 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1103- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1103- ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1103-1306 ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1307- ●
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1011-1306 ●
453 PROTECTOR; HARNESS
WHEEL BASE 3700MM(37W) 		1-82699-709-0 03 1 1307- ●
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1011-1102 ●
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1103-1306 ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1011-1102 ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1103- ● ●
çizim 136307
1 2 2 314 431 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-533-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-534-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-535-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-536-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98208-094-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-094-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98232-285-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-093-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-093-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98232-287-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98208-096-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-096-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-289-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-289-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-095-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-095-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> 		8-98189-098-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98189-098-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98208-112-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-112-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98189-099-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98189-099-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98208-113-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-113-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-937-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-284-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-284-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-936-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-286-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-286-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-939-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-288-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-288-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-938-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> 		8-98224-952-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> 		8-98224-953-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98179-165-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-165-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98179-166-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-166-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1110-1203 ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1011-1102 ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1103- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1011-1102 ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1103- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1011-1102 ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1103-1206 ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1103-1306 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 1103-1306 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1011-1306 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1011-1102 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1103-1306 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1011-1306 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1103-1306 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1011-1102 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1103-1206 ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1011-1102 ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1103-1206 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1103- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1103- ● ●

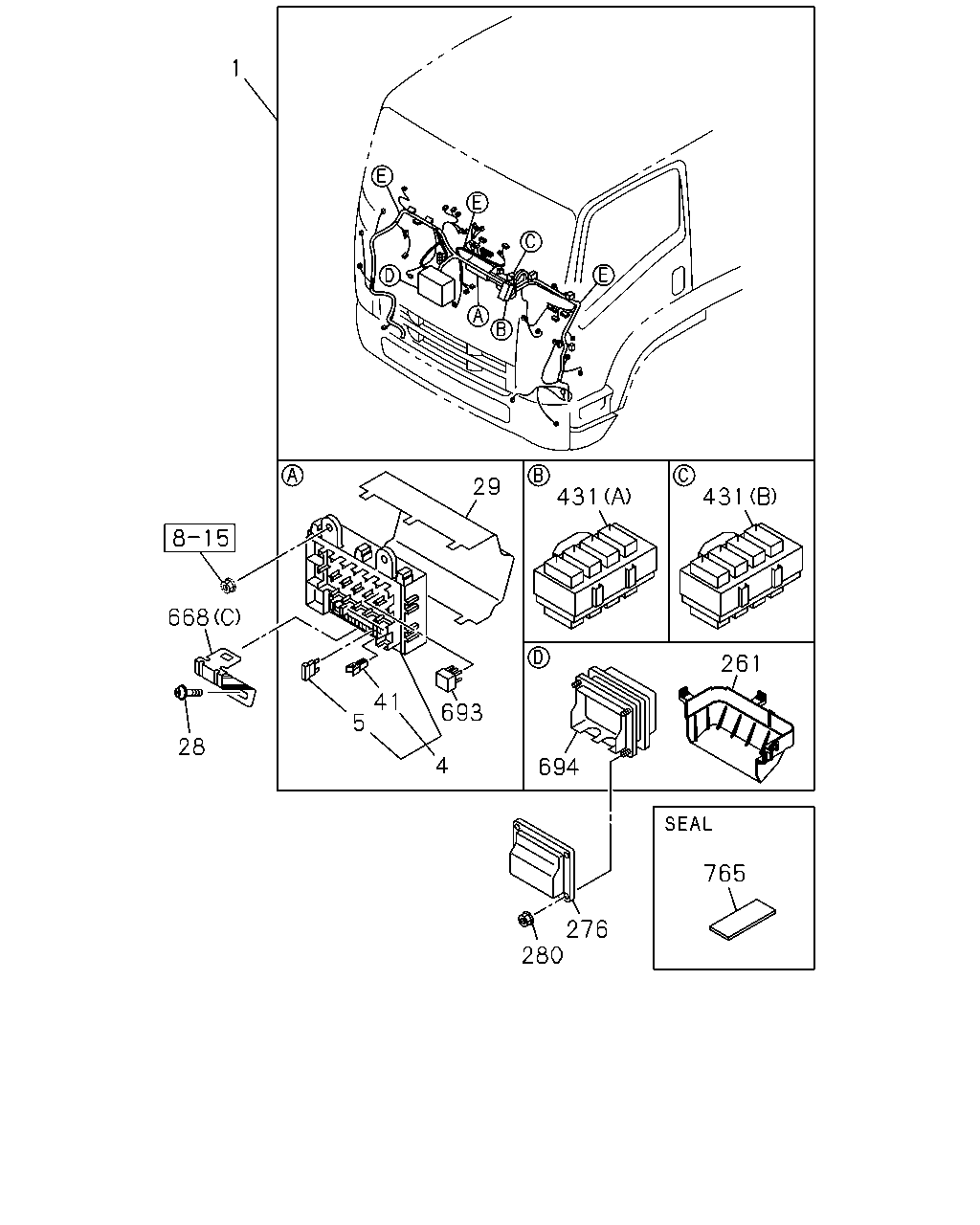

çizim 136376
1 668 28 29 693 4 41 5 431 694 276 280 765 261 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-533-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-534-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-535-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-536-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98208-094-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-094-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98232-285-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-093-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-093-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98232-287-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98208-096-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-096-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-289-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-289-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-095-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-095-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> 		8-98189-098-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98189-098-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98208-112-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-112-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98189-099-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98189-099-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98208-113-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-113-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-937-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-284-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-284-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-936-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-286-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-286-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-939-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-288-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-288-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-938-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> 		8-98224-952-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> 		8-98224-953-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98179-165-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-165-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98179-166-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-166-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1110-1203 ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1011-1102 ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1103- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1011-1102 ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1103- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1011-1102 ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1103- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1011-1102 ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1103- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1011-1102 ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1103- ● ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1011-1102 ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1103- ●
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1103- ●
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE 		0-28650-616-0 01 1 1011-1102 ●
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE 		0-28650-616-0 01 1 1103-1306 ●
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE 		0-28650-616-0 01 1 1103-1306 ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1011-1102 ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1103- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1011-1102 ●
41 PULLER; FUSE 8-98054-260-0 01 1 1103- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1207- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1011-1102 ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1103- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1011-1102 ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1103- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 1103-1306 ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 03 1 1103-1306 ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1011-1306 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1011-1102 ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1103-1306 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1011-1306 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1103-1306 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1011-1102 ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1103-1206 ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1011-1102 ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1103-1206 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1103- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1011-1102 ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1103- ● ●

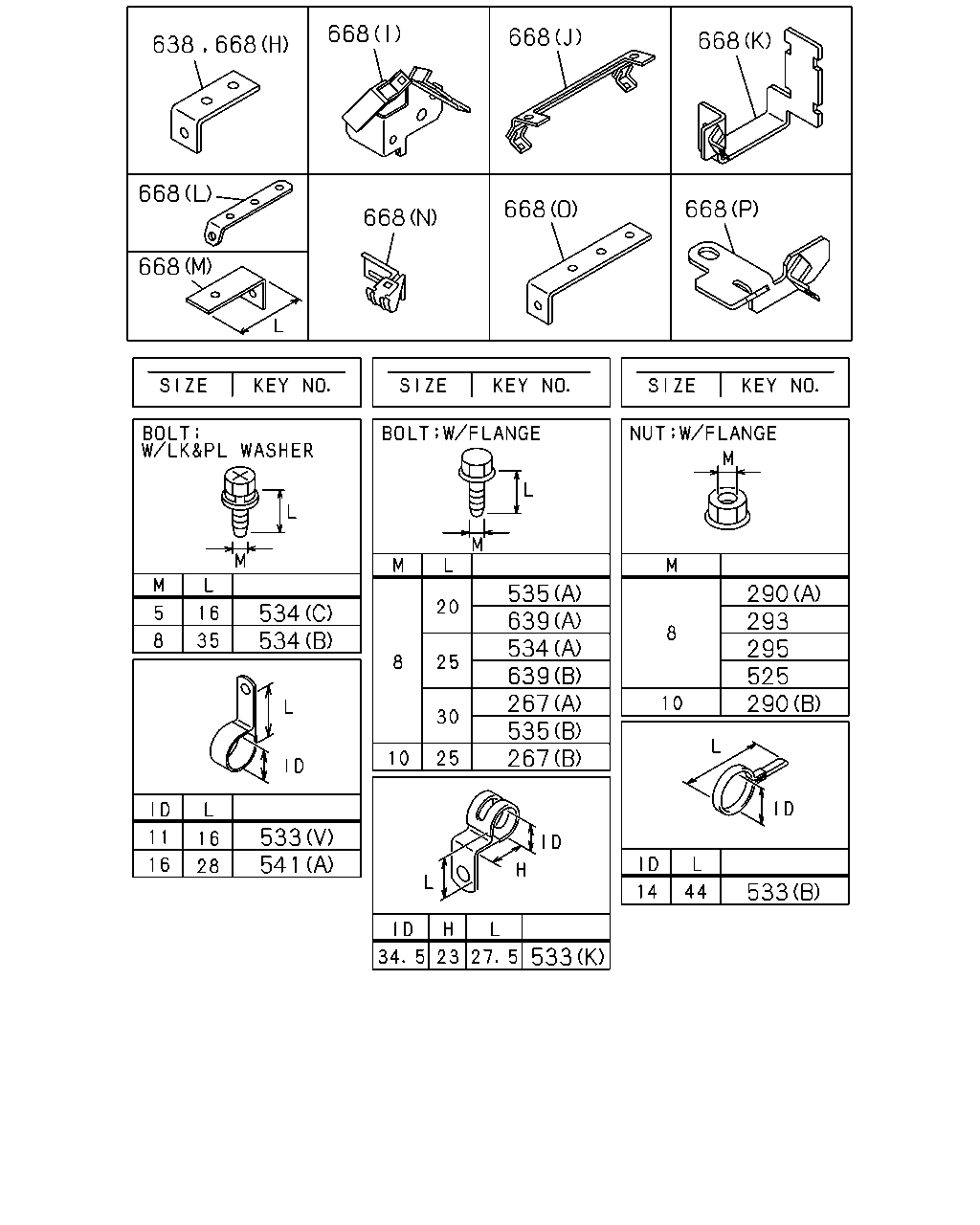

668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
(O) 		1-47479-630-1 01 1 1307- ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(M) L=90 		1-47475-519-0 01 1 1307- ●
668 BRACKET; HARNESS
(H) 		8-97616-305-0 01 1 1307-1502 ● ●
668 BRACKET; HARNESS
(P) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(I) 		8-97622-828-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(J) 		8-98047-276-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98116-461-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1103-1408 ● ●
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409- ● ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1011-1102 ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1103-1306 ● ●
668 BRACKET; HARNESS
(M) L=55 		1-47475-304-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1103- ● ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1103- ● ●

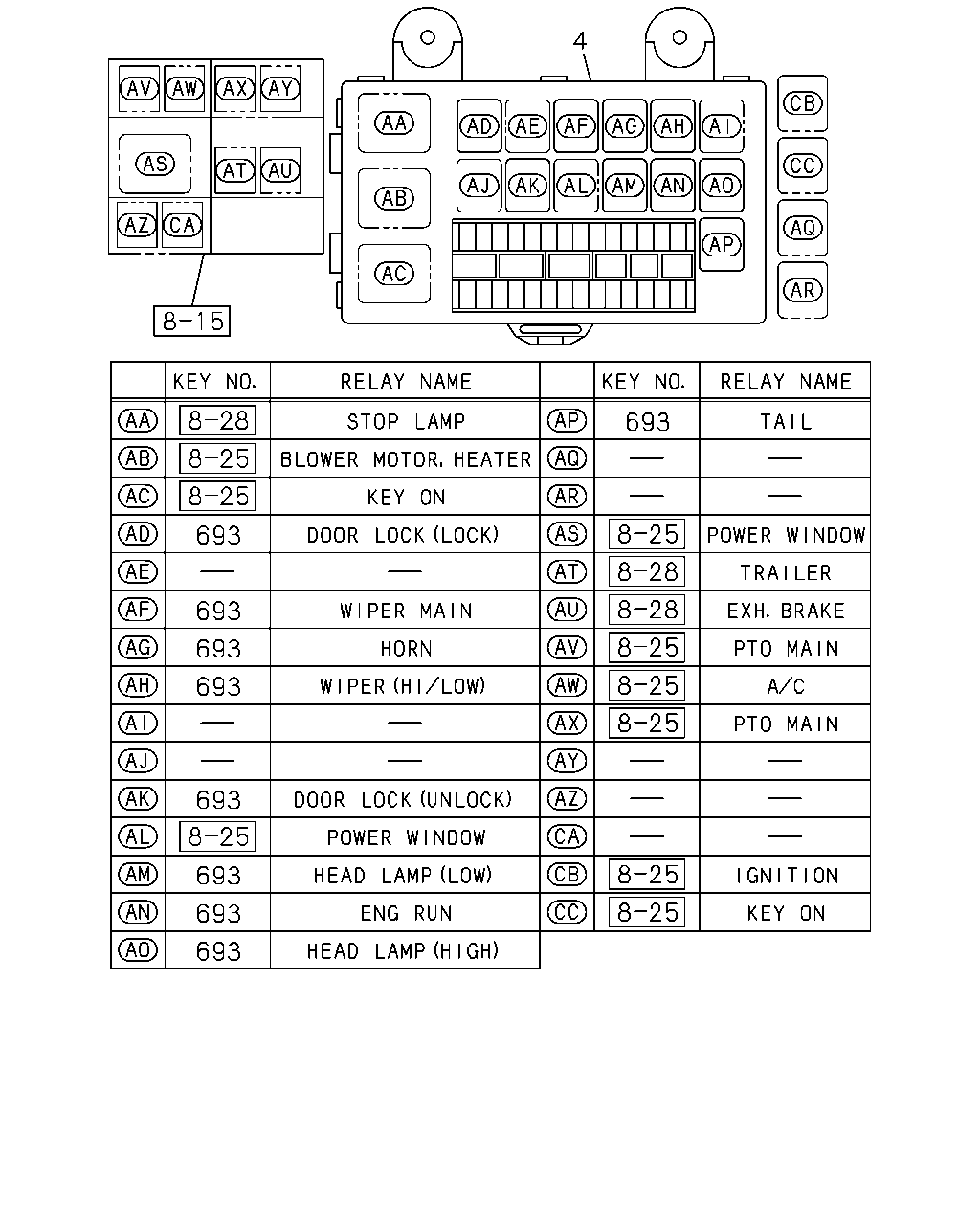

693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1011-1102 ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1103- ● ●
694 BOX ASM; CONNECTOR 8-98063-269-0 01 1 1011-1102 ●
694 BOX ASM; CONNECTOR 8-98063-269-0 01 1 1103-1206 ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1207- ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409- ● ●

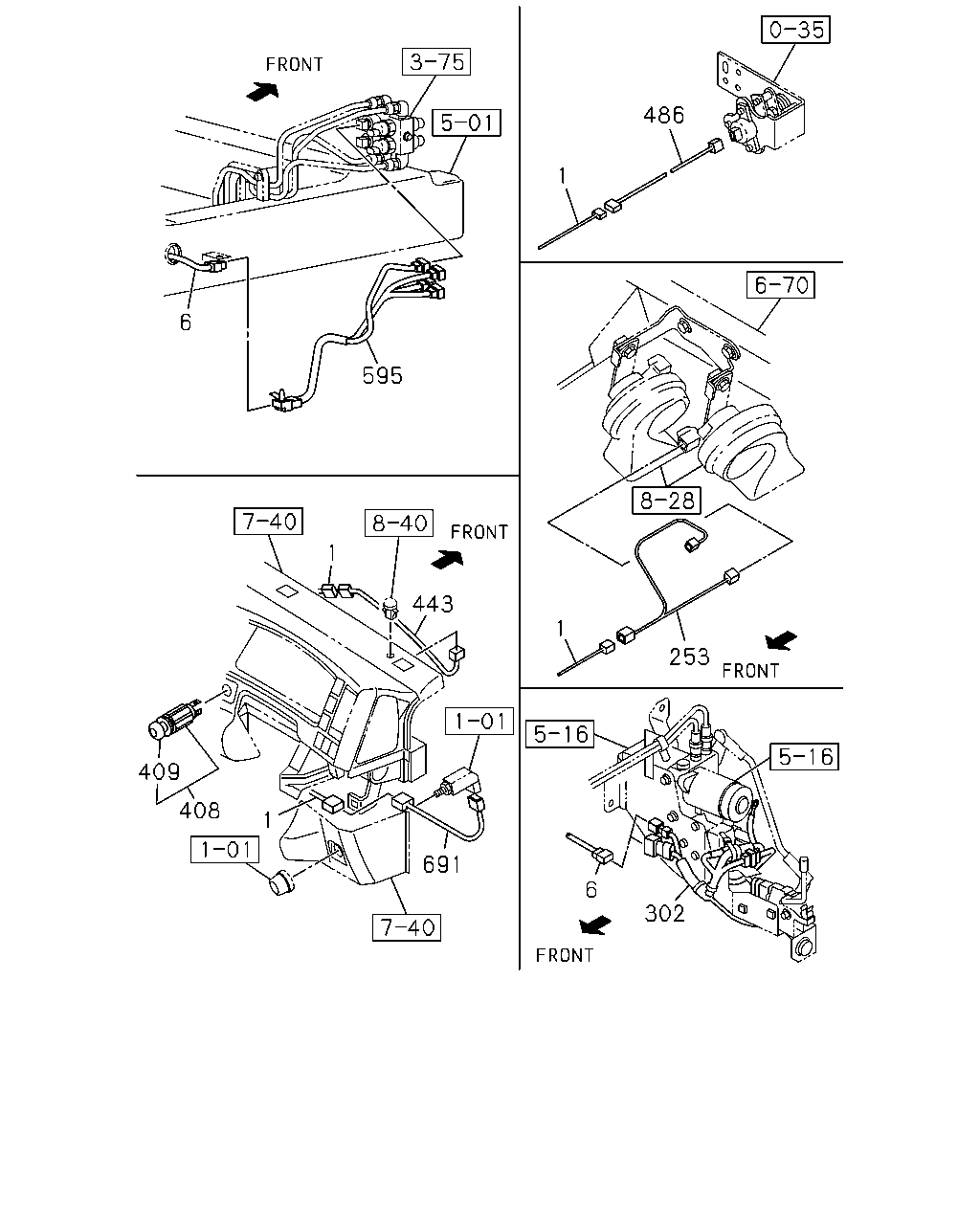

çizim 136595
302 6 253 1 691 1 408 409 443 595 6 486 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-533-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-534-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-535-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-536-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98208-094-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-094-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98232-285-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-093-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-093-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98232-287-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98208-096-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-096-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-289-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-289-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-095-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-095-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> 		8-98189-098-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98189-098-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98208-112-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-112-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98189-099-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98189-099-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98208-113-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-113-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-937-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-284-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-284-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-936-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-286-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-286-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-939-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-288-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-288-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-938-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> 		8-98224-952-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> 		8-98224-953-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98179-165-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-165-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98179-166-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-166-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1110-1203 ●
6 HARNESS; FRAME 8-98118-103-1 01 1 1103-1306 ●
6 HARNESS; FRAME 8-98231-828-1 01 1 1307- ●
6 HARNESS; FRAME 8-98174-419-0 01 1 1011-1107 ●
6 HARNESS; FRAME 8-98185-102-1 01 1 1108-1306 ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) 		8-98231-827-1 01 1 1307- ●
253 HARNESS; EXT,HORN 8-98074-081-1 01 1 1011-1102 ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1103- ● ●
302 HARNESS; POWER CAB TILT 8-97622-116-0 01 1 1103- ●
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1307- ● ●
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1307- ● ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1011- ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-82675-898-0 01 1 1011-1102 ●
486 HARNESS; ALL SPEED ACCEL
POWER TAKE OFF-FLYWHEEL(6SZ) 		1-82675-898-0 01 1 1011-1102 ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-82675-898-0 01 1 1103-1306 ● ●
486 HARNESS; ALL SPEED ACCEL
POWER TAKE OFF-FLYWHEEL(6SZ) 		1-82675-898-0 01 1 1103-1306 ● ●
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-82675-898-0 01 1 1307- ● ●
486 HARNESS; ALL SPEED ACCEL
POWER TAKE OFF-FLYWHEEL(6SZ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1307- ● ●
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1011-1102 ●
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1103- ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1011-1102 ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1103- ● ●

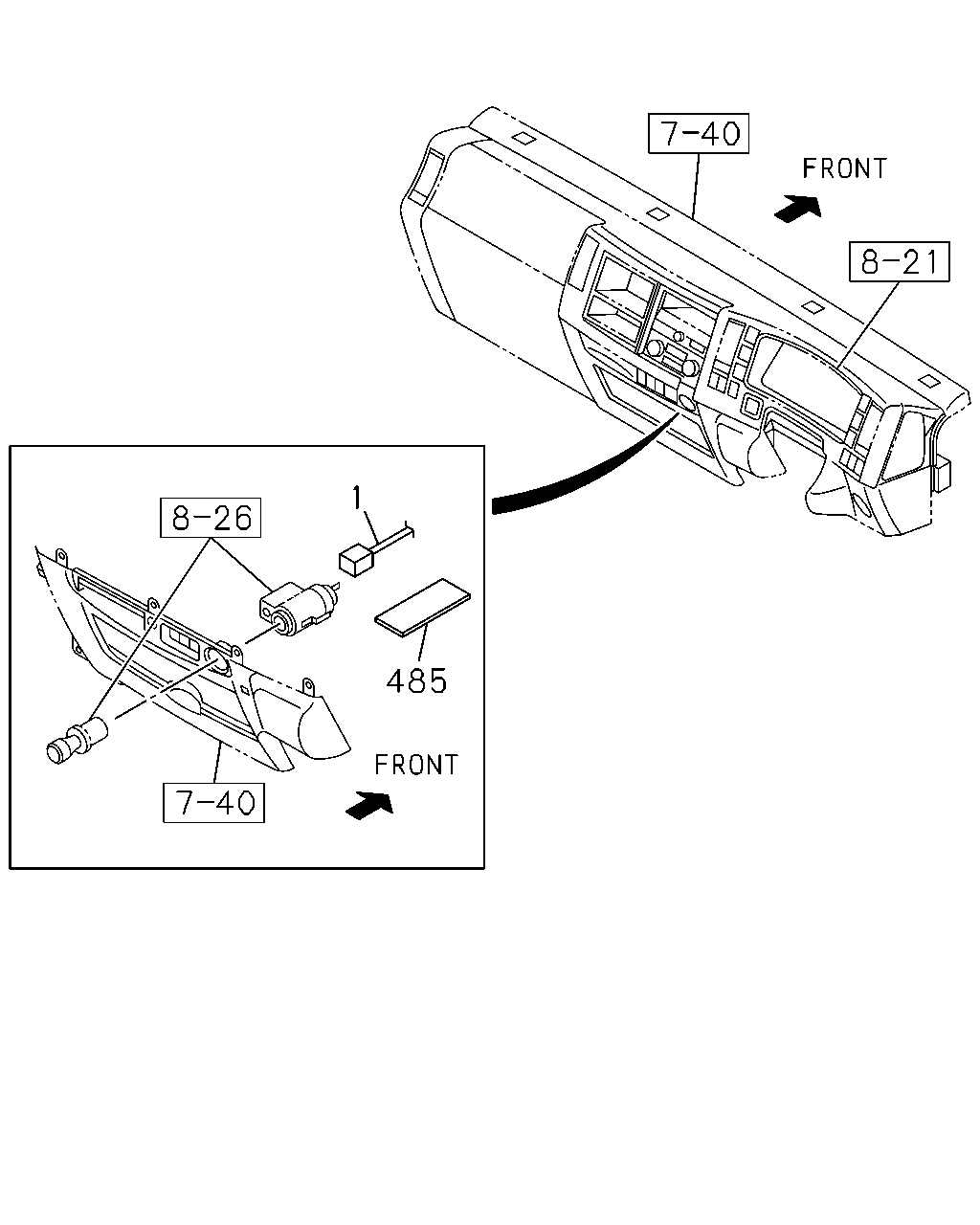

çizim 136607
1 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-533-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-534-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-535-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ANTI SKID BRK SYSTEM<SFL> 		8-98297-536-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-921-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98187-921-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98208-094-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-094-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98232-285-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-920-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-093-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-093-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98232-287-0 01 1 1307- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> 		8-98187-924-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98187-924-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98208-096-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-096-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-289-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-289-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-923-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98208-095-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98208-095-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> IN HOUSE PRODUCTION<TKF> 		8-98189-098-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98189-098-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98208-112-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-112-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> IN HOUSE PRODUCTION<TKF> 		8-98189-099-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98189-099-0 01 1 1204-1206 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98208-113-0 01 1 1207-1209 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. VIN MODEL YEAR 2013<VZD> 		8-98208-113-0 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-937-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-284-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-284-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-936-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-286-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-286-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> 		8-98224-939-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98232-288-0 01 1 1307-1411 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ANTI SKID BRK SYSTEM<SFL> 		8-98232-288-0 01 1 1412- ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-938-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> VIN MODEL YEAR 2013<VZD> 		8-98224-952-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> VIN MODEL YEAR 2013<VZD> 		8-98224-953-1 01 1 1210-1306 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> 		8-98179-165-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-165-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> 		8-98179-166-0 01 1 1103-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. IN HOUSE PRODUCTION<TKF> 		8-98179-166-0 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) 		8-98099-260-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-260-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-259-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-259-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) 		8-98099-257-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF> 		8-98099-257-1 01 1 1110-1203 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98099-256-1 01 1 1011-1109 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98099-256-1 01 1 1110-1203 ●
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1011-1102 ●
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1103-1306 ● ●
çizim 136741
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1011-1102 ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1103- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1011-1102 ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1103- ● ●

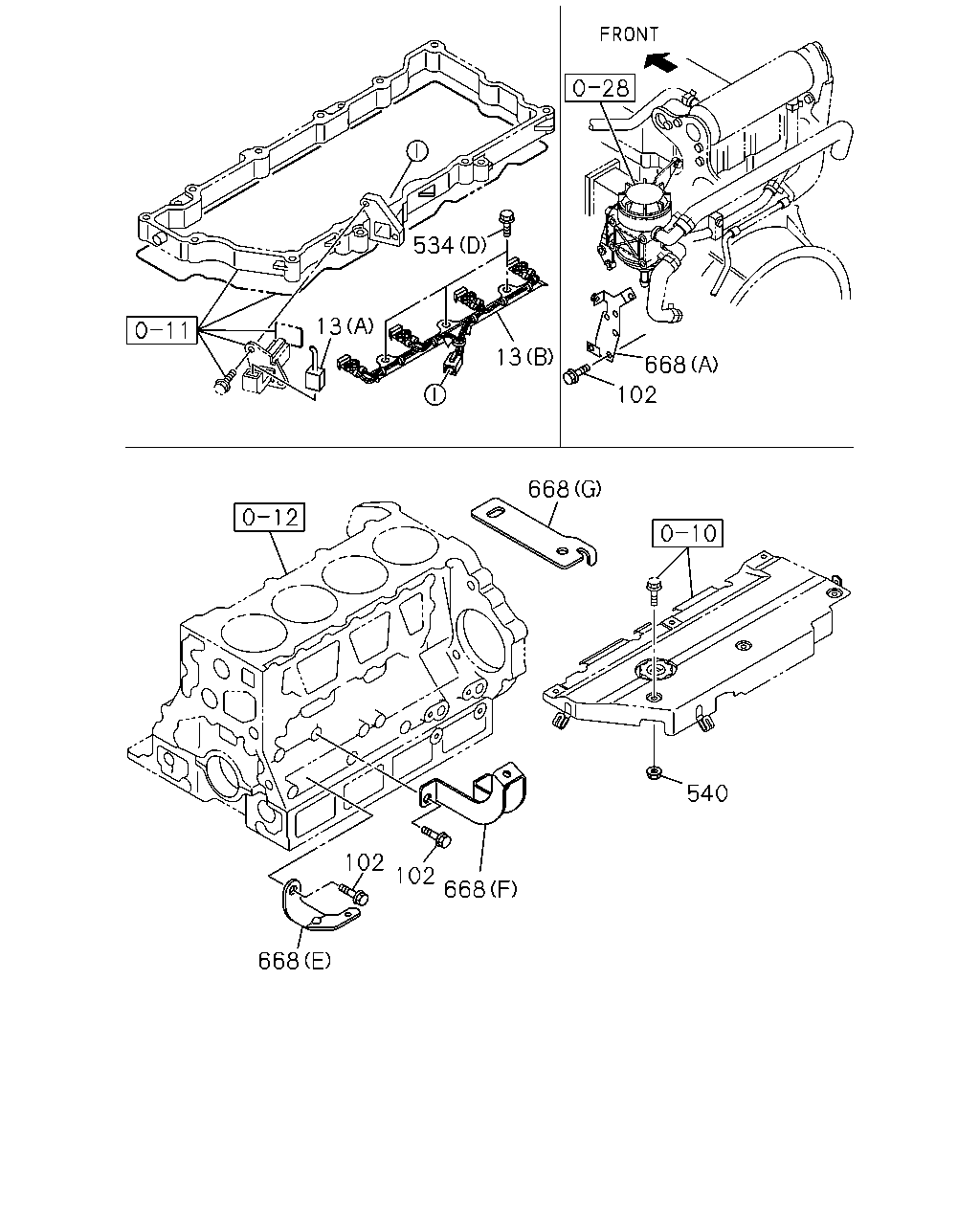

çizim 136776
13 13 102 668 668 540 668 102 668 534 102
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-319-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-050-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98171-703-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-046-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-318-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-049-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98171-702-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-045-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98178-171-1 01 1 1011-1405 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-042-0 01 1 1406- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98178-170-1 01 1 1011-1405 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-041-0 01 1 1406- ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1011-1102 ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1103- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-316-0 01 1 1011-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-047-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-317-0 01 1 1011-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-048-0 01 1 1407- ●
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1011-1102 ●
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1103- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1011-1102 ●
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1103- ● ●
534 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1307- ●
534 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 05 1 1307- ●
534 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1307- ● ●
534 BOLT
(C) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1307- ●
534 BOLT
(D) M10X55 FLANGE 		8-97365-449-0 03 1 1011-1102 ●
534 BOLT
(D) M10X55 FLANGE 		8-97365-449-0 03 1 1103- ● ●
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 1011-1102 ●
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 1103- ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
(O) 		1-47479-630-1 01 1 1307- ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(M) L=90 		1-47475-519-0 01 1 1307- ●
668 BRACKET; HARNESS
(H) 		8-97616-305-0 01 1 1307-1502 ● ●
668 BRACKET; HARNESS
(P) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(I) 		8-97622-828-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(J) 		8-98047-276-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98116-461-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1103-1408 ● ●
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409- ● ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1011-1102 ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1103-1306 ● ●
668 BRACKET; HARNESS
(M) L=55 		1-47475-304-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1103- ● ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1103- ● ●

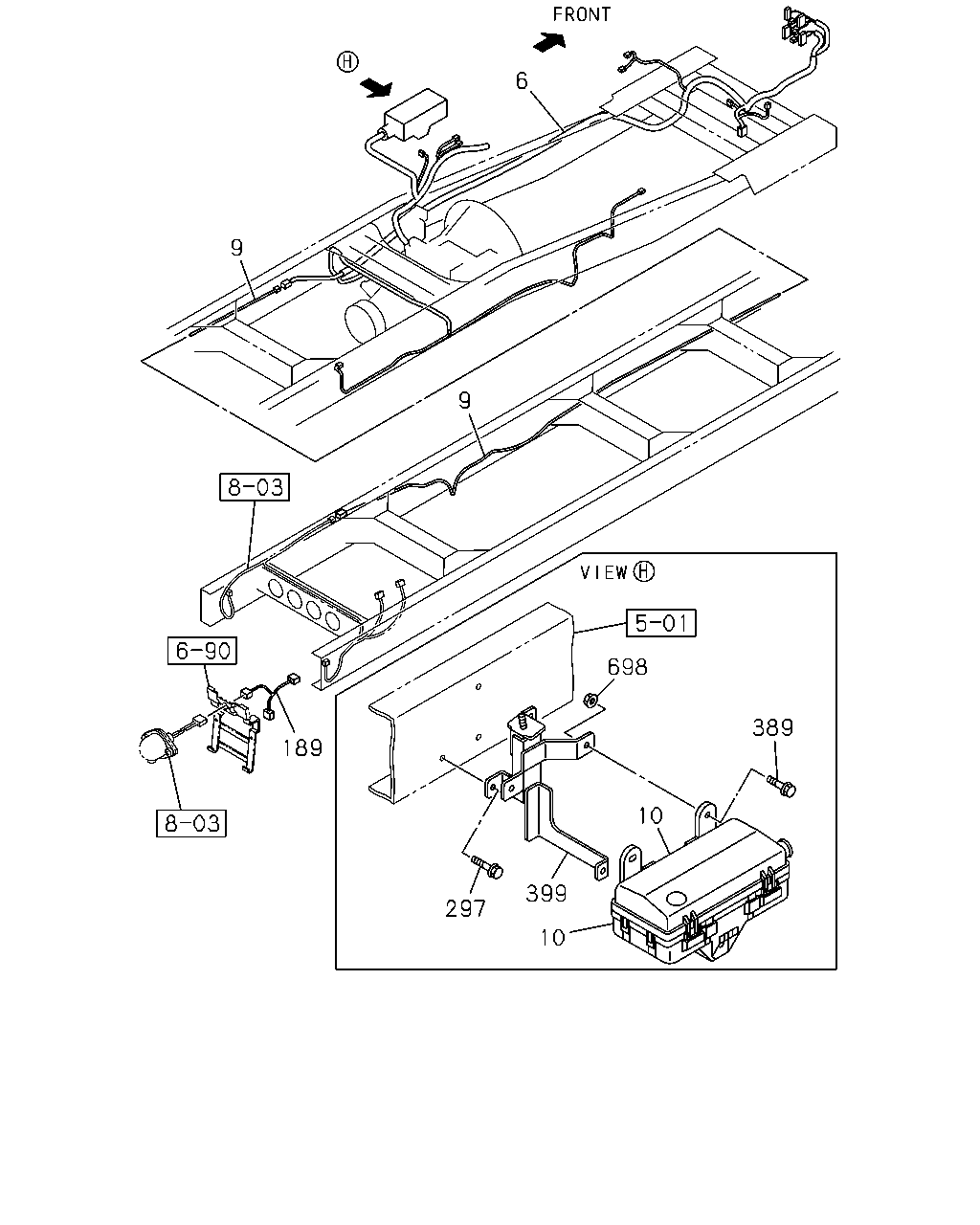

çizim 137075
698 389 10 399 10 297 189 9 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME 8-98118-103-1 01 1 1103-1306 ●
6 HARNESS; FRAME 8-98231-828-1 01 1 1307- ●
6 HARNESS; FRAME 8-98174-419-0 01 1 1011-1107 ●
6 HARNESS; FRAME 8-98185-102-1 01 1 1108-1306 ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) 		8-98231-827-1 01 1 1307- ●
9 HARNESS; FRAME,RR 8-98168-601-0 01 1 1103-1306 ●
9 HARNESS; FRAME,RR 8-98231-839-1 01 1 1307- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98168-587-0 01 1 1011-1306 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98231-838-1 01 1 1307- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1011-1102 ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1103- ● ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND<CX6> 		8-98131-066-0 01 1 1206- ●
189 HARNESS; EXT 8-98131-066-0 01 1 1206- ●
297 BOLT; BOX BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1103-1308 ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1011-1102 ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1103-1306 ● ●
399 BRACKET; BOX 8-98097-516-0 01 1 1103-1306 ●
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1011-1102 ●
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1103-1306 ● ●

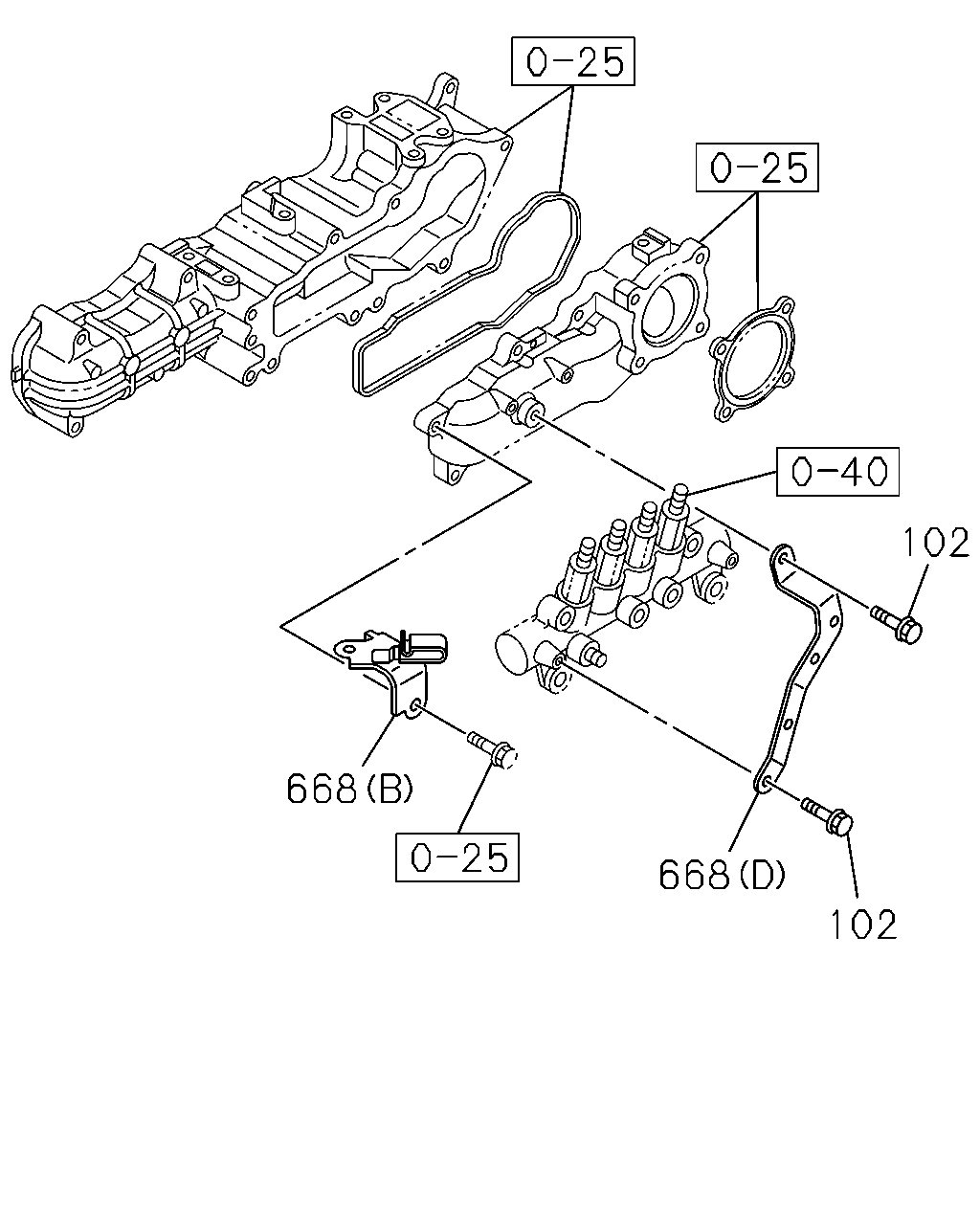

çizim 137090
102 668 102 668
BalonParca AdiParca NoAdetTipApplied Date A B
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1011-1102 ●
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 1103- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1011-1102 ●
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 1103- ● ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
(O) 		1-47479-630-1 01 1 1307- ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(M) L=90 		1-47475-519-0 01 1 1307- ●
668 BRACKET; HARNESS
(H) 		8-97616-305-0 01 1 1307-1502 ● ●
668 BRACKET; HARNESS
(P) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(I) 		8-97622-828-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(J) 		8-98047-276-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98116-461-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1103-1408 ● ●
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409- ● ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1011-1102 ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1103-1306 ● ●
668 BRACKET; HARNESS
(M) L=55 		1-47475-304-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1103- ● ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1103- ● ●

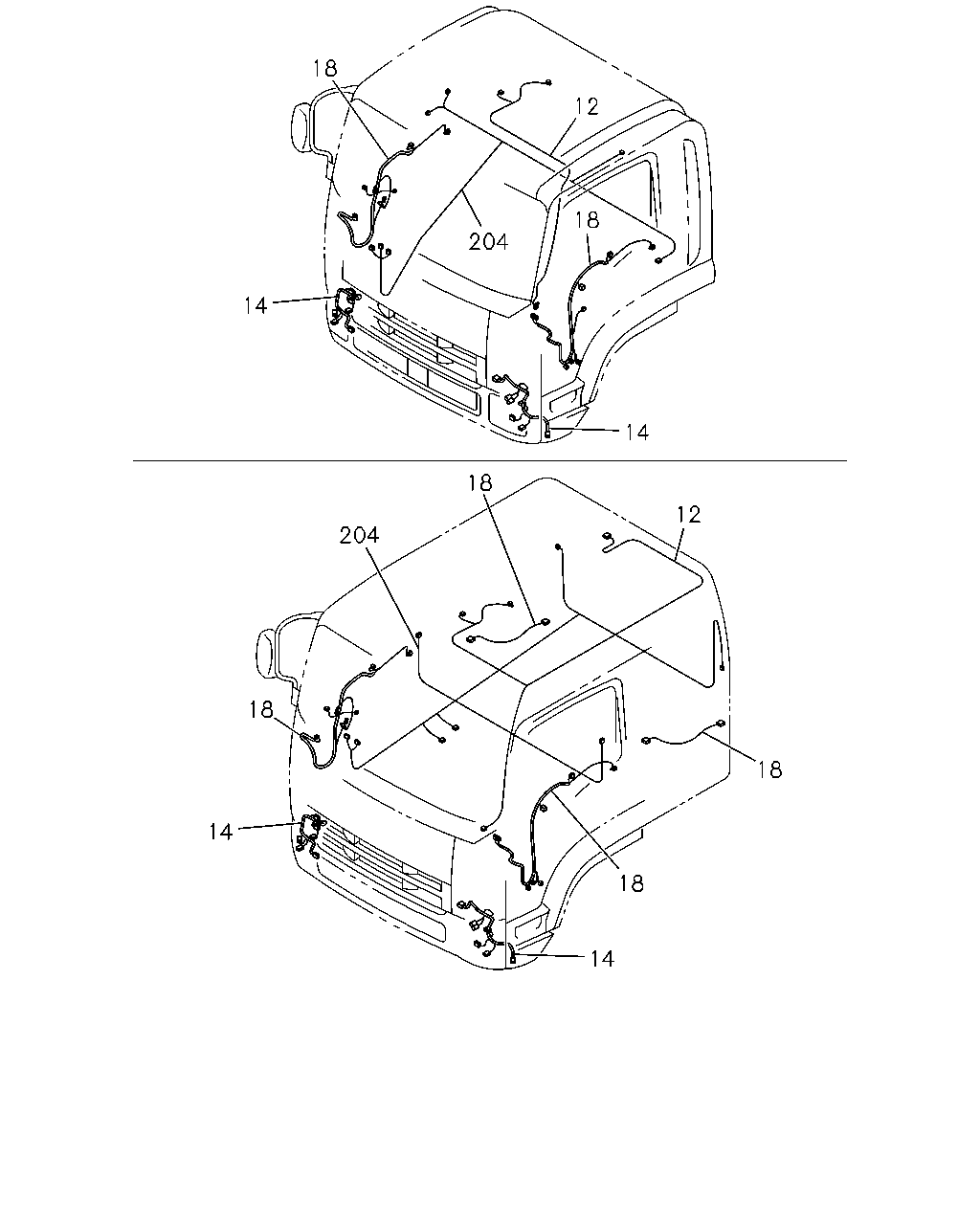

çizim 137205
12 14 18 12 204 18 14 18 18 18 204 18 14 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 8-98085-265-0 01 1 1103- ●
12 HARNESS; ROOF 8-98079-071-1 01 1 1011- ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97622-119-0 02 1 1011-1102 ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97622-119-0 02 1 1103- ● ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98100-021-0 02 1 1011-1102 ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98100-021-0 02 1 1103- ● ●
18 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 1103- ●
18 HARNESS; DOOR
FRONT 		8-98079-079-5 01 1 1011-1102 ●
18 HARNESS; DOOR
FRONT 		8-98079-079-5 01 1 1103-1202 ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98079-079-5 01 1 1203- ● ●
18 HARNESS; DOOR
FRONT 		8-98079-076-5 01 1 1011-1102 ●
18 HARNESS; DOOR
FRONT 		8-98079-076-5 01 1 1103-1202 ● ●
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT 		8-98079-076-5 01 1 1203- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3> 		8-98085-253-1 01 1 1103- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98085-255-1 01 1 1103- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98084-201-1 01 1 1011- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3> 		8-98084-196-2 01 1 1011- ●

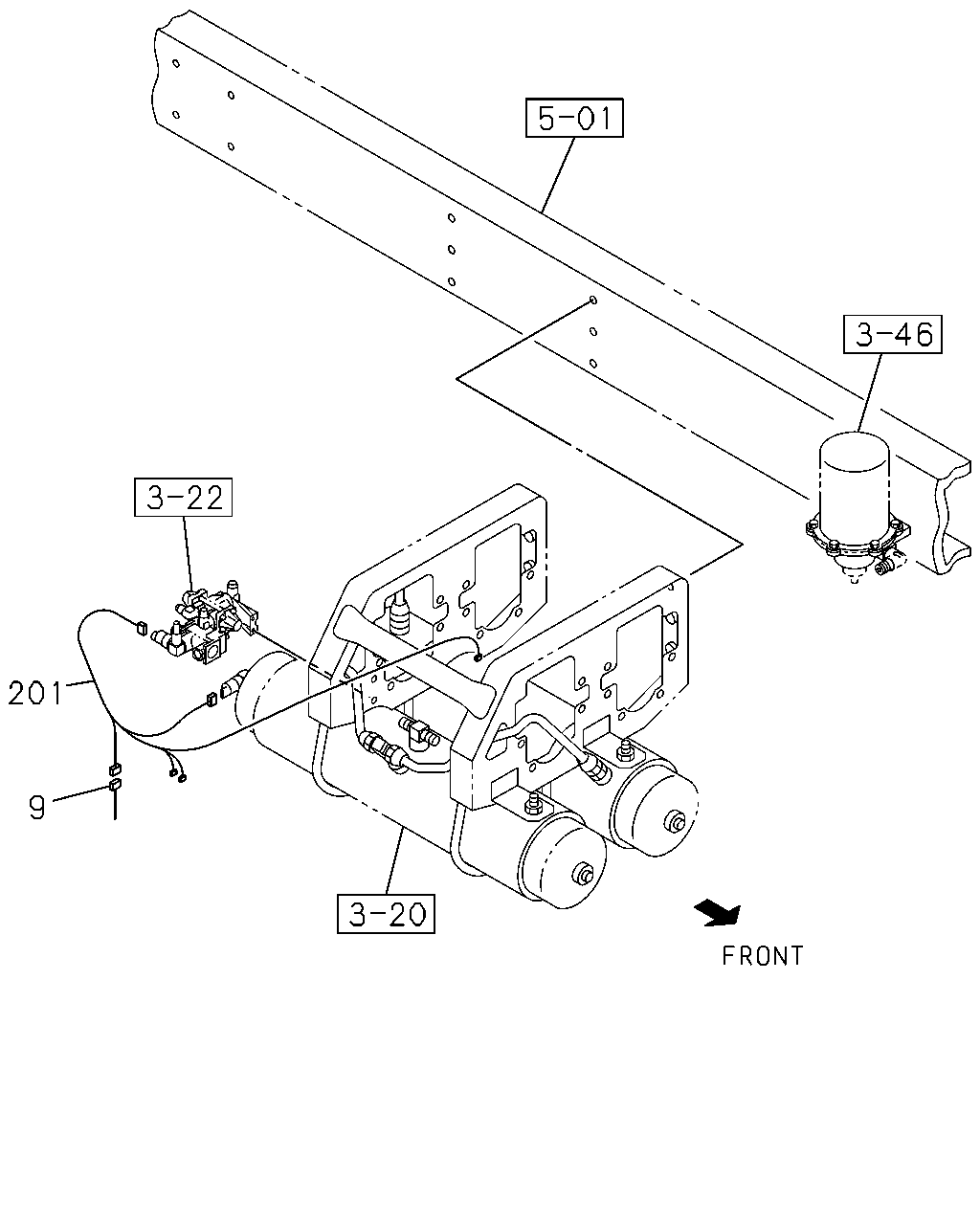

çizim 189174
201 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 HARNESS; FRAME,RR 8-98168-601-0 01 1 1103-1306 ●
9 HARNESS; FRAME,RR 8-98231-839-1 01 1 1307- ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98168-587-0 01 1 1011-1306 ●
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98231-838-1 01 1 1307- ●
201 HARNESS; AIR TANK 8-98074-482-3 01 1 1103-1306 ●
201 HARNESS; AIR TANK 8-98231-938-2 01 1 1307- ●
201 HARNESS; AIR TANK 8-98123-531-1 01 1 1011-1306 ●
201 HARNESS; AIR TANK 8-98231-939-2 01 1 1307- ●

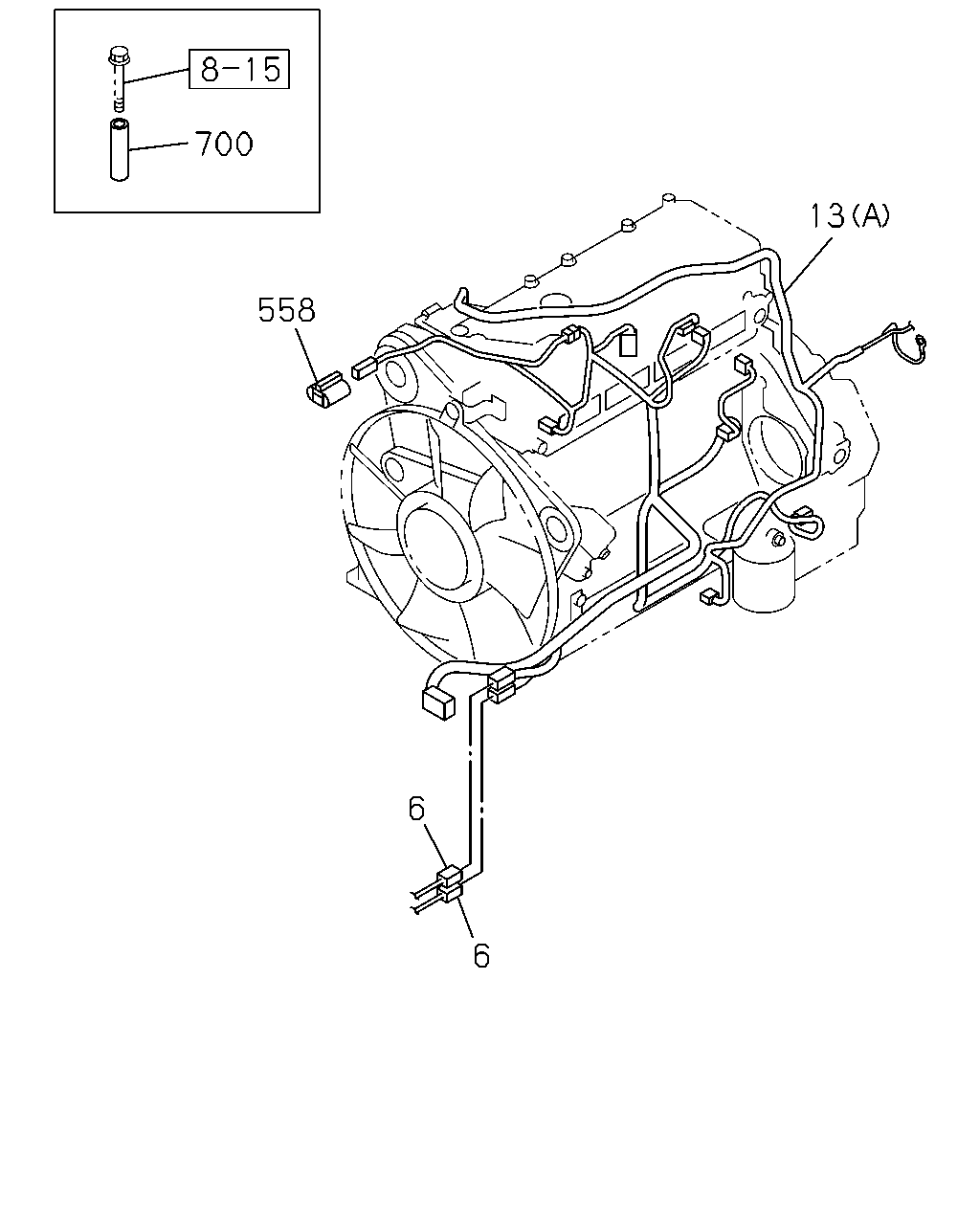

çizim 189176
700 13 558 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME 8-98118-103-1 01 1 1103-1306 ●
6 HARNESS; FRAME 8-98231-828-1 01 1 1307- ●
6 HARNESS; FRAME 8-98174-419-0 01 1 1011-1107 ●
6 HARNESS; FRAME 8-98185-102-1 01 1 1108-1306 ●
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) 		8-98231-827-1 01 1 1307- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-319-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-050-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98171-703-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-046-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-318-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-049-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98171-702-0 01 1 1103-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-045-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98178-171-1 01 1 1011-1405 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-042-0 01 1 1406- ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98178-170-1 01 1 1011-1405 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-041-0 01 1 1406- ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1011-1102 ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1103- ● ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-316-0 01 1 1011-1406 ●
13 HARNESS; ENG
GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-047-0 01 1 1407- ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98172-317-0 01 1 1011-1406 ●
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98274-048-0 01 1 1407- ●
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-82690-668-0 01 1 1011-1102 ●
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-82690-668-0 01 1 1103- ●
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 1103- ●
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=51 		1-11369-157-0 01 1 1011-1102 ●
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=51 		1-11369-157-0 01 1 1103- ●
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1103- ●
çizim 365226
638 668 668 668 668 668 668 668 668 668 534 534 533 541 535 639 534 639 267 535 267 290 293 295 525 290 533 533
BalonParca AdiParca NoAdetTipApplied Date A B
267 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1307- ●
267 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
267 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
267 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ● ●
267 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1307- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1307- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1307-1310 ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 1307-1310 ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1311- ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1307-1310 ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1311- ●
533 CLIP
(E) ID=10 & 10 		1-09709-277-1 01 1 1307- ●
533 CLIP
(O) OD=9 H=6 		1-09709-178-0 02 1 1307- ● ●
533 CLIP
(J) L=250 		5-09707-030-1 04 1 1307- ● ●
533 CLIP
(V) ID=11 L=16 		0-95235-025-0 03 1 1307- ●
533 CLIP
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 1307- ●
533 CLIP
(J) L=250 		5-09707-030-1 03 1 1307- ●
533 CLIP
(A) ID=18 L=28 		1-09701-067-0 05 1 1307- ●
533 CLIP
(B) ID=14 L=44 		9-09917-427-0 09 1 1307- ● ●
533 CLIP
(C) ID=11 H=45 L=25 		1-09700-866-0 01 1 1307- ● ●
533 CLIP
(C) ID=11 H=45 L=25 		1-09700-866-0 01 1 1307- ●
533 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1307- ●
533 CLIP
(E) ID=10 & 10 		1-09709-277-1 04 1 1307- ●
533 CLIP
(F) ID=10 & 12 		1-09709-278-1 01 1 1307- ●
533 CLIP
(G) ID=10 & 15 		1-09709-279-1 01 1 1307- ●
533 CLIP
(H) ID=13-18 L=22 		1-09709-292-0 01 1 1307- ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307- ● ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307- ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (J) L=250 		5-09707-030-1 01 1 1307-1308 ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (J) L=250 		5-09707-030-1 01 1 1309- ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ●
533 CLIP
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307- ● ●
533 CLIP
(L) ID=35 L=50 		1-09701-214-0 01 1 1307- ● ●
533 CLIP
(M) L=600 		1-09707-107-1 01 1 1307- ● ●
533 CLIP
(N) L=250 		1-09707-126-0 02 1 1307- ● ●
533 CLIP
(O) OD=9 H=6 		1-09709-178-0 01 1 1307- ● ●
533 CLIP
(P) OD=9 H=9.5 		1-09709-179-0 01 1 1307- ● ●
533 CLIP
(Q) ID=5-12 L=18 		1-09709-287-0 02 1 1307- ● ●
533 CLIP
(R) L=135 		1-09987-143-1 01 1 1307- ● ●
533 CLIP
(B) ID=14 L=44 		9-09917-427-0 02 1 1307- ● ●
533 CLIP
(S) L=350 		1-09707-183-0 01 1 1307- ● ●
533 CLIP
(M) L=600 		1-09707-107-1 02 1 1307- ●
533 CLIP
(E) ID=10 & 10 		1-09709-277-1 03 1 1307- ●
533 CLIP
(F) ID=10 & 12 		1-09709-278-1 02 1 1307- ●
533 CLIP
(T) L=140 		5-09707-031-1 01 1 1307- ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (U) L=180 		1-09707-162-1 01 1 1206-1306 ●
533 CLIP
(U) L=180 		1-09707-162-1 01 1 1206-1306 ●
533 CLIP
(U) L=180 		1-09707-162-1 01 1 1307- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (U) L=180 		1-09707-162-1 01 1 1307- ●
533 CLIP
(U) L=180 		1-09707-162-1 01 1 1307- ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (J) L=250 		5-09707-030-1 01 1 1206-1306 ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1206-1306 ●
533 CLIP
(J) L=250 		5-09707-030-1 05 1 1307- ●
534 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1307- ●
534 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 05 1 1307- ●
534 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ● ●
534 BOLT
(B) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1307- ● ●
534 BOLT
(C) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1307- ●
534 BOLT
(D) M10X55 FLANGE 		8-97365-449-0 03 1 1011-1102 ●
534 BOLT
(D) M10X55 FLANGE 		8-97365-449-0 03 1 1103- ● ●
535 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
535 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
541 CLIP
(A) ID=16 L=28 		0-95235-556-0 01 1 1307- ●
541 CLIP
(B) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
541 CLIP
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1307- ●
638 BRACKET; SPD SENSOR
L=62 		1-21464-170-2 01 1 1307- ● ●
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1308 ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1308 ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1307-1308 ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (N) 		8-98095-653-2 01 1 1307- ●
668 BRACKET; HARNESS
(O) 		1-47479-630-1 01 1 1307- ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(L) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(M) L=90 		1-47475-519-0 01 1 1307- ●
668 BRACKET; HARNESS
(H) 		8-97616-305-0 01 1 1307-1502 ● ●
668 BRACKET; HARNESS
(P) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(I) 		8-97622-828-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(J) 		8-98047-276-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98116-461-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 1103-1408 ● ●
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409- ● ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(B) 		8-98061-780-0 01 1 1103- ● ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1011-1102 ●
668 BRACKET; HARNESS
(C) 		8-98095-653-1 01 1 1103-1306 ● ●
668 BRACKET; HARNESS
(M) L=55 		1-47475-304-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
(D) 		8-98097-674-0 01 1 1103- ● ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1011-1102 ●
668 BRACKET; HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (G) 		8-98175-550-0 01 1 1103- ● ●
çizim 365261
533 533 533 533 533 533 533 533 533 533 548 542 542 533 533 533 541 533 533 533 541 533 533 541 533
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
(E) ID=10 & 10 		1-09709-277-1 01 1 1307- ●
533 CLIP
(O) OD=9 H=6 		1-09709-178-0 02 1 1307- ● ●
533 CLIP
(J) L=250 		5-09707-030-1 04 1 1307- ● ●
533 CLIP
(V) ID=11 L=16 		0-95235-025-0 03 1 1307- ●
533 CLIP
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 1307- ●
533 CLIP
(J) L=250 		5-09707-030-1 03 1 1307- ●
533 CLIP
(A) ID=18 L=28 		1-09701-067-0 05 1 1307- ●
533 CLIP
(B) ID=14 L=44 		9-09917-427-0 09 1 1307- ● ●
533 CLIP
(C) ID=11 H=45 L=25 		1-09700-866-0 01 1 1307- ● ●
533 CLIP
(C) ID=11 H=45 L=25 		1-09700-866-0 01 1 1307- ●
533 CLIP
(D) ID=35 L=33 		1-09700-945-0 01 1 1307- ●
533 CLIP
(E) ID=10 & 10 		1-09709-277-1 04 1 1307- ●
533 CLIP
(F) ID=10 & 12 		1-09709-278-1 01 1 1307- ●
533 CLIP
(G) ID=10 & 15 		1-09709-279-1 01 1 1307- ●
533 CLIP
(H) ID=13-18 L=22 		1-09709-292-0 01 1 1307- ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307- ● ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307- ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ●
533 CLIP
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (J) L=250 		5-09707-030-1 01 1 1307-1308 ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1307-1308 ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ● ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (J) L=250 		5-09707-030-1 01 1 1309- ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1309- ●
533 CLIP
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307- ● ●
533 CLIP
(L) ID=35 L=50 		1-09701-214-0 01 1 1307- ● ●
533 CLIP
(M) L=600 		1-09707-107-1 01 1 1307- ● ●
533 CLIP
(N) L=250 		1-09707-126-0 02 1 1307- ● ●
533 CLIP
(O) OD=9 H=6 		1-09709-178-0 01 1 1307- ● ●
533 CLIP
(P) OD=9 H=9.5 		1-09709-179-0 01 1 1307- ● ●
533 CLIP
(Q) ID=5-12 L=18 		1-09709-287-0 02 1 1307- ● ●
533 CLIP
(R) L=135 		1-09987-143-1 01 1 1307- ● ●
533 CLIP
(B) ID=14 L=44 		9-09917-427-0 02 1 1307- ● ●
533 CLIP
(S) L=350 		1-09707-183-0 01 1 1307- ● ●
533 CLIP
(M) L=600 		1-09707-107-1 02 1 1307- ●
533 CLIP
(E) ID=10 & 10 		1-09709-277-1 03 1 1307- ●
533 CLIP
(F) ID=10 & 12 		1-09709-278-1 02 1 1307- ●
533 CLIP
(T) L=140 		5-09707-031-1 01 1 1307- ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (U) L=180 		1-09707-162-1 01 1 1206-1306 ●
533 CLIP
(U) L=180 		1-09707-162-1 01 1 1206-1306 ●
533 CLIP
(U) L=180 		1-09707-162-1 01 1 1307- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (U) L=180 		1-09707-162-1 01 1 1307- ●
533 CLIP
(U) L=180 		1-09707-162-1 01 1 1307- ●
533 CLIP
EXC. COUNTRY NEW ZEALAND<CX6> (J) L=250 		5-09707-030-1 01 1 1206-1306 ●
533 CLIP
(J) L=250 		5-09707-030-1 01 1 1206-1306 ●
533 CLIP
(J) L=250 		5-09707-030-1 05 1 1307- ●
541 CLIP
(A) ID=16 L=28 		0-95235-556-0 01 1 1307- ●
541 CLIP
(B) OD=9 H=6 		1-09709-178-0 01 1 1307- ●
541 CLIP
(C) ID=13-18 L=18 		1-09709-291-0 02 1 1307- ●
542 GROMMET; HARNESS
(A) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1307- ● ●
542 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1307- ● ●
548 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
