8-01 — LAMP; FRONT AND FRONT SIDE (#70980) — 144 parça

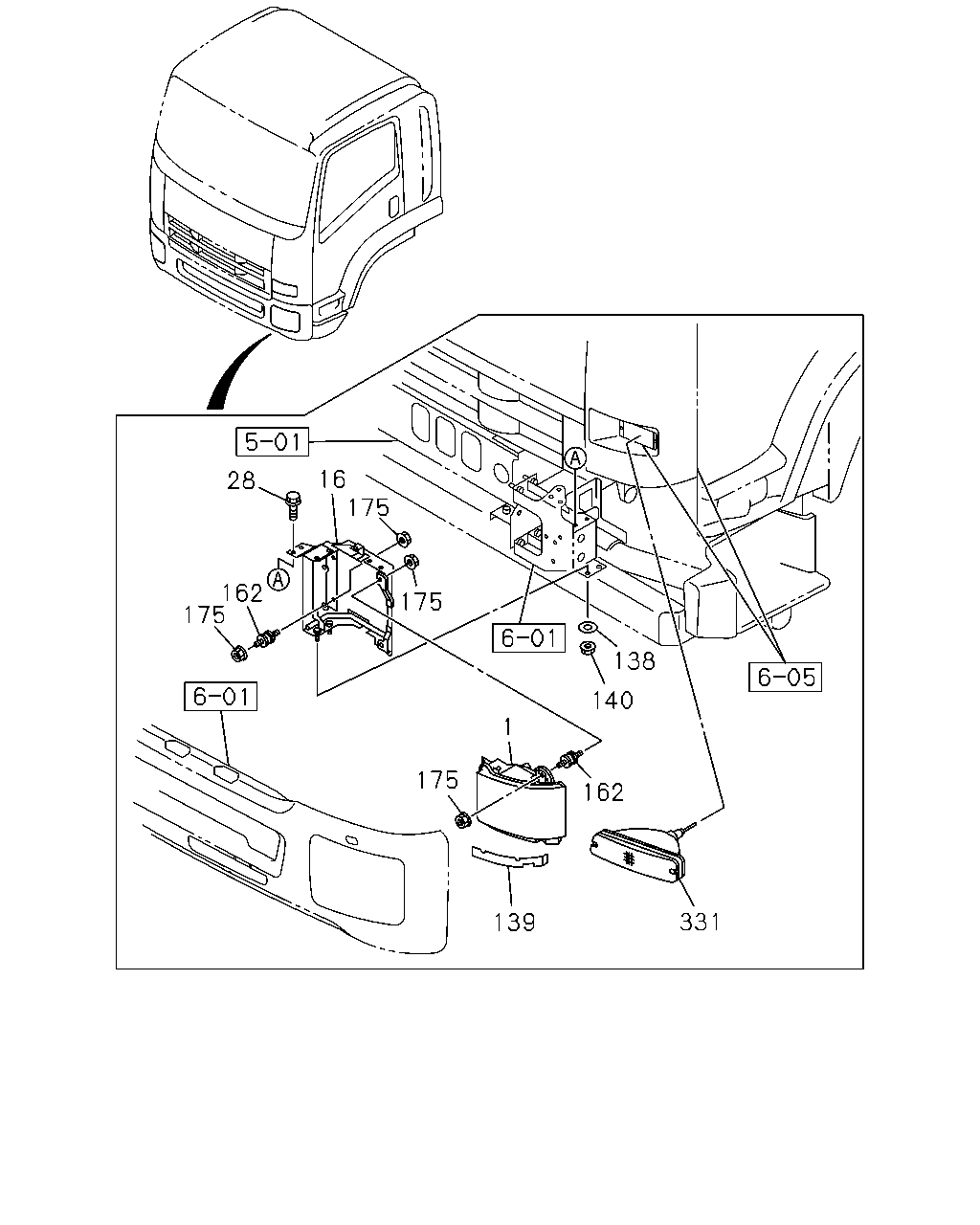

331 139 162 140 138 175 175 162 28 16 175 175 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	1011-1102	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	1011-1102	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1011-1102	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1011-1102	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-	●	●
16	BRACKET; HEADLAMP	8-97623-911-1	01	1	1011-1102	●
16	BRACKET; HEADLAMP	8-97623-911-1	01	1	1103-	●	●
16	BRACKET; HEADLAMP	8-97623-910-1	01	1	1011-1102	●
16	BRACKET; HEADLAMP	8-97623-910-1	01	1	1103-	●	●
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	1011-1102	●
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	1103-	●	●
138	WASHER; LK BRKT HD LAMP ID=10.5 OD=26	0-91614-710-0	04	1	1011-1102	●
138	WASHER; LK BRKT HD LAMP ID=10.5 OD=26	0-91614-710-0	04	1	1103-	●	●
139	COVER; HEADLAMP	8-98054-342-0	02	1	1011-1102	●
139	COVER; HEADLAMP	8-98054-342-0	02	1	1103-	●	●
140	NUT M10 FLANGE	0-91180-210-0	08	1	1011-1102	●
140	NUT M10 FLANGE	0-91180-210-0	08	1	1103-	●	●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	1011-1102	●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	1103-	●	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	1011-1102	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	1103-	●	●
331	LAMP; TURN SIGNAL	8-98079-896-0	01	1	1011-1102	●
331	LAMP; TURN SIGNAL	8-98079-896-0	01	1	1103-	●	●
331	LAMP; TURN SIGNAL	8-98079-895-0	01	1	1011-1102	●
331	LAMP; TURN SIGNAL	8-98079-895-0	01	1	1103-	●	●

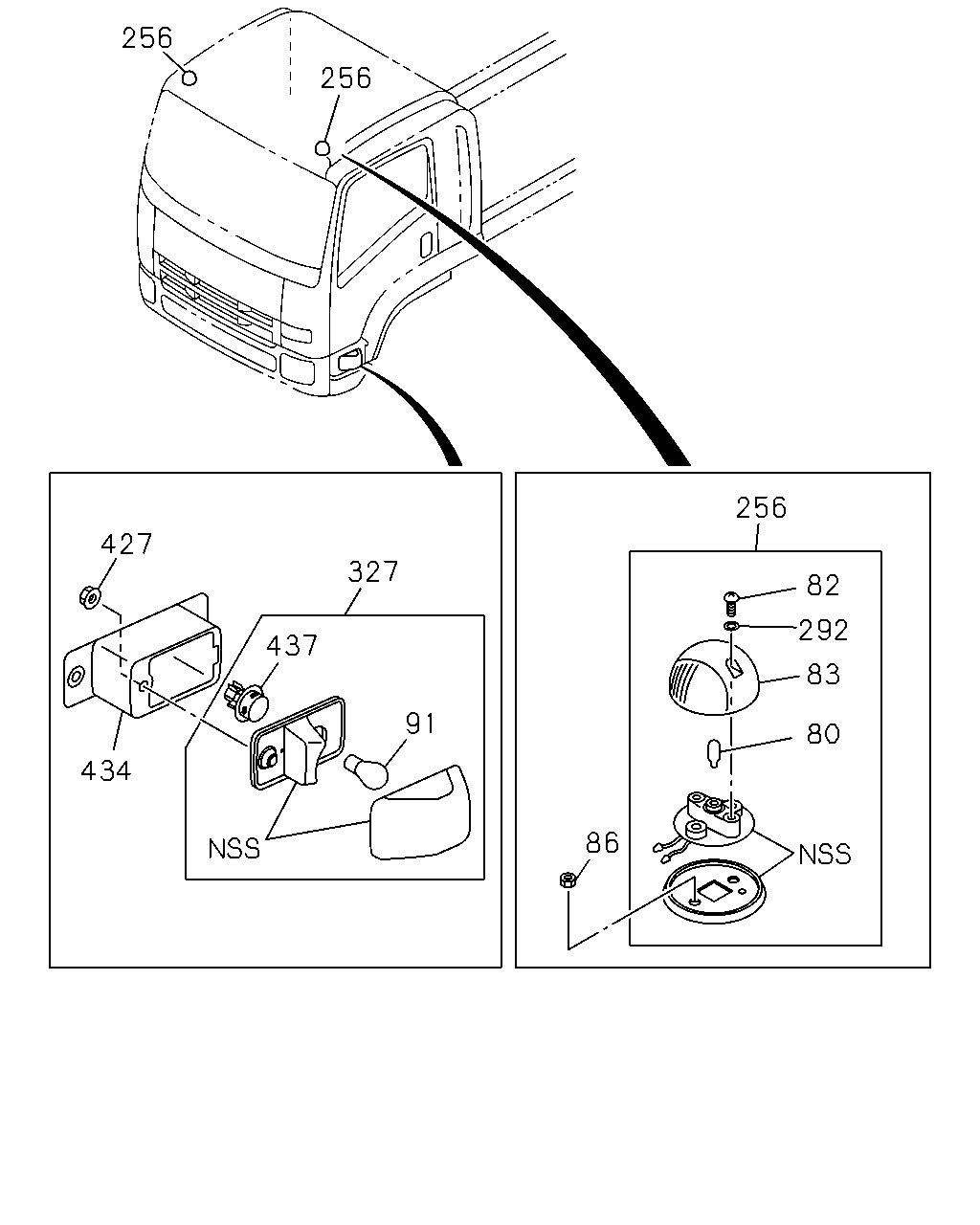

80 83 292 82 256 86 91 327 437 434 427 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BULB; MARKER LAMP 24V 5W	8-94135-397-0	02	1	1011-1102	●
80	BULB; MARKER LAMP 24V 5W	8-94135-397-0	02	1	1103-	●	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	1011-1102	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	1103-	●	●
83	LENS; MARKER LAMP	8-98057-958-0	02	1	1011-1102	●
83	LENS; MARKER LAMP	8-98057-958-0	02	1	1103-	●	●
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	04	1	1011-1102	●
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	04	1	1103-	●	●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1011-1102	●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1103-	●	●
256	LAMP; MARKER	8-98097-467-2	01	1	1011-1102	●
256	LAMP; MARKER	8-98097-467-3	01	1	1103-	●	●
256	LAMP; MARKER	8-98097-466-2	01	1	1011-1102	●
256	LAMP; MARKER	8-98097-466-3	01	1	1103-	●	●
292	WASHER; MARKER LAMP	1-82219-012-0	04	1	1011-1102	●
292	WASHER; MARKER LAMP	1-82219-012-0	04	1	1103-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1011-1102	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1103-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1011-1102	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1103-	●	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1011-1102	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1103-	●	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-727-1	01	1	1011-1102	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-727-1	01	1	1103-	●	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-726-1	01	1	1011-1102	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-726-1	01	1	1103-	●	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1011-1102	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1103-	●	●

1 4 338 339 408 420 20 5 5 382 457 23 331 124 125 127 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	1011-1102	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	1011-1102	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1011-1102	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1011-1102	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1103-1108	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-	●	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-399-0	01	1	1011-1102	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-399-0	01	1	1103-1108	●	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-567-0	01	1	1109-	●	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-398-0	01	1	1011-1102	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-398-0	01	1	1103-1108	●	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-566-0	01	1	1109-	●	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-401-0	01	1	1011-1102	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-401-0	01	1	1103-1108	●	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-565-0	01	1	1109-	●	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-400-0	01	1	1011-1102	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-400-0	01	1	1103-1108	●	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-564-0	01	1	1109-	●	●
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1011-1102	●
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1103-	●	●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1011-1102	●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1103-	●	●
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1011-1102	●
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1103-	●	●
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1011-1102	●
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1103-	●	●
124	BULB; FRT TURN SIGNAL 24V 21W	8-98051-496-0	02	1	1011-1102	●
124	BULB; FRT TURN SIGNAL 24V 21W	8-98051-496-0	02	1	1103-	●	●
125	GASKET; FRT TURN SIGNAL	8-94334-881-0	02	1	1011-1102	●
125	GASKET; FRT TURN SIGNAL	8-94334-881-0	02	1	1103-	●	●
127	LENS; FRT TURN SIGNAL	8-94117-030-0	01	1	1011-1102	●
127	LENS; FRT TURN SIGNAL	8-94117-030-0	01	1	1103-	●	●
127	LENS; FRT TURN SIGNAL	8-94112-723-0	01	1	1011-1102	●
127	LENS; FRT TURN SIGNAL	8-94112-723-0	01	1	1103-	●	●
129	SCREW; FRT TURN SIGNAL	0-91190-435-0	04	1	1011-1102	●
129	SCREW; FRT TURN SIGNAL	0-91190-435-0	04	1	1103-	●	●
331	LAMP; TURN SIGNAL	8-98079-896-0	01	1	1011-1102	●
331	LAMP; TURN SIGNAL	8-98079-896-0	01	1	1103-	●	●
331	LAMP; TURN SIGNAL	8-98079-895-0	01	1	1011-1102	●
331	LAMP; TURN SIGNAL	8-98079-895-0	01	1	1103-	●	●
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1109-	●	●
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1109-	●	●
382	PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	1011-1102	●
382	PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	1103-1208	●	●
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1209-	●	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1011-1102	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1103-	●	●
420	SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	1011-1102	●
420	SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	1103-1208	●	●
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1209-	●	●
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1307-	●	●

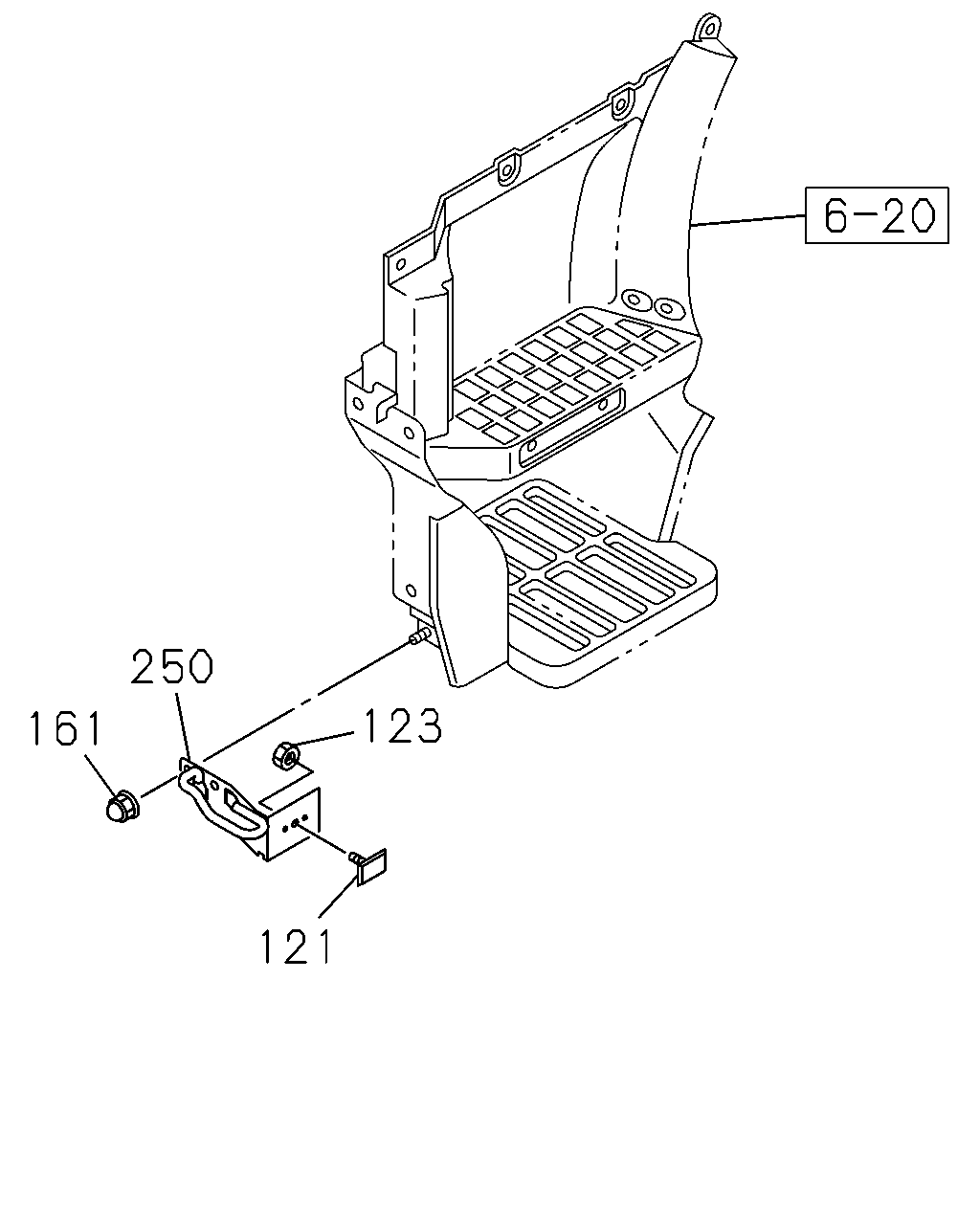

123 121 250 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
121	REFLECTOR; REFLEX	1-82290-066-0	02	1	1011-1102	●
121	REFLECTOR; REFLEX	1-82290-066-0	02	1	1103-	●	●
123	NUT; REFLECTOR M6 FLANGE	0-91180-106-0	02	1	1011-1102	●
123	NUT; REFLECTOR M6 FLANGE	0-91180-106-0	02	1	1103-	●	●
161	NUT; BRKT M8 CAP NUT FLANGE	8-97372-242-0	04	1	1011-1102	●
161	NUT; BRKT M8 CAP NUT FLANGE	8-97372-242-0	04	1	1103-1312	●	●
161	NUT; BRKT M8 CAP NUT FLANGE	8-98261-347-0	04	1	1401-	●	●
250	BRACKET ASM	8-98070-243-1	01	1	1011-1102	●
250	BRACKET ASM	8-98070-243-1	01	1	1103-	●	●
250	BRACKET ASM	8-98070-242-1	01	1	1011-1102	●
250	BRACKET ASM	8-98070-242-1	01	1	1103-	●	●
