Isuzu WW
▶
TRUCKS
▶
FSS
▶
11306 - FSS(AUST/NZ)EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

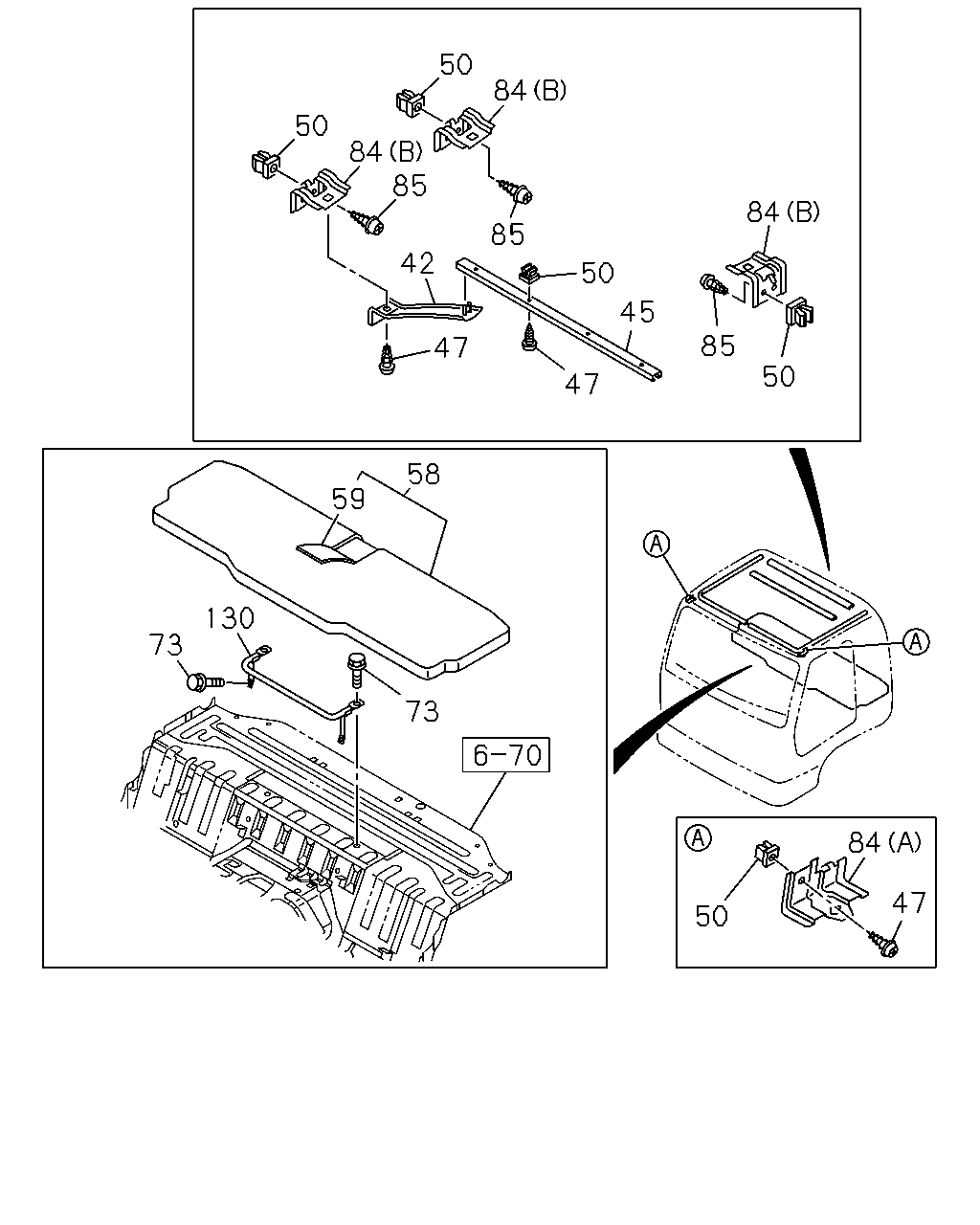

7-70 — SEPARATER AND BED
(#70979) — 25 parça
Tümü
A - FCS5MS
B - FCS5WS
50
84
50
85
45
50
85
47
47
42
58
73
59
130
73
84
47
50
84
84
50
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1011-1102
●
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1103-
●
●
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1011-1102
●
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1103-
●
●
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-485-0
01
1
1011-1102
●
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-485-0
01
1
1103-
●
●
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1011-1102
●
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1103-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1406-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1103-
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1011-1102
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1011-1102
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1103-1405
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1103-1405
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1406-
●
58
BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97407-382-2
01
1
1011-1306
●
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97412-045-1
01
1
1011-1306
●
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1011-1306
●
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
02
1
1103-
●
84
BRACKET; CURTAIN RAIL
(A)
8-98028-326-1
02
1
1011-1405
●
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
04
1
1011-
●
85
SCREW; BRKT
M5X20
5-09981-059-0
02
1
1103-
●
85
SCREW; BRKT
M5X20
5-09981-059-0
06
1
1011-1405
●
85
SCREW; BRKT
M5X20
5-09981-059-0
04
1
1406-
●
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1011-1306
●
