◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#70978) — 47 parça

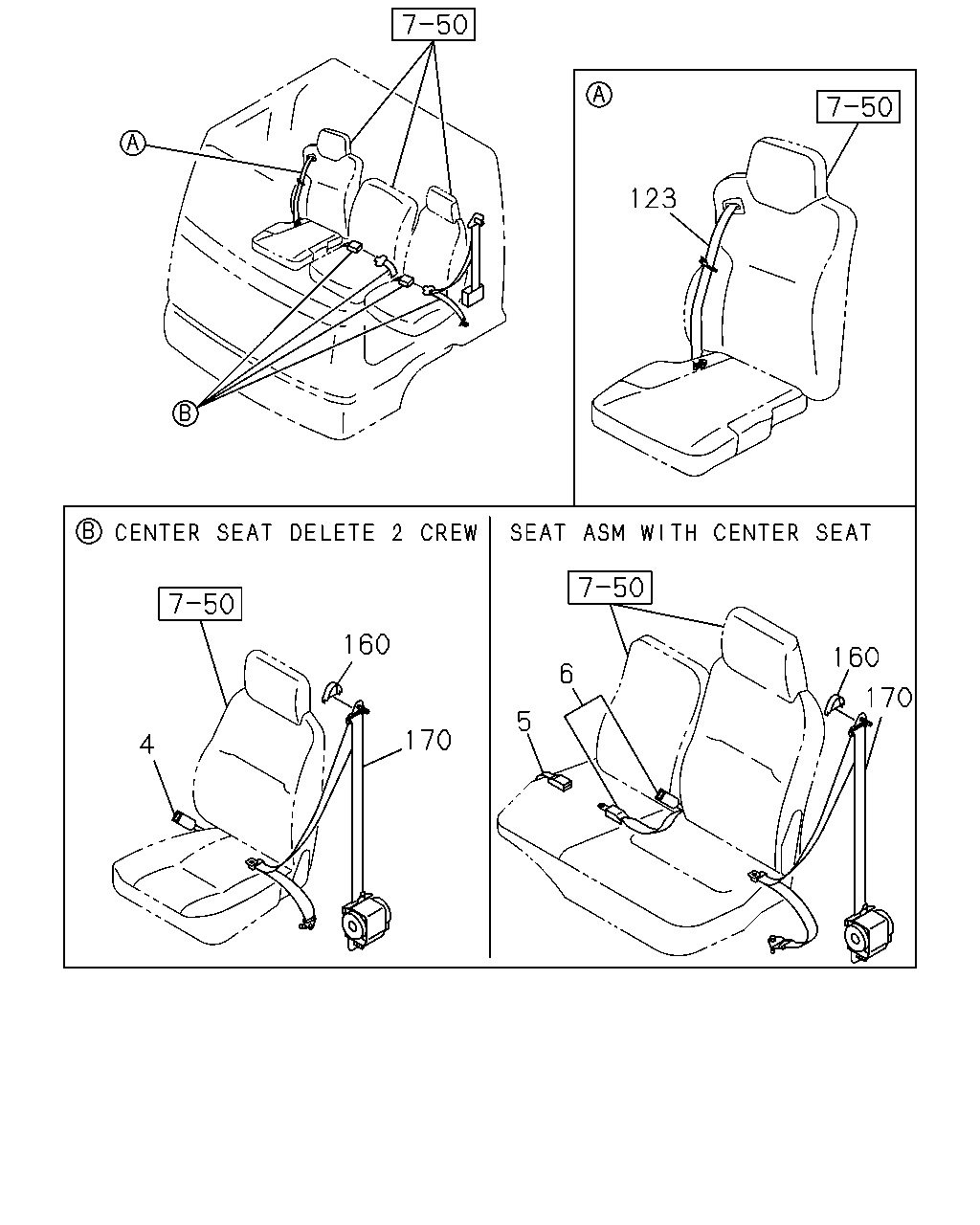

çizim 135937
170 160 6 123 160 170 5 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97407-376-1 01 1 1011-1306 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1307- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1011-1102 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1103- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1103- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 1011-1102 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 1103-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 1103-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210- ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210- ●
123 BELT ASM; SEAT 8-98097-971-0 01 1 1011-1102 ●
123 BELT ASM; SEAT 8-98097-971-0 01 1 1103-1306 ● ●
123 BELT ASM; SEAT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98097-971-0 01 1 1307- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1202- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1011-1102 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1103-1201 ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1103-1201 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1202- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-771-5 01 1 1011-1102 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-771-5 01 1 1103-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97423-521-2 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-394-0 01 1 1408- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-770-4 01 1 1011-1102 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97407-770-4 01 1 1103-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97423-516-1 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-435-0 01 1 1408- ● ●
çizim 189171
88 169 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1011- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1103- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=36 WHITE 		8-94271-620-1 02 1 1103- ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1011-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1011-1201 ●
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> (A) OD=25 BLACK 		1-76798-019-0 01 1 1202-1306 ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> (A) OD=25 BLACK 		1-76798-019-0 01 1 1307- ●
çizim 189209
12 18 160 19 20 20 21 19 160 18 12 21
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1103- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1103- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 1103- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 1103-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 1103-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 1103- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 1103- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1202- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1011-1102 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1103-1201 ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1103-1201 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1202- ● ●
