Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#70976) — 307 parça

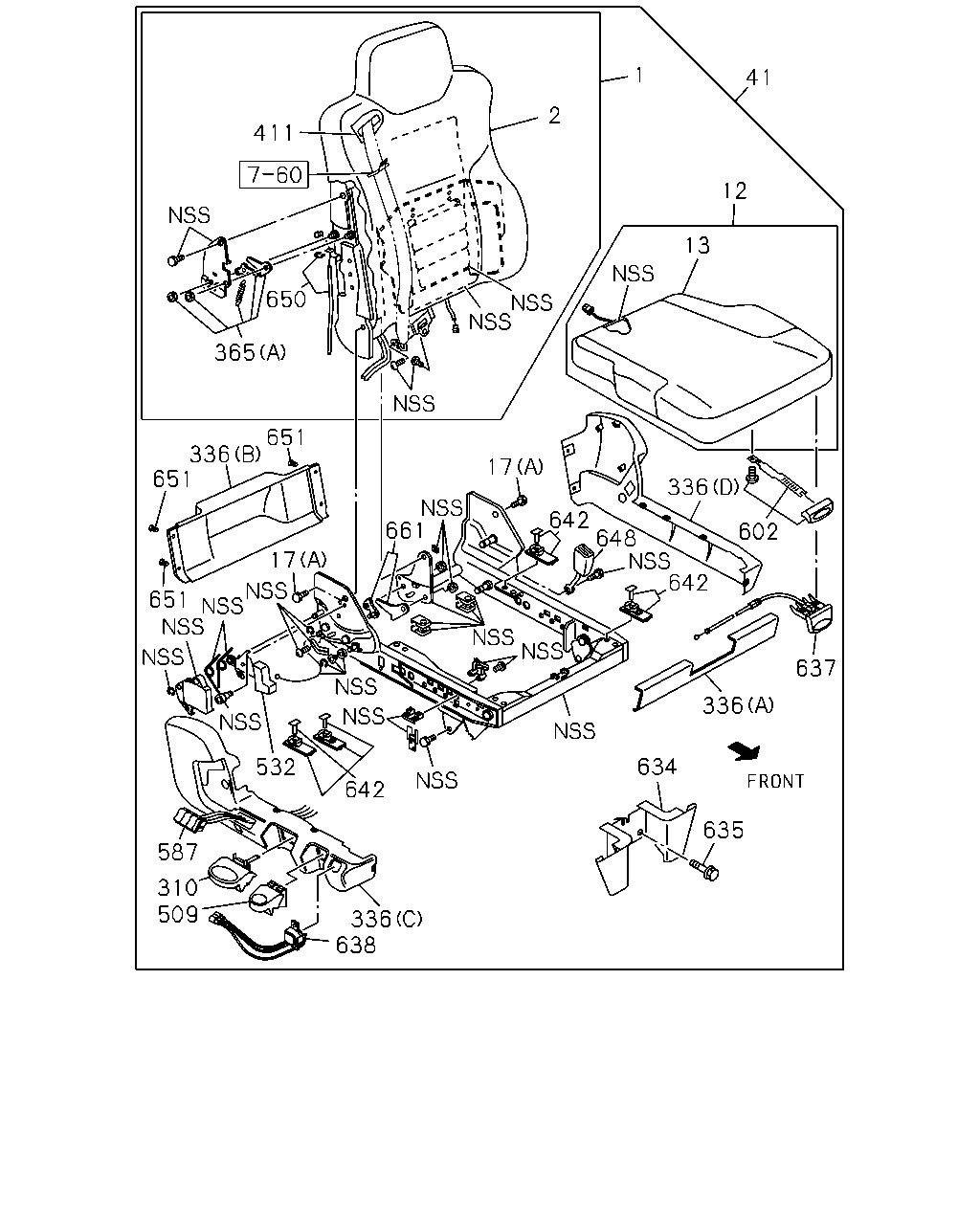

638 336 642 634 635 336 637 602 642 336 648 642 17 661 17 651 532 587 310 509 13 12 41 1 2 651 411 650 365 336 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT	8-98097-964-0	01	1	1011-1102	●
1	BACK ASM; SEAT	8-98097-964-0	01	1	1103-1306	●	●
1	BACK ASM; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-964-0	01	1	1307-	●	●
2	COVER; TRIM,FRT SEAT,BACK	8-98097-966-0	01	1	1011-1102	●
2	COVER; TRIM,FRT SEAT,BACK	8-98097-966-0	01	1	1103-1212	●	●
2	COVER; TRIM,FRT SEAT,BACK	8-98232-353-0	01	1	1301-1306	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98232-353-0	01	1	1307-	●	●
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	1011-1102	●
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	1103-1306	●	●
12	CUSHION; SEAT,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-006-0	01	1	1307-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	1011-1102	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	1103-1306	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-007-0	01	1	1307-	●	●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1011-1102	●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1103-1306	●	●
17	BOLT; RECLINING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98097-974-0	02	1	1307-	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1011-1102	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1103-	●	●
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	1011-1102	●
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	1103-1212	●	●
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1301-1306	●	●
41	SEAT ASM; DRIVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98195-063-1	01	1	1307-	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	1011-1102	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT	8-98097-992-0	01	1	1103-1306	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-992-0	01	1	1307-	●	●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	1011-1102	●
336	COVER; DRIVER SEAT (D)	8-98097-978-0	01	1	1103-1306	●	●
336	COVER; DRIVER SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98097-978-0	01	1	1307-1508	●	●
336	COVER; DRIVER SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98331-313-0	01	1	1509-	●	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	1011-1102	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	1103-1306	●	●
336	COVER; DRIVER SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98097-984-0	01	1	1307-	●	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1011-1102	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1103-1306	●	●
336	COVER; DRIVER SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98097-995-0	01	1	1307-	●	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1011-1102	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1103-1306	●	●
336	COVER; DRIVER SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98097-996-0	01	1	1307-	●	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1011-1102	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1103-1306	●	●
365	LOCK ASM; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98097-972-0	01	1	1307-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1011-1102	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1103-	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1103-		●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1011-1102	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1103-1306	●	●
411	GUIDE; SEAT BELT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-967-0	01	1	1307-	●	●
509	LEVER; DAMPER	8-98097-988-0	01	1	1011-1102	●
509	LEVER; DAMPER	8-98097-988-0	01	1	1103-1306	●	●
509	LEVER; DAMPER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-988-0	01	1	1307-	●	●
532	LEVER ASM; TILT	8-98097-982-0	01	1	1011-1102	●
532	LEVER ASM; TILT	8-98097-982-0	01	1	1103-1306	●	●
532	LEVER ASM; TILT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-982-0	01	1	1307-	●	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	1011-1102	●
587	VALVE; LUMBAR SUPPORT	8-98097-986-0	01	1	1103-1306	●	●
587	VALVE; LUMBAR SUPPORT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-986-0	01	1	1307-	●	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1011-1102	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1103-1306	●	●
602	KNOB; ADJ,SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-008-0	01	1	1307-	●	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	1011-1102	●
634	COVER; CONNECTOR,SEAT	8-98088-279-0	01	1	1103-	●	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	1011-1102	●
635	BOLT; COVER M6X16	0-52000-616-0	02	1	1103-	●	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1011-1102	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1103-1306	●	●
637	LEVER; SLOPE ADJ AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-989-0	01	1	1307-	●	●
638	VALVE; LOWERING	8-98097-994-0	01	1	1011-1102	●
638	VALVE; LOWERING	8-98097-994-0	01	1	1103-1306	●	●
638	VALVE; LOWERING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-994-0	01	1	1307-	●	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	1011-1102	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	1103-1306	●	●
642	SLIDER; CUSHION AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98192-932-0	04	1	1307-	●	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1011-1102	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1103-1306	●	●
648	BUCKLE; SEAT BELT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-976-0	01	1	1307-	●	●
650	CABLE	8-98097-973-0	01	1	1011-1102	●
650	CABLE	8-98097-973-0	01	1	1103-1212	●	●
650	CABLE	8-98232-354-0	01	1	1301-1306	●	●
650	CABLE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98232-354-0	01	1	1307-	●	●
651	RIVET	8-98194-075-0	04	1	1011-1102	●
651	RIVET	8-98194-075-0	04	1	1103-1306	●	●
651	RIVET AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98194-075-0	04	1	1307-	●	●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	1011-1102	●
661	LOCK ASM; RECLINING	8-98097-980-0	01	1	1103-1306	●	●
661	LOCK ASM; RECLINING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-980-0	01	1	1307-	●	●

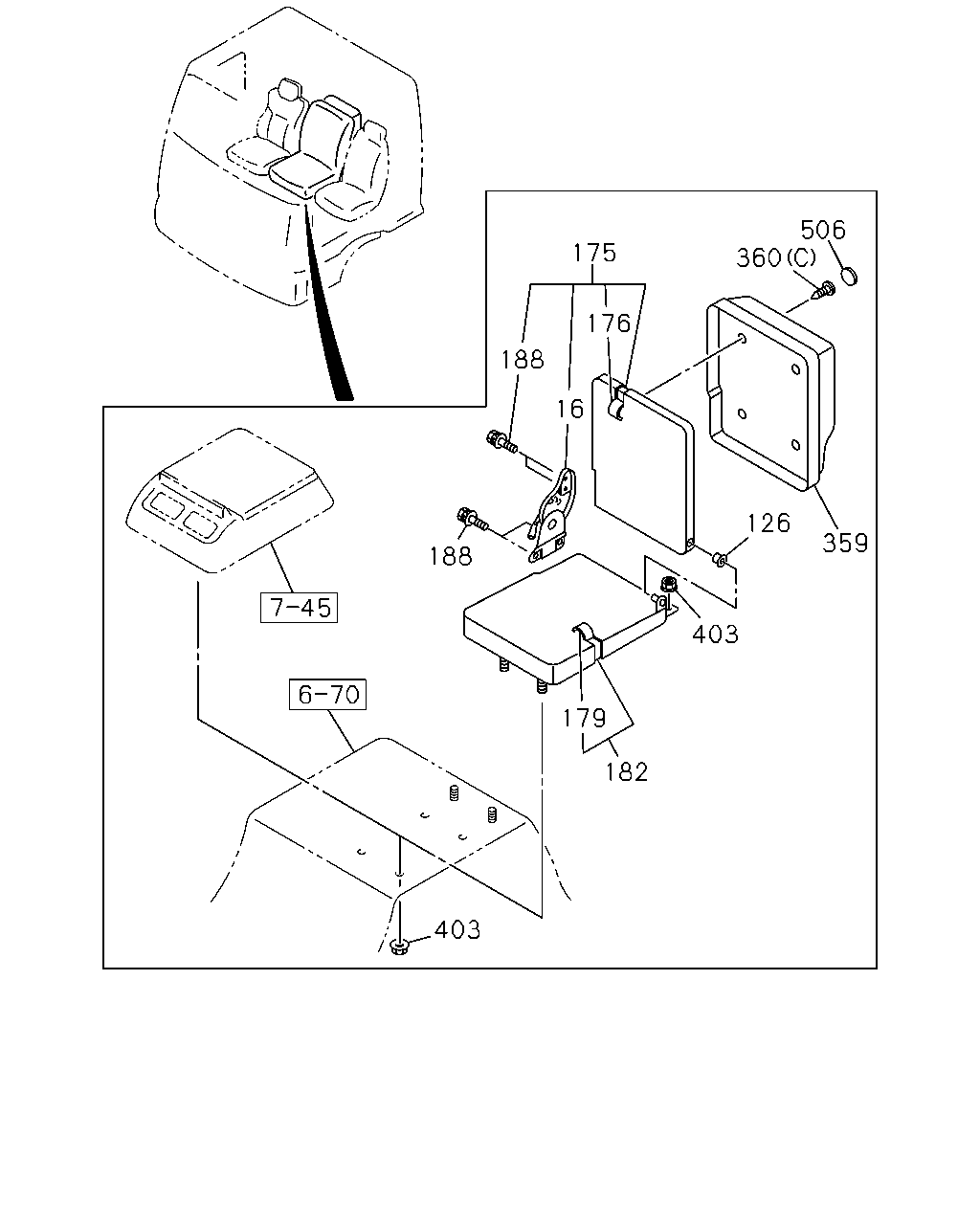

359 126 403 182 179 188 188 176 175 360 506 16 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1011-1102	●
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1103-	●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	1103-		●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	8-97854-900-0	01	1	1011-1102	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	8-97854-900-0	01	1	1103-	●
126	BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	1103-		●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1011-1102	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1103-	●
175	BACK ASM; PASSENGER CENTER SEAT DARK GRAY	8-97421-434-1	01	1	1103-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1011-1102	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1103-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DARK GRAY	8-97421-435-1	01	1	1103-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-432-0	01	1	1011-1102	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-432-1	01	1	1103-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DARK GRAY	8-97421-432-1	01	1	1103-		●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-430-2	01	1	1011-1102	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-430-3	01	1	1103-	●
182	CUSHION ASM; CENTER SEAT DARK GRAY	8-97421-430-3	01	1	1103-		●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1011-1102	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1103-	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	1103-		●

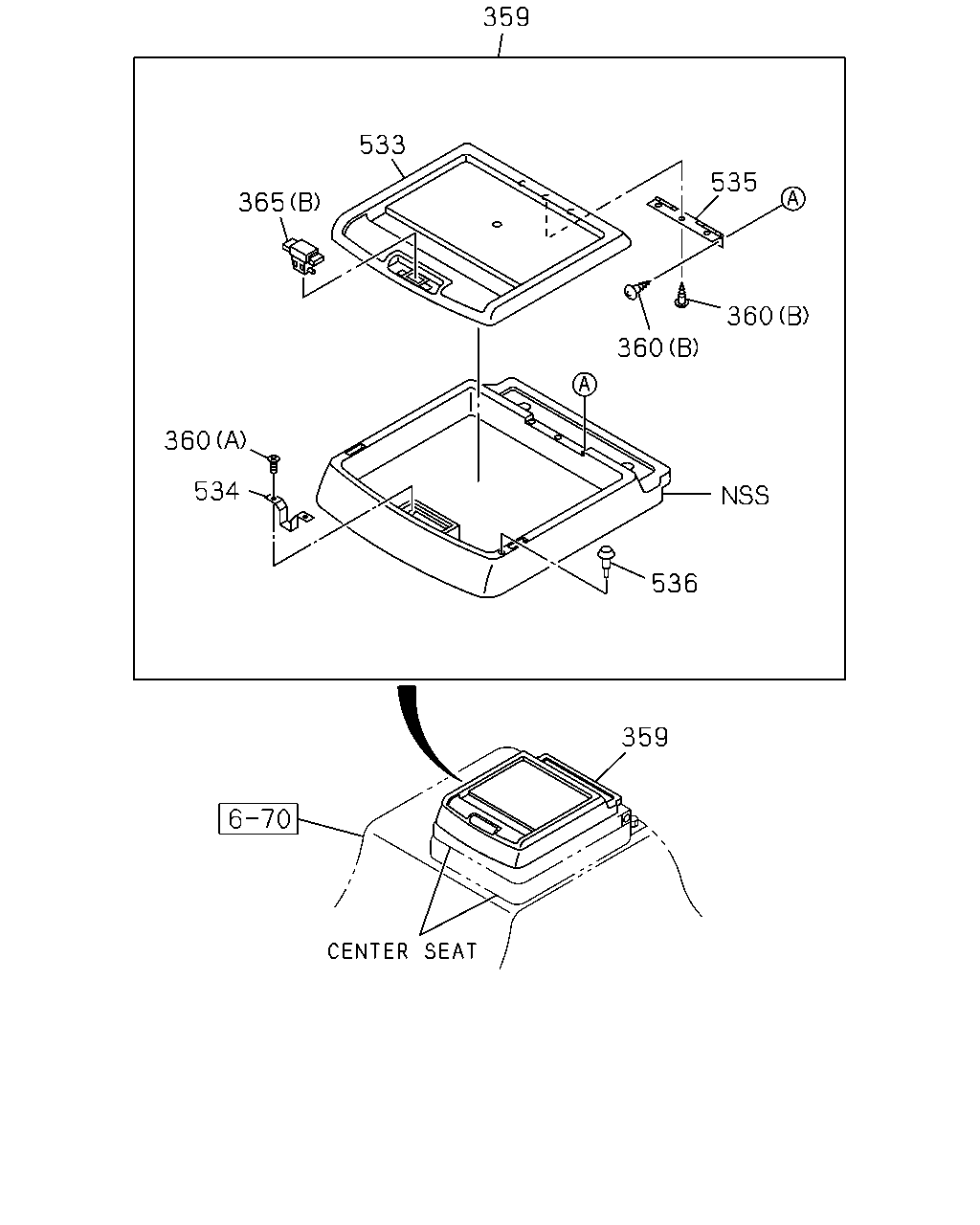

359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1011-1102	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1103-	●
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1103-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M4X16	0-70040-416-0	06	1	1011-1102	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M4X16	0-70040-416-0	06	1	1103-	●
360	SCREW; PARCEL (A) M4X16	0-70040-416-0	06	1	1103-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1011-1102	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1103-	●
360	SCREW; PARCEL (B) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1103-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1011-1102	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1103-1110	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1103-1110		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1111-		●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1103-	●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	1103-		●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1011-1102	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1103-	●
506	CAP; PARCEL BOX GRAY	8-97409-980-1	02	1	1103-		●

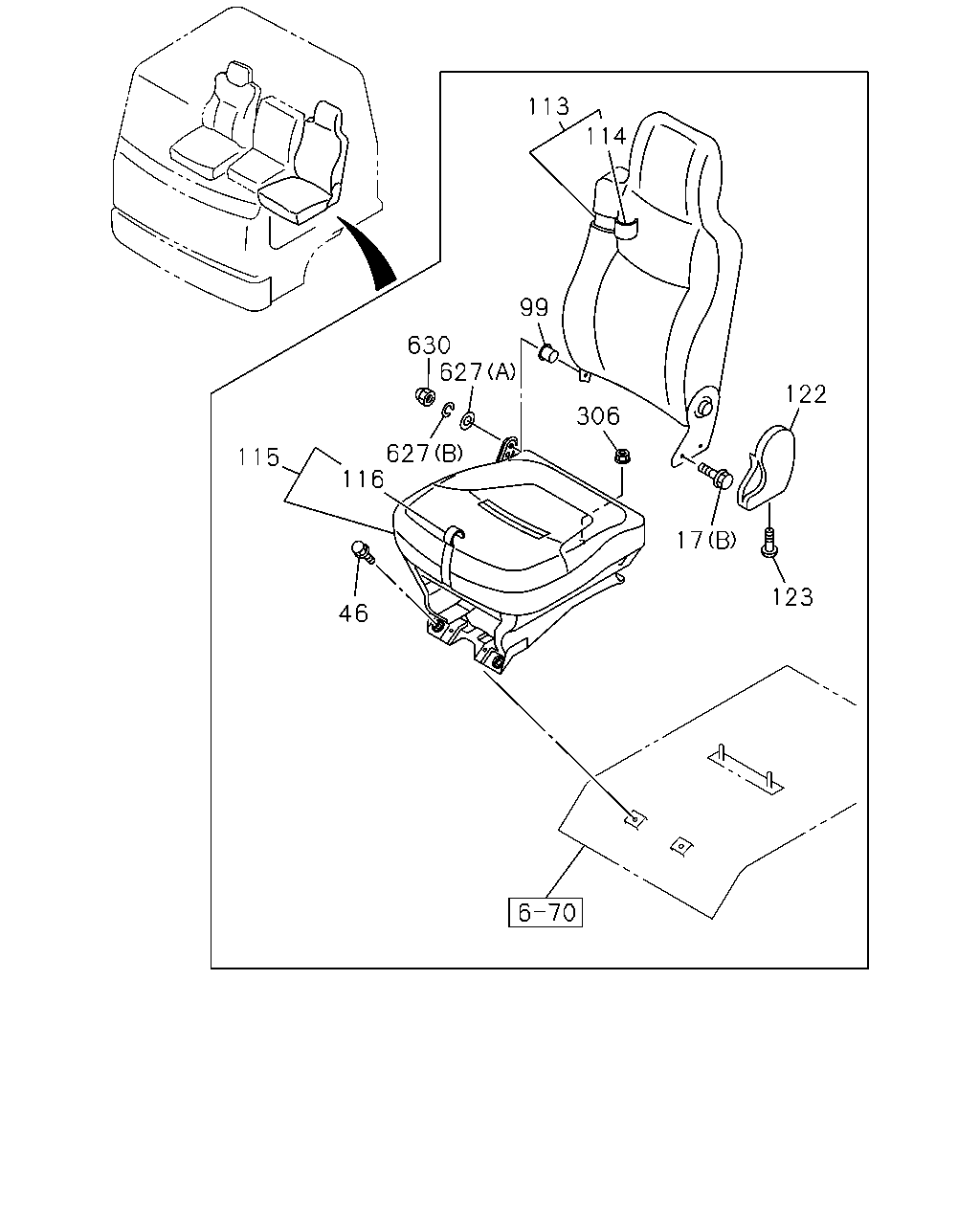

113 114 99 630 627 306 122 17 123 46 116 115 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1011-1102	●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1103-1306	●	●
17	BOLT; RECLINING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98097-974-0	02	1	1307-	●	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1011-1102	●
17	BOLT; RECLINING (B) M8X20	8-98092-334-0	02	1	1103-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1011-1102	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1103-	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1011-1102	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1103-	●	●
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1011-1102	●
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1103-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1011-1102	●
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1103-	●	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-0	01	1	1011-1102	●
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-1	01	1	1103-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1011-1102	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1103-	●	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1011-1102	●
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1103-	●	●
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1011-1102	●
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1103-	●	●
306	NUT; SEAT ADJ M10 FLANGE	0-91180-110-0	02	1	1011-1102	●
306	NUT; SEAT ADJ M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1011-1102	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1103-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1011-1102	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1103-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	1011-1102	●
630	NUT; CAP M8	8-98063-225-0	01	1	1103-	●	●

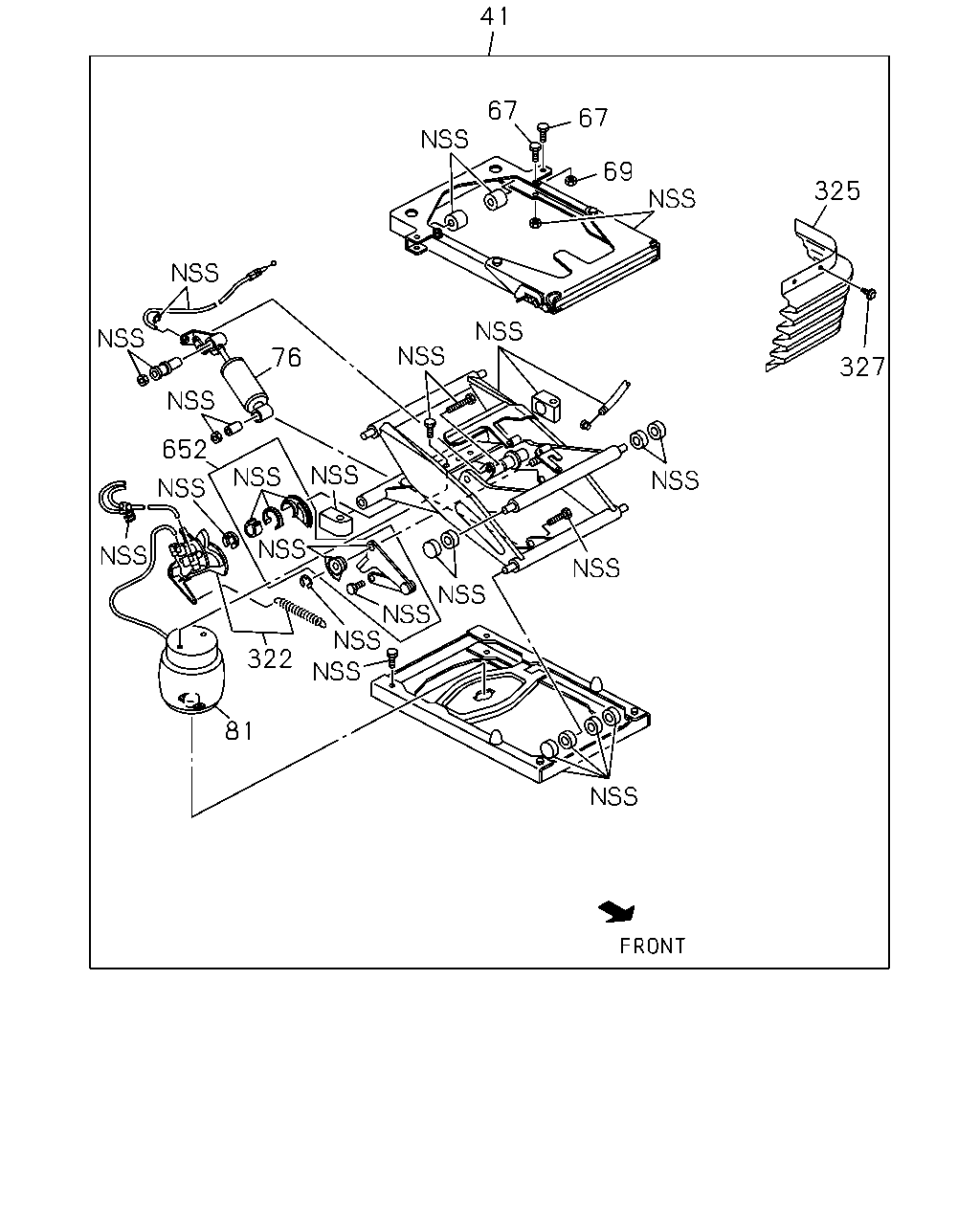

41 67 69 67 76 652 322 81 325 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	1011-1102	●
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	1103-1212	●	●
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1301-1306	●	●
41	SEAT ASM; DRIVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98195-063-1	01	1	1307-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1011-1102	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1103-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1011-1102	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	1011-1102	●
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	1103-1306	●	●
76	DAMPER; AIR SUSP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98097-999-0	01	1	1307-	●	●
81	SPRING; AIR	8-98098-000-0	01	1	1011-1102	●
81	SPRING; AIR	8-98098-000-0	01	1	1103-1306	●	●
81	SPRING; AIR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-000-0	01	1	1307-	●	●
322	VALVE; AIR SPRING	8-98098-001-0	01	1	1011-1102	●
322	VALVE; AIR SPRING	8-98098-001-0	01	1	1103-1306	●	●
322	VALVE; AIR SPRING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-001-0	01	1	1307-1508	●	●
322	VALVE; AIR SPRING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98331-314-0	01	1	1509-	●	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1011-1102	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1103-1306	●	●
325	COVER; SUSPENSION DEVICE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-003-0	01	1	1307-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	1011-1102	●
327	CLIP; COVER	8-98098-004-0	01	1	1103-1306	●	●
327	CLIP; COVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-004-0	01	1	1307-	●	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1011-1102	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1103-1306	●	●
652	LOCK ASM; HEIGHT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-002-0	01	1	1307-	●	●

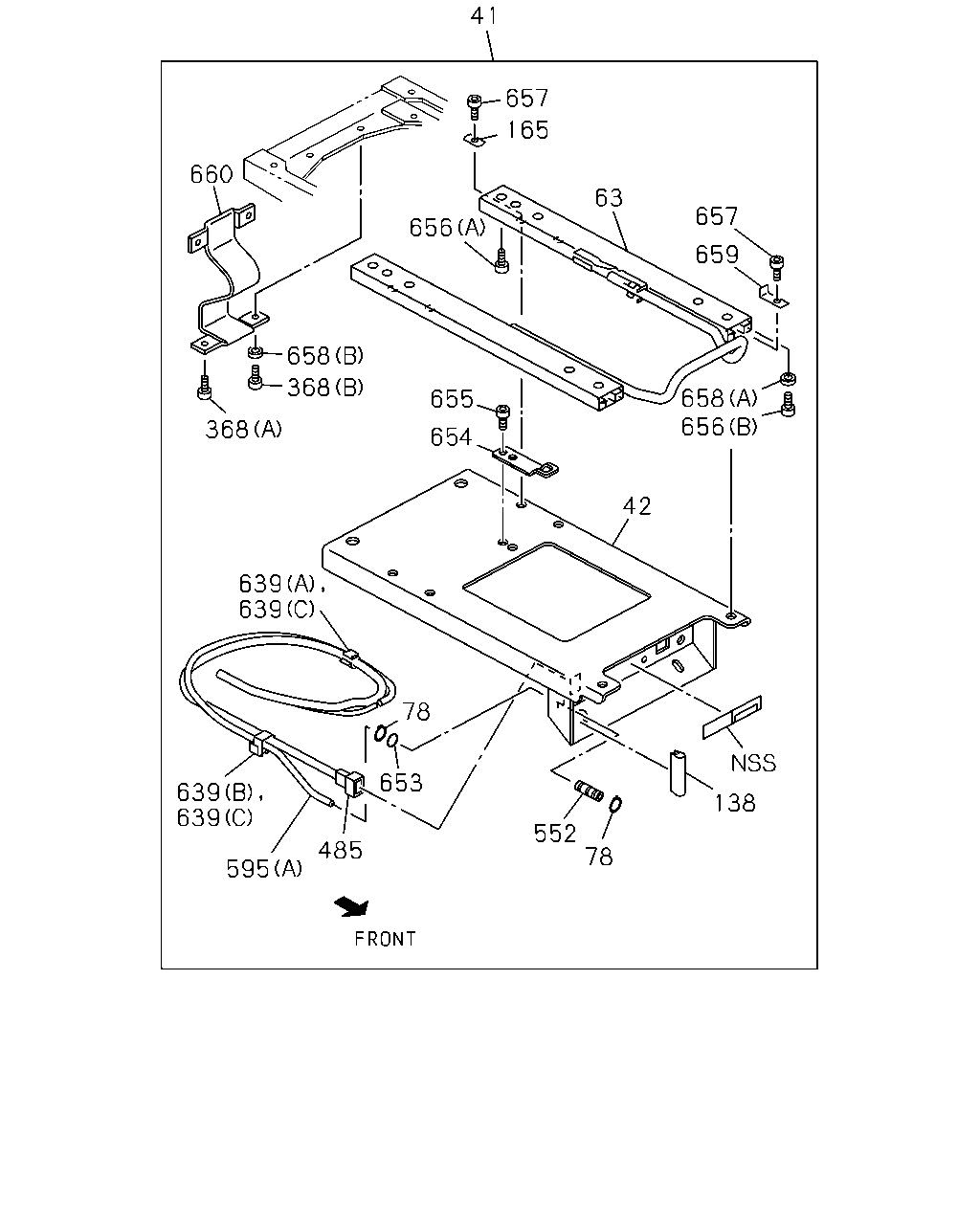

41 657 63 165 656 657 659 658 655 656 654 658 368 368 42 639 639 78 653 485 595 639 639 552 78 138 660

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	1011-1102	●
41	SEAT ASM; DRIVER	8-98046-984-2	01	1	1103-1212	●	●
41	SEAT ASM; DRIVER	8-98195-063-0	01	1	1301-1306	●	●
41	SEAT ASM; DRIVER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98195-063-1	01	1	1307-	●	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	1011-1102	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	1103-1306	●	●
42	STAND; DRIVER SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98106-346-0	01	1	1307-	●	●
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	1011-1102	●
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	1103-1306	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98098-005-0	01	1	1307-	●	●
78	RING; SNAP	8-98101-900-0	02	1	1011-1102	●
78	RING; SNAP	8-98101-900-0	02	1	1103-1306	●	●
78	RING; SNAP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98101-900-0	02	1	1307-	●	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1011-1102	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1103-1306	●	●
138	PROTECTOR; SEAT STAND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98106-351-0	01	1	1307-	●	●
165	WASHER; PL	1-75590-086-0	04	1	1011-1102	●
165	WASHER; PL	1-75590-086-0	04	1	1103-1306	●	●
165	WASHER; PL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	1-75590-086-0	04	1	1307-	●	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	1011-1102	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	1103-1306	●	●
368	BOLT; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98106-353-0	03	1	1307-	●	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	1011-1102	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	1103-1306	●	●
368	BOLT; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98106-358-0	01	1	1307-	●	●
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	1011-1102	●
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	1103-1306	●	●
485	HARNESS; FRT SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98106-360-0	01	1	1307-	●	●
552	CONNECTOR	8-98101-902-0	01	1	1011-1102	●
552	CONNECTOR	8-98101-902-0	01	1	1103-1306	●	●
552	CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98101-902-0	01	1	1307-1508	●	●
552	CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98308-101-0	01	1	1509-	●	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1011-1102	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1103-1306	●	●
595	TUBE; NYLON AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98106-348-0	01	1	1307-	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1011-1102	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1103-	●	●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	1011-1102	●
639	CLIP; SEAT (B)	8-98106-350-0	01	1	1103-1306	●	●
639	CLIP; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98106-350-0	01	1	1307-1508	●	●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	1011-1102	●
639	CLIP; SEAT (A)	8-98106-349-0	01	1	1103-1306	●	●
639	CLIP; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98106-349-0	01	1	1307-1508	●	●
639	CLIP; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98308-100-0	02	1	1509-	●	●
653	GASKET	8-98101-901-0	01	1	1011-1102	●
653	GASKET	8-98101-901-0	01	1	1103-1306	●	●
653	GASKET AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98101-901-0	01	1	1307-	●	●
654	HOOK; STOPPER	8-98106-352-0	01	1	1011-1102	●
654	HOOK; STOPPER	8-98106-352-0	01	1	1103-1306	●	●
654	HOOK; STOPPER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98106-352-0	01	1	1307-	●	●
655	BOLT; HOOK	8-98106-353-0	02	1	1011-1102	●
655	BOLT; HOOK	8-98106-353-0	02	1	1103-1306	●	●
655	BOLT; HOOK AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98106-353-0	02	1	1307-	●	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1011-1102	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1103-1306	●	●
656	BOLT; SLIDER TO SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	1-75590-085-0	04	1	1307-	●	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1011-1102	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1103-1306	●	●
656	BOLT; SLIDER TO SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98106-354-0	02	1	1307-	●	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1011-1102	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1103-1306	●	●
657	BOLT; SLIDER TO STAND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	1-75590-085-0	06	1	1307-	●	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	1011-1102	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	1103-1306	●	●
658	SPACER; BOLT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98106-355-0	02	1	1307-	●	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	1011-1102	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	1103-1306	●	●
658	SPACER; BOLT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98106-359-0	01	1	1307-	●	●
659	STOPPER	8-98106-356-0	02	1	1011-1102	●
659	STOPPER	8-98106-356-0	02	1	1103-1306	●	●
659	STOPPER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98106-356-0	02	1	1307-	●	●
660	BELT; TETHER	8-98106-357-0	01	1	1011-1102	●
660	BELT; TETHER	8-98106-357-0	01	1	1103-1306	●	●
660	BELT; TETHER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98106-357-0	01	1	1307-	●	●

536 359 534 360 365 533 359 535 360 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1011-1102	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1103-	●
359	BOX; PARCEL GRAY	8-97417-261-0	01	1	1103-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M4X16	0-70040-416-0	06	1	1011-1102	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M4X16	0-70040-416-0	06	1	1103-	●
360	SCREW; PARCEL (A) M4X16	0-70040-416-0	06	1	1103-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1011-1102	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1103-	●
360	SCREW; PARCEL (B) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1103-		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1011-1102	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1103-1110	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1103-1110		●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-	●
360	SCREW; PARCEL (C) M5	8-98062-663-0	04	1	1111-		●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1011-1102	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1103-1306	●	●
365	LOCK ASM; SEAT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98097-972-0	01	1	1307-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1011-1102	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1103-	●
365	LOCK ASM; SEAT (B)	1-72538-312-0	01	1	1103-		●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1011-1102	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1103-	●
533	LID; PARCEL BOX GRAY	8-97417-263-0	01	1	1103-		●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1011-1102	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1103-	●
534	STRIKER; PARCEL BOX	1-72538-190-0	01	1	1103-		●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1011-1102	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1103-	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	1103-		●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1011-1102	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1103-	●
536	RUBBER; CUSHION	1-72538-187-0	02	1	1103-		●

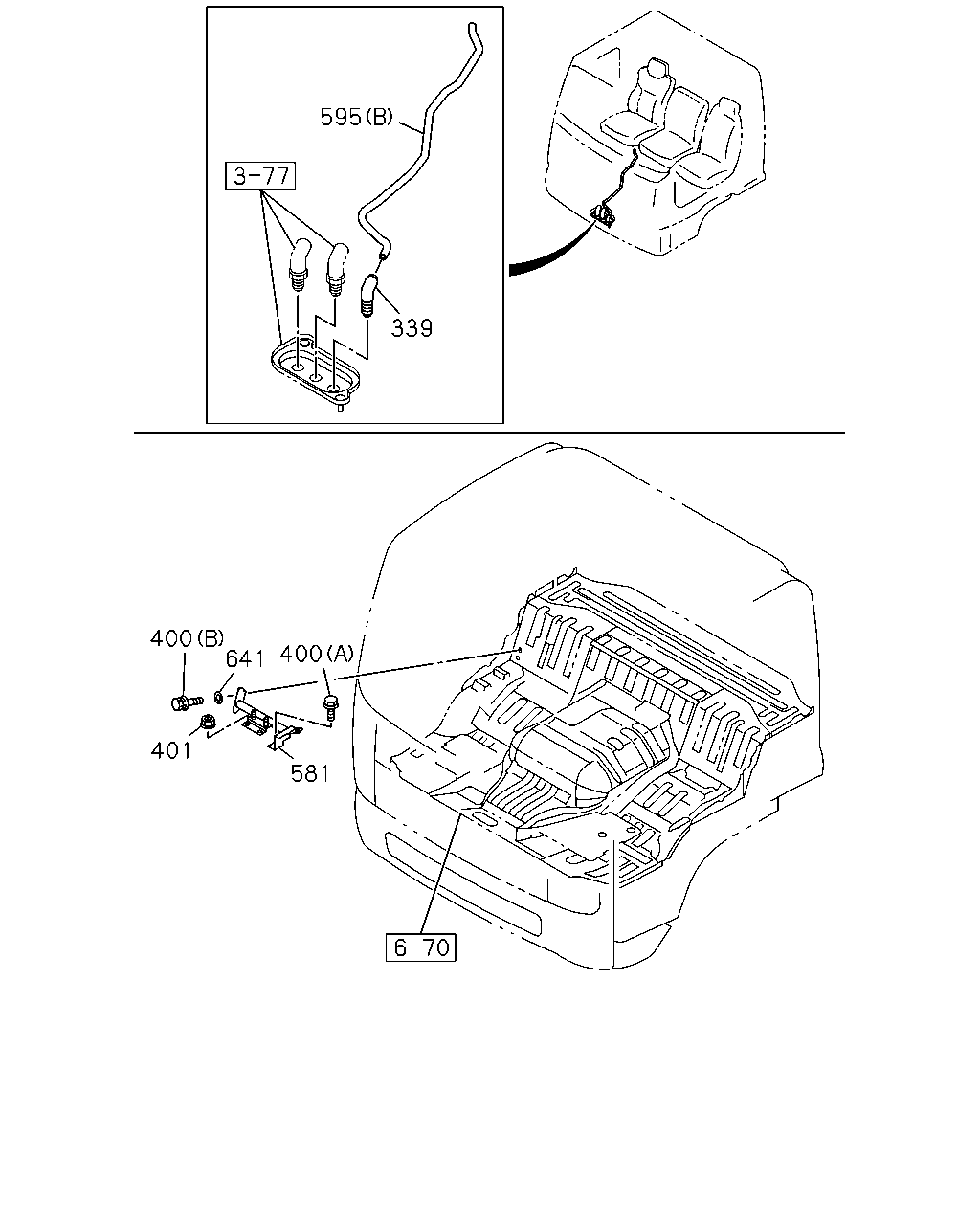

595 339 400 641 401 400 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	1011-1102	●
339	UNION; DRIVER SEAT	8-98014-971-0	01	1	1103-	●	●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	1011-1102	●
400	BOLT; SUPPORT (A) M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	1011-1102	●
400	BOLT; SUPPORT (B)	8-98098-996-0	02	1	1103-	●	●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	1011-1102	●
401	NUT; SUPPORT M10 FLANGE	0-91180-110-0	02	1	1103-	●	●
581	PIPE; SEAT	8-97589-692-3	01	1	1011-1306	●
581	PIPE; SEAT	8-97589-692-3	01	1	1307-	●
581	PIPE; SEAT	8-98051-067-2	01	1	1103-1306		●
581	PIPE; SEAT	8-98051-067-2	01	1	1307-		●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1011-1102	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1103-1306	●	●
595	TUBE; NYLON AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98106-348-0	01	1	1307-	●	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1011-1102	●
595	TUBE; NYLON (B)	8-98067-762-0	01	1	1103-	●	●
641	WASHER; SUPPORT	8-98099-007-0	02	1	1011-1102	●
641	WASHER; SUPPORT	8-98099-007-0	02	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
