7-40 — INSTRUMENT PANEL AND BOX (#70972) — 289 parça

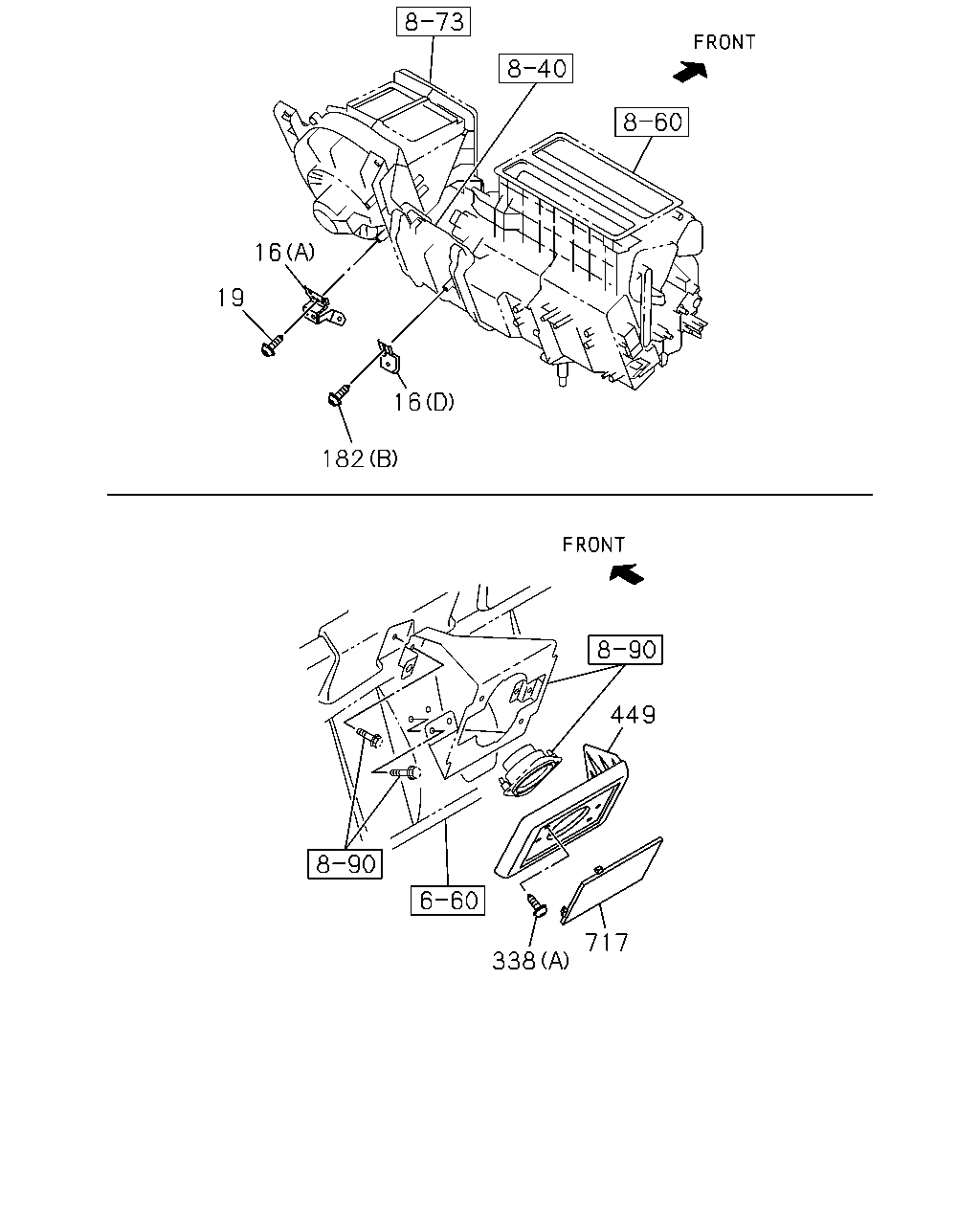

çizim 132680
16 19 16 182 449 338 717
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1011-1102 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1103-1306 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1307- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1011-1102 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1103-1306 ● ●
16 BRACKET; INST PNL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98017-204-1 01 1 1307- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1011-1102 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1103-1306 ● ●
16 BRACKET; INST PNL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98017-202-1 01 1 1307- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1011-1102 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1103- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1103- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1011-1102 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1103- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 1103- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1011-1102 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1103-1306 ● ●
182 BOLT; BRKT,INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) M8X16 FLANGE 		0-28050-816-0 04 1 1307- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1103-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1103-1306 ● ●
182 BOLT; BRKT,INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1307- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1011-1102 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1103-1306 ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 1011-1102 ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 1103-1308 ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 1011-1102 ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 1103-1308 ● ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 1011-1102 ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 1103-1308 ● ●
çizim 133081
564 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1011-1102 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1103- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1011-1012 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101-1102 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1103- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1011-1102 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1103- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1011-1102 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1103- ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 1011-1102 ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 1103- ● ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 1011-1102 ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 1103-1306 ● ●
564 COVER; SW
MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		1-82359-069-2 06 1 1307- ● ●

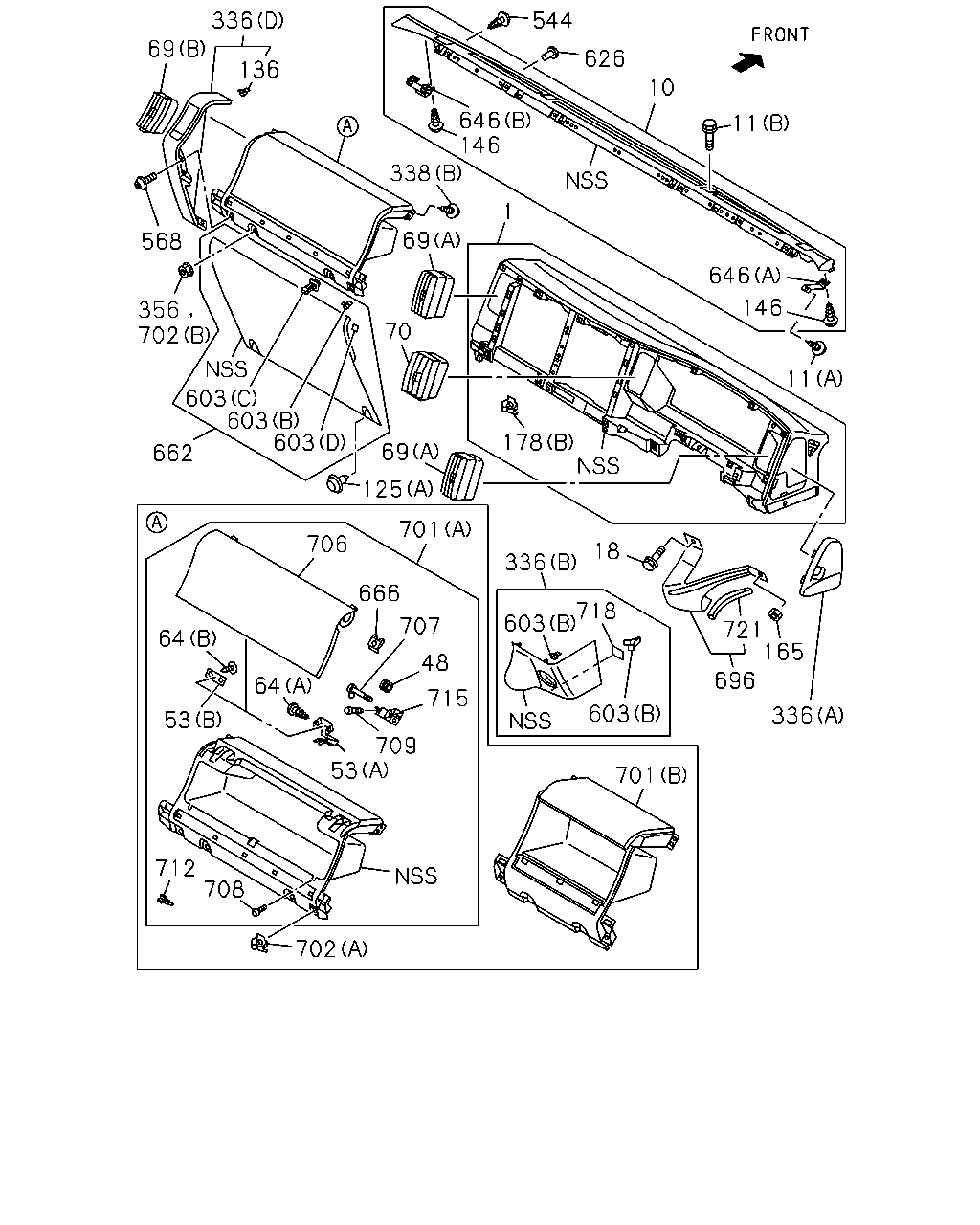

çizim 189169
336 69 568 136 356 603 702 603 603 662 69 125 70 69 338 146 646 626 544 10 646 11 146 11 1 178 18 336 721 165 336 696 603 603 707 718 701 702 708 712 53 64 64 709 53 715 48 666 706 701
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1011-1102 ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1103- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-0 01 1 1011-1102 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1103- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1011-1102 ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1103- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1011-1102 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1103- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1011-1102 ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1103- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1011-1102 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1103-1311 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1011-1102 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1103-1311 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1011-1102 ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1103-1405 ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1011-1102 ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1103-1405 ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1011-1102 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1103-1306 ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1307- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1011-1102 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1103- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1011-1102 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1103-1306 ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1307- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1011-1102 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1103- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1011-1102 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1103- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1011-1102 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1103- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1011-1102 ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1103- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1011-1102 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1103- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1011-1102 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1103- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1011-1102 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1103- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1011-1102 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1103- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1011-1012 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101-1102 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1103- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1011-1102 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1103- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1011-1102 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1103- ● ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1011-1102 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1103-1306 ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 1011-1102 ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 1103-1308 ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1011-1102 ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1103-1306 ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1011-1102 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1103- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1011-1102 ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1011-1102 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1103- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1011-1102 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1103- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1011-1102 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1103- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1011-1102 ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1103- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1011-1102 ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1103- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1011-1102 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1103- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1011-1102 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1103- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1011-1102 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1103- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1011-1102 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1103- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1011-1102 ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98038-450-0 04 1 1103-1311 ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1011-1102 ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1103-1306 ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1307- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97417-196-1 01 1 1011-1102 ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97417-196-2 01 1 1103- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-5 01 1 1011-1102 ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-540-6 01 1 1103-1405 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1011-1102 ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1103- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1011-1102 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1103- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1011-1102 ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1103-1405 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1011-1102 ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1103-1311 ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1011-1102 ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1103- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1011-1102 ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1103- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1011-1102 ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1103- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1011-1102 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1103-1311 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1011-1102 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1103-1311 ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1011-1102 ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1103- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1011-1102 ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1103-1306 ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1307- ● ●

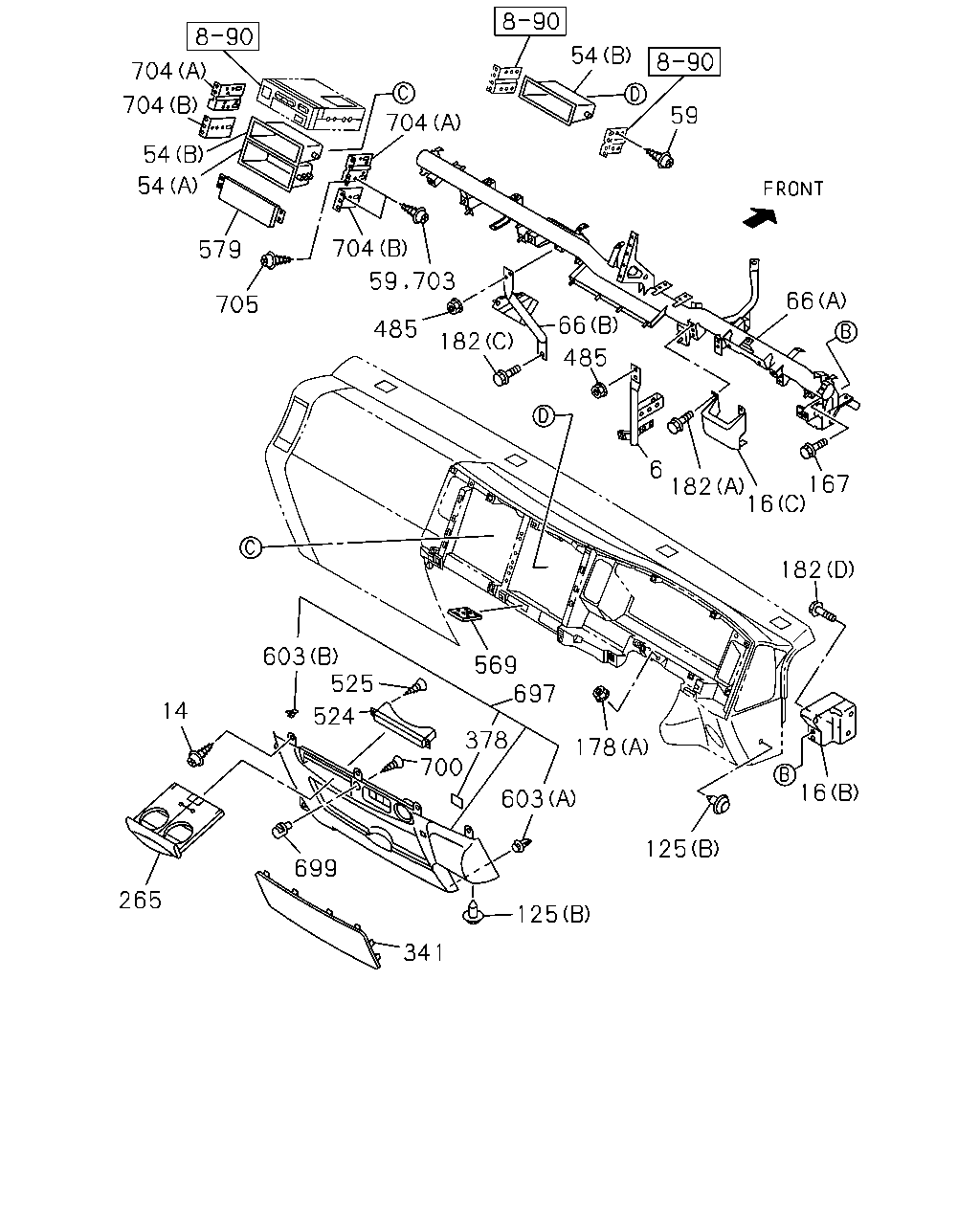

çizim 189173
54 59 66 16 167 182 182 6 16 125 178 603 697 569 525 603 524 699 341 700 125 265 14 705 579 54 54 704 704 704 704 59 703 485 66 182 485 378
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1011-1102 ●
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1103-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-1306 ● ●
6 SUPPORT; INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98196-255-0 01 1 1307- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1011-1102 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1103- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1011-1102 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1103-1306 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1307- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1011-1102 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1103-1306 ● ●
16 BRACKET; INST PNL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98017-204-1 01 1 1307- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1011-1102 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1103-1306 ● ●
16 BRACKET; INST PNL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98017-202-1 01 1 1307- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1011-1102 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1103- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1103- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1011-1102 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 1103- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 1103- ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 1011-1102 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 1011-1102 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1103- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1103- ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 1011-1102 ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 1103-1209 ● ●
54 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD<8PG> (A) H=69.8 BLACK 		8-97408-865-2 01 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1111-1209 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-1306 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1307- ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1307- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 06 1 1011-1101 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1102-1102 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1103-1209 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-97585-566-9 01 1 1011-1102 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-97585-566-9 01 1 1103-1111 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98170-399-0 01 1 1112-1306 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98240-604-0 01 1 1307- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98009-970-9 01 1 1011-1102 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98009-970-9 01 1 1103-1111 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98170-401-0 01 1 1112-1306 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER<AJ3> (A) 		8-98240-605-0 01 1 1307- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-97585-580-2 01 1 1011-1102 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-97585-580-2 01 1 1103- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1011-1102 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1103- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1011-1102 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1103- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1011-1102 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1103-1306 ● ●
167 BOLT; REINF TO INST
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X23 FLANGE 		8-97264-766-0 04 1 1307- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1011-1102 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1103- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1011-1102 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1103- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1103-1306 ● ●
182 BOLT; BRKT,INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) M8X16 FLANGE 		0-28050-816-0 04 1 1307- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1103-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1103-1306 ● ●
182 BOLT; BRKT,INST PANEL
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1307- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1011-1102 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1011-1102 ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1103- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1011-1011 ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-1102 ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1103- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-1102 ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1103- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1011-1102 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1103-1306 ● ●
485 NUT; SUPPORT CLIP,HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6 FLANGE 		0-91180-106-0 04 1 1307- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1011-1102 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1103- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1011-1102 ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1103- ● ●
569 HOLDER; CARD 8-97410-276-0 01 1 1011-1102 ●
569 HOLDER; CARD 8-97410-276-1 01 1 1103- ● ●
579 COVER; INST PNL
BLACK 		8-97466-735-0 01 1 1508- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1011-1102 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1103- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1011-1102 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1103- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1011-1102 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1103- ● ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1011-1102 ●
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1103- ● ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1011-1102 ●
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1103- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1011-1011 ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-1102 ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1103- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1011-1102 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1103- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1011-1102 ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1103- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1011-1102 ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1103- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1011-1102 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1103-1209 ● ●
704 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> (B) 		8-97585-616-2 02 1 1210-1306 ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1011-1102 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1103- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1011-1102 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1103-1209 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-1306 ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-1306 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
