7-30 — LOCK CYLINDER SET (#70971) — 26 parça

2 5 20 26 5 20 26 25 11 11

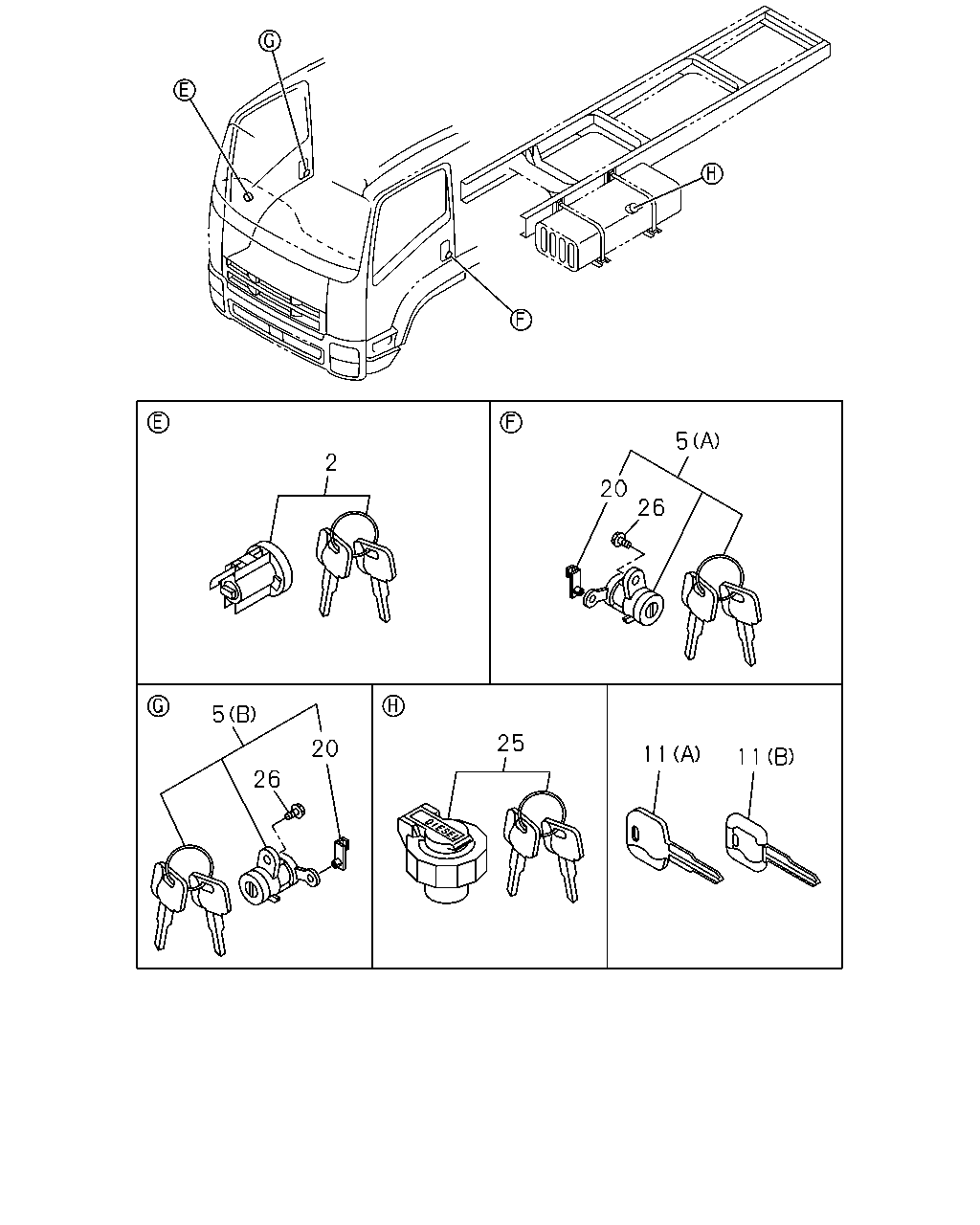

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	1011-1102	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	1103-1203	●	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1204-	●	●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1011-1102	●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1103-	●	●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1011-1102	●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1103-	●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	1011-1102	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	1103-	●	●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	1011-1102	●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	1103-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1011-1102	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1103-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1011-1102	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1103-	●	●
25	CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	1011-1102	●
25	CAP; FUEL TANK,W/KEY	8-98146-010-0	01	1	1103-	●	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1011-1102	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1103-	●	●

20 1 20

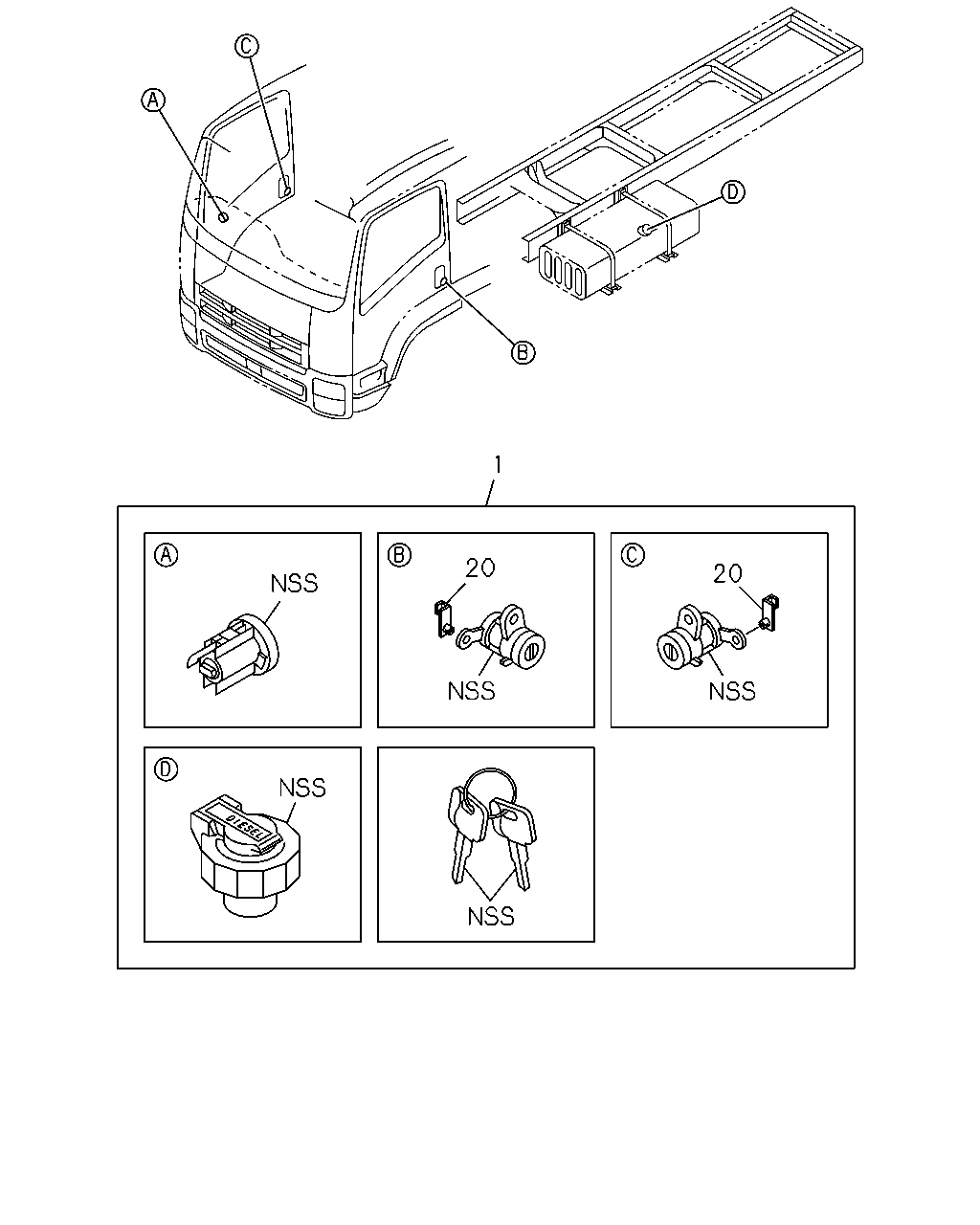

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK	8-98145-977-0	01	1	1011-1102	●
1	CYLINDER SET; CAR LOCK	8-98145-977-0	01	1	1103-1203	●	●
1	CYLINDER SET; CAR LOCK	8-98201-214-0	01	1	1204-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1011-1102	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1103-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1011-1102	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1103-	●	●
