7-20 — MIRROR AND MIRROR STAY (#70970) — 198 parça

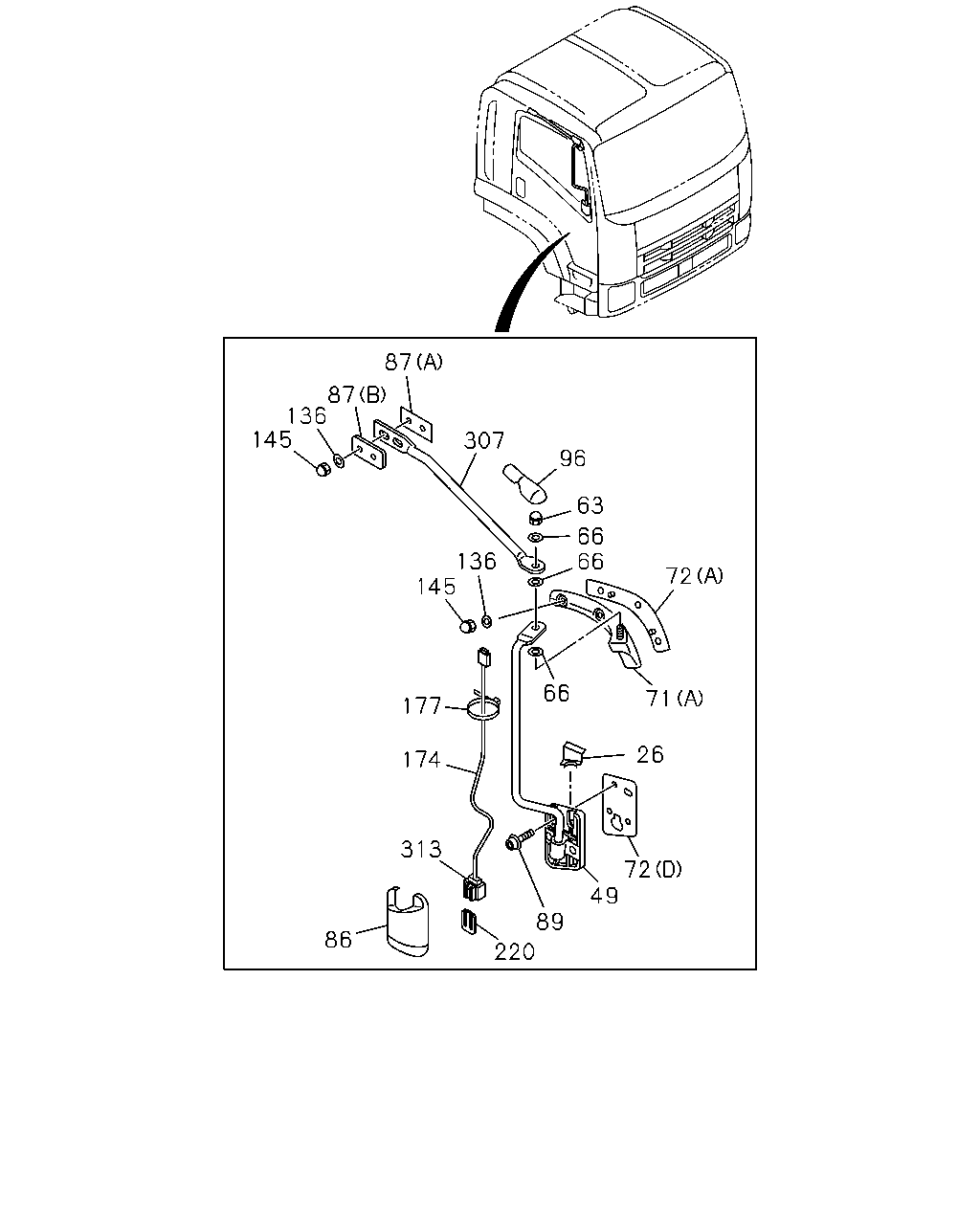

çizim 189167
145 136 87 87 96 86 220 313 89 72 26 174 177 66 71 72 66 66 63 136 307 145 49
BalonParca AdiParca NoAdetTipApplied Date A B
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1011-1102 ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1103- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1011-1102 ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1103- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1203- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1011-1102 ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1103- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1011-1102 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1103-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1103- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1011-1102 ●
72 SHEET
(A) 		8-98031-797-0 01 1 1103- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1011-1102 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1103- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1011-1102 ●
72 SHEET
(A) 		8-98031-796-0 01 1 1103- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1011-1102 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1103- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1011-1102 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1103- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1011-1102 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1103- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1011-1102 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1103- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1011-1102 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1103- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1011-1102 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1103- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1011-1102 ●
87 SPACER
(B) 		8-98063-789-0 02 1 1103- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1011-1102 ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1103- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1011-1102 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1103- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1011-1102 ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1103- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1011-1102 ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1103- ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1011-1102 ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1103- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1011-1102 ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1103- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1011-1102 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1103- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1011-1102 ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1103- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1011-1102 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1103- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1011-1102 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1103- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1011-1102 ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1103- ● ●

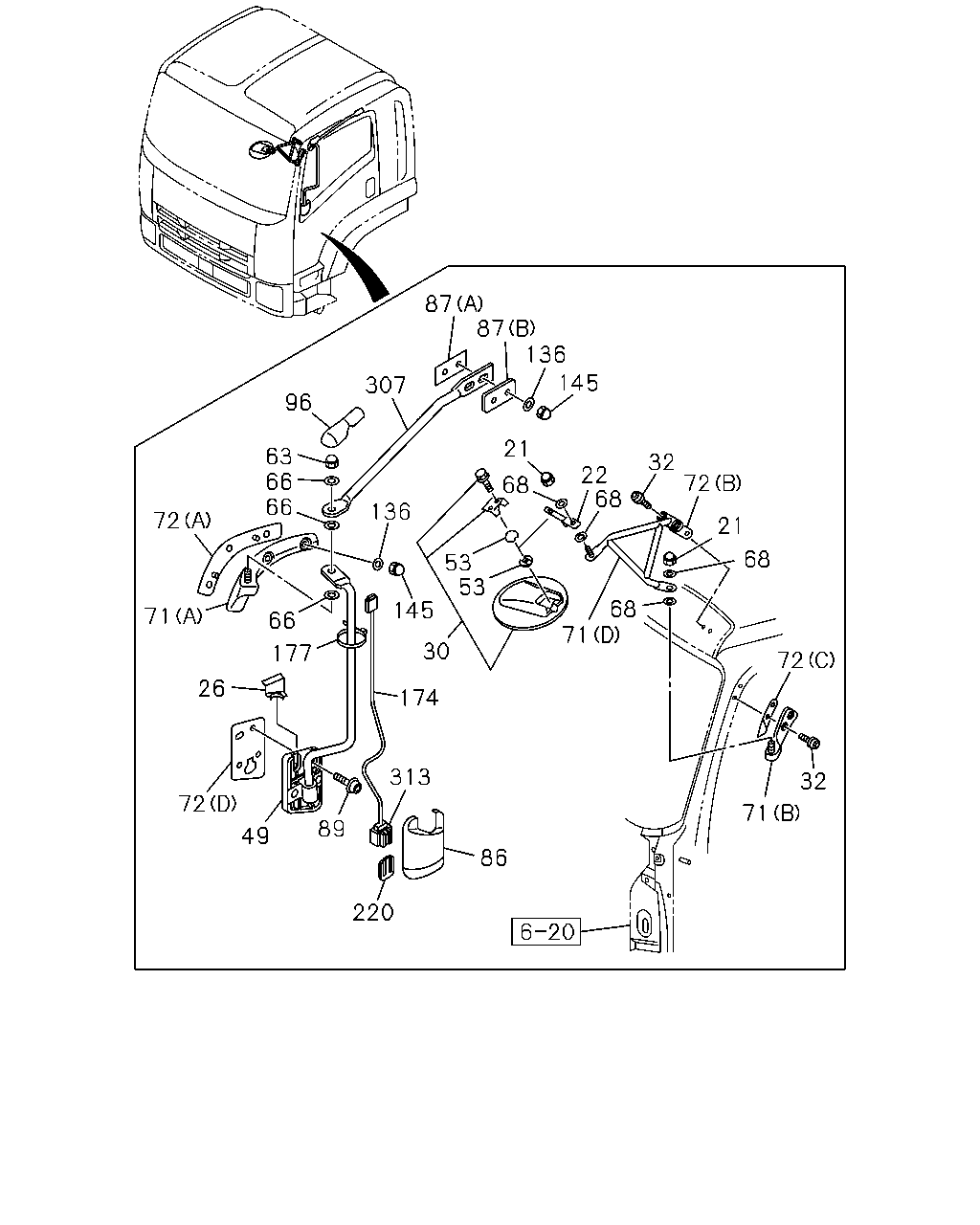

çizim 189170
220 49 72 89 86 71 72 68 71 68 21 72 32 68 22 21 68 53 53 136 145 30 174 313 177 26 71 72 66 66 63 96 307 87 87 136 145 66 32
BalonParca AdiParca NoAdetTipApplied Date A B
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1011-1102 ●
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 1103- ● ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 1011-1102 ●
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 1103- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1011-1102 ●
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 1103- ● ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1011-1102 ●
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 1103- ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 1011-1102 ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98055-994-0 01 1 1103-1504 ● ●
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1011-1102 ●
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 1103- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-055-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-185-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98075-054-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2> 		8-98166-184-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-779-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-201-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-778-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-200-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-069-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-213-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 1011-1102 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-068-0 01 1 1103-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-212-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1011-1102 ●
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 1103- ● ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1011-1102 ●
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 1103- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1011-1102 ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 1103- ● ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1011-1102 ●
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1103-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1103- ● ●
72 SHEET
(A) 		8-98031-797-0 01 1 1011-1102 ●
72 SHEET
(A) 		8-98031-797-0 01 1 1103- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1011-1102 ●
72 SHEET
(D) 		8-98101-865-0 01 1 1103- ● ●
72 SHEET
(A) 		8-98031-796-0 01 1 1011-1102 ●
72 SHEET
(A) 		8-98031-796-0 01 1 1103- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1011-1102 ●
72 SHEET
(D) 		8-98101-864-0 01 1 1103- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1011-1102 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-245-1 01 1 1103- ● ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1011-1102 ●
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98064-776-0 01 1 1103- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1011-1102 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 1103- ● ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1011-1102 ●
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 1103- ● ●
87 SPACER
(A) 		8-98063-786-0 02 1 1011-1102 ●
87 SPACER
(A) 		8-98063-786-0 02 1 1103- ● ●
87 SPACER
(B) 		8-98063-789-0 02 1 1011-1102 ●
87 SPACER
(B) 		8-98063-789-0 02 1 1103- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1011-1102 ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 1103- ● ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1011-1102 ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 1103- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1011-1102 ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 1103- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1011-1102 ●
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 1103- ● ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1011-1102 ●
174 HARNESS; MIRROR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98136-172-0 02 1 1103- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1011-1102 ●
174 HARNESS; MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98137-139-0 02 1 1103- ● ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1011-1102 ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1103- ● ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1011-1102 ●
220 HOLDER; CONNECTOR 8-94479-375-0 02 1 1103- ● ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1011-1102 ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 1103- ● ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1011-1102 ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 1103- ● ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1011-1102 ●
313 CONNECTOR; MIRROR 8-94479-370-0 02 1 1103- ● ●

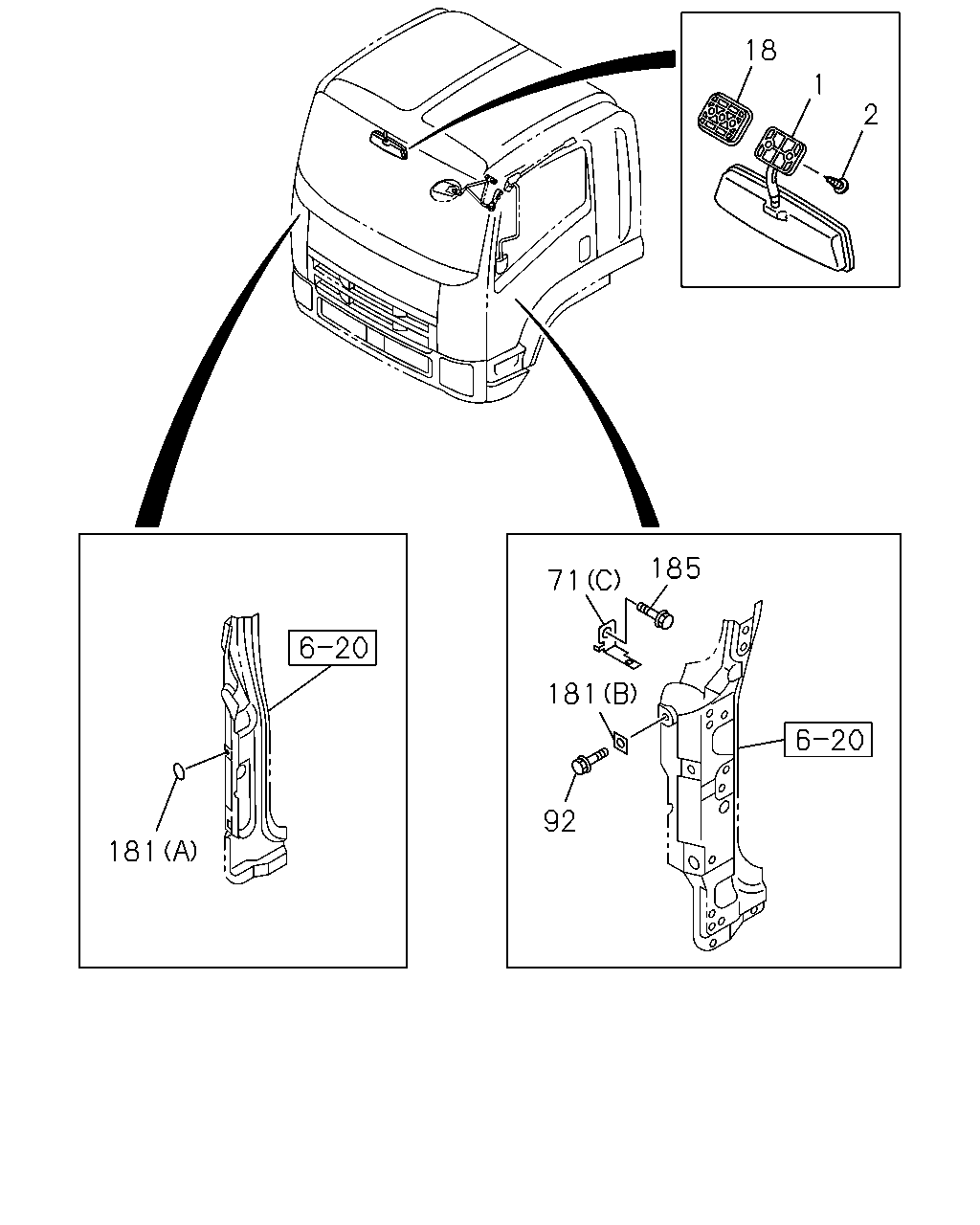

çizim 363660
181 71 181 92 185 18 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1011-1102 ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1103- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1011-1102 ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1103- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1011-1102 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1103-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (B) 		8-98060-240-0 01 1 1103- ● ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1011-1102 ●
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98092-492-3 01 1 1103- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1011-1102 ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1103- ● ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1011-1102 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1103- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1011-1102 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1103-1306 ● ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 1307- ● ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1011-1102 ●
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1103-1202 ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> M8X16 FLANGE 		0-28050-816-0 02 1 1203- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
