3-08B — PARKING BRAKE (#7097) — 127 parça

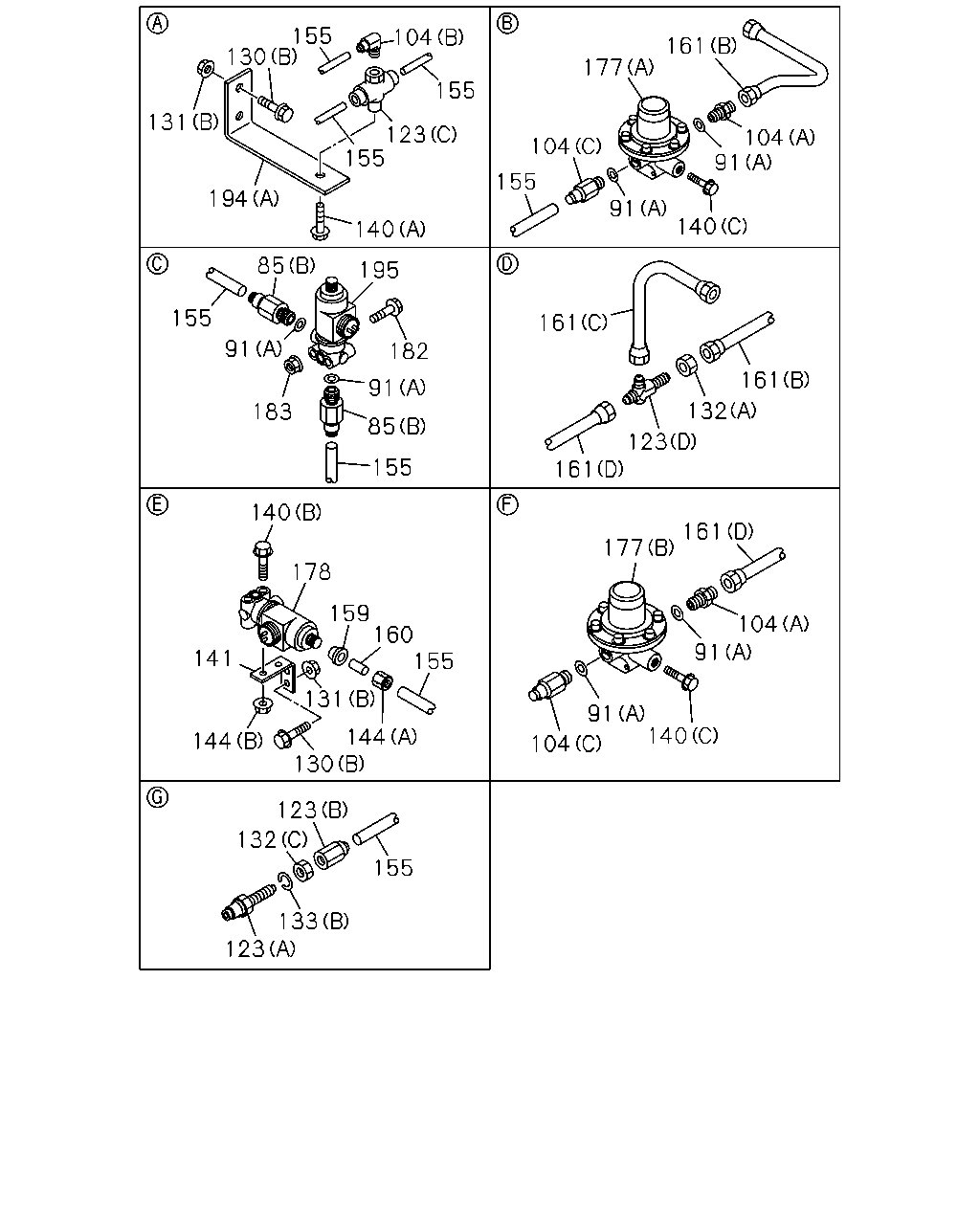

155 130 104 161 177 155 131 123 155 104 91 104 155 194 91 140 140 85 195 155 161 91 182 161 91 132 183 85 123 161 155 140 161 177 178 159 160 155 104 91 141 131 91 140 144 130 144 104 123 132 155 133 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-09660-239-0	01	1	0204-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & M12 STRAIGHT	1-09660-766-0	02	1	0204-0306
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & M12 STRAIGHT	1-09661-176-0	02	1	0307-
91	GASKET BRAKE SYSTEM RETARDER<RE2> (B) ID=10.5	1-09630-074-1	01	1	0204-
91	GASKET BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09571-412-0	09	1	0204-
91	GASKET BRAKE SYSTEM RETARDER<RE2> (C) ID=14.2	9-09851-004-0	01	1	0204-
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (A) M12 STRAIGHT	1-09654-246-0	03	1	0204-
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	0204-0306
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0307-
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (C) DIN8 & M12 STRAIGHT	1-09660-766-0	03	1	0204-0306
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (C) DIN8 & M12 STRAIGHT	1-09661-176-0	03	1	0307-
123	UNION BRAKE SYSTEM RETARDER<RE2> (E) DIN8 & M14 STRAIGHT	1-09660-726-2	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (C) DIN8 RC1/4 & M8	1-09660-735-1	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (A)	1-09660-807-2	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (D) M12	9-09228-806-1	01	1	0204-0607
123	UNION BRAKE SYSTEM RETARDER<RE2> (D) M12	0-92138-806-0	01	1	0608-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	06	1	0204-0512
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	06	1	0601-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M16X25 FLANGE	0-28881-625-0	02	1	0204-0512
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M16X25 FLANGE	0-28851-625-0	02	1	0601-
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91150-108-0	06	1	0204-0602
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91180-108-0	06	1	0603-
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M10 FLANGE	0-91150-110-0	01	1	0204-0602
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M10 FLANGE	0-91180-110-0	01	1	0603-
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	01	1	0204-
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (B) M14	9-99111-414-0	01	1	0204-0512
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (B) M14	0-91111-514-0	01	1	0601-
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (C) M16	9-99111-416-0	01	1	0204-0512
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (C) M16	0-91111-516-0	01	1	0601-
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (A) ID=14.2	9-09150-514-0	01	1	0204-0603
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (A) ID=14.2	0-91510-514-0	01	1	0604-0903
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (A) ID=14.2	0-91510-814-0	01	1	0904-
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	9-09150-516-0	01	1	0204-0603
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	0-91510-516-0	01	1	0604-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0204-0512
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X60 FLANGE	0-28080-860-0	02	1	0204-0512
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M10X20 FLANGE	0-28781-020-0	02	1	0204-0512
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M10X20 FLANGE	0-28751-020-0	02	1	0601-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M12 L=35.5	1-09675-169-0	01	1	0204-
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-47479-132-0	01	1	0204-
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91150-108-0	02	1	0204-0602
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M14	1-09660-767-0	02	1	0204-
155	TUBE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87410-073-0	03	1	0204-0212
155	TUBE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0301-
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=8.2 L=9.5	1-09666-067-0	02	1	0204-
160	INSERT BRAKE SYSTEM RETARDER<RE2> ID=5 OD=5.9 L=16	1-09669-122-0	02	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (B)	1-49122-830-0	01	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (C)	1-49122-831-0	01	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (D)	1-49122-832-0	01	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (A)	1-49123-064-0	01	1	0204-
177	VALVE; PRESS REDUCTION BRAKE SYSTEM RETARDER<RE2> (B) 1.20BAR	1-48110-084-0	01	1	0204-
177	VALVE; PRESS REDUCTION BRAKE SYSTEM RETARDER<RE2> (A) 3.00BAR	1-48110-085-0	01	1	0204-
178	VALVE; SOLENOID BRAKE SYSTEM RETARDER<RE2>	1-82563-581-1	01	1	0204-
182	BOLT; VLV BRAKE SYSTEM RETARDER<RE2> M8X60 FLANGE	0-28080-860-0	02	1	0204-0512
182	BOLT; VLV BRAKE SYSTEM RETARDER<RE2> M8X60 FLANGE	0-28050-860-0	02	1	0601-
183	NUT; VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	0204-0602
183	NUT; VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0603-
194	BRACKET; UNION BRAKE SYSTEM RETARDER<RE2> (A)	1-47479-130-0	01	1	0204-
194	BRACKET; UNION BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-131-0	01	1	0204-
195	VALVE; RETARDER CONT BRAKE SYSTEM RETARDER<RE2>	1-82563-763-1	01	1	0204-

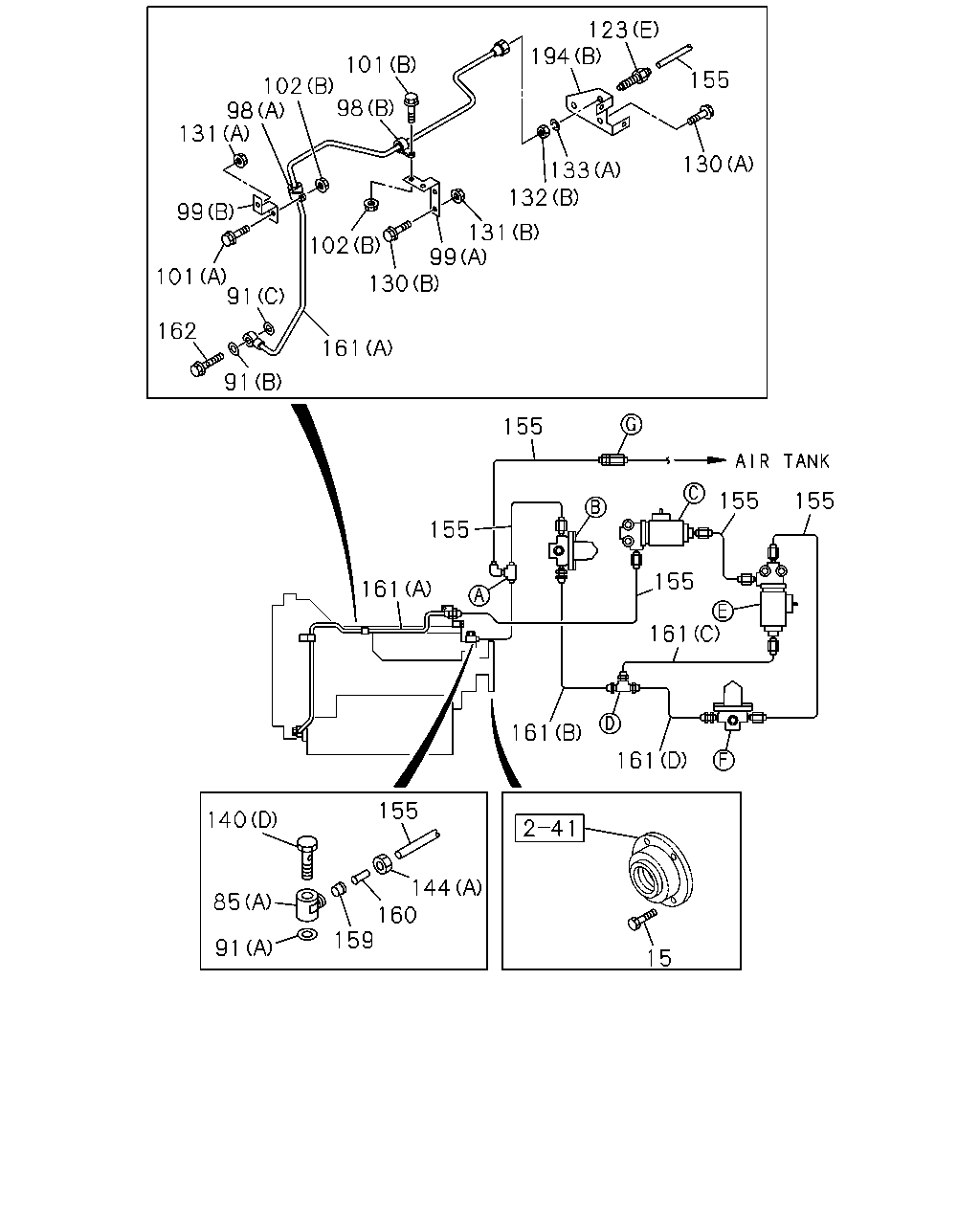

123 194 101 155 102 98 98 131 130 133 132 99 131 99 130 102 101 91 162 161 91 155 155 155 155 155 161 161 161 161 155 140 144 160 159 85 91 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BOLT; FLANGE BRAKE SYSTEM RETARDER<RE2> M14X50	1-09000-645-0	04	1	0204-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-09660-239-0	01	1	0204-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & M12 STRAIGHT	1-09660-766-0	02	1	0204-0306
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & M12 STRAIGHT	1-09661-176-0	02	1	0307-
91	GASKET BRAKE SYSTEM RETARDER<RE2> (B) ID=10.5	1-09630-074-1	01	1	0204-
91	GASKET BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09571-412-0	09	1	0204-
91	GASKET BRAKE SYSTEM RETARDER<RE2> (C) ID=14.2	9-09851-004-0	01	1	0204-
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0204-
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) ID=9 L=20	9-09524-835-0	01	1	0204-0606
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) ID=9 L=20	0-95234-835-0	01	1	0607-
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (B)	1-47478-917-0	01	1	0204-
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (A)	1-47479-133-0	01	1	0204-
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0204-0512
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M8X20 FLANGE	0-28680-820-0	01	1	0204-0512
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91150-108-0	02	1	0204-0602
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
123	UNION BRAKE SYSTEM RETARDER<RE2> (E) DIN8 & M14 STRAIGHT	1-09660-726-2	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (C) DIN8 RC1/4 & M8	1-09660-735-1	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (A)	1-09660-807-2	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0204-
123	UNION BRAKE SYSTEM RETARDER<RE2> (D) M12	9-09228-806-1	01	1	0204-0607
123	UNION BRAKE SYSTEM RETARDER<RE2> (D) M12	0-92138-806-0	01	1	0608-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	06	1	0204-0512
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	06	1	0601-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M16X25 FLANGE	0-28881-625-0	02	1	0204-0512
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M16X25 FLANGE	0-28851-625-0	02	1	0601-
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91150-108-0	06	1	0204-0602
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91180-108-0	06	1	0603-
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M10 FLANGE	0-91150-110-0	01	1	0204-0602
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M10 FLANGE	0-91180-110-0	01	1	0603-
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	01	1	0204-
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (B) M14	9-99111-414-0	01	1	0204-0512
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (B) M14	0-91111-514-0	01	1	0601-
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (C) M16	9-99111-416-0	01	1	0204-0512
132	NUT; UNION BRAKE SYSTEM RETARDER<RE2> (C) M16	0-91111-516-0	01	1	0601-
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (A) ID=14.2	9-09150-514-0	01	1	0204-0603
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (A) ID=14.2	0-91510-514-0	01	1	0604-0903
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (A) ID=14.2	0-91510-814-0	01	1	0904-
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	9-09150-516-0	01	1	0204-0603
133	WASHER; UNION BRAKE SYSTEM RETARDER<RE2> (B) ID=16.2	0-91510-516-0	01	1	0604-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0204-0512
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X60 FLANGE	0-28080-860-0	02	1	0204-0512
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M10X20 FLANGE	0-28781-020-0	02	1	0204-0512
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M10X20 FLANGE	0-28751-020-0	02	1	0601-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M12 L=35.5	1-09675-169-0	01	1	0204-
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91150-108-0	02	1	0204-0602
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91180-108-0	02	1	0603-
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M14	1-09660-767-0	02	1	0204-
155	TUBE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87410-073-0	03	1	0204-0212
155	TUBE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0301-
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=8.2 L=9.5	1-09666-067-0	02	1	0204-
160	INSERT BRAKE SYSTEM RETARDER<RE2> ID=5 OD=5.9 L=16	1-09669-122-0	02	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (B)	1-49122-830-0	01	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (C)	1-49122-831-0	01	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (D)	1-49122-832-0	01	1	0204-
161	PIPE; AIR,RETADER BRAKE SYSTEM RETARDER<RE2> (A)	1-49123-064-0	01	1	0204-
162	BOLT; EYE BRAKE SYSTEM RETARDER<RE2>	1-09675-234-0	01	1	0204-
194	BRACKET; UNION BRAKE SYSTEM RETARDER<RE2> (A)	1-47479-130-0	01	1	0204-
194	BRACKET; UNION BRAKE SYSTEM RETARDER<RE2> (B)	1-47479-131-0	01	1	0204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
