◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#70969) — 16 parça

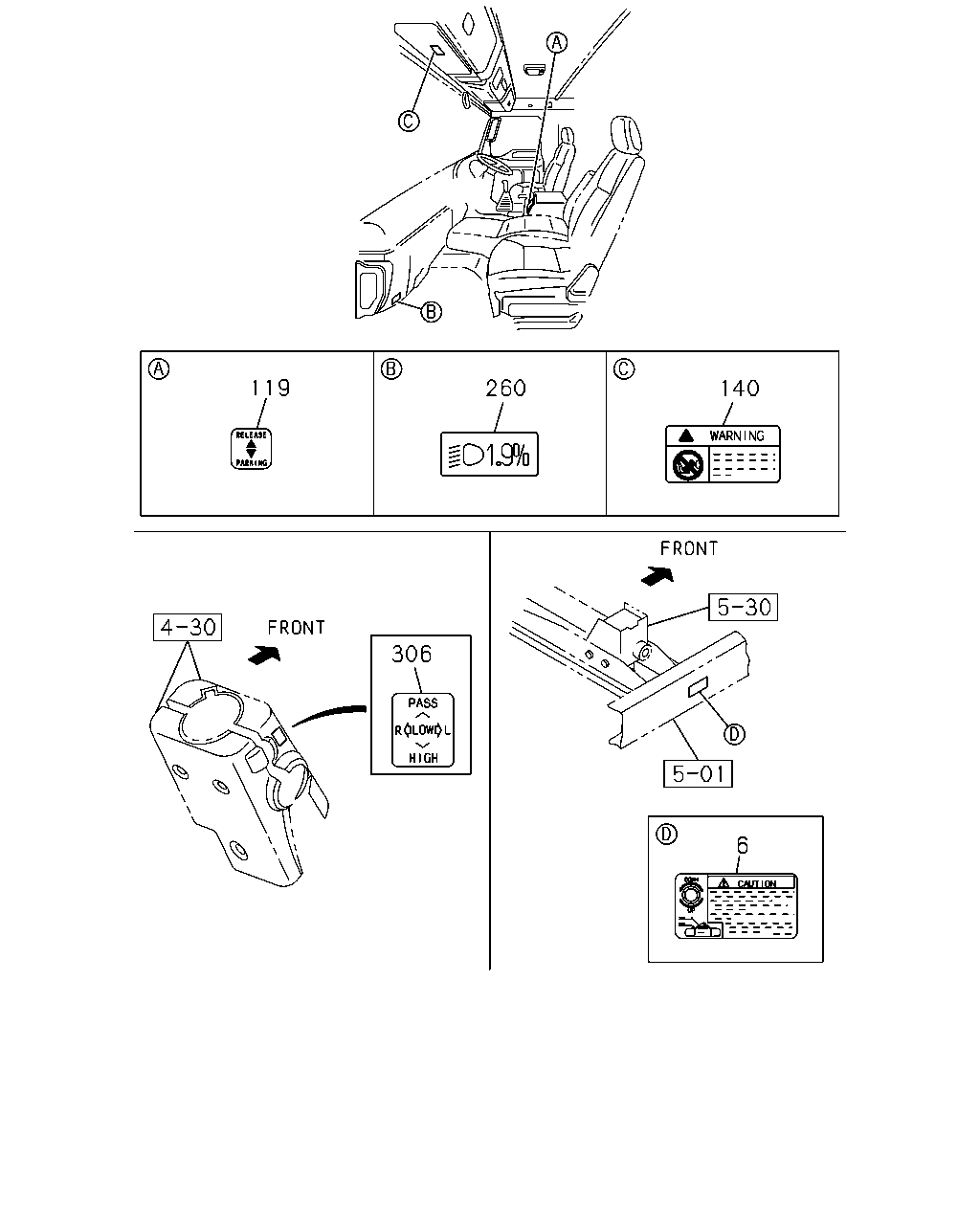

çizim 133200
119 260 140 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1011-1102 ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1103- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1011-1102 ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1103-1306 ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1307- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 02 1 1011-1102 ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 02 1 1103- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1011-1102 ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1103- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1011-1102 ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1103-1306 ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1307- ● ●
çizim 189164
35 35 49
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 1103- ●
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 1011- ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1011-1102 ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1103- ● ●
