Isuzu WW
▶
TRUCKS
▶
FSS
▶
11306 - FSS(AUST/NZ)EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

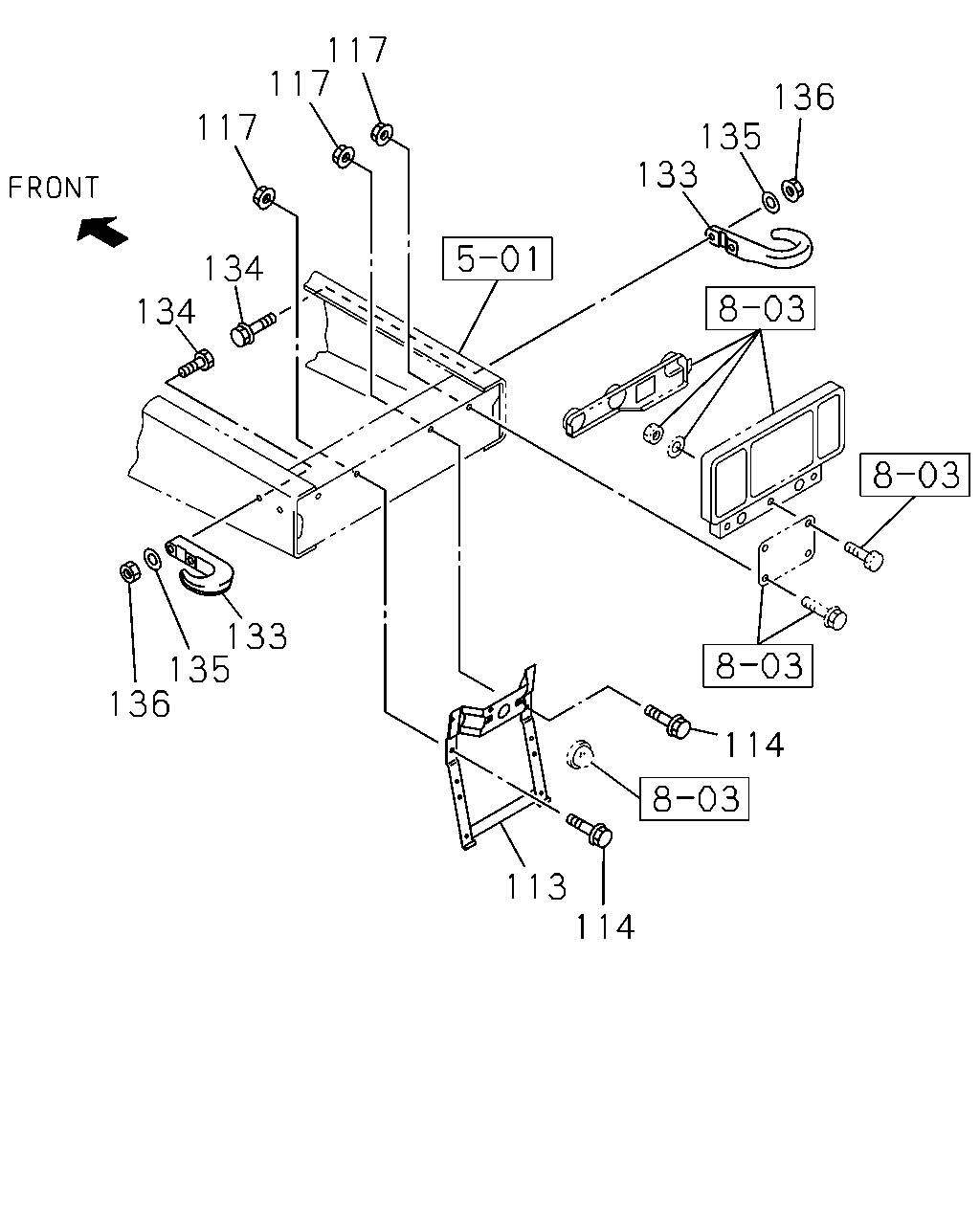

6-90 — REAR BUMPER
(#70967) — 36 parça
Tümü
A - FCS5MS
B - FCS5WS
114
113
114
133
135
136
117
117
117
134
134
136
135
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
1011-1102
●
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
1103-1205
●
●
113
BRACKET; LICENSE PLATE
COUNTRY NEW ZEALAND<CX6>
1-53485-074-0
01
1
1206-
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
1011-1102
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
1103-1205
●
●
114
BOLT; BRKT,LICENSE PLATE
COUNTRY NEW ZEALAND<CX6> M8X25 FLANGE
0-28650-825-0
02
1
1206-
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1011-1102
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1103-1205
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1206-1306
●
●
117
NUT; BRKT
COUNTRY NEW ZEALAND<CX6> M8 FLANGE
0-91180-108-0
02
1
1206-1306
●
117
NUT; BRKT
REVERSING WARNING BUZZER<YM9> M8 FLANGE
0-91180-108-0
02
1
1307-
●
●
117
NUT; BRKT
COUNTRY NEW ZEALAND<CX6> M8 FLANGE
0-91180-108-0
02
1
1307-
●
133
HOOK
TOW HOOK<V76>
1-57181-003-5
01
1
1110-1306
●
133
HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76>
1-57181-003-5
01
1
1307-
●
133
HOOK
1-57181-003-5
02
1
1011-1102
●
133
HOOK
1-57181-003-5
02
1
1103-1109
●
●
133
HOOK
REAR DOUBLE HOOK<PM1>
1-57181-003-5
02
1
1110-
●
133
HOOK
1-57181-003-5
02
1
1110-
●
134
BOLT; HOOK
TOW HOOK<V76> M14X50
0-10861-450-0
02
1
1110-1306
●
134
BOLT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M14X50
0-10861-450-0
02
1
1307-
●
134
BOLT; HOOK
M14X50
0-10861-450-0
04
1
1011-1102
●
134
BOLT; HOOK
M14X50
0-10861-450-0
04
1
1103-1109
●
●
134
BOLT; HOOK
REAR DOUBLE HOOK<PM1> M14X50
0-10861-450-0
04
1
1110-
●
134
BOLT; HOOK
M14X50
0-10861-450-0
04
1
1110-
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=14.2
0-91510-814-0
02
1
1110-1306
●
135
WASHER; LK,HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> ID=14.2
0-91510-814-0
02
1
1307-
●
135
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
04
1
1011-1102
●
135
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
04
1
1103-1109
●
●
135
WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> ID=14.2
0-91510-814-0
04
1
1110-
●
135
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
04
1
1110-
●
136
NUT; HOOK
TOW HOOK<V76> M14
0-91110-514-0
02
1
1110-1306
●
136
NUT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M14
0-91110-514-0
02
1
1307-
●
136
NUT; HOOK
M14
0-91110-514-0
04
1
1011-1102
●
136
NUT; HOOK
M14
0-91110-514-0
04
1
1103-1109
●
●
136
NUT; HOOK
REAR DOUBLE HOOK<PM1> M14
0-91110-514-0
04
1
1110-
●
136
NUT; HOOK
M14
0-91110-514-0
04
1
1110-
●
