◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#70960) — 246 parça

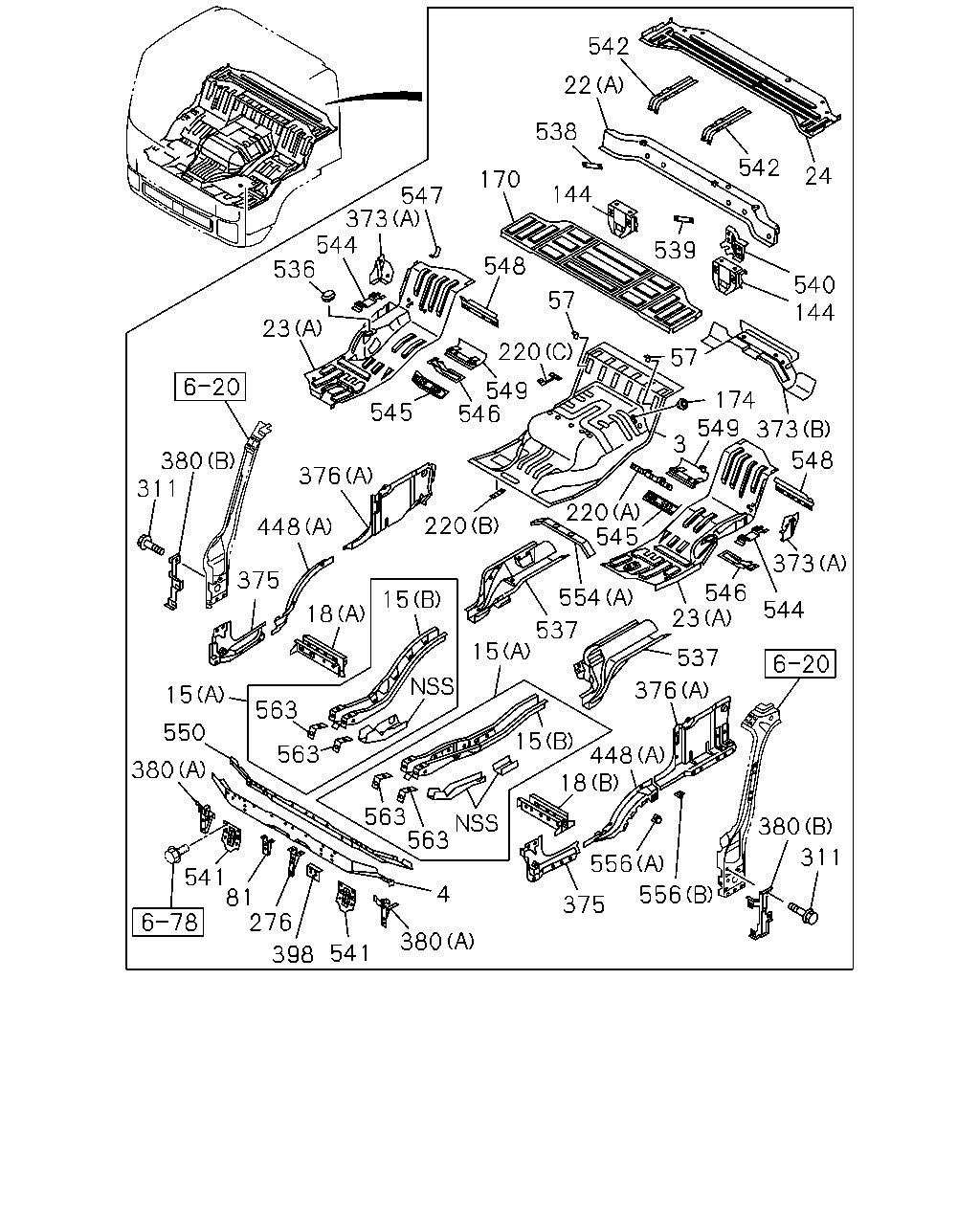

çizim 189166
542 22 538 170 144 539 542 24 540 144 57 57 548 547 373 544 536 23 545 546 549 220 380 311 375 448 376 18 15 550 380 541 81 276 398 541 380 563 563 563 563 15 15 15 18 556 375 556 380 311 544 448 376 537 23 546 373 537 554 548 373 174 549 3 220 545 220 4
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98081-357-4 01 1 1011- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1011-1102 ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1103- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1011- ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 1011-1102 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1103- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1011- ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 1011-1102 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1103- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1103- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1011- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1011-1102 ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1103- ● ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 1103- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1103- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 1103- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1103- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1011- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1011- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1011-1102 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1103- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1011-1102 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1103- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1011-1102 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1103- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1011- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1011- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1011- ●
220 PATCH
(B) 		8-97589-603-3 01 1 1011-1102 ●
220 PATCH
(B) 		8-97589-603-3 01 1 1103- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1011-1102 ●
220 PATCH
(C) 		8-97589-627-2 01 1 1103- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1011-1102 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1103- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1011-1102 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1103- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-97410-965-0 02 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1011-1507 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1011-1102 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1103- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1011-1102 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1103- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 1103- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 1103- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1011-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1011- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1103- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1103- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1103- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1103- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1011-1102 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1103- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1103- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1103- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1103- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1103- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1011- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1011- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1011-1102 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1103- ● ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1103- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1103- ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1011- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1103- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1011- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1011- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1011- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1011-1102 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1103- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1011- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1011-1102 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1103- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1011-1102 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1103- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1011-1102 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1103- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1011-1102 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1103- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1011- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1011- ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1011- ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1011- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1011- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1011- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1011-1102 ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1103- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1011-1102 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1103- ● ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1011- ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1011- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1011-1102 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1103- ● ●

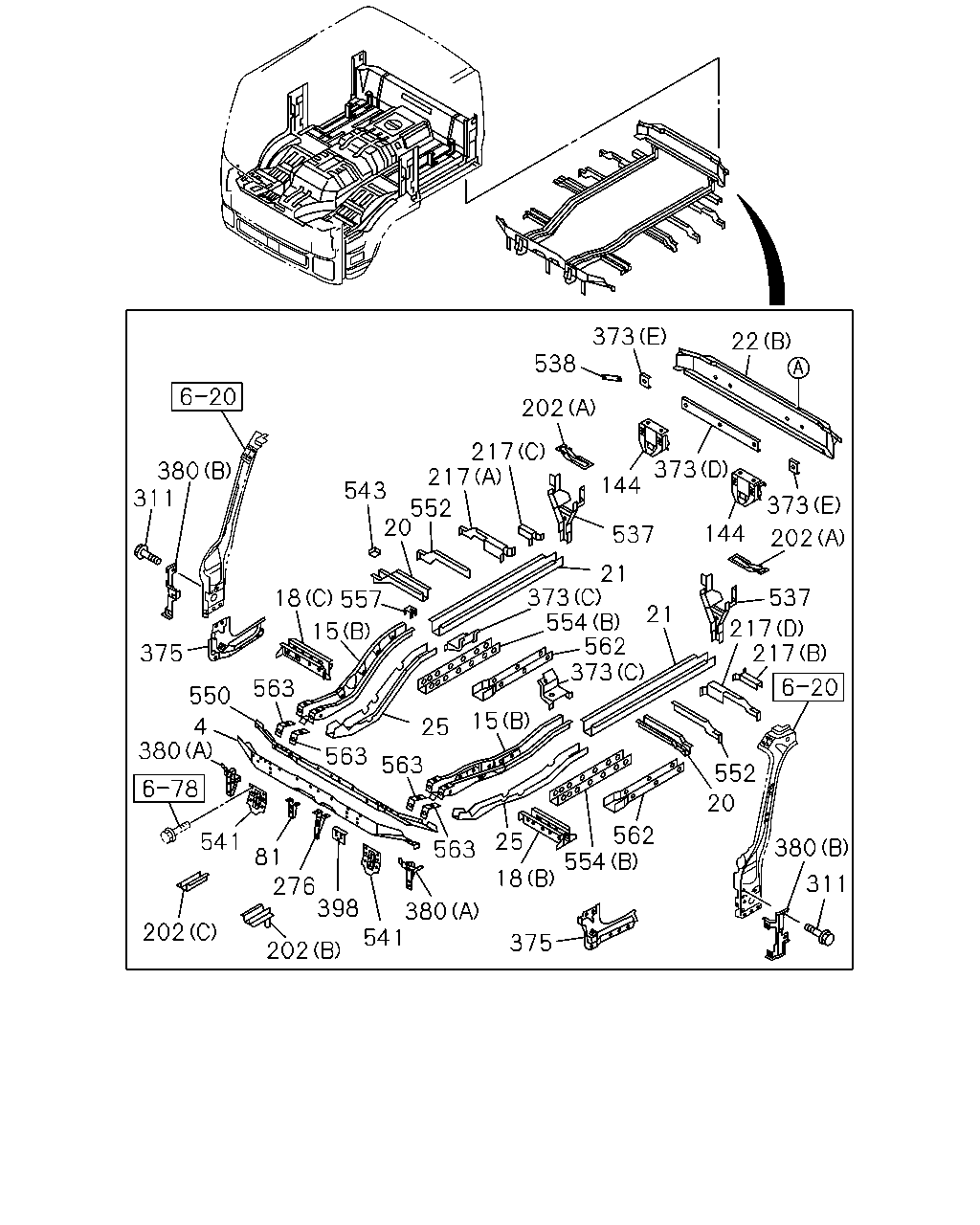

çizim 189212
311 380 20 552 217 375 541 202 202 398 276 81 541 380 380 550 375 563 563 563 563 18 25 552 25 562 15 15 311 380 18 543 557 20 552 217 217 202 538 373 22 373 144 537 144 373 537 202 373 554 562 373 217 4 21 21
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1011-1102 ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1103- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1011- ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 1011-1102 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1103- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1011- ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 1011-1102 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1103- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1103- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1011- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1011-1102 ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1103- ● ●
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 1103- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 1103- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1103- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1103- ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 1103- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1011- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1103- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1103- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1011-1102 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1103- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1011-1102 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1103- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1011-1102 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1103- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 1103- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1103- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1103- ●
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 1103- ●
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 1103- ●
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 1103- ●
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 1103- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1011-1102 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1103- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1011-1102 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1103- ● ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(E) 		8-97410-965-0 02 1 1103- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1011- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1011-1507 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1011-1102 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1103- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1011-1102 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1103- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1103- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1103- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1103- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1011-1102 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1103- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1011-1102 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1103- ● ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1103- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1103- ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1011- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1011- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1103- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1011- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1011-1102 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1103- ● ●
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 1103- ●
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 1103- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1011-1102 ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1103- ● ●
552 PANEL; STEP RR 8-98057-170-0 01 1 1103- ●
552 PANEL; STEP RR 8-98057-171-0 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1011-1102 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1103- ● ●
557 PATCH; SEAT 8-98074-333-0 01 1 1103- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1103- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1011-1102 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1103- ● ●

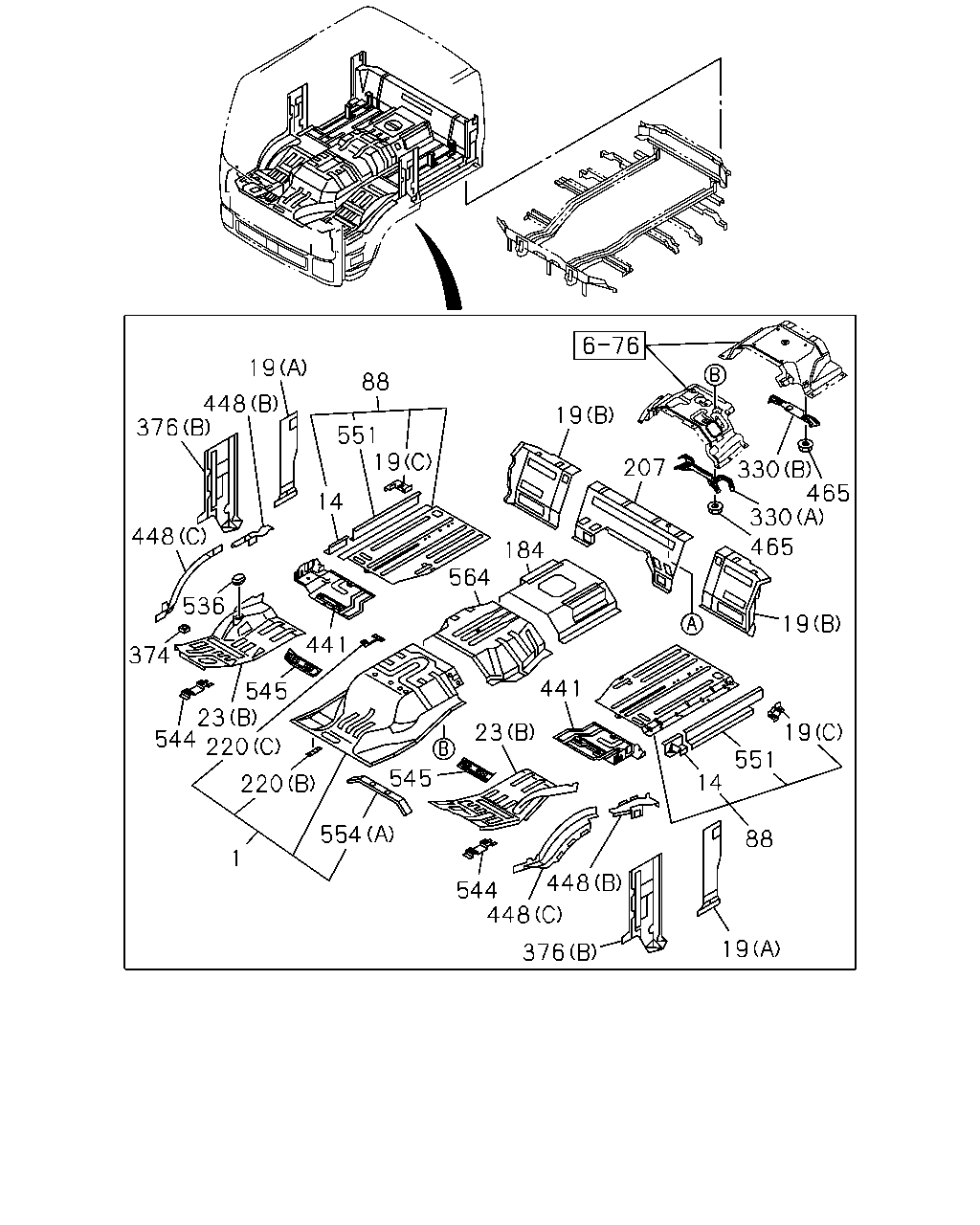

çizim 189214
88 19 448 376 448 14 551 536 19 207 330 465 330 465 19 19 551 14 88 19 441 184 564 19 374 441 545 23 544 220 220 1 554 546 448 23 544 448 376
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97410-865-7 01 1 1103- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1103- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1103- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1103- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1103- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1103- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1103- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 1103- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 1103- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1103- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 1103- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1011- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1103- ●
88 BOARD ASM; FLOOR 8-97615-912-2 01 1 1103- ●
88 BOARD ASM; FLOOR 8-97615-913-3 01 1 1103- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1103- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1103- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1011- ●
220 PATCH
(B) 		8-97589-603-3 01 1 1011-1102 ●
220 PATCH
(B) 		8-97589-603-3 01 1 1103- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1011-1102 ●
220 PATCH
(C) 		8-97589-627-2 01 1 1103- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1103- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1103- ●
374 NUT; FLOOR
M6 		1-09984-110-0 03 1 1103- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 1103- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 1103- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 1011-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1011- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98058-016-2 01 1 1103- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98074-232-1 01 1 1103- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1103- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1103- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1103- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1103- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1011- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1011- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1103- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1011-1102 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1103- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1011-1102 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1103- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1011-1102 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1103- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1011-1102 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1103- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1011-1102 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1103- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1011- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1103- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1103- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1011-1102 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1103- ● ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1103- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
