Sayfa 3-08A - Isuzu EPC

3-08A — PARKING BRAKE (#7096) — 218 parça

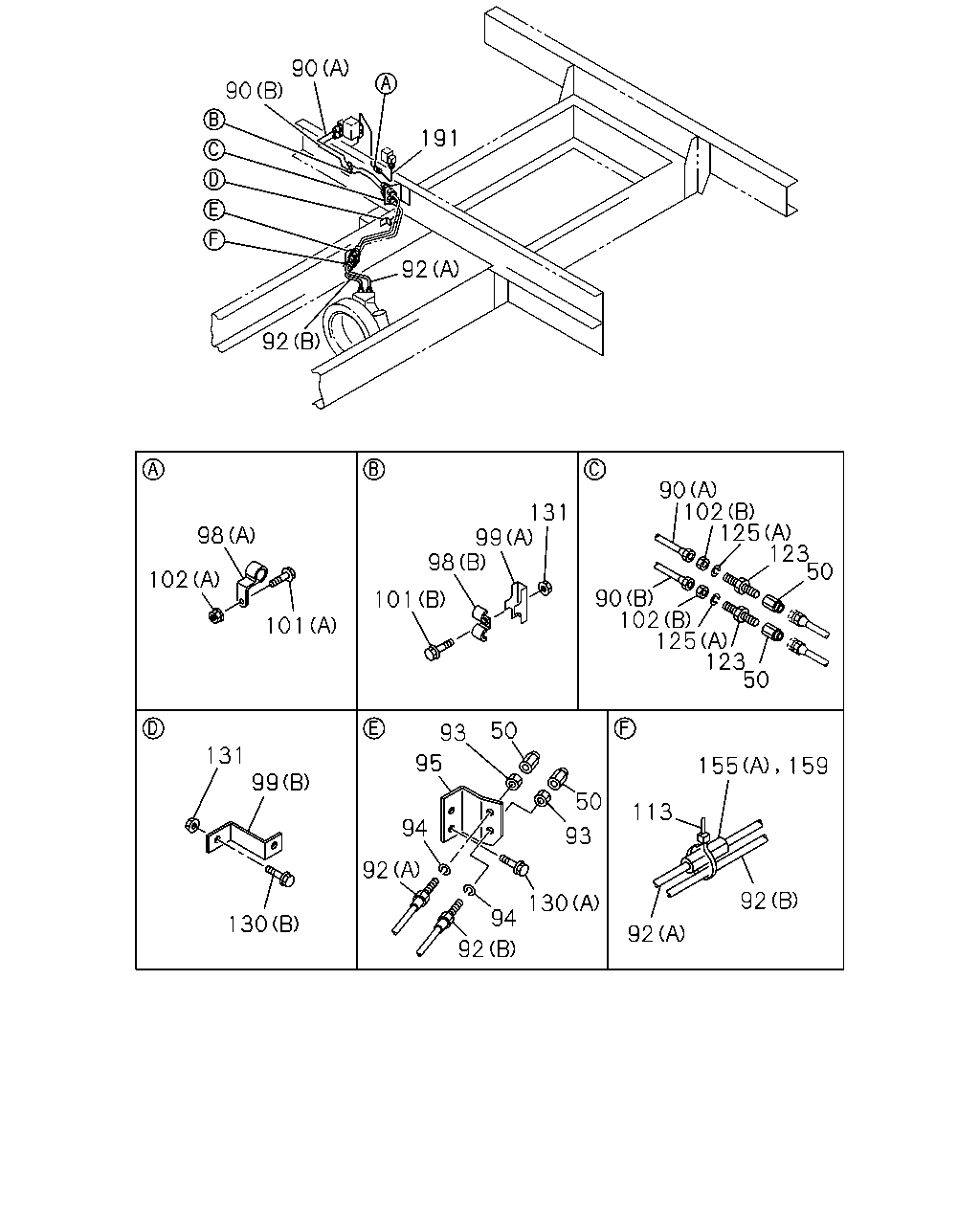

90 90 191 92 92 90 102 125 123 50 131 98 99 98 102 90 102 125 123 50 101 101 50 93 131 95 155 159 99 50 113 94 93 92 92 130 94 130 92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT	1-09660-873-0	04	1	0012-0203	●	●
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT	1-09660-873-0	04	1	0204-	●	●	●
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) L=495 SERVICED BY L=500	1-47428-807-0	01	1	0012-0203	●	●
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) L=495 SERVICED BY L=500	1-47428-807-0	01	1	0204-	●	●	●
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B) L=505 SERVICED BY L=550	1-47428-808-0	01	1	0012-0203	●	●
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B) L=505 SERVICED BY L=550	1-47428-808-0	01	1	0204-	●	●	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=230	1-09363-666-0	01	1	0012-0210	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=230	1-09363-666-0	01	1	0211-	●
92	HOSE; FLEX,RETARDER 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (B) L=230	1-09363-666-0	01	1	0211-			●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=250	1-09363-667-0	01	1	0012-0210	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=250	1-09363-667-0	01	1	0211-	●
92	HOSE; FLEX,RETARDER 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) L=250	1-09363-667-0	01	1	0211-			●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=300	1-09363-608-0	01	1	0012-		●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=320	1-09363-656-0	01	1	0012-		●
92	HOSE; FLEX,RETARDER 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (A) L=340	1-09363-622-0	01	1	0204-			●
92	HOSE; FLEX,RETARDER 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (B) L=350	1-09363-624-0	01	1	0204-			●
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	0012-0203	●	●
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	0204-	●	●	●
94	WASHER; LK,FLEX HOSE BRAKE SYSTEM RETARDER<RE2> ID=12.2	9-09150-512-0	02	1	0012-0210	●	●
94	WASHER; LK,FLEX HOSE BRAKE SYSTEM RETARDER<RE2> ID=12.2	9-09150-512-0	02	1	0211-0603	●	●
94	WASHER; LK,FLEX HOSE 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> ID=12.2	9-09150-512-0	02	1	0211-0603			●
94	WASHER; LK,FLEX HOSE BRAKE SYSTEM RETARDER<RE2> ID=12.2	0-91510-512-0	02	1	0604-	●	●
94	WASHER; LK,FLEX HOSE 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> ID=12.2	0-91510-512-0	02	1	0604-			●
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER<RE2>	1-47478-905-0	02	1	0012-0203	●	●
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER<RE2>	1-47478-905-0	02	1	0204-	●	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0012-0210	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0211-	●	●
98	CLIP; AIR PIPE 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0211-			●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0012-0203	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0204-	●	●	●
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (A)	1-47475-427-1	01	1	0012-0203	●	●
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (A)	1-47475-427-1	01	1	0204-	●	●	●
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (B)	1-47478-917-0	01	1	0012-0203	●	●
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (B)	1-47478-917-0	01	1	0204-	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0012-0210	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●
101	BOLT; CLIP 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512			●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
101	BOLT; CLIP 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M8X40 FLANGE	0-28680-840-0	01	1	0012-0203	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M8X40 FLANGE	0-28680-840-0	01	1	0204-0512	●	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	01	1	0012-0210	●	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●
102	NUT; CLIP,AIR PIPE 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	01	1	0211-0602			●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
102	NUT; CLIP,AIR PIPE 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-			●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) M12	9-09840-280-0	02	1	0012-0203	●	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) M12	9-09840-280-0	02	1	0204-	●	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=250	1-09707-126-0	01	1	0012-0203	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=250	1-09707-126-0	01	1	0204-	●	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0012-0210	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0211-	●	●
113	CLIP; HOSE 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0211-			●
123	UNION BRAKE SYSTEM RETARDER<RE2> M12 L=66.5	9-09223-306-1	02	1	0012-0203	●	●
123	UNION BRAKE SYSTEM RETARDER<RE2> M12 L=66.5	9-09223-306-1	02	1	0204-0607	●	●	●
123	UNION BRAKE SYSTEM RETARDER<RE2> M12 L=66.5	0-92113-306-0	02	1	0608-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	9-09150-506-0	02	1	0012-0203	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	9-09150-506-0	02	1	0204-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	0-91510-506-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09150-512-0	02	1	0012-0203	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09150-512-0	02	1	0204-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	0-91510-512-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	9-09150-516-0	04	1	0012-0203	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	9-09150-516-0	04	1	0204-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	0-91510-516-0	04	1	0604-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28080-845-0	02	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28080-845-0	02	1	0204-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X30 FLANGE	0-28680-830-0	02	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X30 FLANGE	0-28680-830-0	02	1	0204-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (C) M6X14 HEX SOCKET	1-48629-145-0	03	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (C) M6X14 HEX SOCKET	1-48629-145-0	03	1	0204-	●	●	●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	04	1	0012-0203	●	●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-092-0	01	1	0012-0203	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-092-0	01	1	0204-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0012-0203	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0204-	●	●	●
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=14 OD=18 L=60	1-09337-030-0	01	1	0012-0210	●	●
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=14 OD=18 L=60	1-09337-030-0	01	1	0211-	●	●
159	SLEEVE 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> ID=14 OD=18 L=60	1-09337-030-0	01	1	0211-			●
191	PIPE; AIR,MAG VLV TO MAG VLV BRAKE SYSTEM RETARDER<RE2> L=633	1-49122-601-0	01	1	0012-0106	●	●
191	PIPE; AIR,MAG VLV TO MAG VLV BRAKE SYSTEM RETARDER<RE2> EXC. EURO3 SPECIFICATION(NJX) L=633	1-49122-601-0	01	1	0107-	●	●
191	PIPE; AIR,MAG VLV TO MAG VLV EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> L=422	1-49122-968-0	01	1	0107-	●	●
191	PIPE; AIR,MAG VLV TO MAG VLV RR ENG LEAF SUSP(LVR5FB) 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2>	1-49122-310-0	01	1	0204-			●

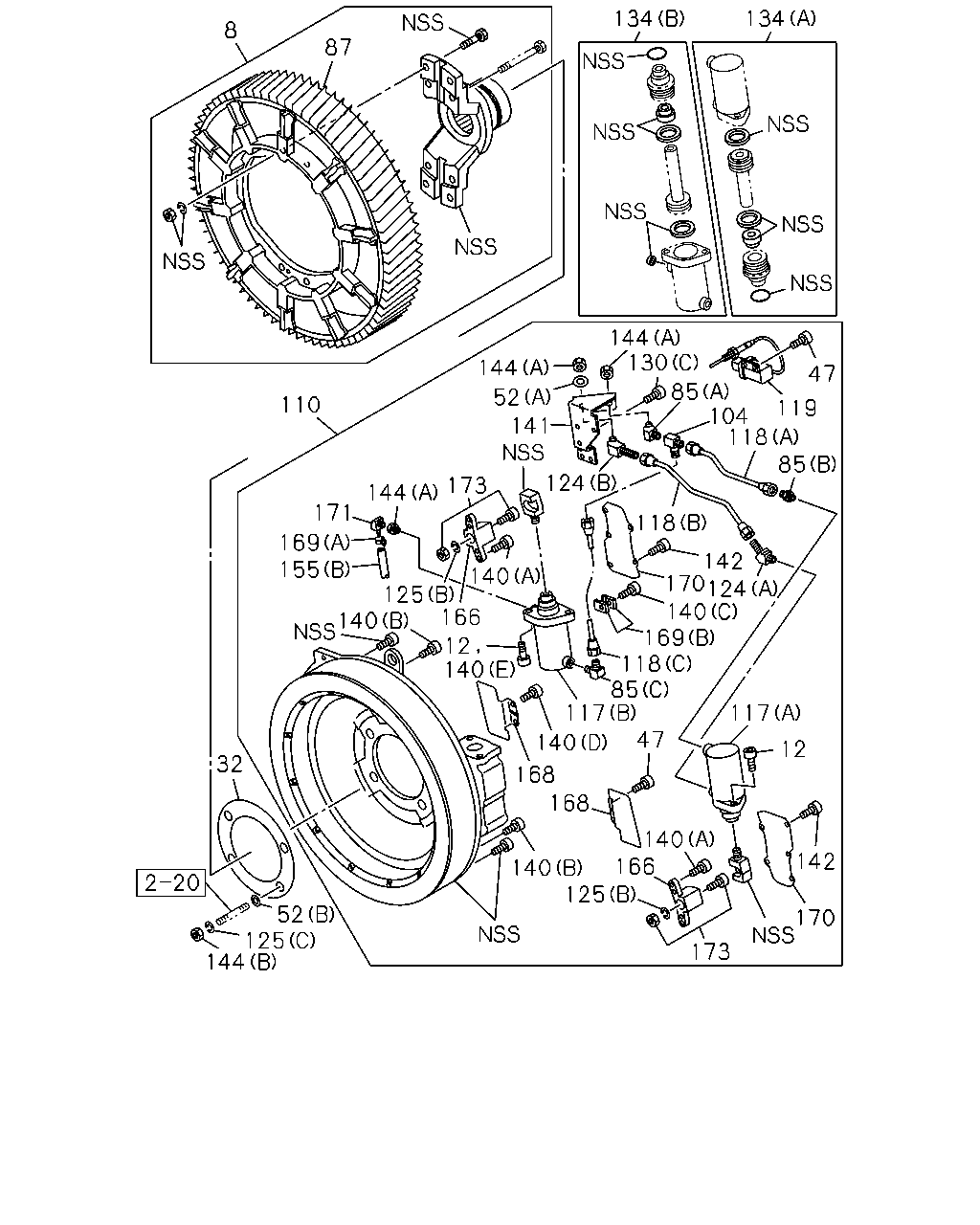

134 134 8 87 144 130 144 47 85 104 118 85 52 110 119 141 124 173 144 171 118 140 169 155 142 170 124 140 169 118 85 117 47 125 140 166 12 140 117 140 12 32 168 168 140 140 166 125 142 52 125 144 170 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-264-3	01	1	0107-0203		●
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-264-3	01	1	0204-		●
8	FLANGE; PARKING BRK 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2>	1-46210-264-3	01	1	0204-			●
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-264-2	01	1	0012-0106		●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-170-0	04	1	0012-0106	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-170-0	02	1	0107-0203	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-170-0	02	1	0204-	●	●	●
32	PLATE; SUPPORT,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48629-293-0	01	1	0012-0203	●	●
32	PLATE; SUPPORT,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48629-293-0	01	1	0204-0412	●	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	16	1	0012-0106	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	02	1	0107-0203	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	02	1	0204-	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0107-0210	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0211-0605	●
52	WASHER; PL 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0211-0605			●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	02	1	0606-	●
52	WASHER; PL 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	02	1	0606-			●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	01	1	0107-0203		●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	01	1	0204-0605		●
52	WASHER; PL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	01	1	0204-0605			●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	0606-		●
52	WASHER; PL 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	0606-			●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	9-09164-516-0	04	1	0501-1011	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1012-	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0012-0106	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	01	1	0012-0106		●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0012-0203	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0204-	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09221-806-1	01	1	0012-0203	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09221-806-1	01	1	0204-0607	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	0-92111-806-0	01	1	0608-	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/8	9-09224-306-2	01	1	0012-0203	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/8	9-09224-306-2	01	1	0204-0607	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/8	0-92124-306-0	01	1	0608-	●	●	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-393-2	01	1	0107-0210	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	0012-0203	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	0204-	●	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-431-2	01	1	0012-0203	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-431-6	01	1	0204-0909	●	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	8-98134-962-0	01	1	0910-	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-286-0	01	1	0107-0203	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-286-0	01	1	0204-	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-287-0	01	1	0107-0203	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-287-0	01	1	0204-	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-286-0	01	1	0012-0106	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-287-0	01	1	0012-0106	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-271-0	01	1	0012-0203	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-271-0	01	1	0204-	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-272-0	01	1	0012-0203	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-272-0	01	1	0204-	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-273-0	01	1	0012-0203	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-273-0	01	1	0204-	●	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	0012-0203	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	0204-	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0012-0203	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0204-	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-268-0	01	1	0012-0203	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-268-0	01	1	0204-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	9-09150-506-0	02	1	0012-0203	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	9-09150-506-0	02	1	0204-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	0-91510-506-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09150-512-0	02	1	0012-0203	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09150-512-0	02	1	0204-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	0-91510-512-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	9-09150-516-0	04	1	0012-0203	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	9-09150-516-0	04	1	0204-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	0-91510-516-0	04	1	0604-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28080-845-0	02	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28080-845-0	02	1	0204-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X30 FLANGE	0-28680-830-0	02	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X30 FLANGE	0-28680-830-0	02	1	0204-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (C) M6X14 HEX SOCKET	1-48629-145-0	03	1	0012-0203	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (C) M6X14 HEX SOCKET	1-48629-145-0	03	1	0204-	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-284-0	01	1	0107-0203	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-284-0	01	1	0204-	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-285-0	01	1	0107-0203	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-285-0	01	1	0204-	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-284-0	01	1	0012-0106	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-285-0	01	1	0012-0106	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	01	1	0107-0210	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	01	1	0211-	●
140	BOLT 6SD1 TC-S(83L) BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	01	1	0211-			●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	02	1	0107-0203		●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	02	1	0204-		●
140	BOLT 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	02	1	0204-			●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	01	1	0012-0106	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M6X10 HEX SOCKET	1-48629-133-0	02	1	0012-0203	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M6X10 HEX SOCKET	1-48629-133-0	02	1	0204-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-182-0	08	1	0012-0203	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-182-0	08	1	0204-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X12	1-48629-205-0	02	1	0012-0203	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X12	1-48629-205-0	02	1	0204-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M6X20 HEX SOCKET	1-48629-270-0	01	1	0012-0203	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M6X20 HEX SOCKET	1-48629-270-0	01	1	0204-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-170-0	02	1	0012-0106		●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-266-0	01	1	0012-0203	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-266-0	01	1	0204-	●	●	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	10	1	0012-0203	●	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	10	1	0204-	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	03	1	0012-0203	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	03	1	0204-	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	9-99110-516-0	04	1	0012-0203	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	9-99110-516-0	04	1	0204-0512	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	0601-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-092-0	01	1	0012-0203	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-092-0	01	1	0204-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0012-0203	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0204-	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-261-0	02	1	0012-0203	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-261-0	02	1	0204-	●	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0012-0203	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0204-	●	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-126-0	01	1	0012-0203	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-126-0	01	1	0204-	●	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-249-0	02	1	0012-0203	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-249-0	02	1	0204-	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-260-0	02	1	0012-0203	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-260-0	02	1	0204-	●	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	0012-0203	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	0204-	●	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0012-0203	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0204-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
