◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#70959) — 55 parça

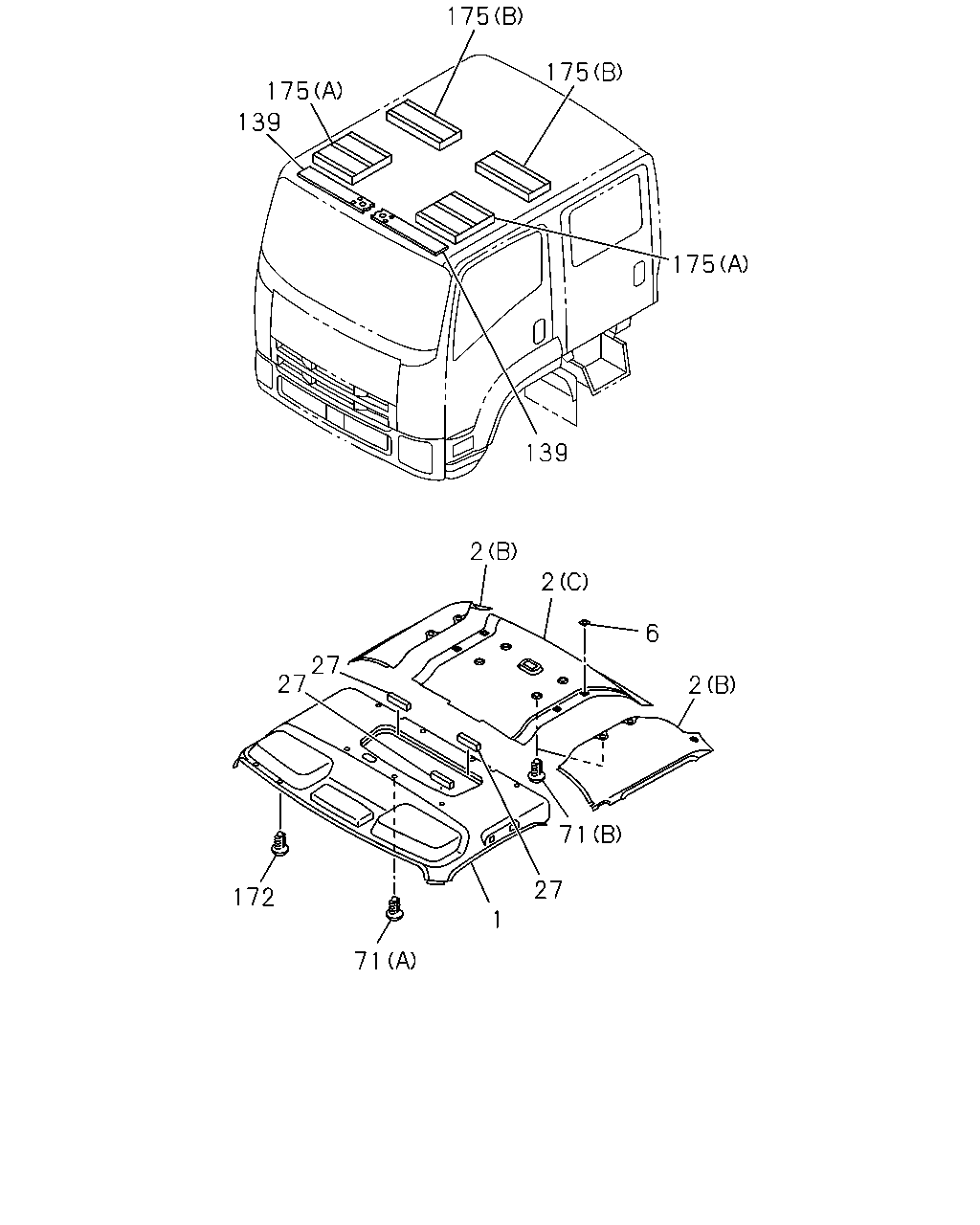

çizim 131192
139 175 175 175 175 139 2 2 6 2 71 27 1 71 172 27 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97409-794-2 01 1 1103-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-686-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97409-209-2 01 1 1103-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 2-SPEAKER SYSTEM BASE<U95> DARK GRAY 		8-97426-682-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-682-0 01 1 1309- ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-347-0 01 1 1011-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-701-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-344-0 01 1 1011-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 2-SPEAKER SYSTEM BASE<U95> DARK GRAY 		8-97426-698-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-698-0 01 1 1309- ●
2 LINING; HD,ROOF RR
(C) DARK GRAY 		8-97407-454-1 01 1 1103- ●
2 LINING; HD,ROOF RR
(B) DARK GRAY 		8-97408-555-1 01 1 1103- ●
2 LINING; HD,ROOF RR
(B) DARK GRAY 		8-97408-557-1 01 1 1103- ●
2 LINING; HD,ROOF RR
(A) DARK GRAY 		8-97415-673-0 01 1 1011- ●
6 SPACER; HD LINING
1 SET=20 PIECE 		8-98100-429-0 04 1 1103- ●
27 INSULATION; ROOF 8-98046-638-2 03 1 1011-1102 ●
27 INSULATION; ROOF 8-98046-638-2 03 1 1103- ● ●
71 FASTENER; HD LINING
(A) DARK GRAY 		8-97405-282-0 03 1 1103- ●
71 FASTENER; HD LINING
(B) DARK GRAY 		8-97411-797-0 14 1 1103- ●
71 FASTENER; HD LINING
(A) DARK GRAY 		8-97405-282-0 07 1 1011- ●
139 SEAL; ROOF 8-98169-116-0 02 1 1011-1102 ●
139 SEAL; ROOF 8-98169-116-0 02 1 1103- ● ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 04 1 1103- ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 14 1 1011- ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1011-1102 ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1103- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1011-1102 ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1103- ● ●

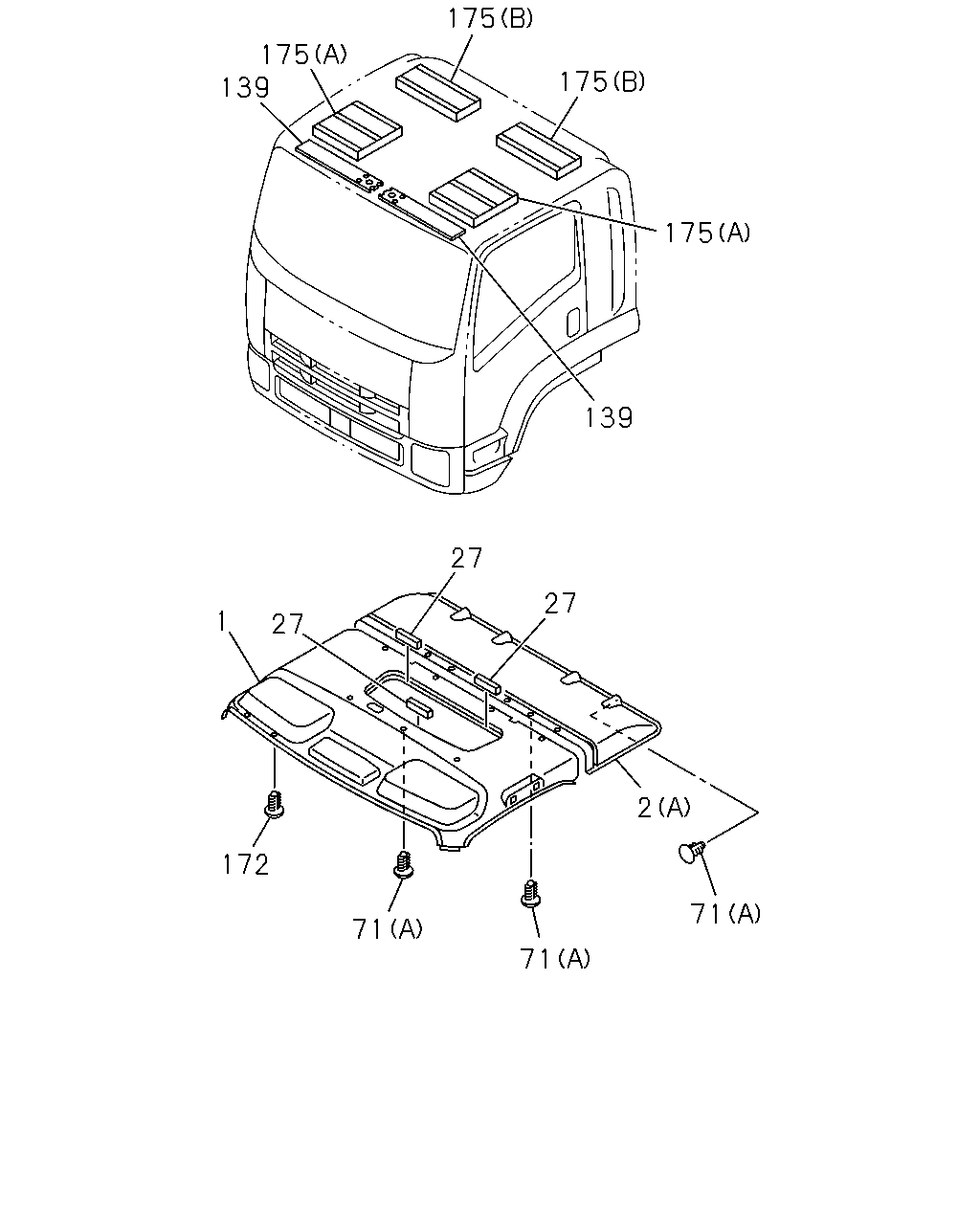

çizim 131503
175 175 139 175 175 139 27 27 1 172 71 71 71 2 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97409-794-2 01 1 1103-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-686-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97409-209-2 01 1 1103-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 2-SPEAKER SYSTEM BASE<U95> DARK GRAY 		8-97426-682-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-682-0 01 1 1309- ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-347-0 01 1 1011-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-701-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-344-0 01 1 1011-1306 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 2-SPEAKER SYSTEM BASE<U95> DARK GRAY 		8-97426-698-0 01 1 1307-1308 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-698-0 01 1 1309- ●
2 LINING; HD,ROOF RR
(C) DARK GRAY 		8-97407-454-1 01 1 1103- ●
2 LINING; HD,ROOF RR
(B) DARK GRAY 		8-97408-555-1 01 1 1103- ●
2 LINING; HD,ROOF RR
(B) DARK GRAY 		8-97408-557-1 01 1 1103- ●
2 LINING; HD,ROOF RR
(A) DARK GRAY 		8-97415-673-0 01 1 1011- ●
27 INSULATION; ROOF 8-98046-638-2 03 1 1011-1102 ●
27 INSULATION; ROOF 8-98046-638-2 03 1 1103- ● ●
71 FASTENER; HD LINING
(A) DARK GRAY 		8-97405-282-0 03 1 1103- ●
71 FASTENER; HD LINING
(B) DARK GRAY 		8-97411-797-0 14 1 1103- ●
71 FASTENER; HD LINING
(A) DARK GRAY 		8-97405-282-0 07 1 1011- ●
139 SEAL; ROOF 8-98169-116-0 02 1 1011-1102 ●
139 SEAL; ROOF 8-98169-116-0 02 1 1103- ● ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 04 1 1103- ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 14 1 1011- ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1011-1102 ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1103- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1011-1102 ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1103- ● ●
