◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#70958) — 46 parça

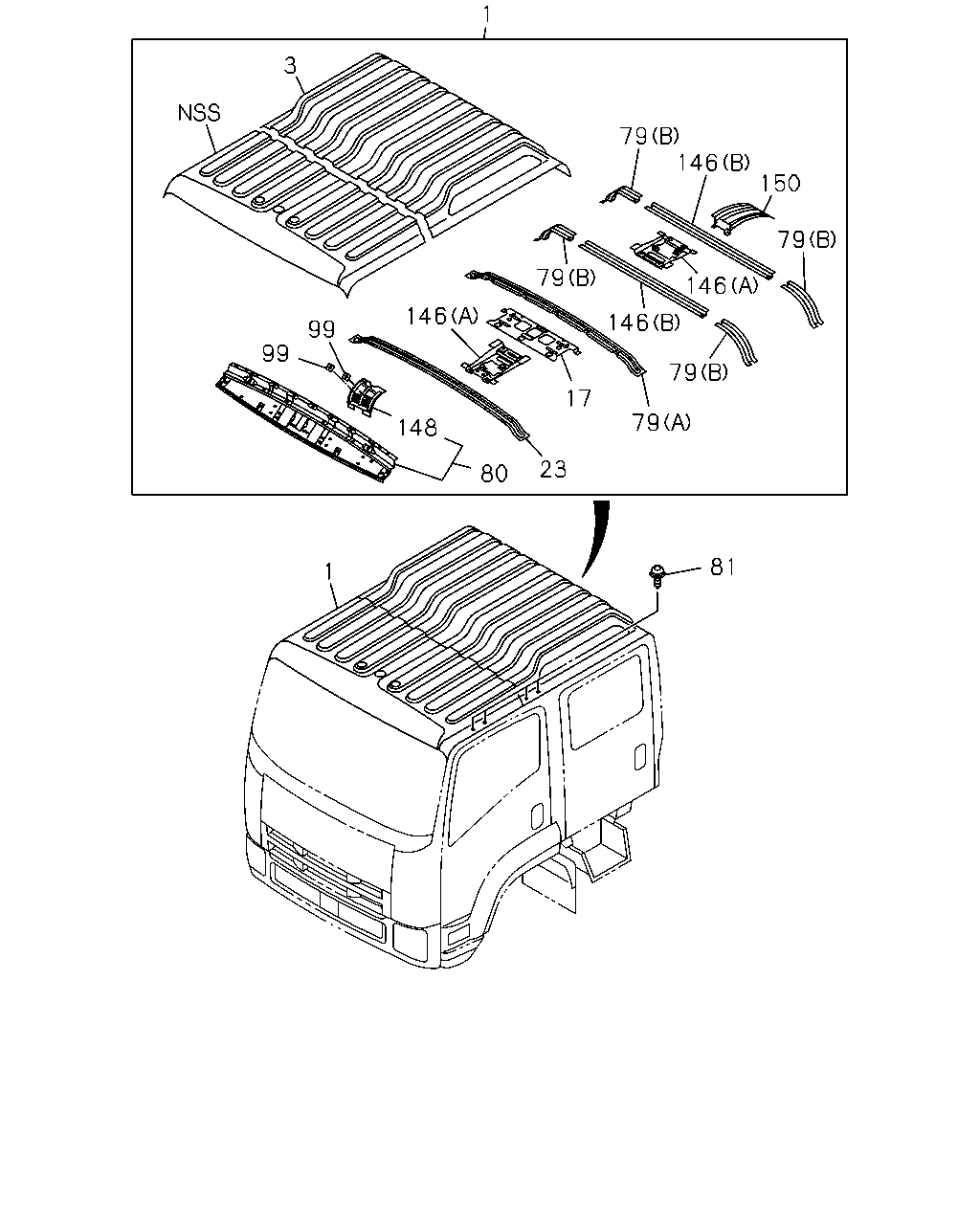

çizim 131185
1 3 79 150 79 146 79 146 79 79 23 80 148 99 99 81 146 146 17 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97587-641-7 01 1 1103- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98065-284-6 01 1 1103- ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1011- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1011- ●
3 PANEL; ROOF,RR 8-97411-040-1 01 1 1103- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1011-1102 ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1103- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1011-1102 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1103- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 1103- ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1011-1102 ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1103- ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-3 01 1 1011-1102 ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1103- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1011-1102 ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1103- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1011-1102 ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1103- ● ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 1103- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 1103- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 1011- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1011-1102 ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1103- ● ●
150 REINFORCEMENT; ROOF BACK 8-98085-374-0 01 1 1103- ●

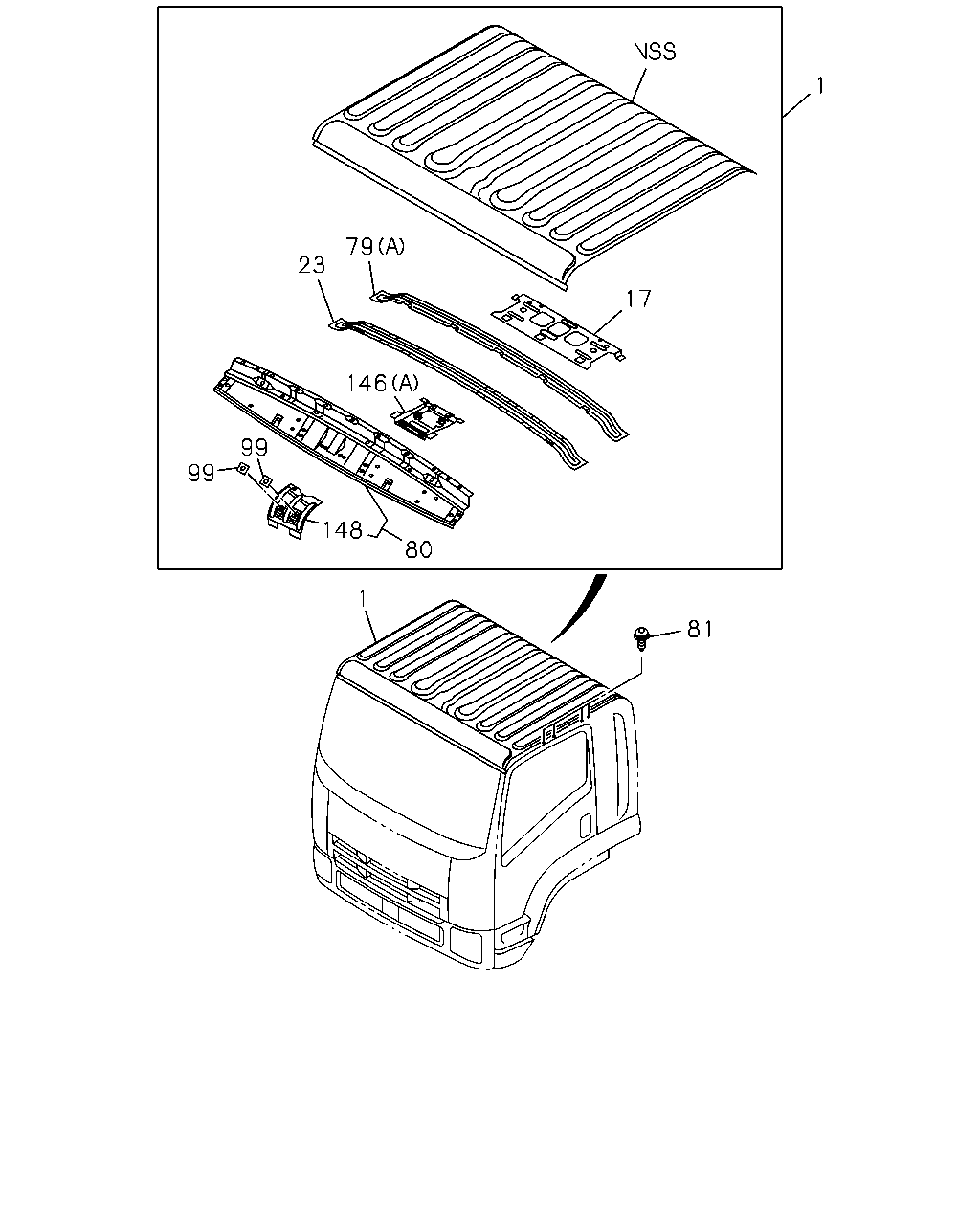

çizim 131341
81 17 1 79 23 146 99 99 148 80 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97587-641-7 01 1 1103- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98065-284-6 01 1 1103- ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-170-7 01 1 1011- ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98017-276-6 01 1 1011- ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1011-1102 ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1103- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1011-1102 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1103- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
(B) 		8-98008-023-0 04 1 1103- ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1011-1102 ●
79 REINFORCEMENT; ROOF PANEL,RR
(A) 		8-97584-199-1 01 1 1103- ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-3 01 1 1011-1102 ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1103- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1011-1102 ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1103- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1011-1102 ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1103- ● ●
146 REINFORCEMENT; ROOM LAMP
(B) 		8-98010-736-1 02 1 1103- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 02 1 1103- ●
146 REINFORCEMENT; ROOM LAMP
(A) 		8-98075-827-0 01 1 1011- ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1011-1102 ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1103- ● ●
